Kraftstoff-/Wasserstandssensor für Auto und Boot, 0-190 Ohm/240-33 Ohm, für Kraftstoffstandsmesser, Marine-Wasserstandsanzeige, Sensoreinheit für 9-32V

Produktbeschreibung

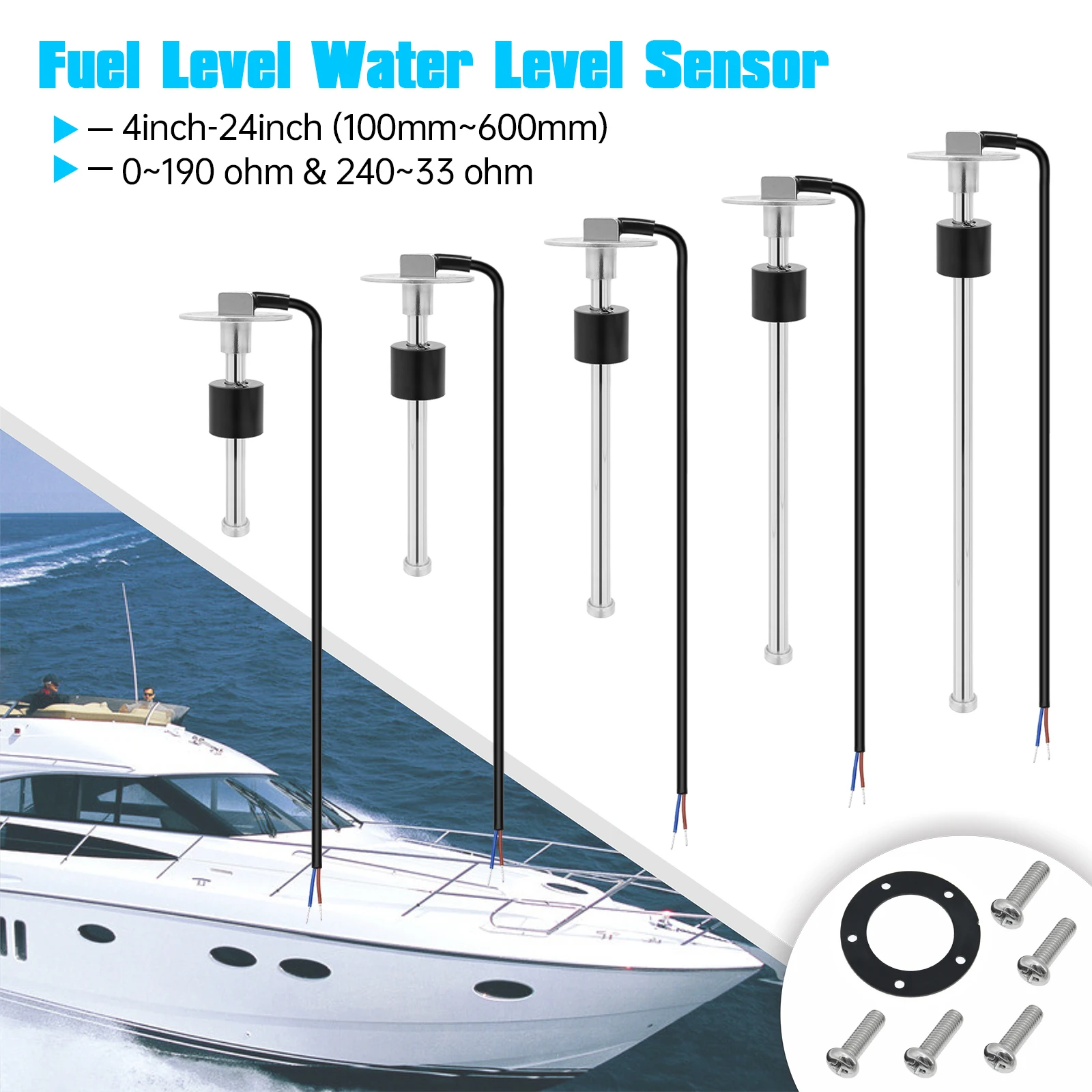

Car Boat Fuel/Water Level Sensor For 0-190ohm/240-33ohm Fuel Level Meters Marine Water Level gauge Sensor Sender Unit For 9-32V
Specifications
Protection ank: IP67
Resolution range: 21 mm
Assembly: SAE standard 5 holes
Rated current for alarm switch: 500mA
Operating temperatures: - 40 to 85 Celsius
Fit for Fuel Level Gauge and Water Level Gauge
Mounting: 5 pieces of M5 screws and 2 mm thick gasket
Output signal: 0~190 ohm (Standard European)
Level Sensor Support: Fuel Level Gauge and Water Level Gauge
Attention:0~190 ohm sensors can only be applied to 0~190 ohm fuel gauge.
240~33 ohm sensors can only be applied to 240~33 ohm fuel gauge.
Package Include
1 x Sensor
1 x Gasket
5 x Screws
Attention
Empty oil level: 0 ohm / 240 ohm
Full oil level: 190 ohm / 33 ohm

Produktdetails in Bildern

Produkteigenschaften

Markenname

ZMFJH

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

andere Teilenummer

5 Holes Fuel Sensor

Platzierung am Fahrzeug

Front

Artikellänge

Mini Digital Fuel Meter Motorcycle Gauge

Material

Stainless Steel Fuel Level Sensor

Besondere Merkmale

Waterproof

Artikelbreite

Fuel / Water Level Sensor

Land/Region der Herstellung

China

Artikelhöhe

0-190ohm/240-33ohm Fuel Level Meter

Teilenummer austauschen

Water Level Gauge

Artikelgewicht

0.3kg

Teilenummer des Herstellers

Stainless Steel

Item Name

Fuel /Water Level Sensor

Auto Digital Fuel Level Gauge

fit Fuel Level Meter

Output Signal

0~190 ohm/240~33 ohm

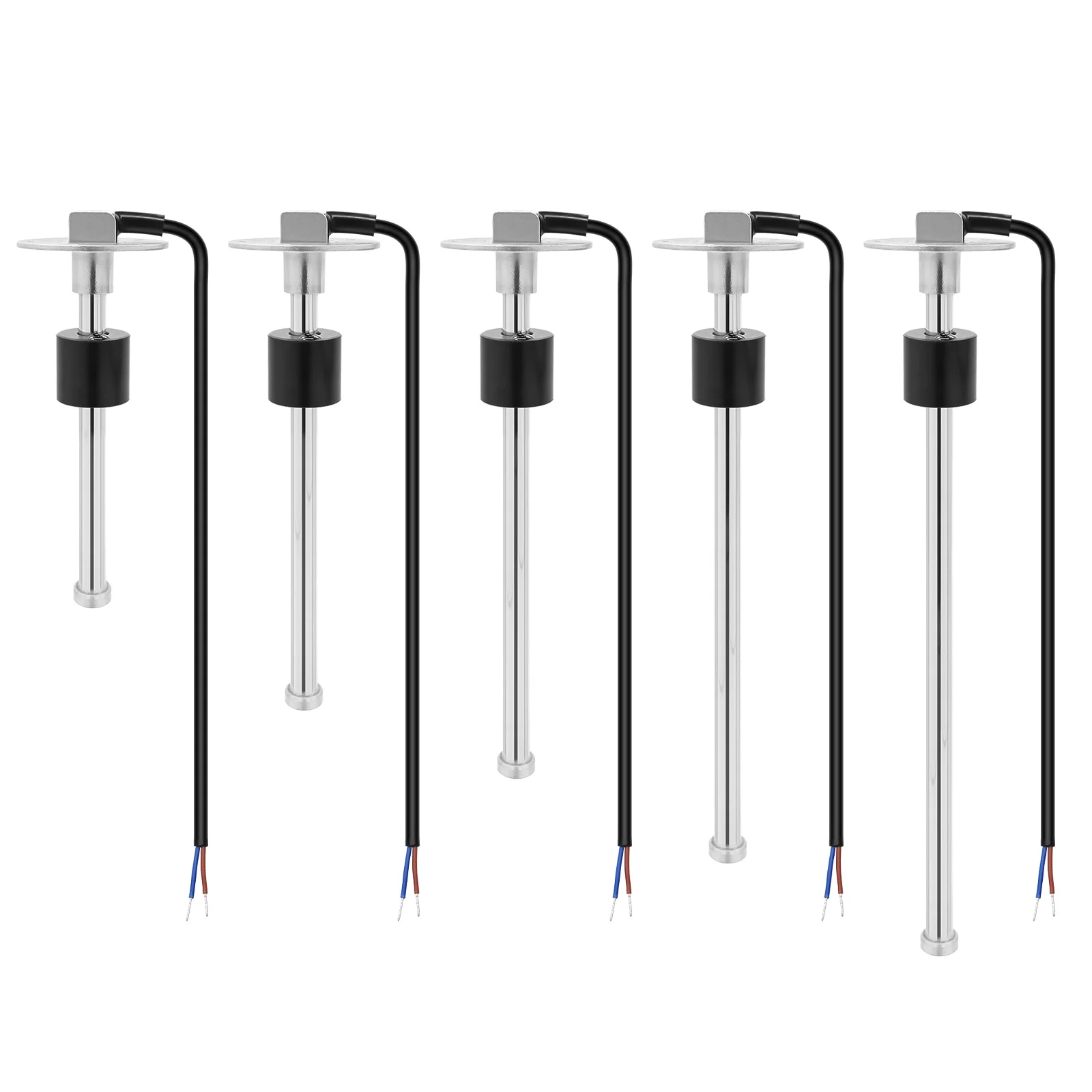

Fuel Guage Sensor Length Range

550mm,500mm, 450mm,400mm,350mm,300 mm,250mm,200 mm,150mm

Assembly

SAE Standard 5 Holes

Fuel Sending Unit Float switch

Fuel Level Gauge Sensor

Sensor Support

Fuel Level Gauge / Water Level Gauge

ater Liquid Mete

Car Boat Water Tank Level Gauge

Fuel Sending Unit

fit for Water Level Gauge Fuel level gauge

fuel sensor

fuel level sensors

Choice

yes

semi_Choice

yes
