0,75 kW/1,5 kW/2,2 kW 1/2/3 PS 380 V VFD Wirtschaftlicher Frequenzumrichter Konverter Motorgeschwindigkeit Vektorsteuerung Kleiner Wechselrichter

Produktbeschreibung

"CONTROL YOUR MOTOR SPEED"
Our frequency inverters are used to control three phase asynchronous motors speed.
And they are appropriate for kinds of motors, like fans, conveyors, engraving machines.
The frequency inverters (VFD) are not for single phase 220V motor with capacitor. It is for three phase 380v motors (or 220v motors by 220v VFD), which are asynchronous.
The frequency inverters (VFD) can not be used as power supply for common electrical equipments.
Product Introduction
Function advantages

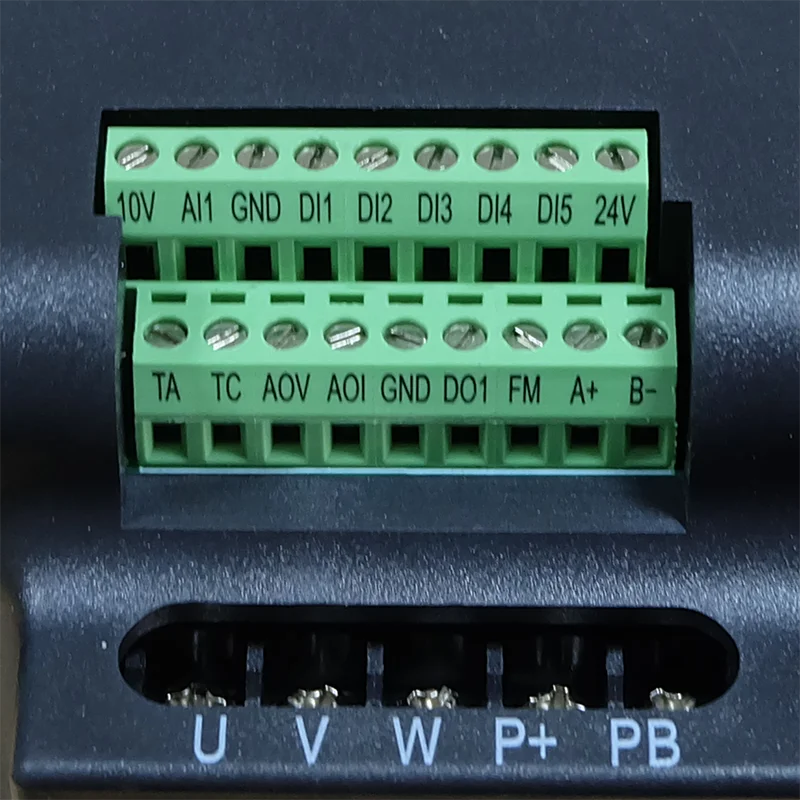

1. Forward, reverse, start and stop controlled by panel or external terminals.
2. Adjust speed by panel potentiometer or external potentiometer.
3. Built-in brake unit (for connecting brake resistance).
4. PID function(Constant pressure water supply).
5. Multi-stage run.
6. RS485 communication protocol by PLC.
7. Vector control, low frequency high torque.
8. Optional external control panel(not included in the package).
9. Overload protection.
Sizes
Specifications
Rated power: 0.75kw/1.5kw/2.2kw
Rated output current: 2.1A(for 0.75kw)/3.8A(for 1.5kw)/5.1A(for 2.2kw)

Produktdetails in Bildern

Produkteigenschaften

Markenname

LANDRIVE

Hochbetriebenes Chemikalienunternehmen

Keine

Typ

AC 3 phase/AC 3 phase

Ursprung

CN (Herkunft)

Größe

145x110x85MM

Ausgangsfrequenz

0-500HZ

Ausgabetyp

dreifach

Ausgangsstrom

2.1A/3.8A/5.1A

Ausgangsleistung

0.75KW/1.5KW/2.2KW

Gewicht

1KG

Modellnummer

CW100

Zertifizierung

CE

Input Voltage

380V 3 phase

Output Voltage

380V 3 phase

Communication Protocol

RS485
