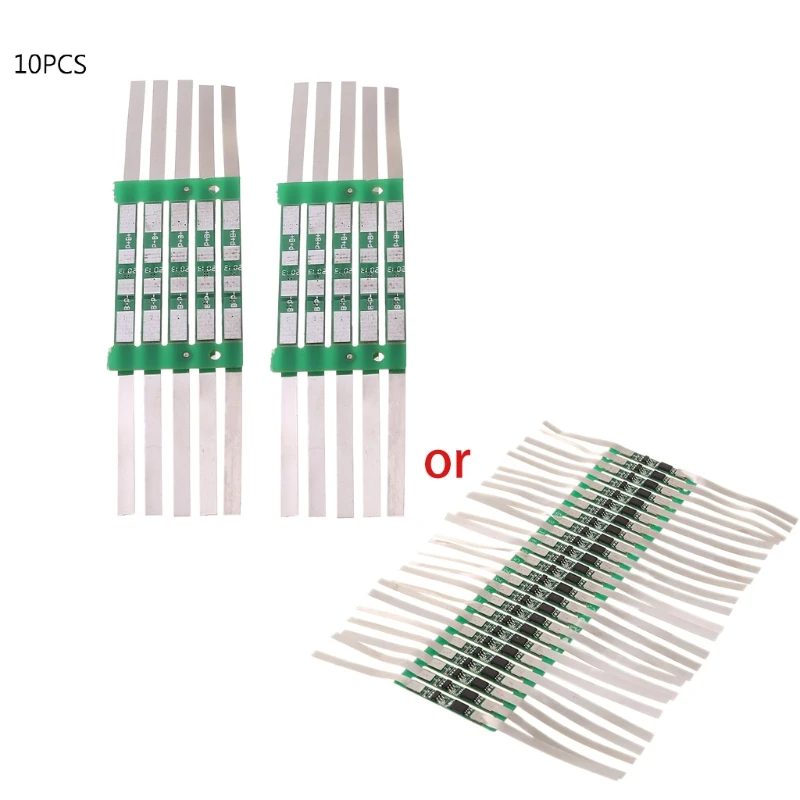

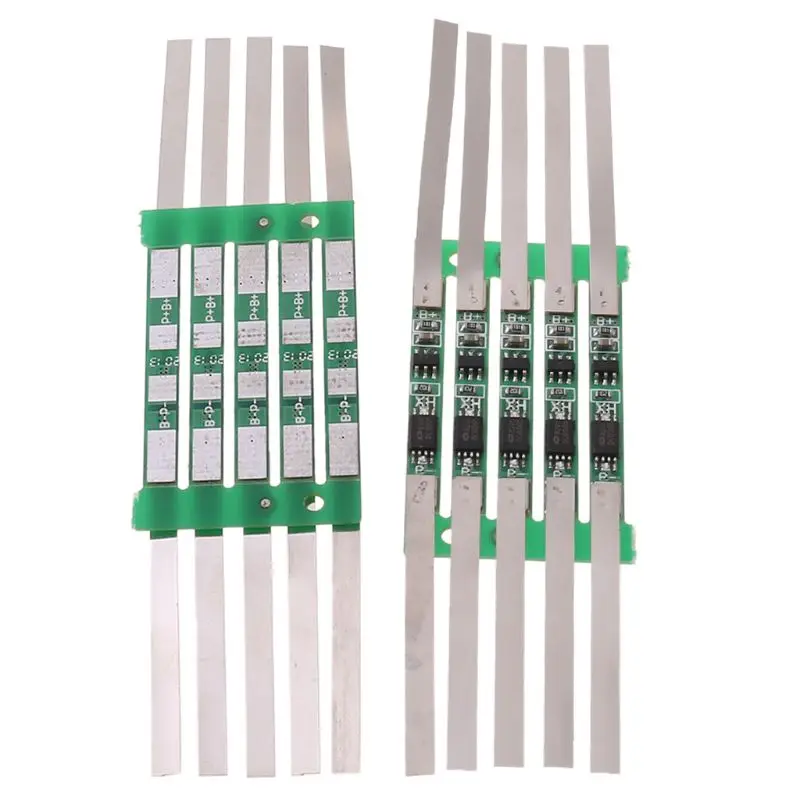

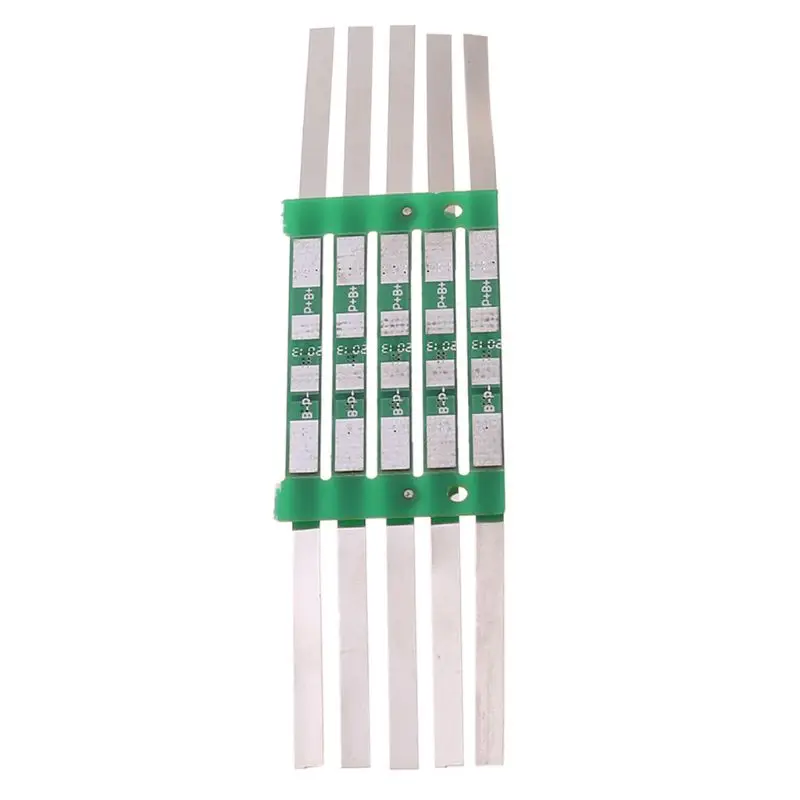

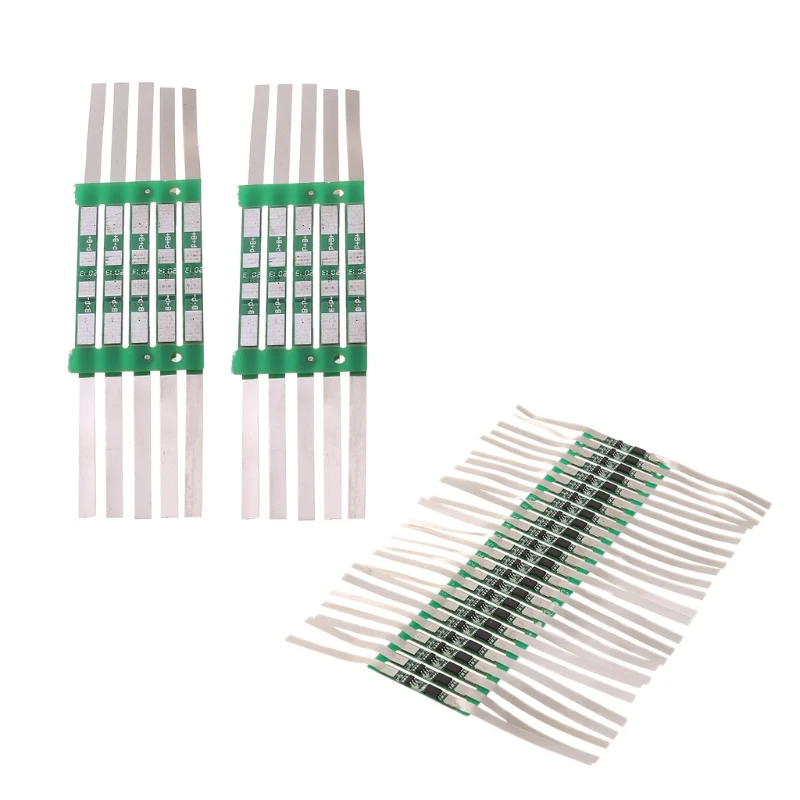

10 stücke/set 3,7 V 3A BMS Schutz Bord für 1S 18650 Lithium-Batterie Über Gebühr Schutzhülle Plat zelle Kit mit Solder Gürtel

Produktbeschreibung

brand new and high quality
Features
Made of high quality electronic components, it is solid, durable, good conductivity and good performance, long service life.
It can meet the performance requirements of many aspects, so as to ensure the absolute safety of the battery group.
With over charge protection, over discharge protection, short circuit protection and over current protection, it fits for various different shapes of lithium batteries.
With low current consumption, stable performance, it suits for many requirements of high integration and low cost.
Protection board only, other accessories demo in the picture is not included!
Product Parameters
Over charge testing voltage: 4.275±0.025V
Over charge recovery voltage: 4.075±0.025V
Over discharge testing range: 2.50±0.1V
Over discharge recovery voltage: 2.90±0.1V
Over current protection current: 2.8±0.3 A
Nominal discharge current: 2A
Short circuit protection time: Less than 50us
Working current consumption: Less than 6uA
Standby current consumption: Less than 0.1uA
Working internal resistance: Less than 50mΩ
Specification
Material: PCB, Electronic Components.

Produktdetails in Bildern

Produkteigenschaften

Markenname

NONE

Hochbetriebenes Chemikalienunternehmen

Keine

Ladegerät im Lieferumfang enthalten

n

Elektronisch

no

PC enthalten

Nein

Spannungsbereich

Keine Spannung

Wiederverwendbarkeit

Wiederverwendbar

Zubehörtyp

Batteriezubehör

Ursprung

CN (Herkunft)

Batterie im Lieferumfang enthalten

no

Modellnummer

LILIDONGHUA88

Zertifizierung

NONE

1S 18650 Lithium Battery

1S 18650 Lithium Battery

3.7V 3A BMS Protection Board

3.7V 3A BMS Protection Board

Over Charge Protective Plat

Over Charge Protective Plat

Material

Electronic Components + PCB

Weight

7g

Size

28x3mm/1.10x0.11inch

Package Includes

10x BMS for Protection Boards
