Terminal

SPS-Eingangsmodul, Klemmenblock, 4, 6 Wege/Kanäle, fotoelektrischer Näherungsschalter, NPN, PNP-Sensor, 3 Drähte, Umwandlung, Transferplatine

21,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Lieferung nach Deutschland
Lieferzeit: 8–15 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

1. Product Introduction
Product Name: Terminal Block for Proximity/Photoelectric Sensor Switches NPN/PNP

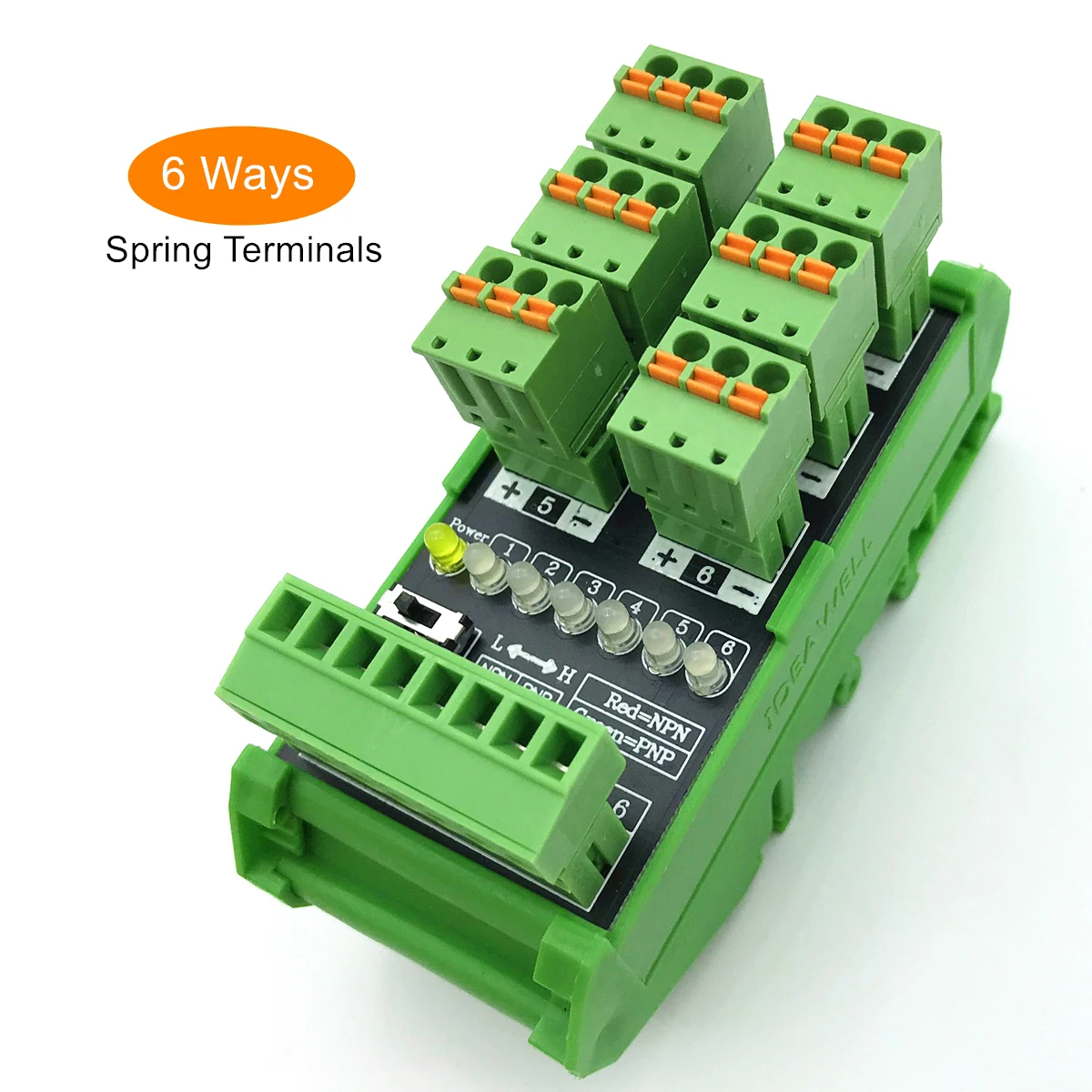

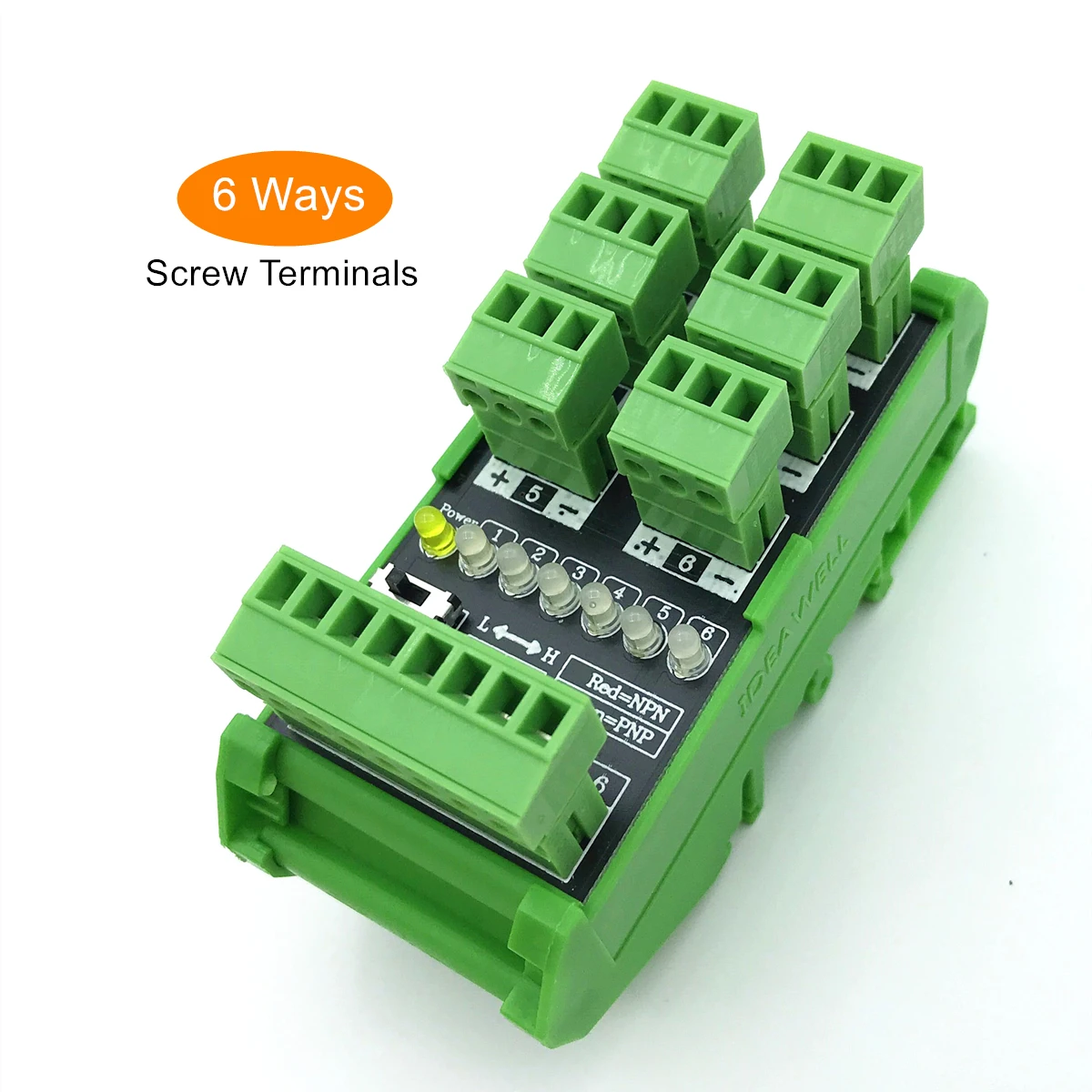

Number of Ways: 4 and 6 optional
e.g. 4-way means the block can accept up to 4 sensor switches.
Working Voltage: 5 ~ 24V DC
Rated Current: 250mA for each way. Total 1A.
(Rated current for routine sensors is 50 ~ 100mA).

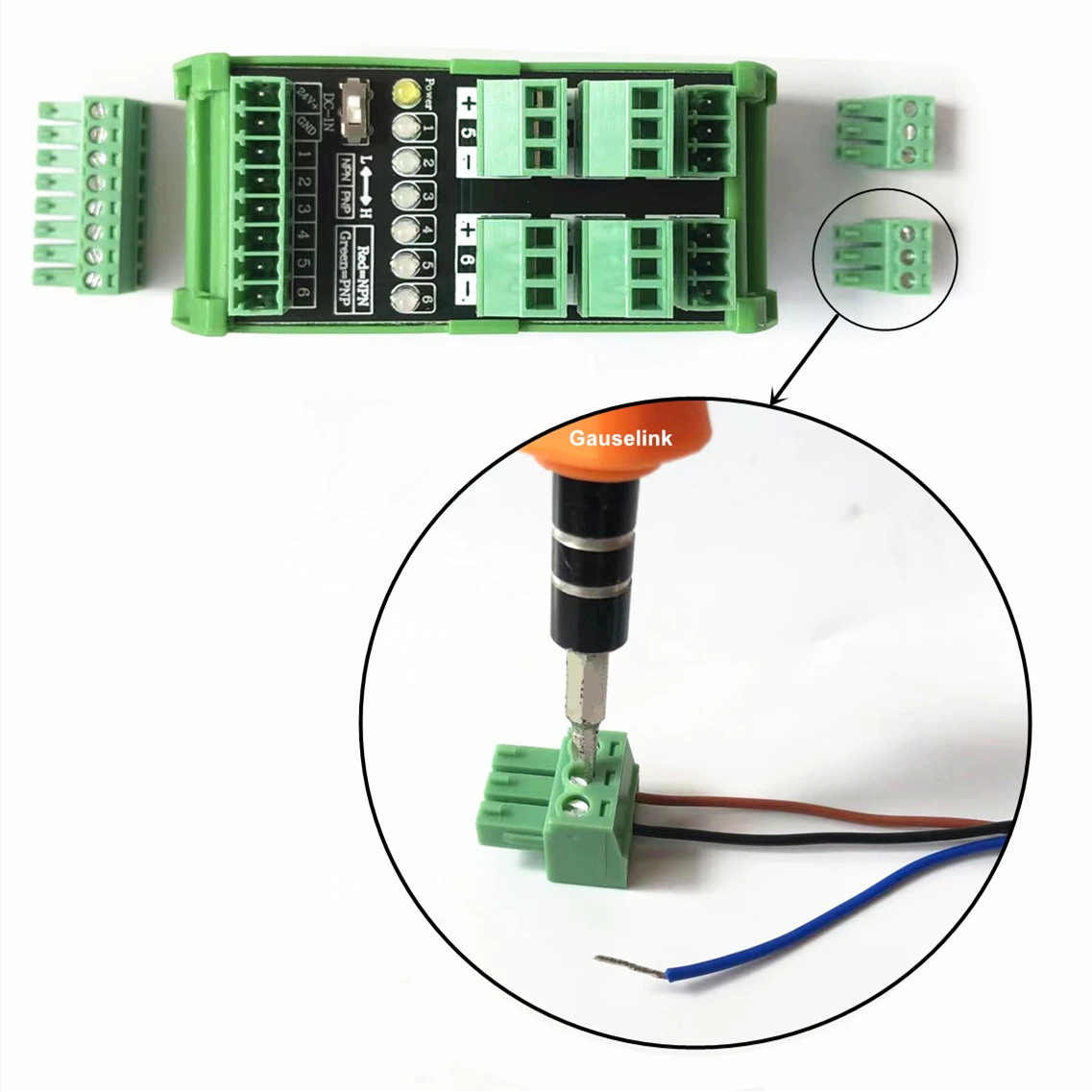

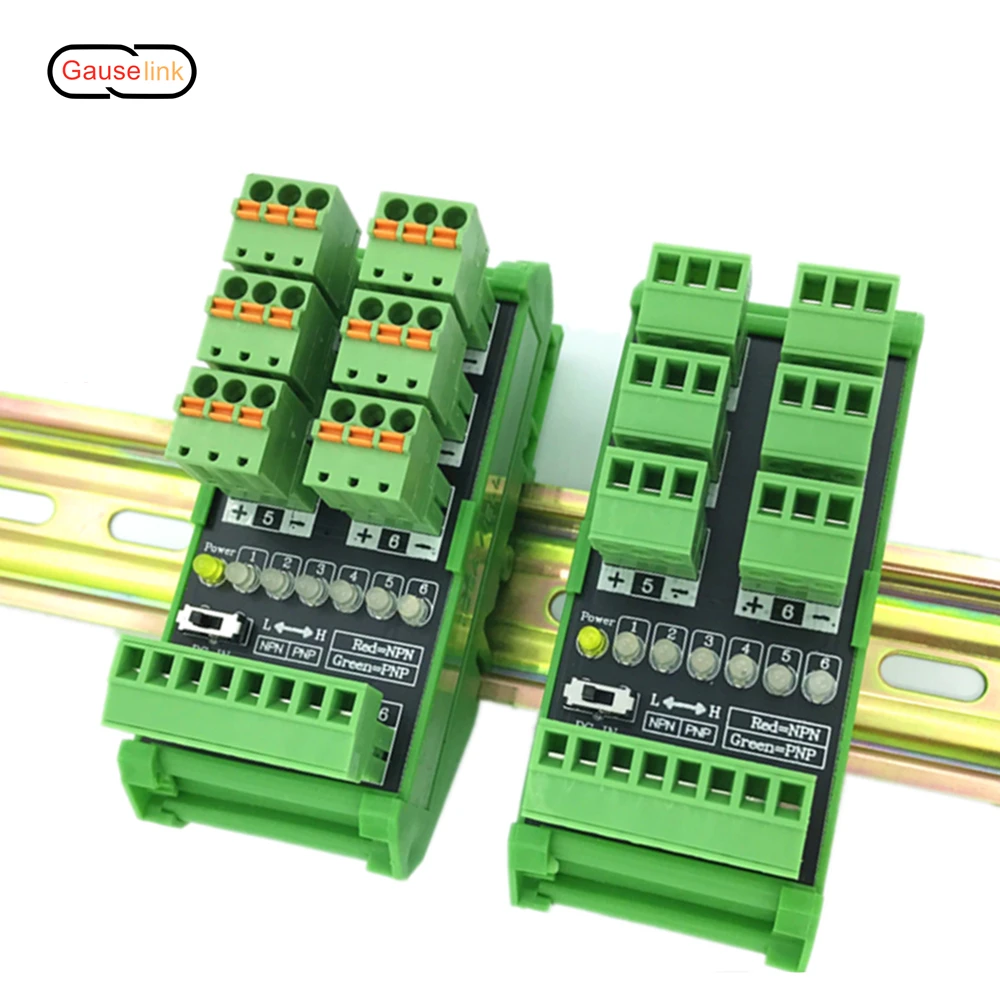

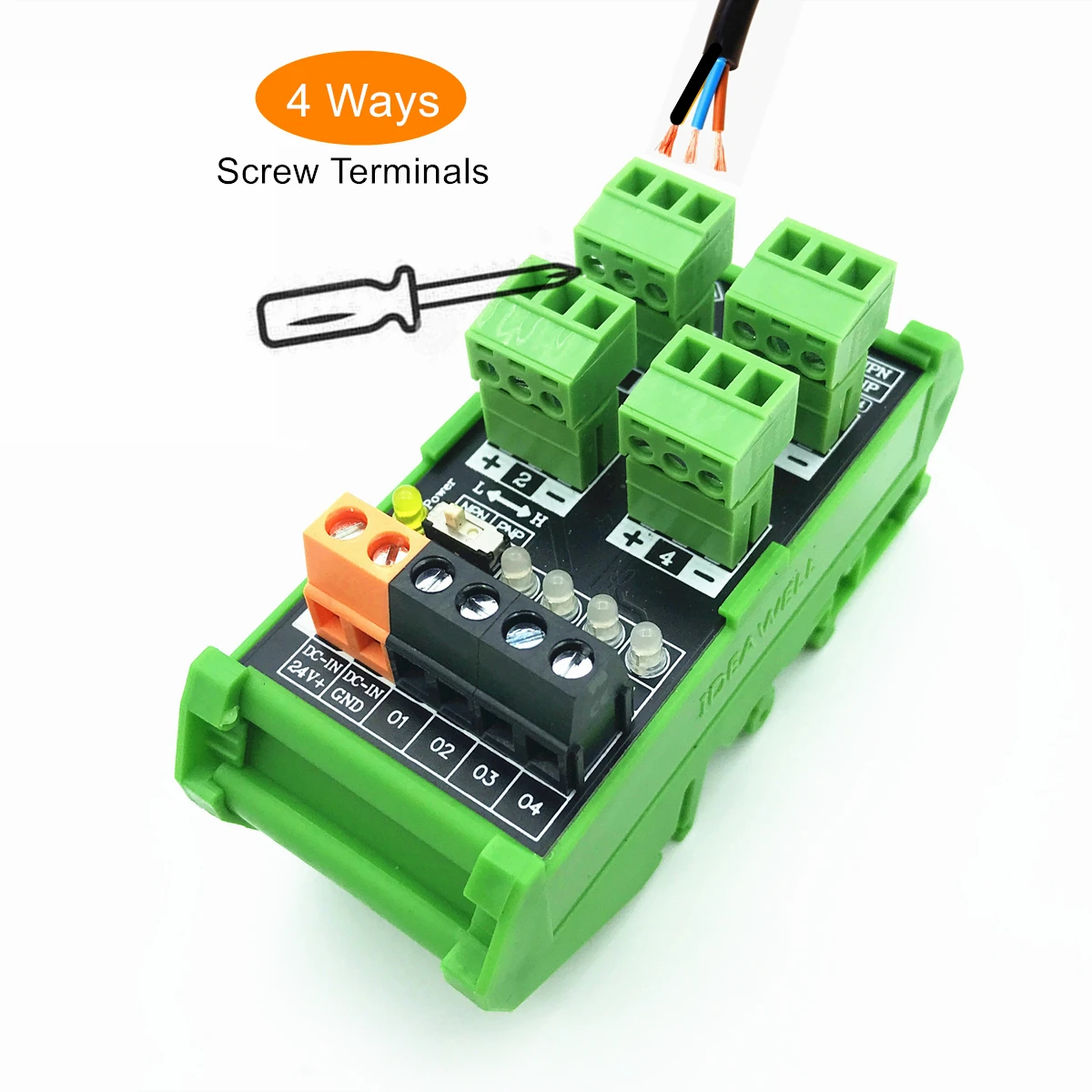

Methods of Terminal Fixation: Spring, Screw optional.
The spring method makes the connection between switches and terminal block easier and faster than screw method.
2. Attractive Features
2.1 Compatible with either NPN or PNP switches.

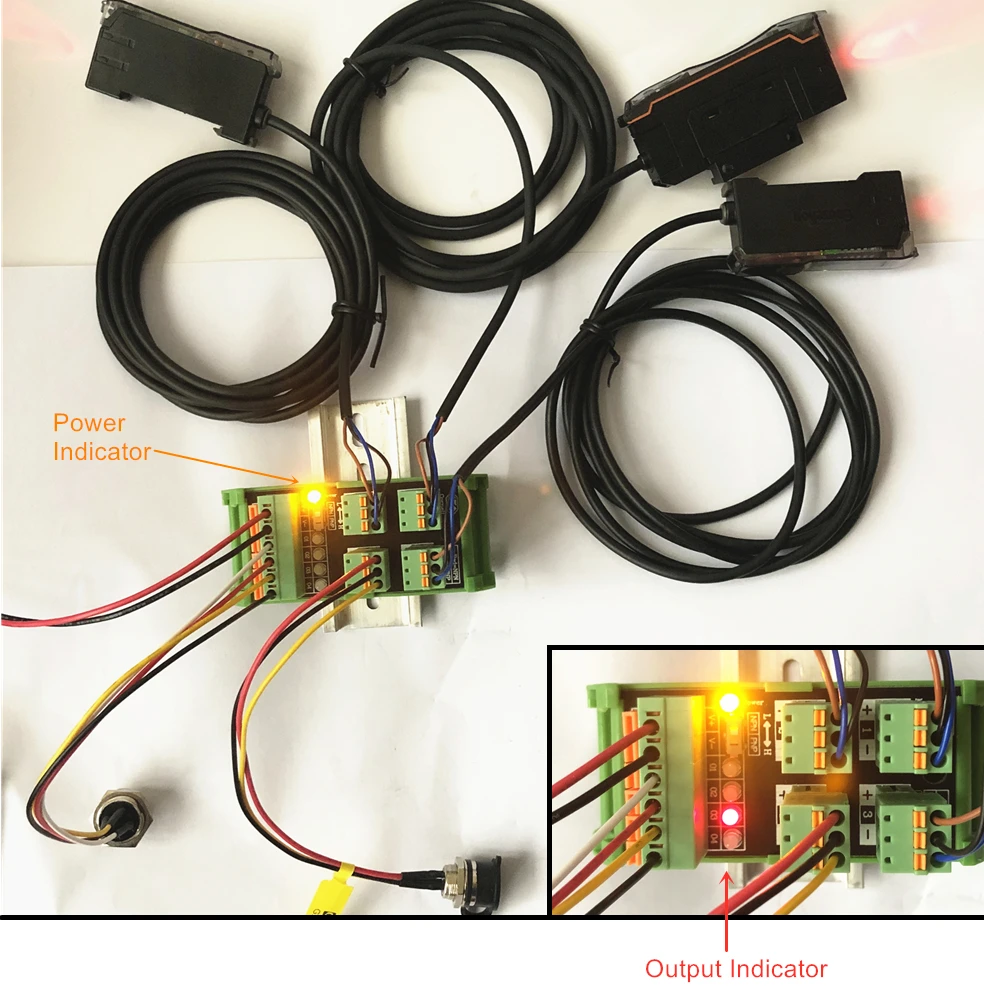

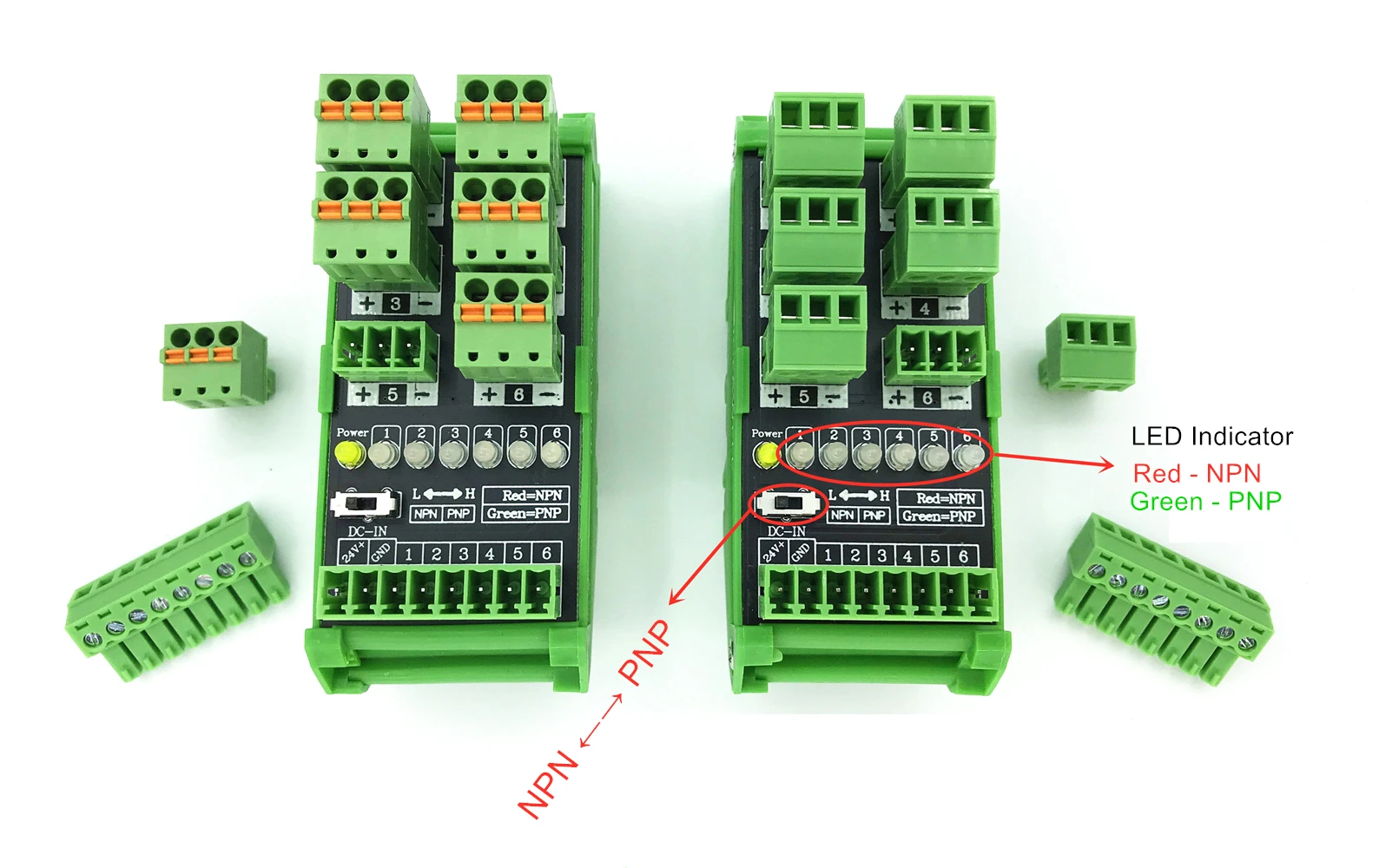

There is a switch on board that can change between NPN and PNP, indicated by an LED. Green LED indicates NPN and Red means PNP.
All the connected switches shall be in the same type: NPN or PNP.

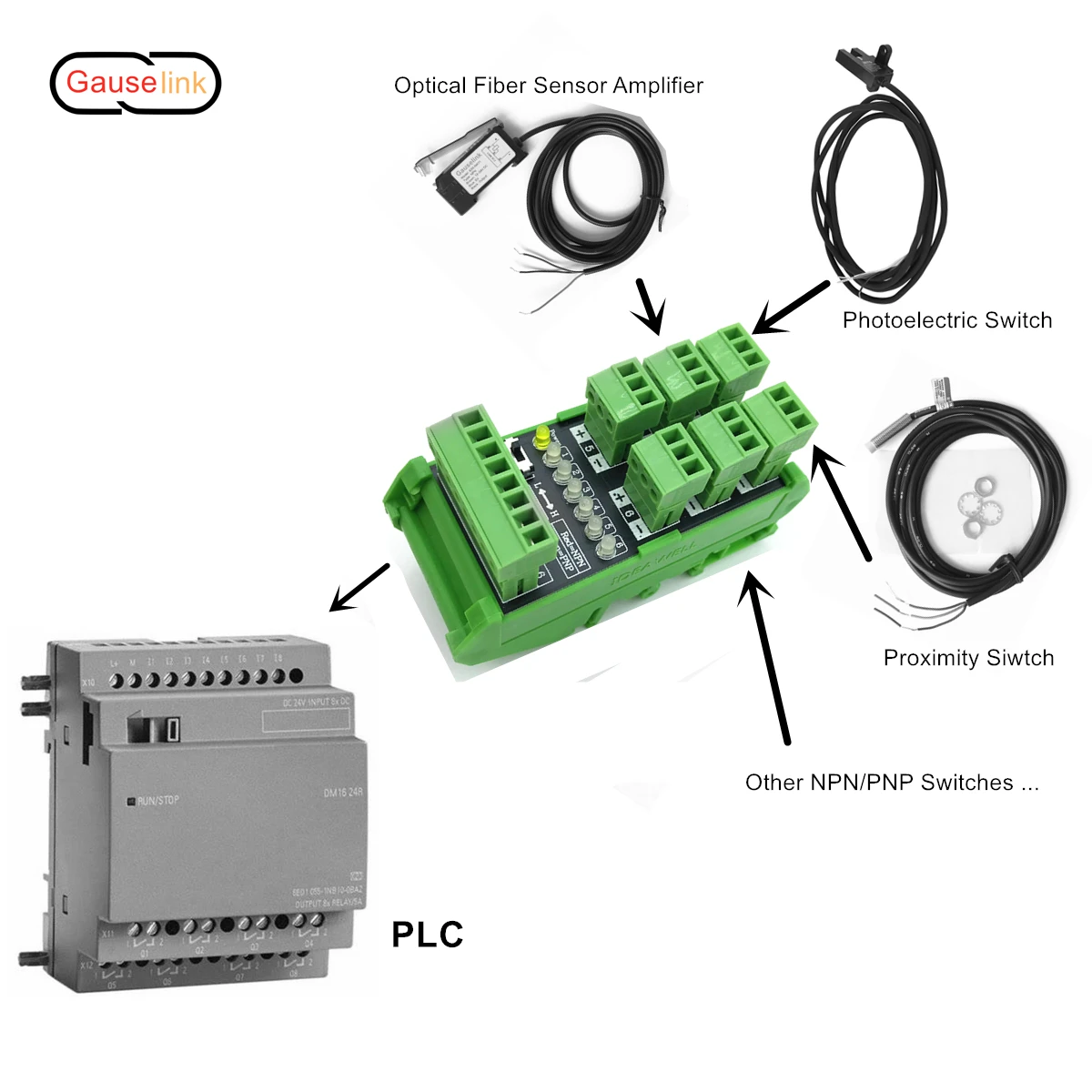

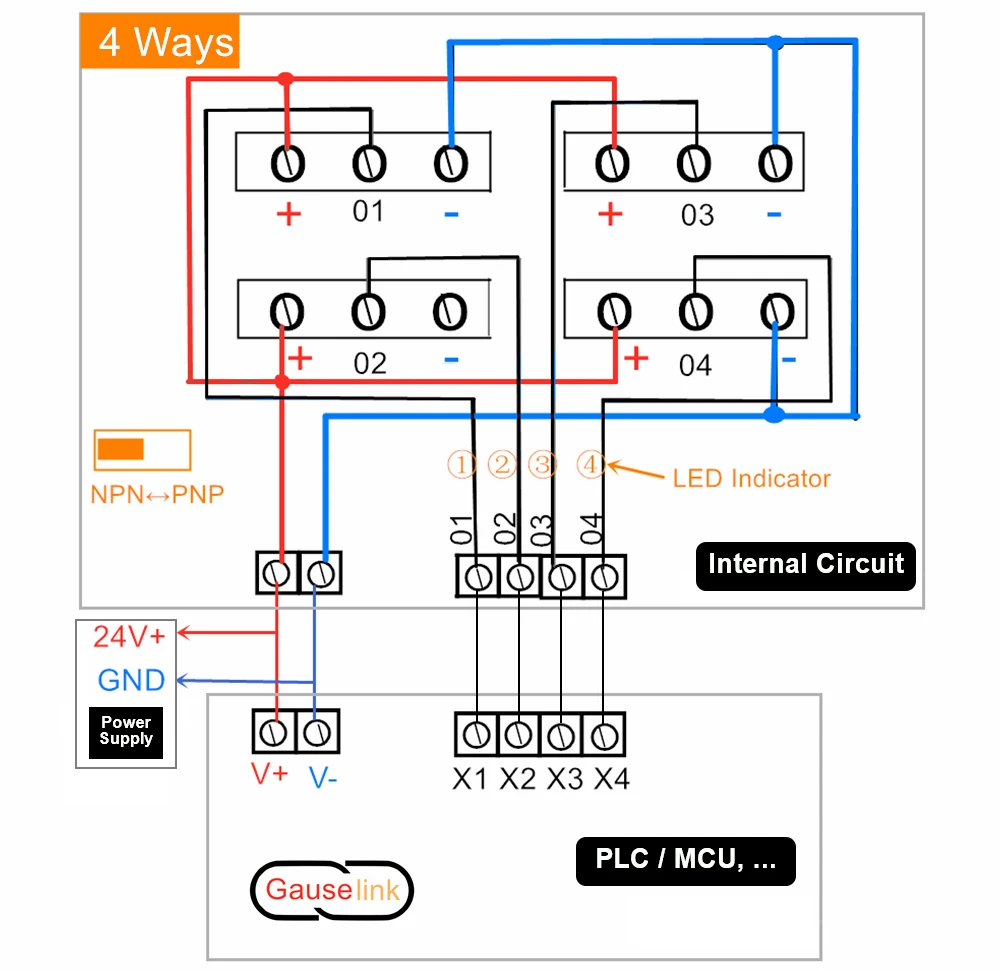

2.2 Simplify the connection between many switches and the PLC, Micro PC, etc.
Thanks to this terminal block, the wiring of many switches together won't be messy.

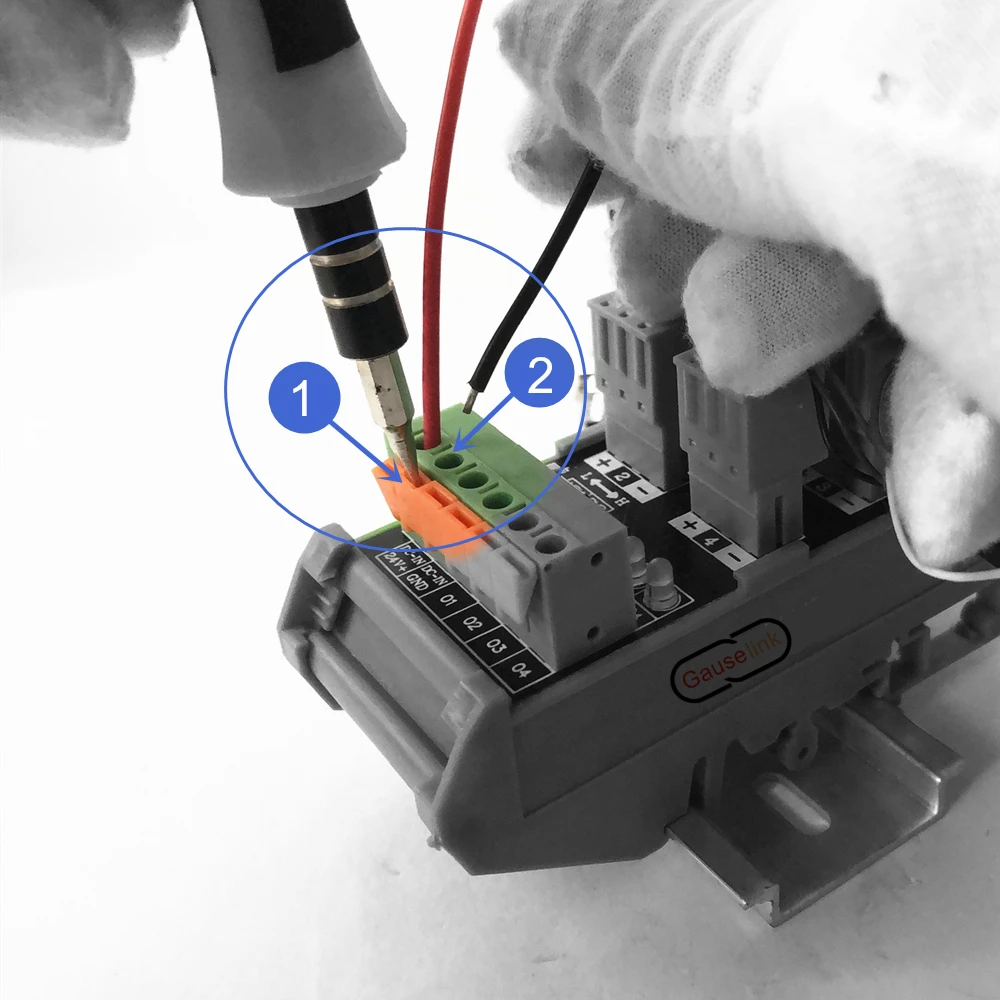

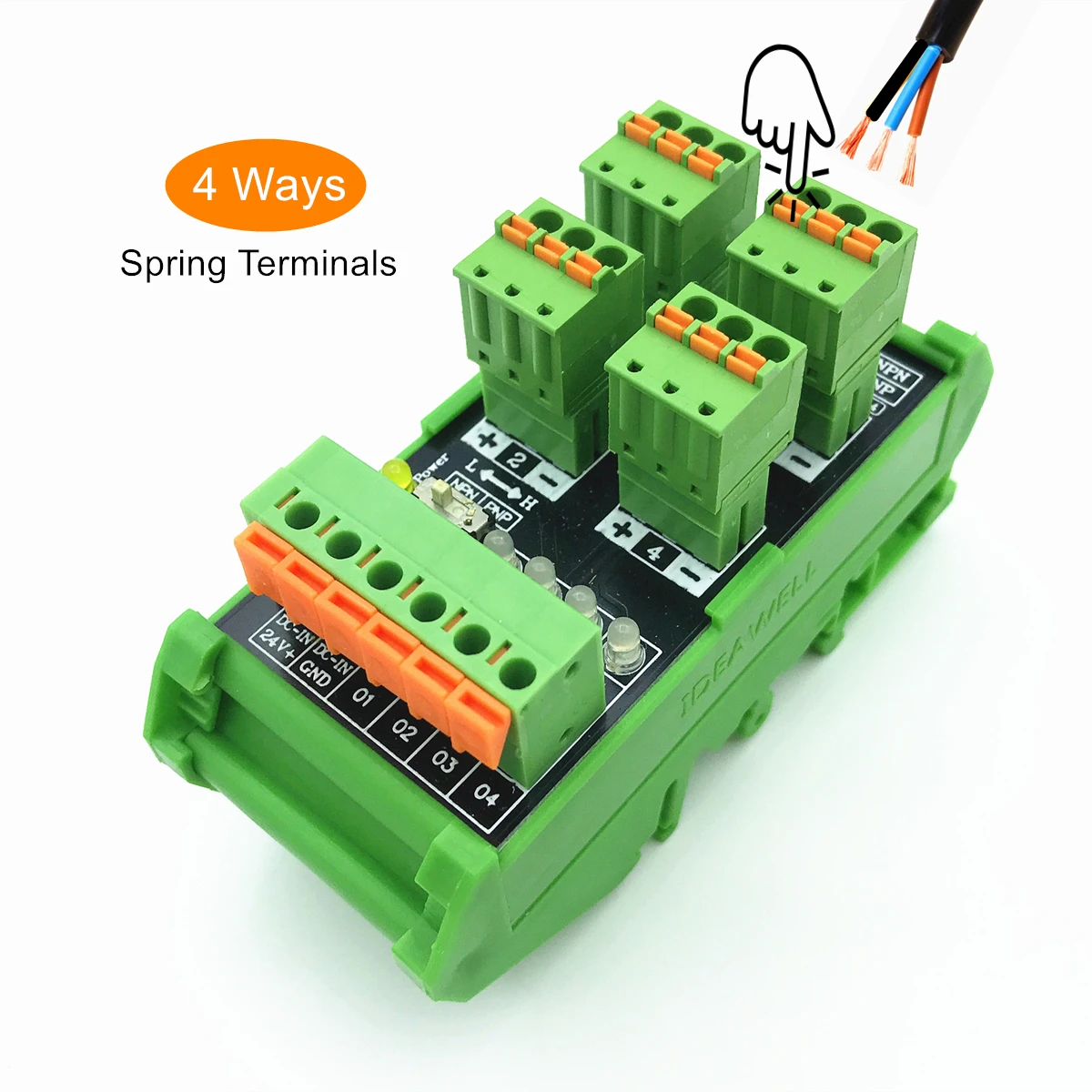

Wiring method for spring terminal type
See photo below
�� Press down the orange button
�� Thoroughly insert the terminal of wire into the hole. Release the orange button.

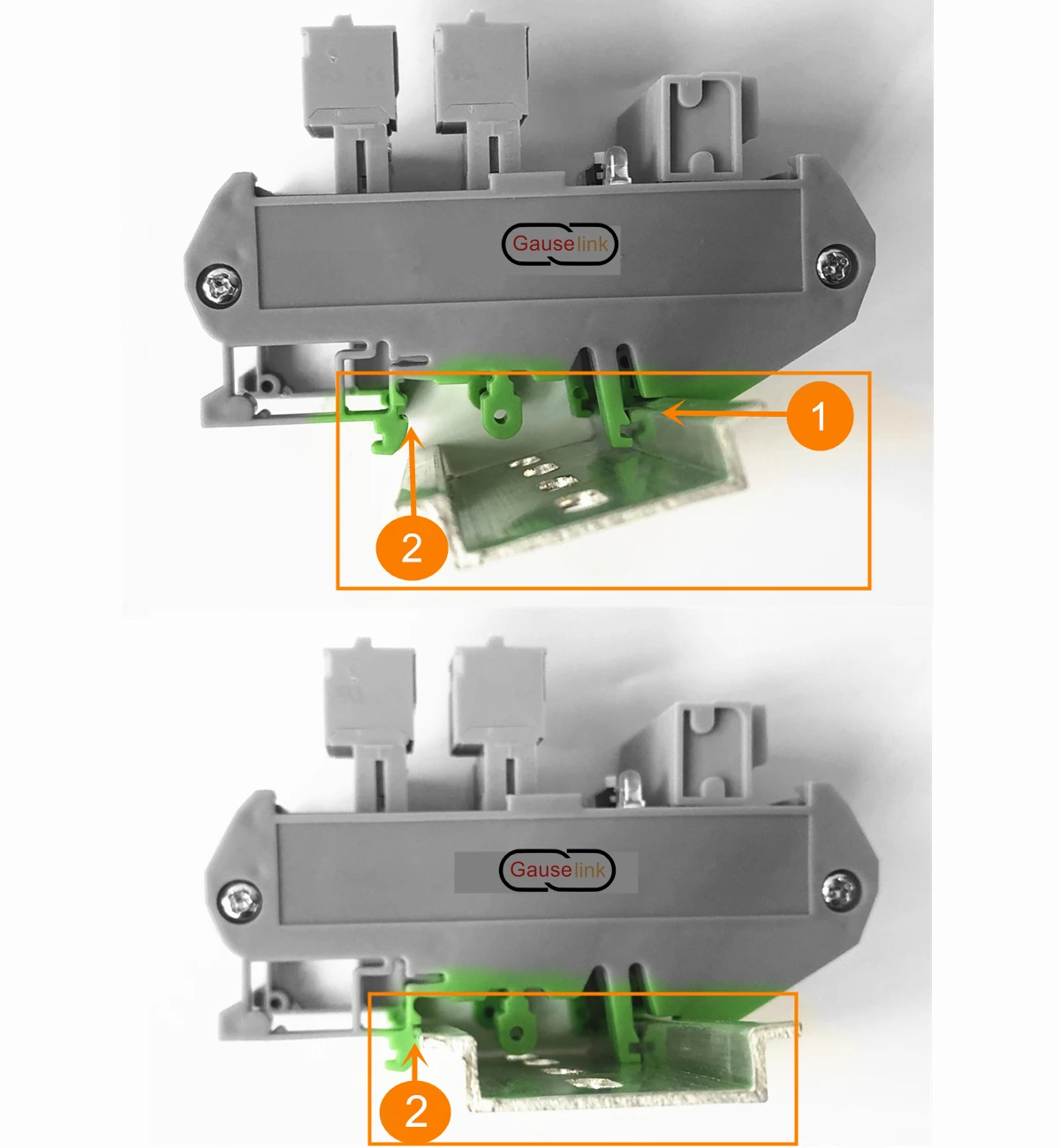

2.3 Easy Installation
