Yahboom 10-Achsen-ARHS-Sensormodul mit Beschleunigungsmesser, Gyroskop, Magnetometer, Luftdruckmessgerät für ROS, Roboter, RaspebrryPi Jetson

Produktbeschreibung

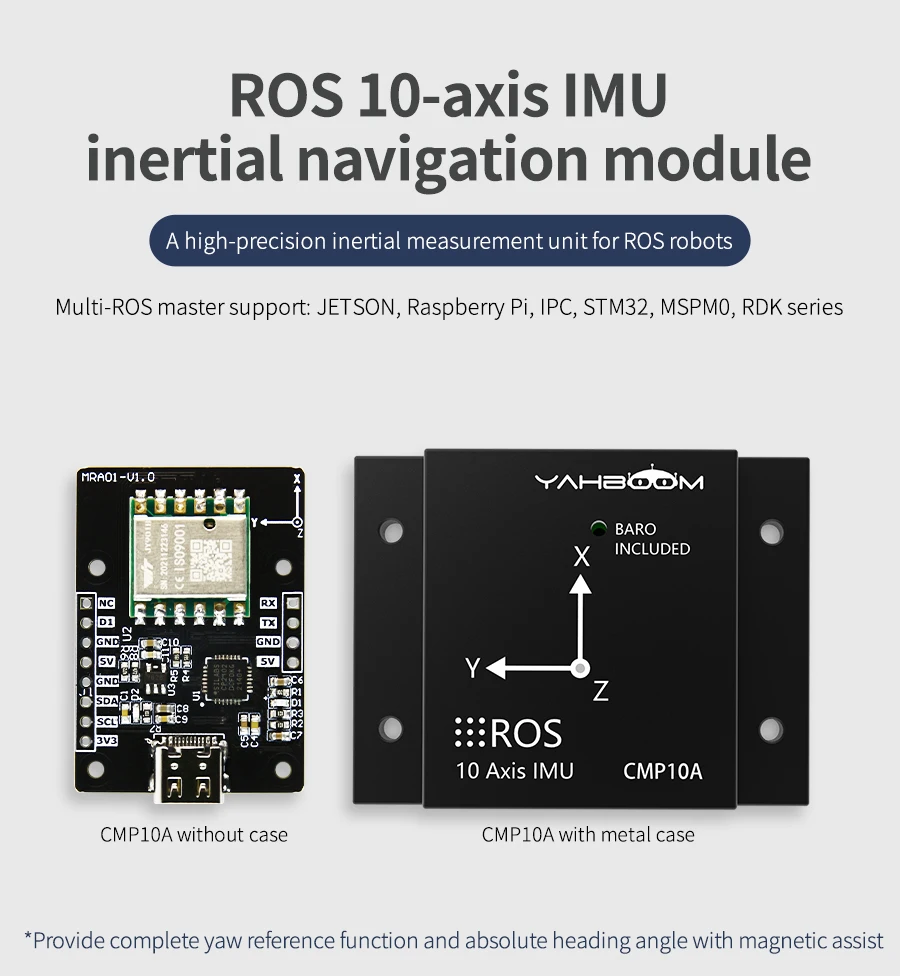

Yahboom 10 Axis ARHS Sensor Module with Accelerometer Gyroscope Magnetometer Air Pressure Gauge for ROS Robot Raspebrry Pi

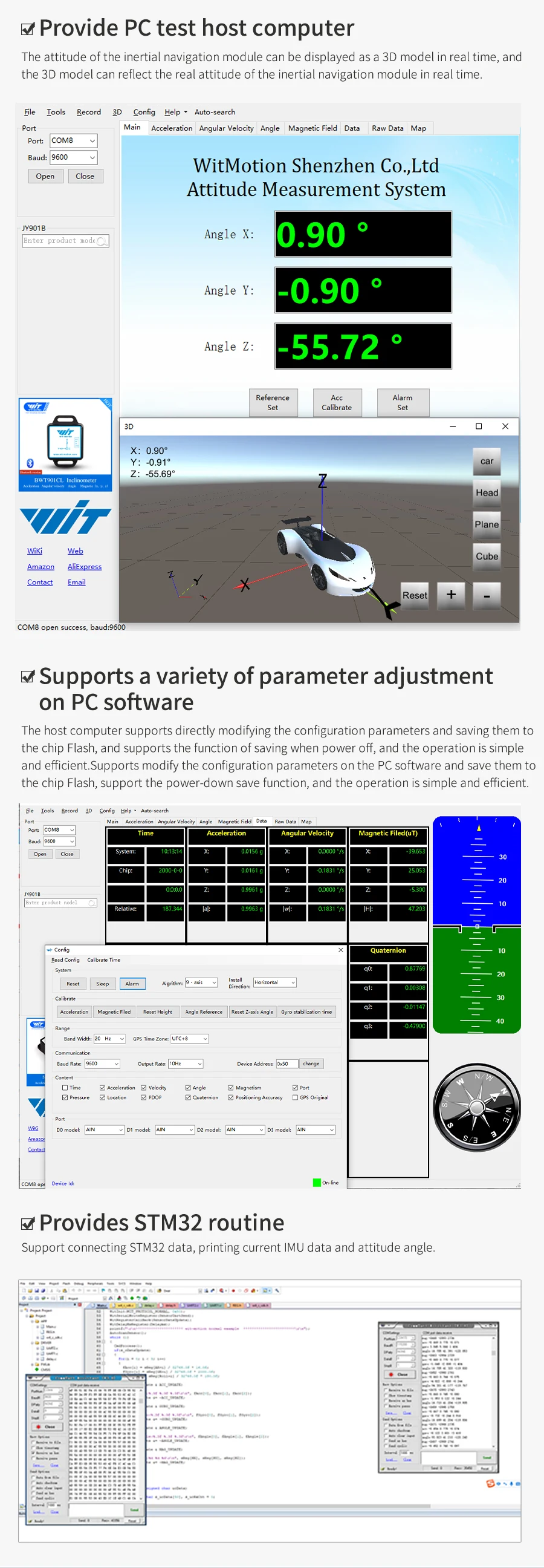

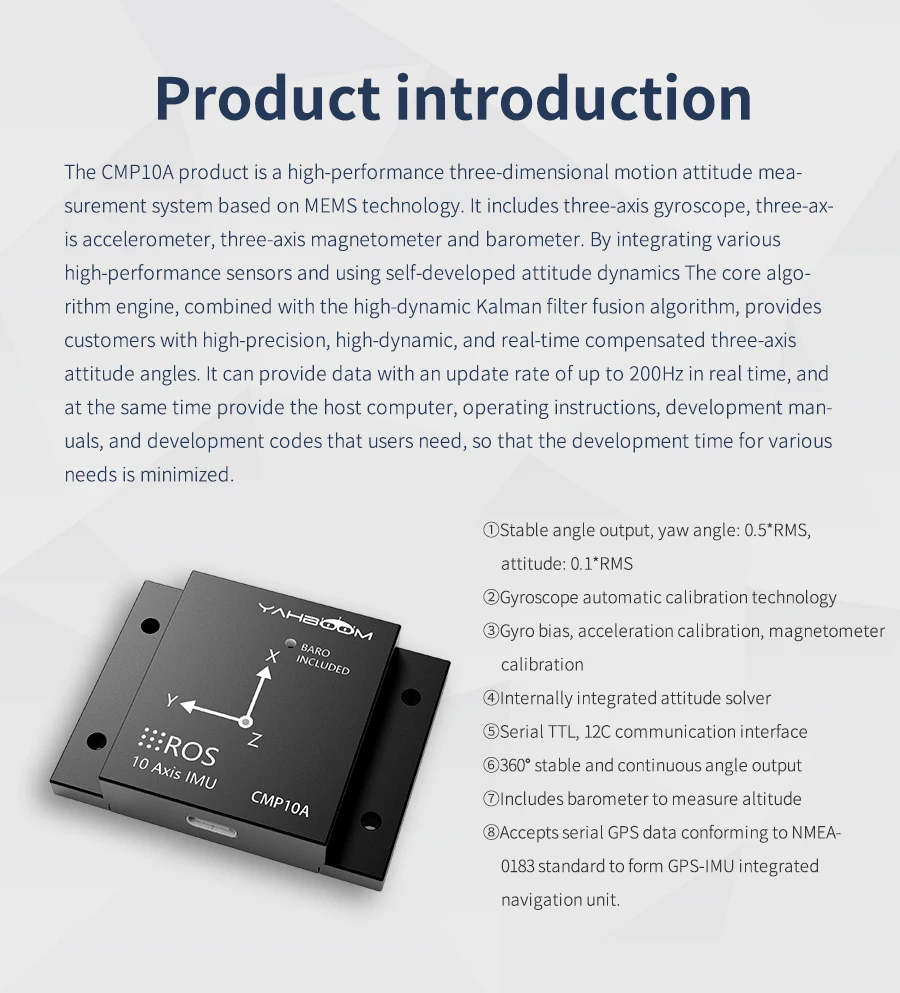

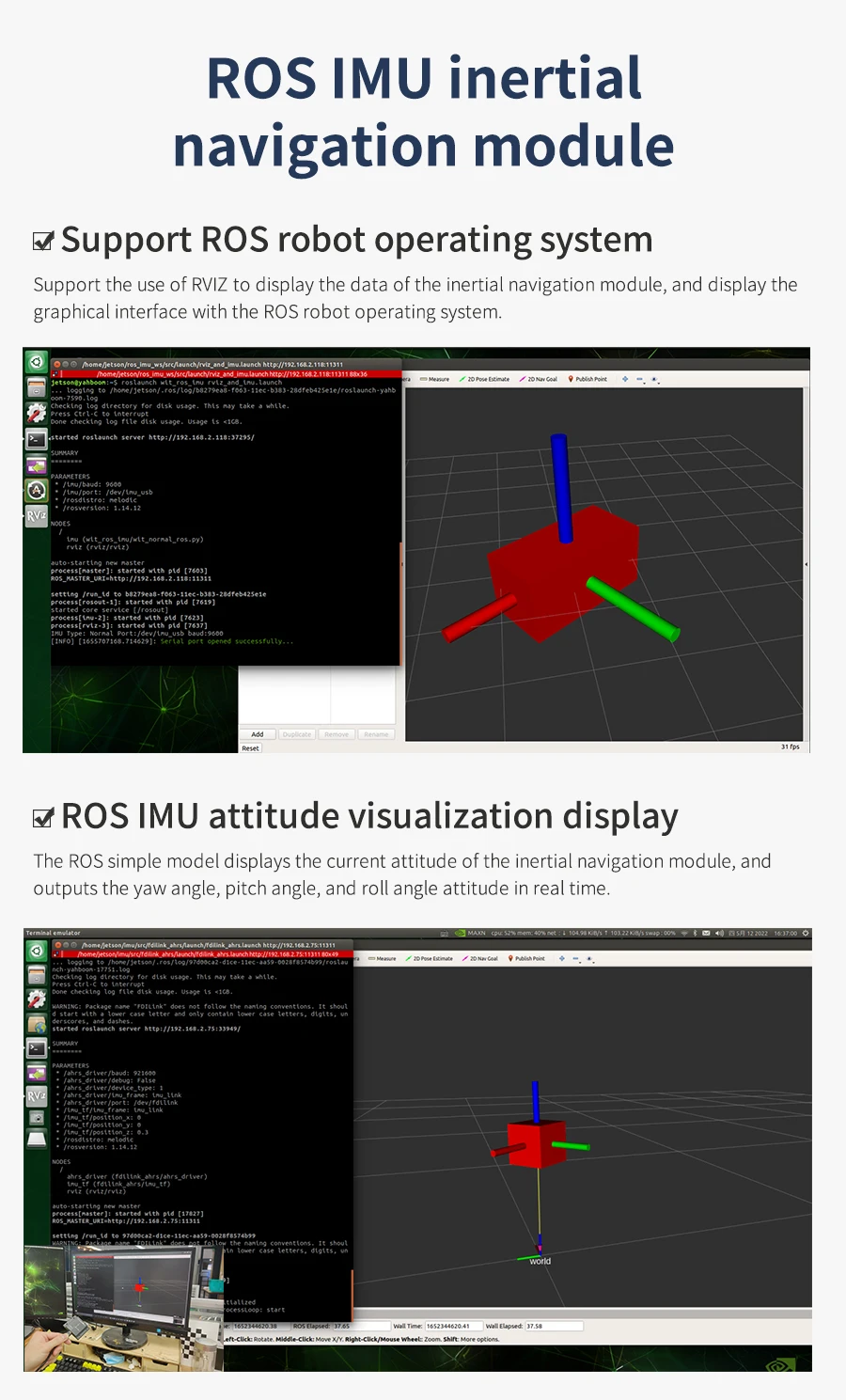

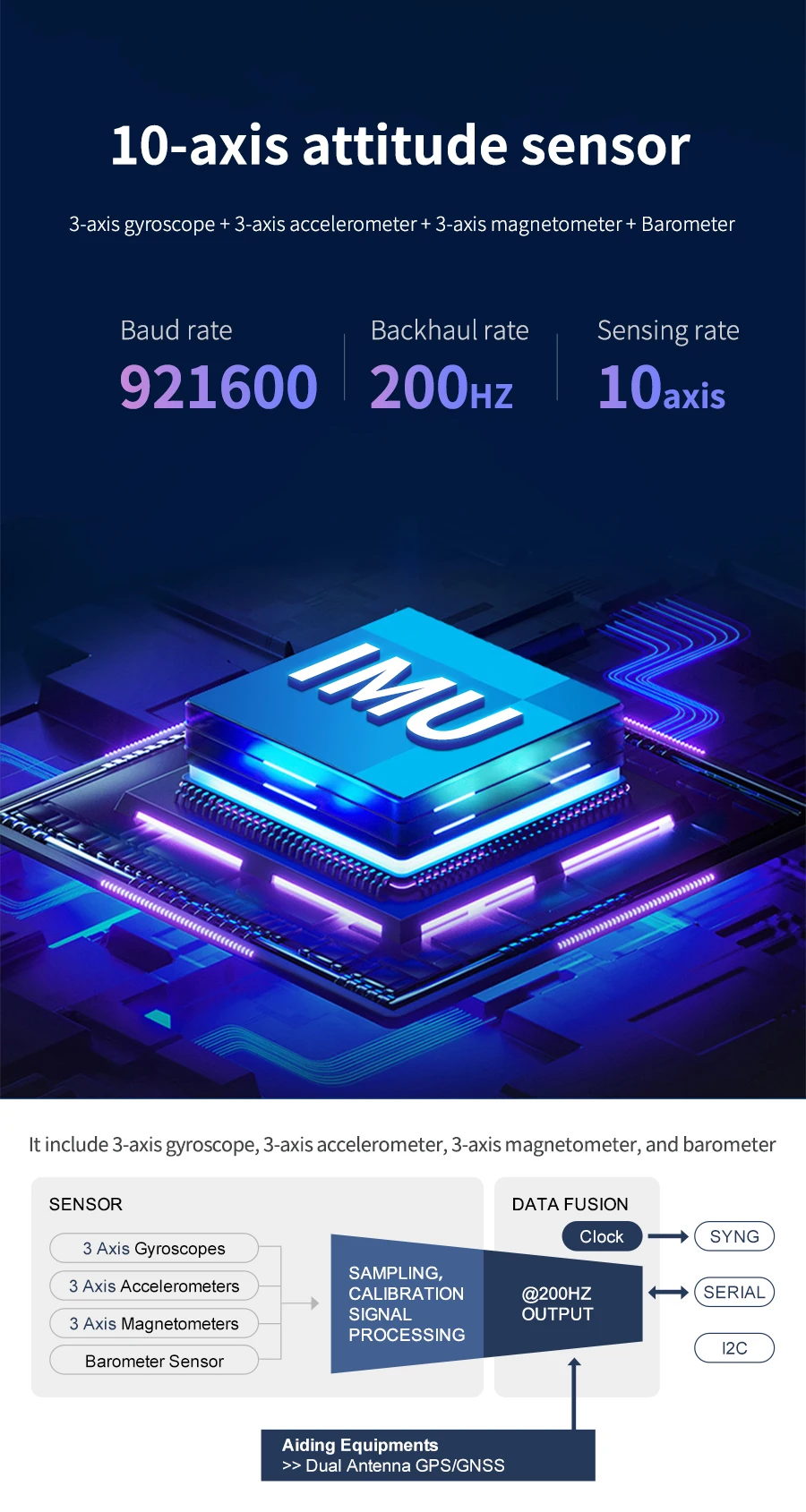

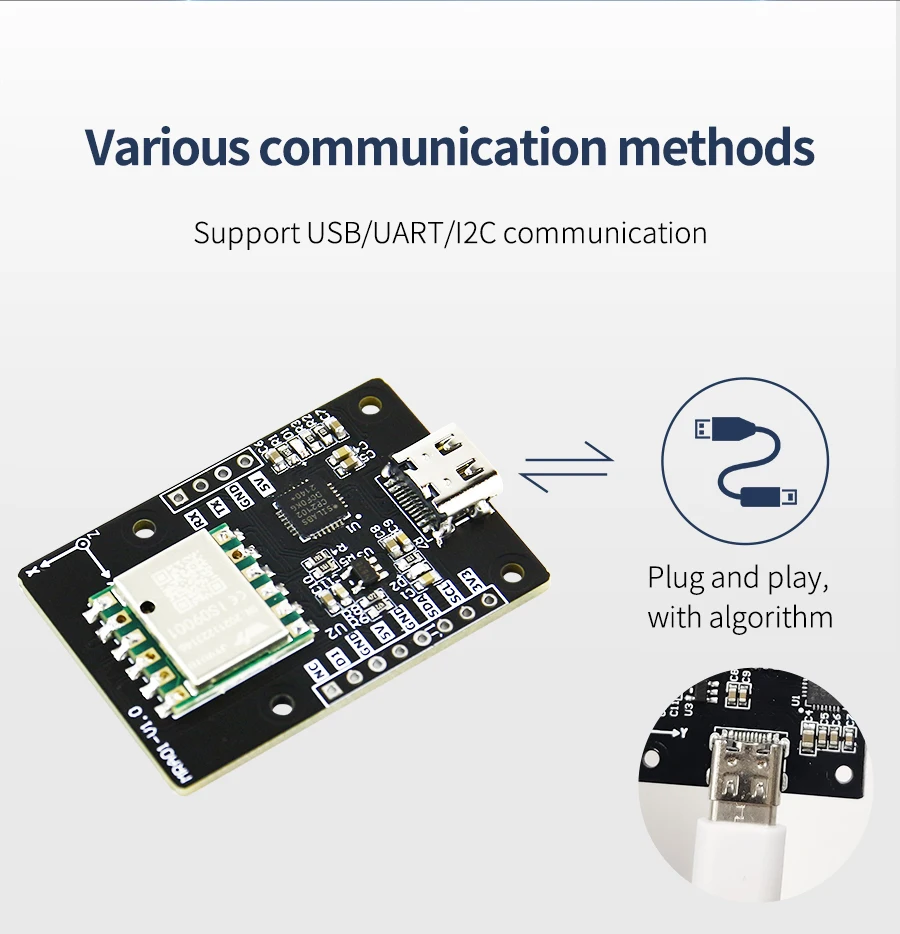

This is a high-precision inertial measurement module that integrates 3-axis gyroscope, 3-axis accelerometer, 3-axis magnetometer and a barometer. The baud rate is 921600, the return rate can reach 200Hz. Built-in algorithm can stably acquire and output data such as magnetic field vector, acceleration, gyroscope, and quaternion. It supports USB/UART/I2C communication methods, which can be applied to many different occasions. We provide PC software, which allows users to adjust the parameters of the module in real time, and reflect the real attitude of the inertial navigation module in real time through the 3D model.

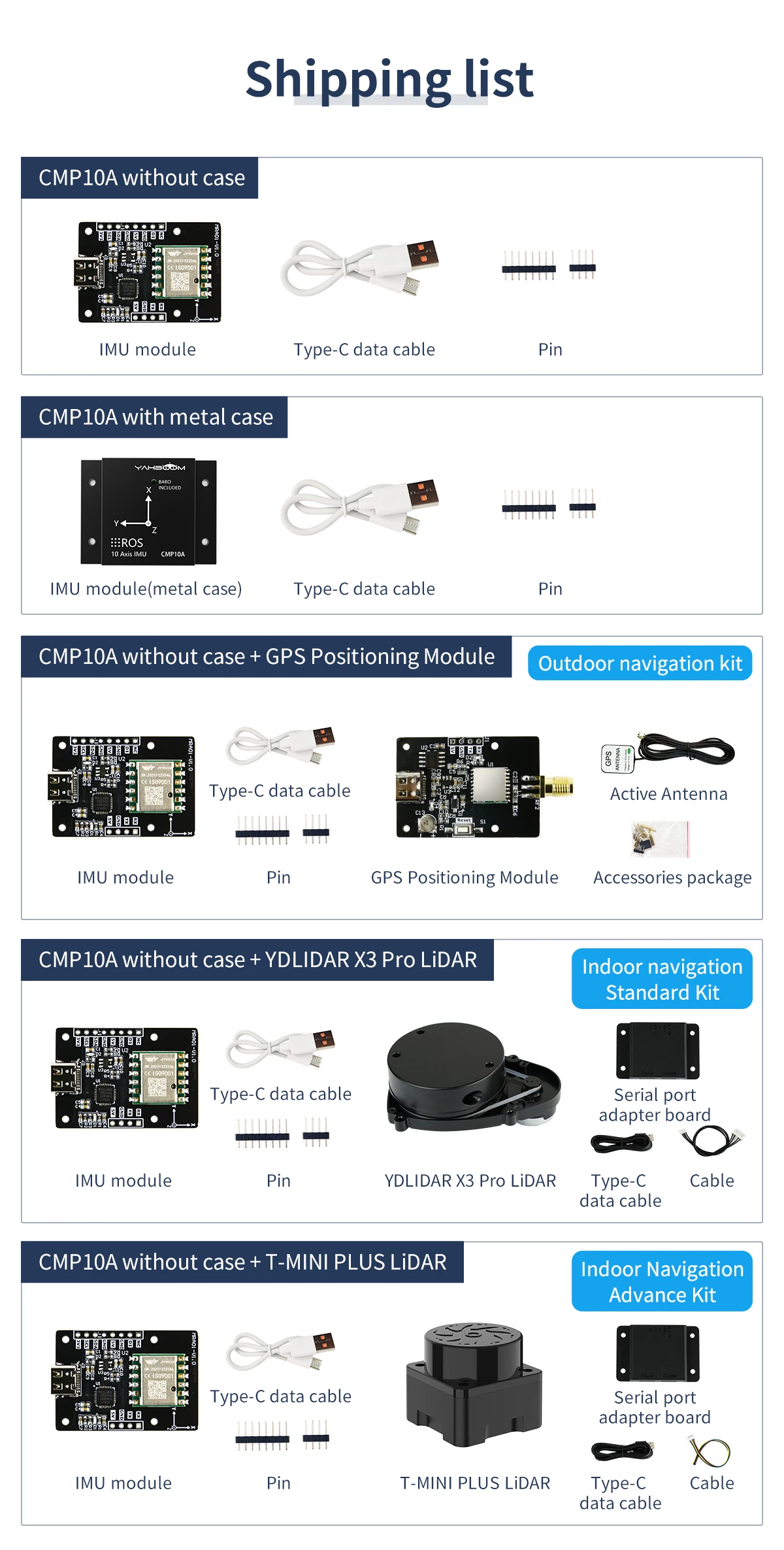

Shipping list

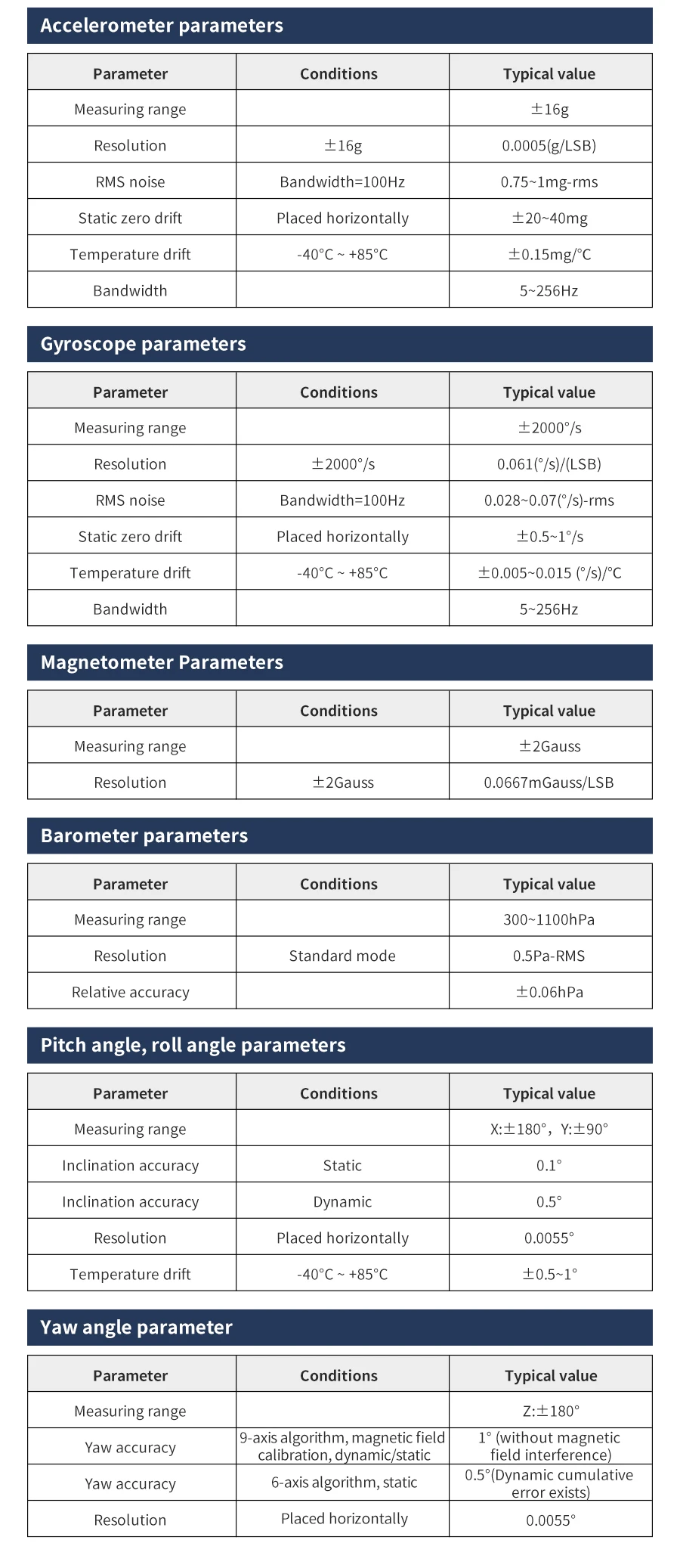

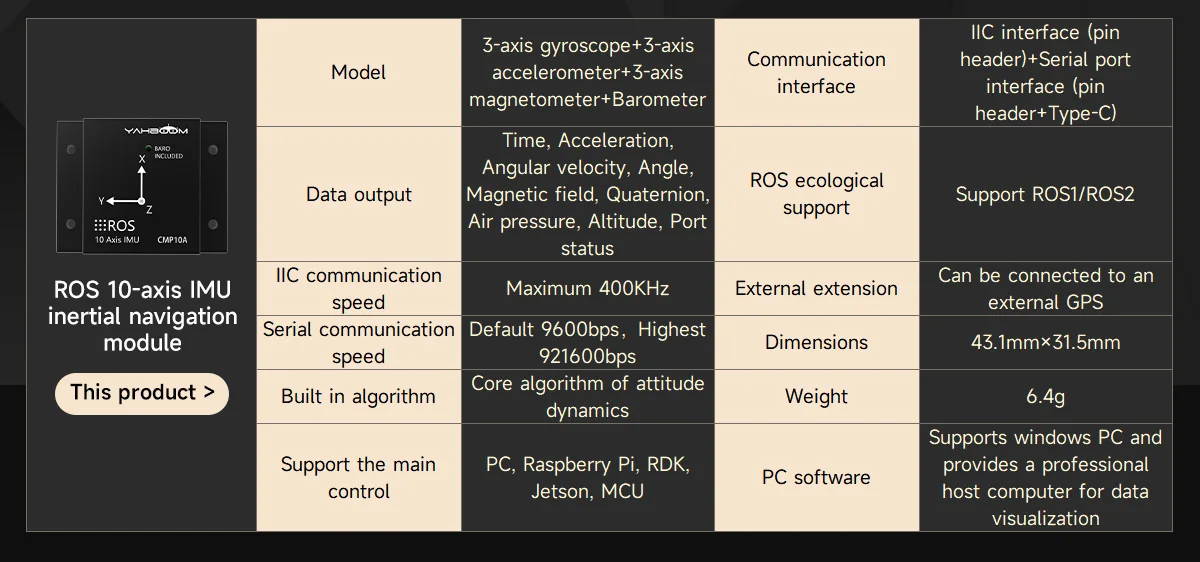

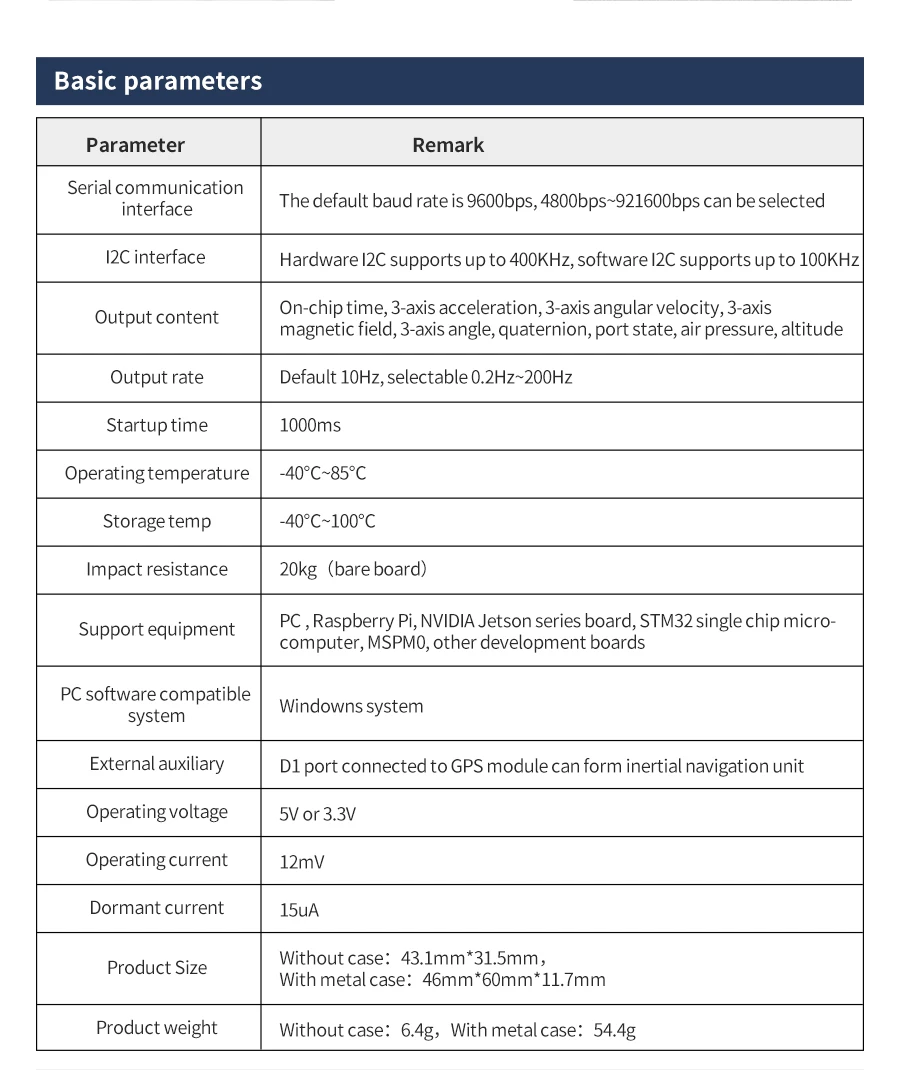

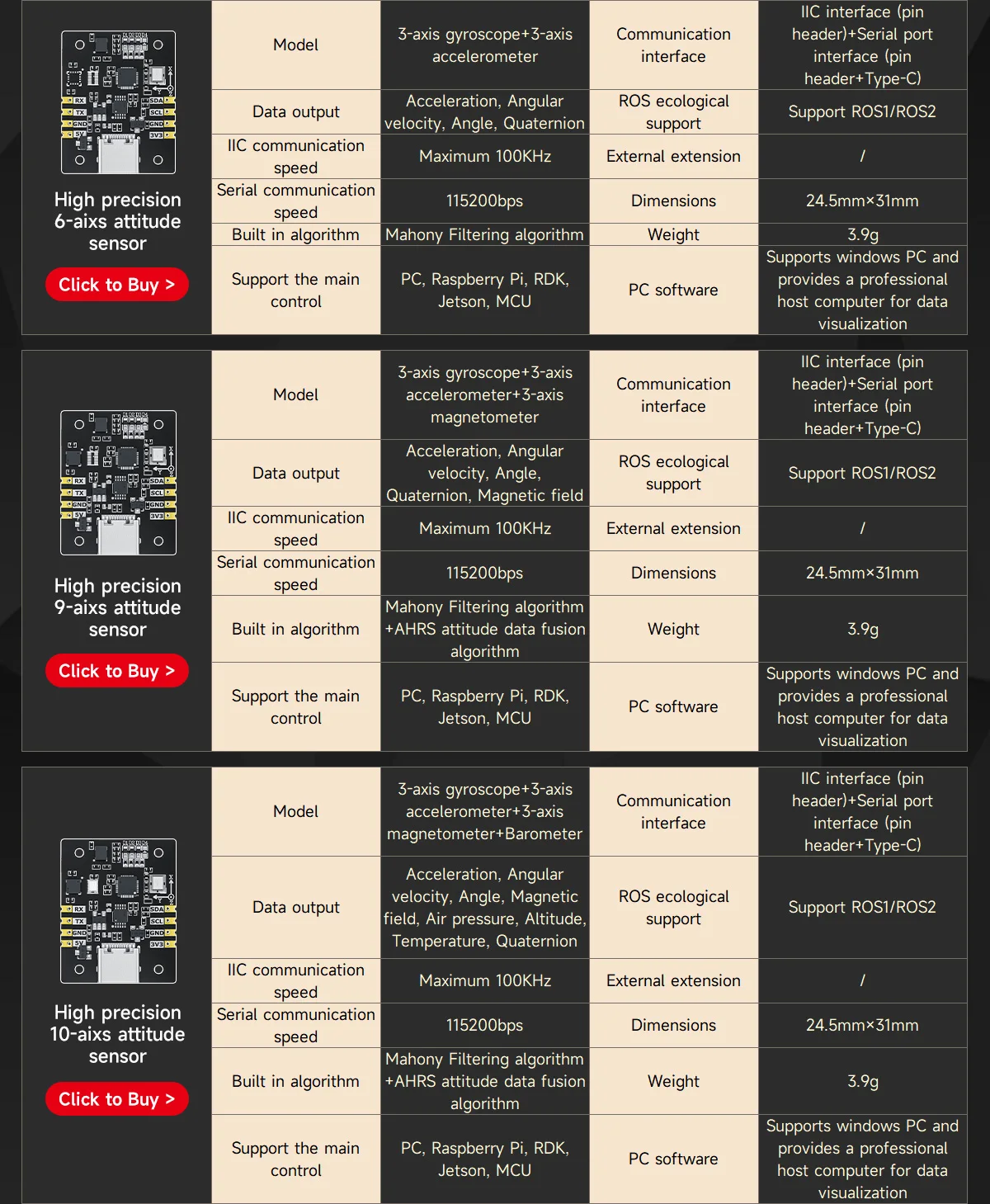

Product parameters
Product Details

Produktdetails in Bildern

Produkteigenschaften

Markenname

YAHBOOM

Empfohlenes Alter

14+ Jahre

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Ist elektrisch

Keine Batterie

Serial Communication Interface

The Default Baud Rate is 9600bps, 4800bps~921600bps can be Selected

Output Rate

Default 10Hz, Selectable 0.2Hz~ 200Hz

Startup Time

1000ms

Operating Temperature

40°C~85°C

Storage Temp

40°C~100°C

lmpact Resistance

20kg (Bare Board)

PC Software Compatible

Windowns System

Operating Voltage

5V or 3.3V

Operating Current

12mV

Dormant Current

15uA

Support Equipment

PC, Raspberry Pi, NVIDIA Jetson Series Board, STM32 Single Chip Micro-Computer, Other Development Boards

Output Content

3-axis Acceleration, 3- axis Angular Velocity, 3-axis Magnetic Field, 3-axis Angle
