Durchflusssensor

4-in-1-Ultraschall-Ultraschallsensormodul, Hub-Entfernungsmessung, 750 cm auf flüssigkeitsstand bei flachem Objekt

40,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Lieferung nach Deutschland
Lieferzeit: 8–15 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

1. Product Parameters
Serial No.: E08-A01

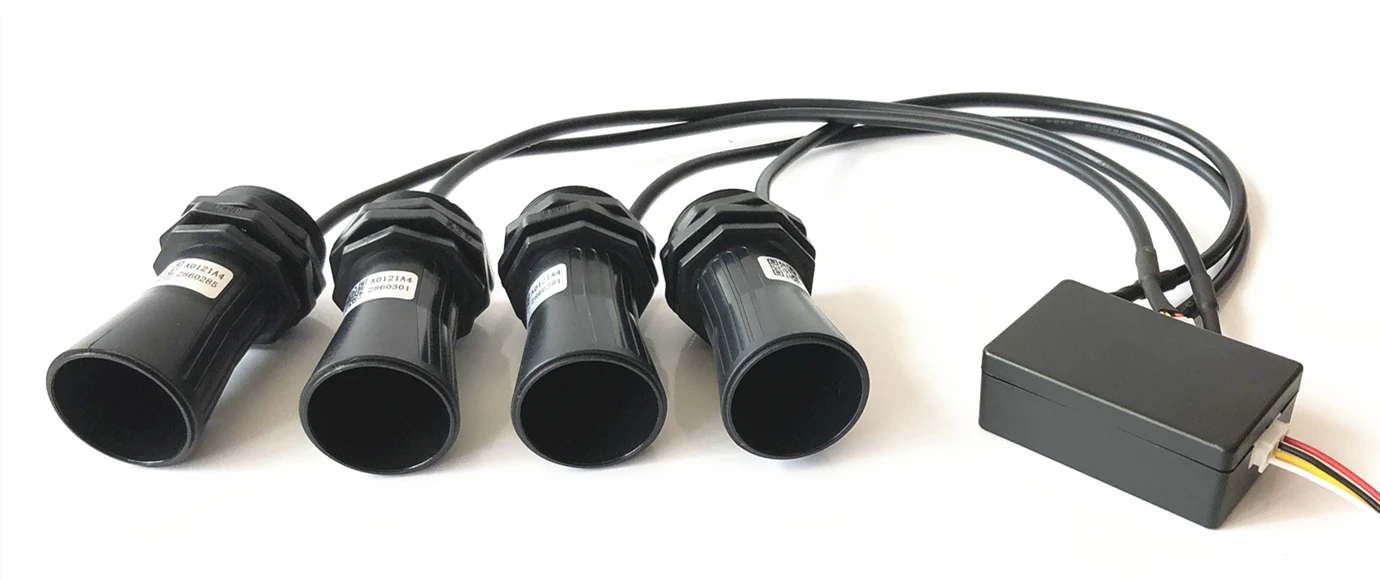

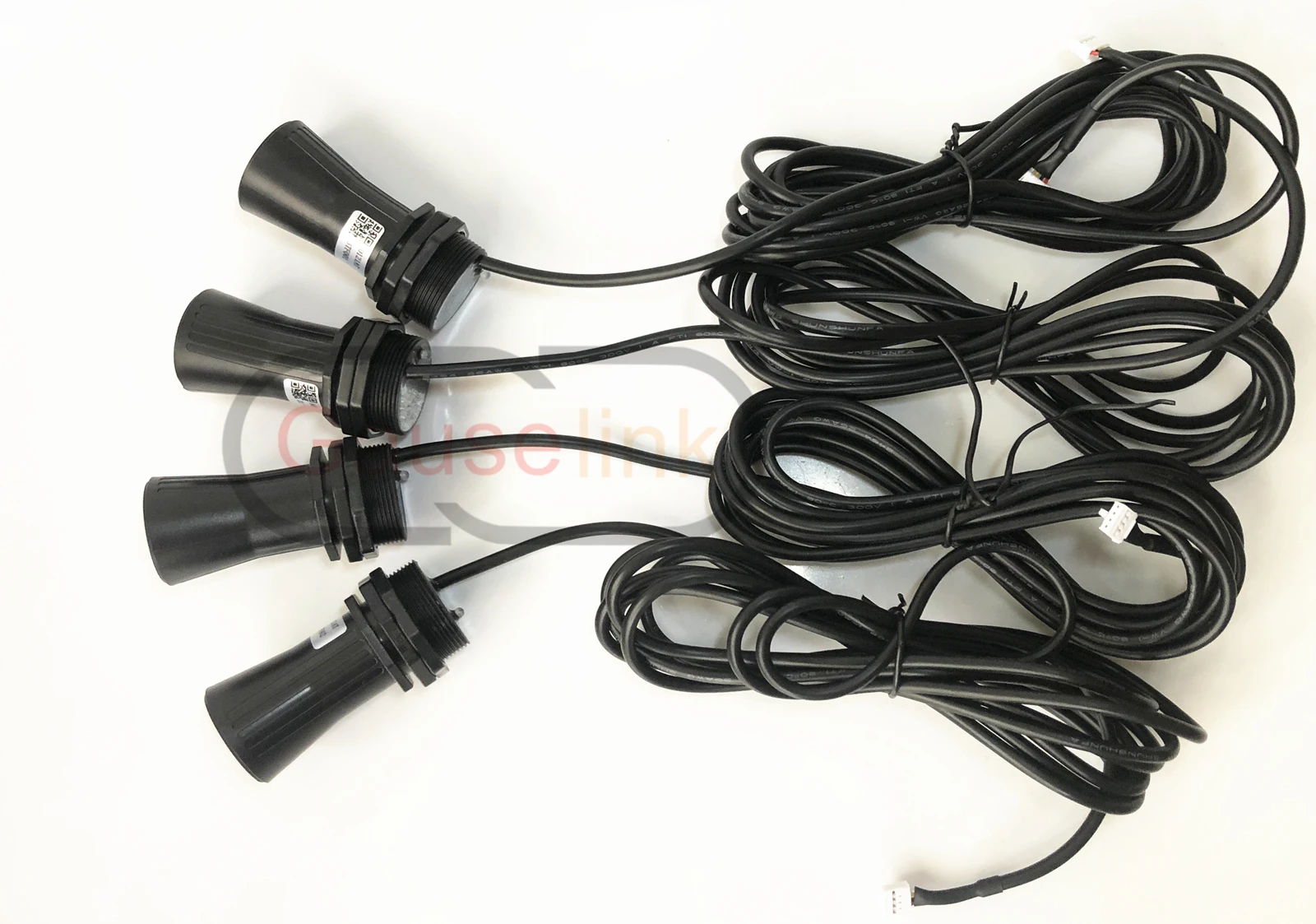

Product Name: 4 in 1 Ultrasonic Sensor Hub and Sensors (sold separately)
Output Types of Hub

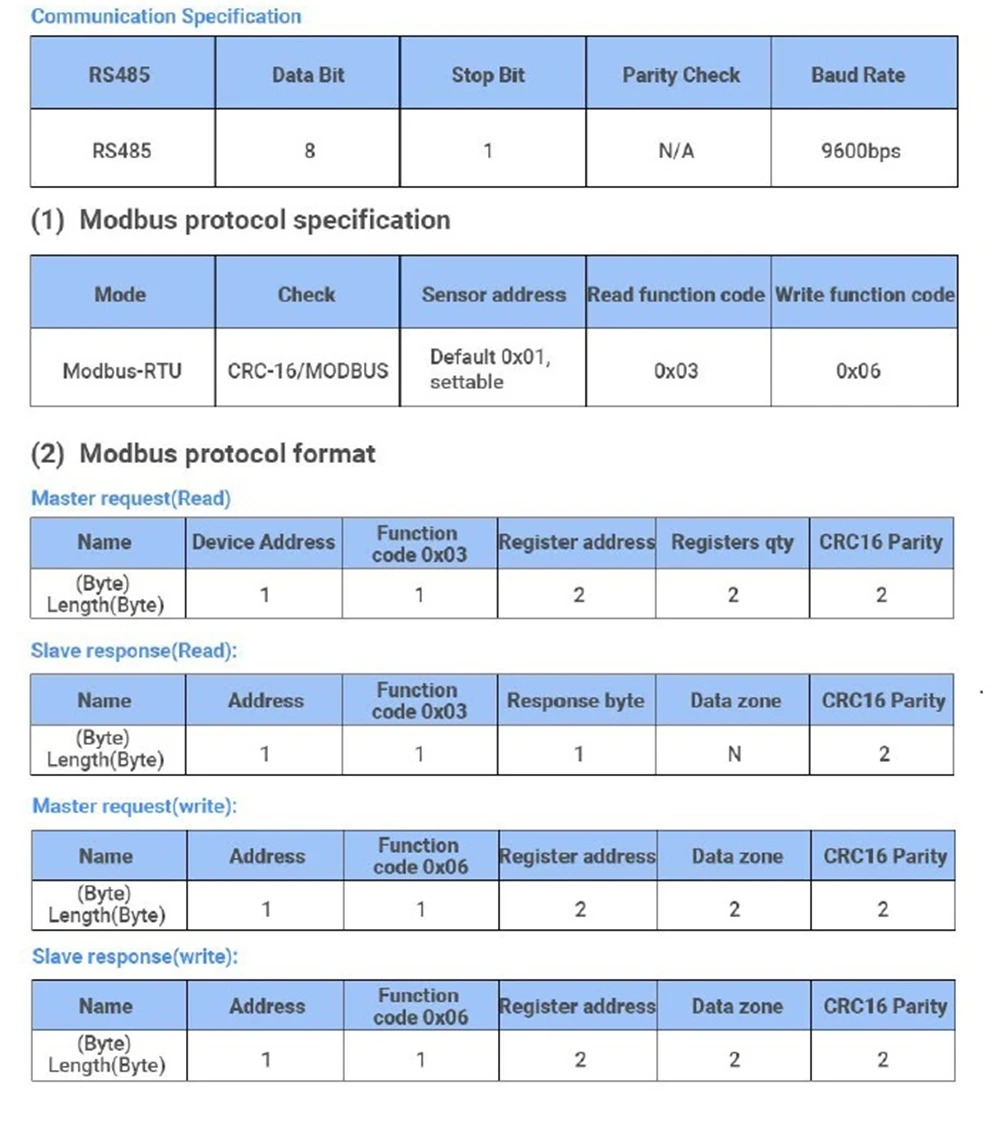

RS485, UART Controlled, Switch, IIC

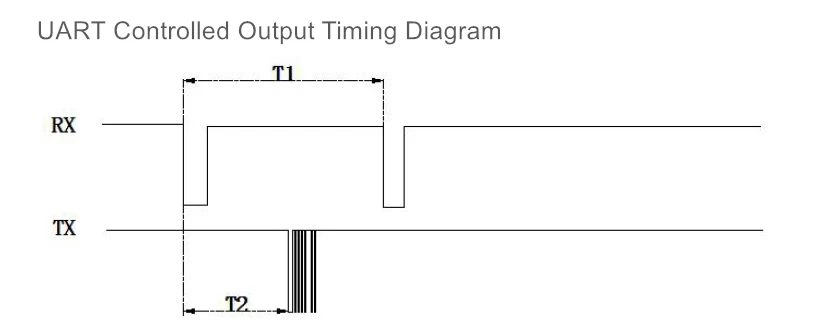

Output Type of Sensor (Input to Hub): UART Controlled

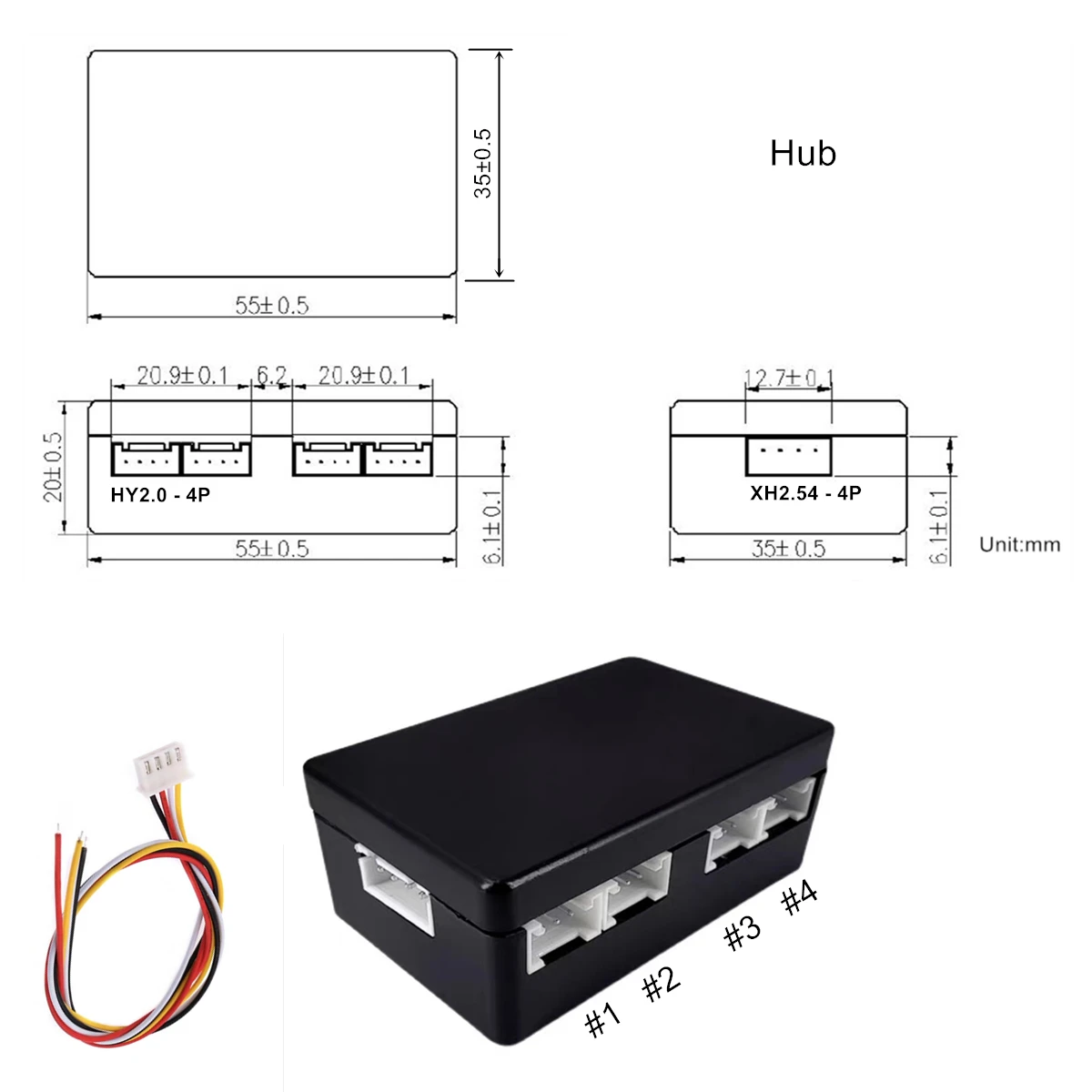

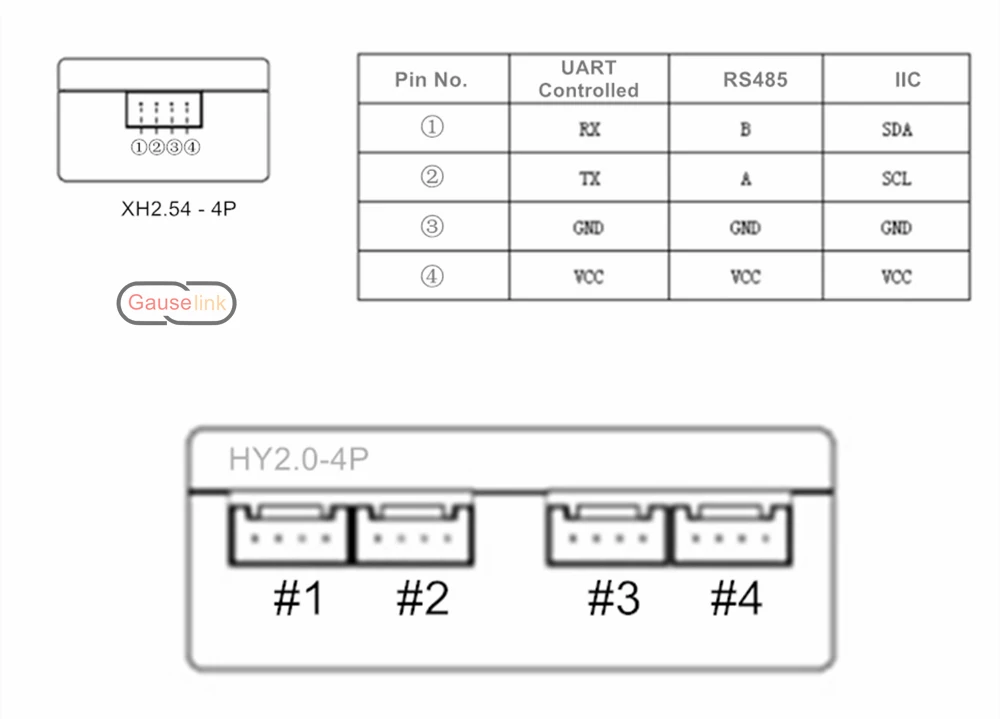

Type of Output Port: XH2.54 - 4 Pins
Working Voltage Range of Hub: DC 5V~24V
WorkingTemperature: -15℃~60℃
Working Humidity: Max. 80% RH

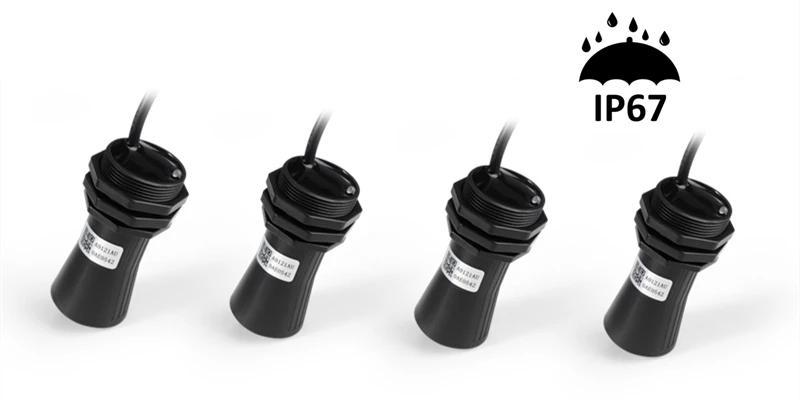

Protection Level of Housing: IP67 (sensors only)

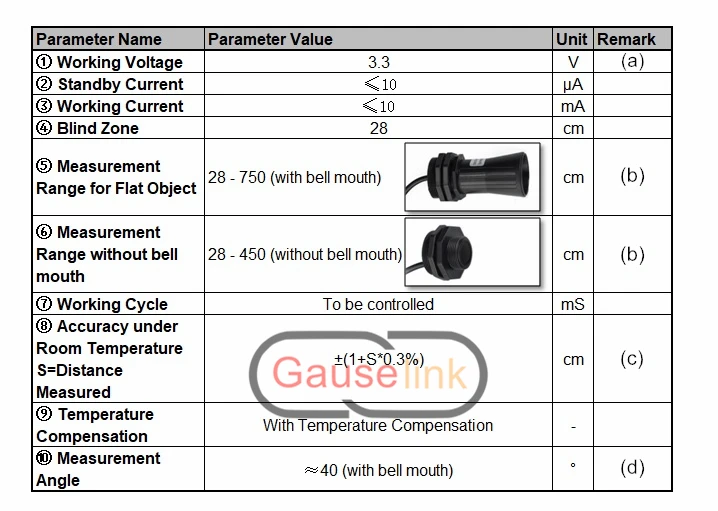

More parameters about the sensor listed in table below.
Remarks
(a) The voltage supplied by the hub is DC 3.3V. The rated voltage for the sensor is DC 3~5V.
(b) & (c)Tested on 50*60cm flat carton box at internal lab. Temperature 25℃. The box was moving vertically in front of sensor.

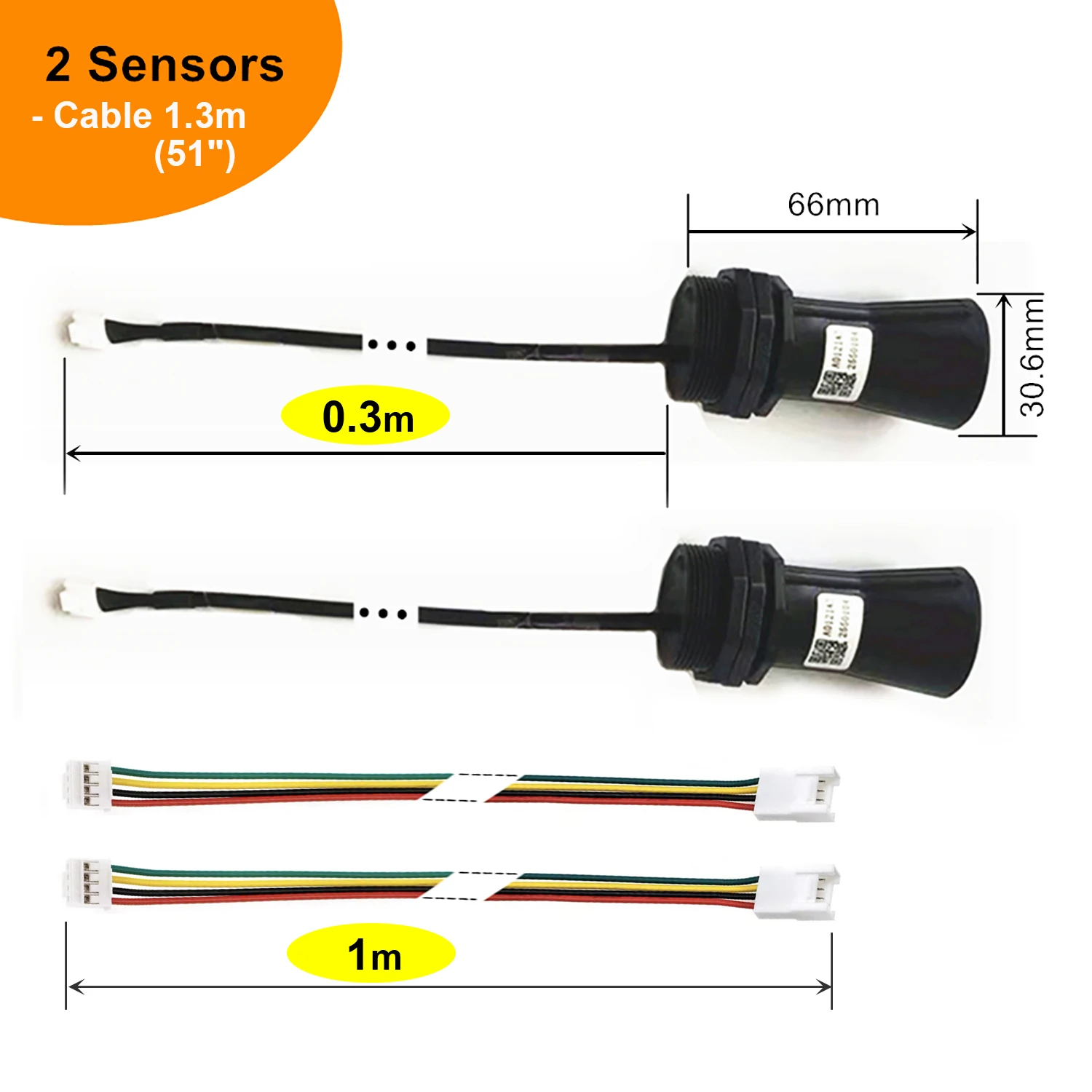

(d) Tested on 75mm(diameter)*100cm(length) PVC tube. The distance between sensor and tube is 100cm. The measurement angle varies depending on the distance.

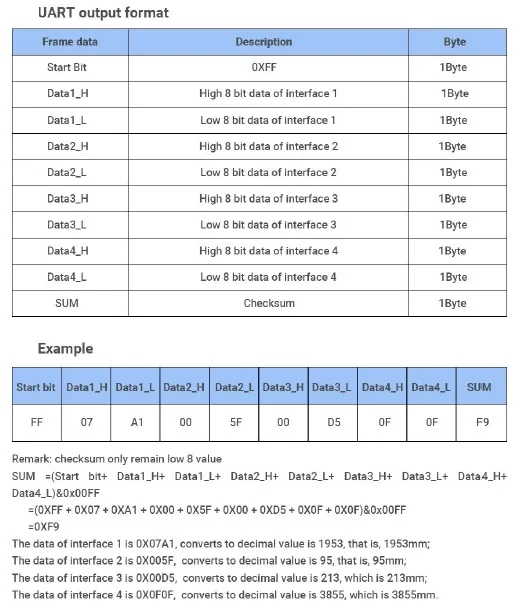

(e) The sensor can work independently and its output is UART Controlled.
2. Sensor's Reference Detection Range at Laboratory
�� Purple
The object is a PVC Tube (Height1000*Dia.75mm) moving vertically in front of sensor.
