DN25/DN32 Edelstahl S304 Heißwasser Hydraulische Separator Kits Puffer Tank Für Kessel Heizung und Kühlsystem

Produktbeschreibung

Description
The Hydraulic separator are supplied complete with air vent valve, drain valve for bottom discharge and a thermal insulation shell.

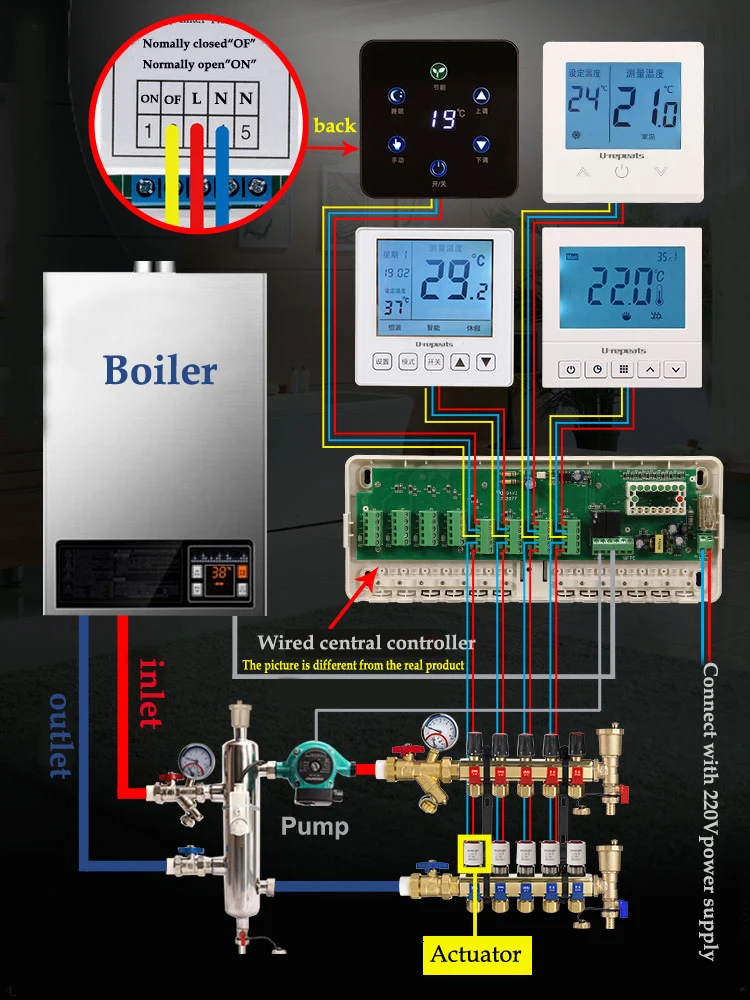

Hydraulic separation creates hydraulic balance between the primary circuit and the secondary circuit and has four ports.the flow in one circuit does not create or interupt flow in another. Hydraulically decoupling primary and seconary circuits eliminates pump conflict.Furthermore, they can also be used as an air and dirt separator and it is suitable for use in sealed heating or cooling systems using glycol-based additives (max. 50%).
Technical specifications
Materials
body: Stainless Steel S304
air vent body: brass
drain valve body: brass
support bracket polyester painted carbon steel
Insulation Shell：EPP
Performance
Suitable fluids: water and non-hazardous glycol solution up to 50%
Max. operating pressure: 150 psi (10 bar)
Working temperature range: 32–250°F (0–120°C)
Working temperature range with insulation: 32–210°F (0–100°C)

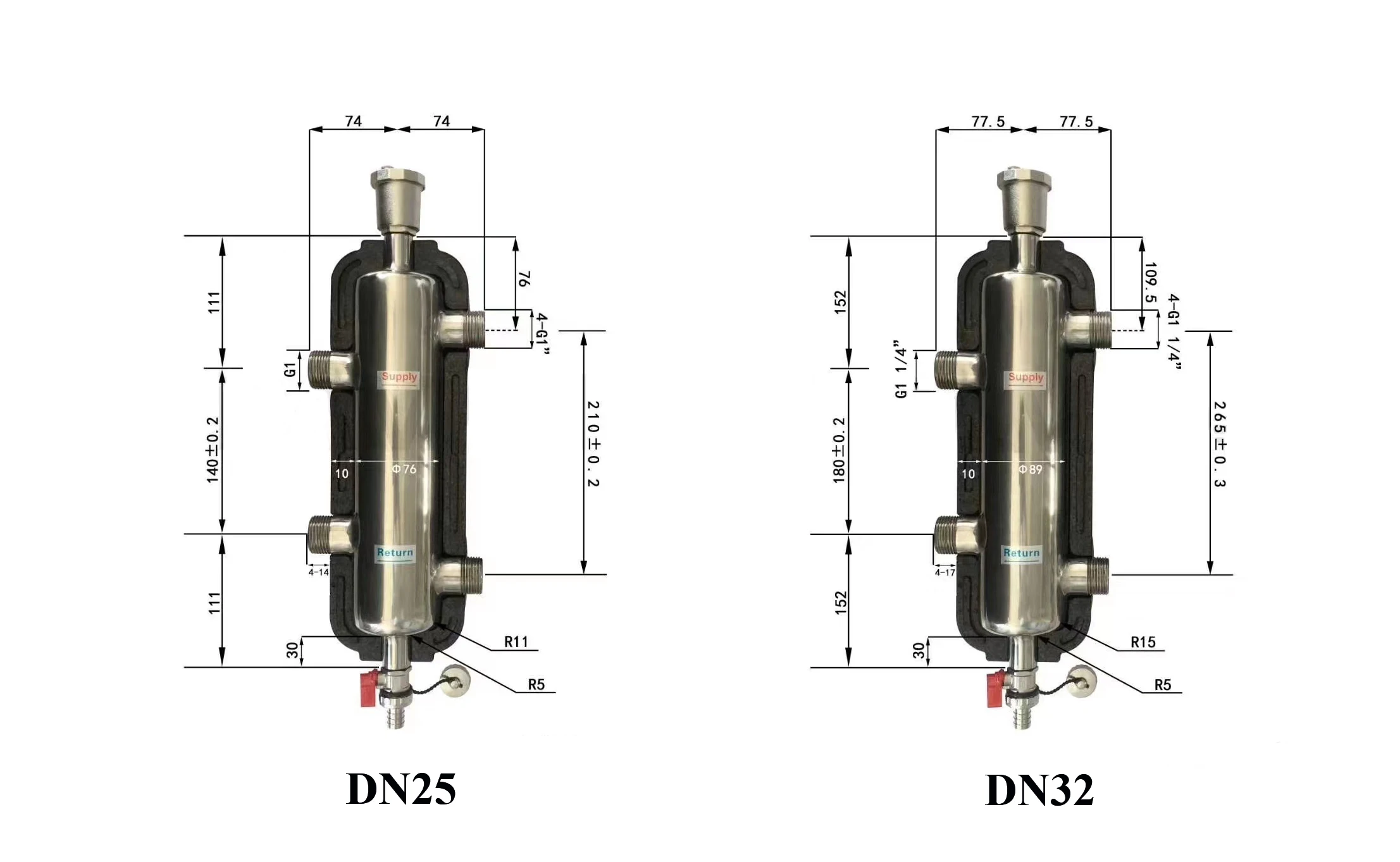

Size
Benefits，Features and Functions
Prevents flow in one circuit form interfering with flow from another circuit
Eliminates the need for a primary loop circulating pump, air separator, and strainer, thereby reducing initial cost as well as operating cost
Eliminates complicated piping, reduces labor and piping costs

Produktdetails in Bildern

Produkteigenschaften

Markenname

NONE

Ist drahtlose Funktionalität enthalten?

Nein

Ist eine Batterie im Lieferumfang enthalten?

Nein

Hochbetriebenes Chemikalienunternehmen

Keine

Material

Aisi304

Ursprung

CN (Herkunft)

Typ

Teile für Fußbodenheizung

Modellnummer

PT561

Zertifizierung

CE

Bodenheizungsventil

Thermostatisches Mischventil
