3-Phasen-Energieverbrauchsmessgerät, intelligenter kWh-Stromzähler mit CT 50/100/150/200 A Panel-Messgerät RS485 Modbus PAC5010 5110

Produktbeschreibung

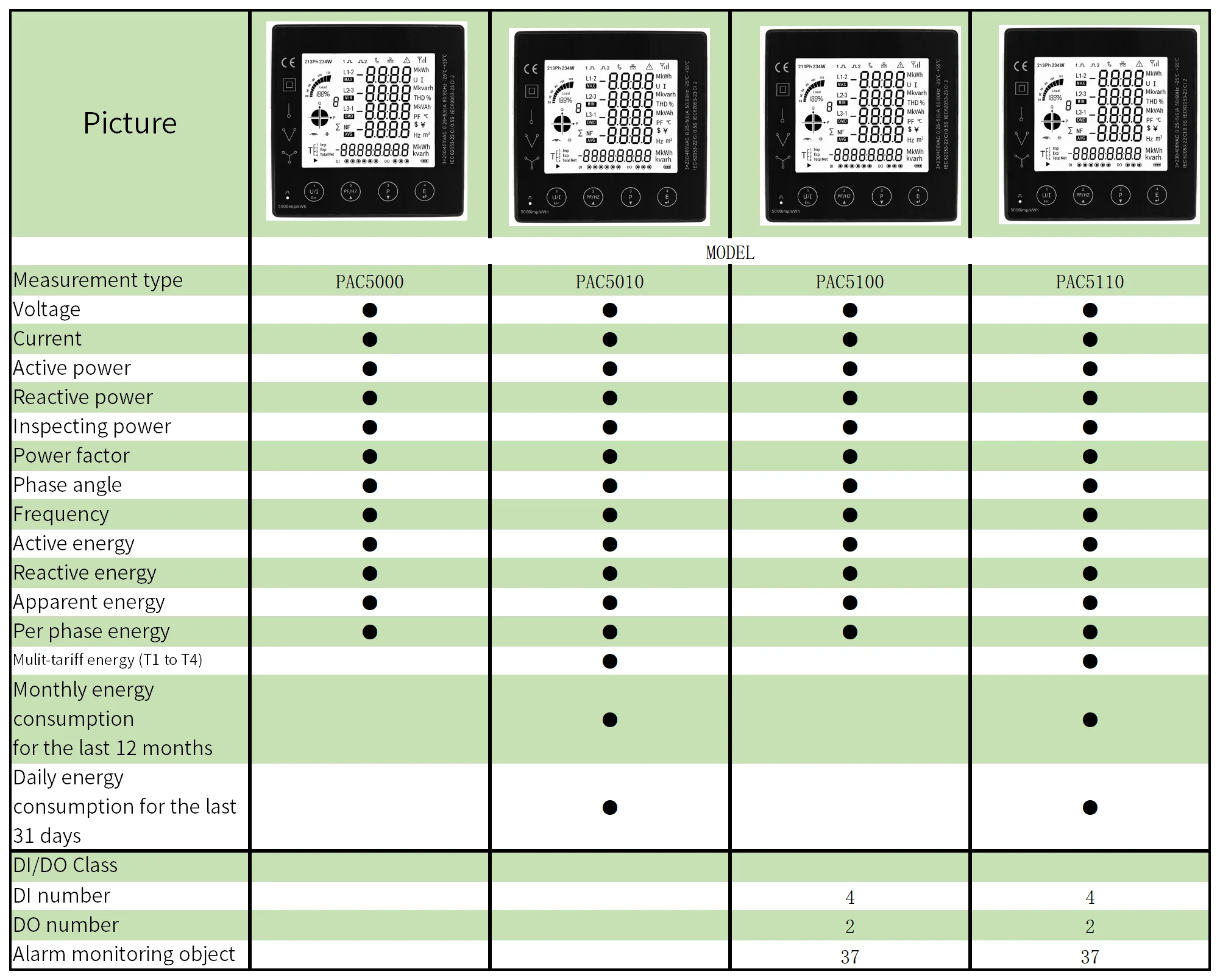

Please note that PAC5000 has no digital input multi-rate and relay output functions！！！
Order PAC5010 if you need multi-rate ！！！
If you need another two meters, please contact me！！！
If there is a large difference between the actual current and the current of the transformer, there will be an error
For example, if you select 100A current, the actual measured current is lower than 20A, and the displayed value will have errors, so the actual current should be greater than 20A
The transformer itself also has some errors, please don't buy it if you mind
The aperture of the equipped current transformer is 16mm
Describe

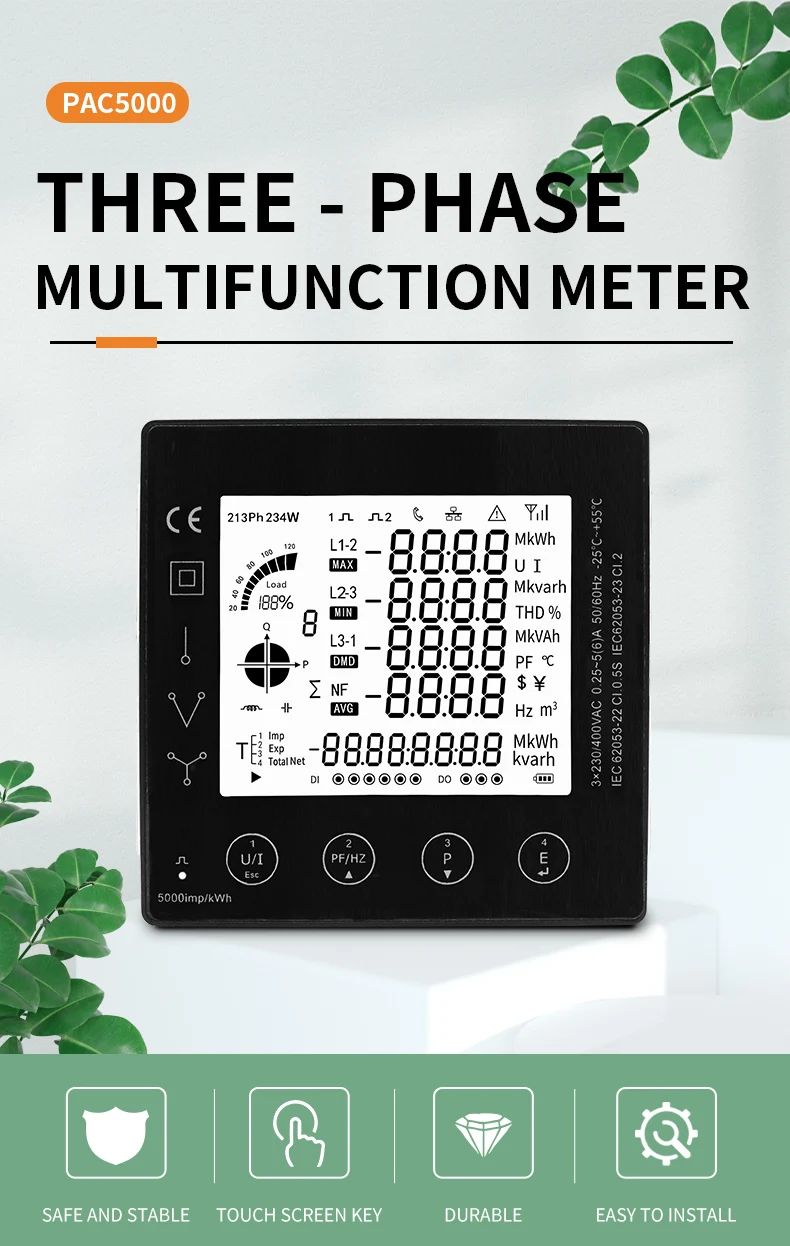

PAC5000 series products are the multi-function power analysis instrument for collection and analysis of electric parameters, used not only in the electricity transmission and power distribution system, but also in the power consumption measurement and analysis in high voltage intelligent power grid. This series of products that can support a variety of electric parameter measurement analysis, such as voltage, current, the four quadrant power parameters, power factor, total harmonic distortion, individual harmonic distortion, unbalance factor, crest factor, etc. This series of products also provide a variety of electrical energy parameters measurement, such as two-way active energy, reactive energy, four-quadrant energy, monthly and daily energy consumption statistics.

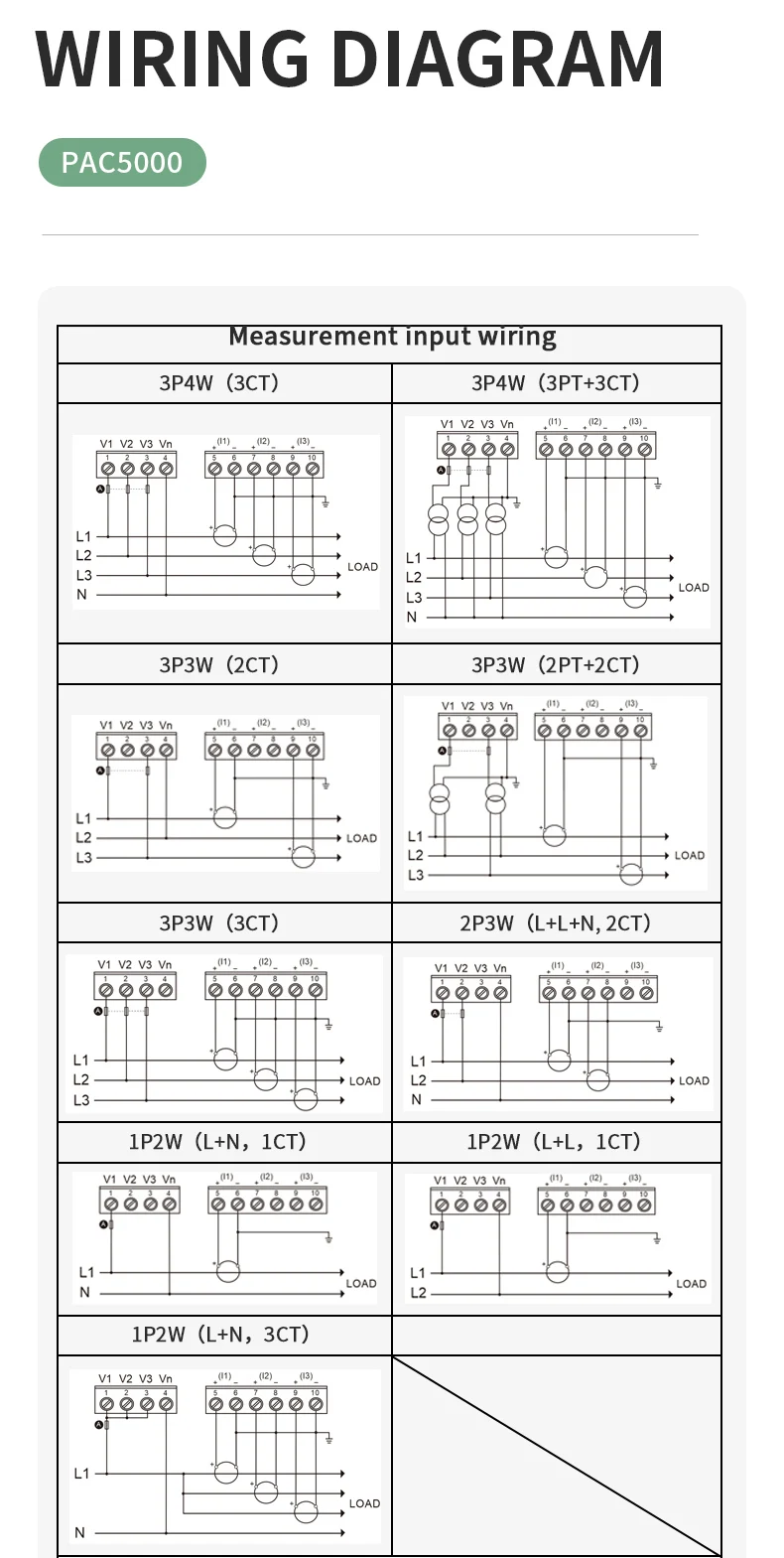

PAC5000 series products can support in the 1P2W, 2P3W, 3P3W and 3P4W grid environment analysis of electric power parameter measurement, and at the same time providing multi-channel digital input/output interface, and SOE function, is suitable for real time power monitoring and control system, the energy consumption management system, industrial monitoring site using a variety of applications such as environment, has the multi-function, high stability and long life characteristics.
Specification

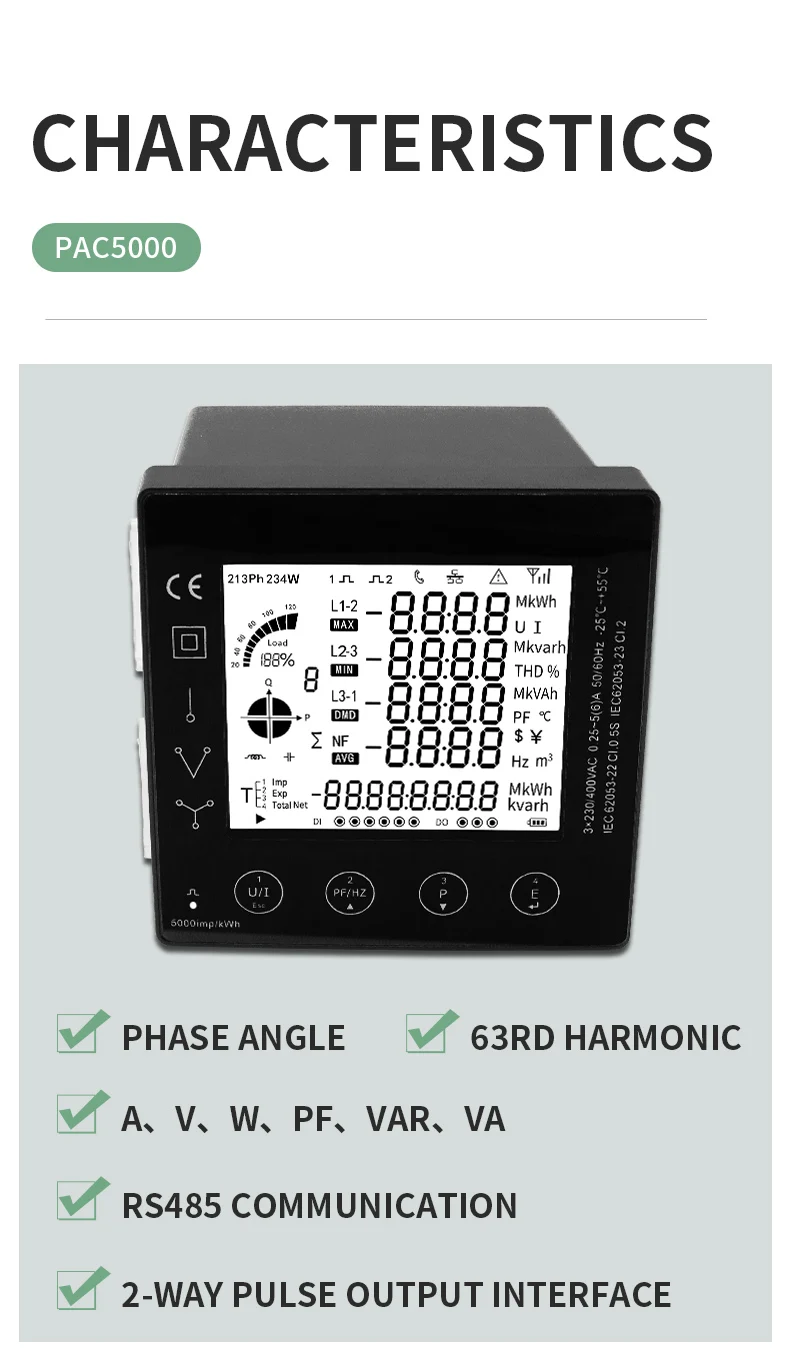

1、Multi-function parameter measurement, providing voltage, current, active power, reactive power, apparent power, power factor, phase Angle, etc.
2、Provides a variety of analytical parameters, such as total harmonic distortion (THD) and Individual harmonic distortion (IHD) of voltage/current, voltage/current unbalance factor, voltage crest factor, current K factor, etc. The Sub-harmonic component is maximum supported to the 63rd.
3、External current transformers of output types such as 5A/100mV/100mA are supported, and direct access of Rogowski coil is also supported. With the current transformer reverse connection correction function.
4、Support external voltage transformer access, input voltage minimum support 30V.

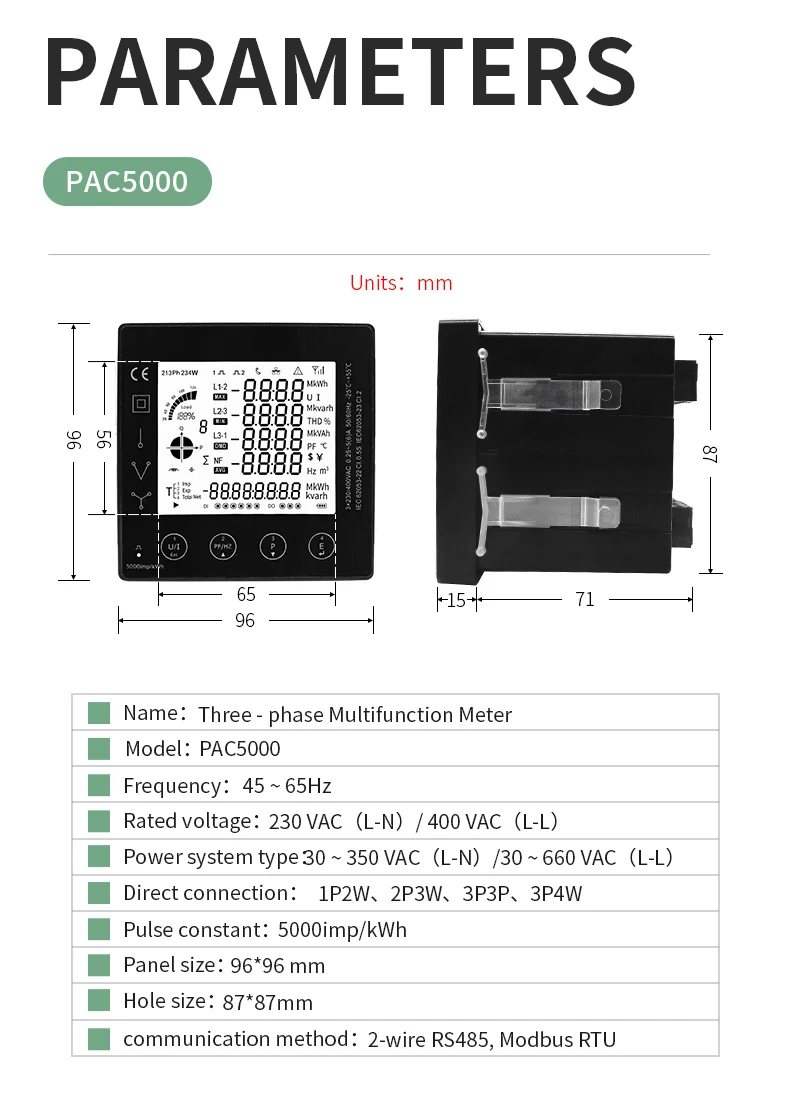

5、Embedded installation, product panel size is 96*96mm.
6、Plug and pull type connection mode, convenient construction connection.

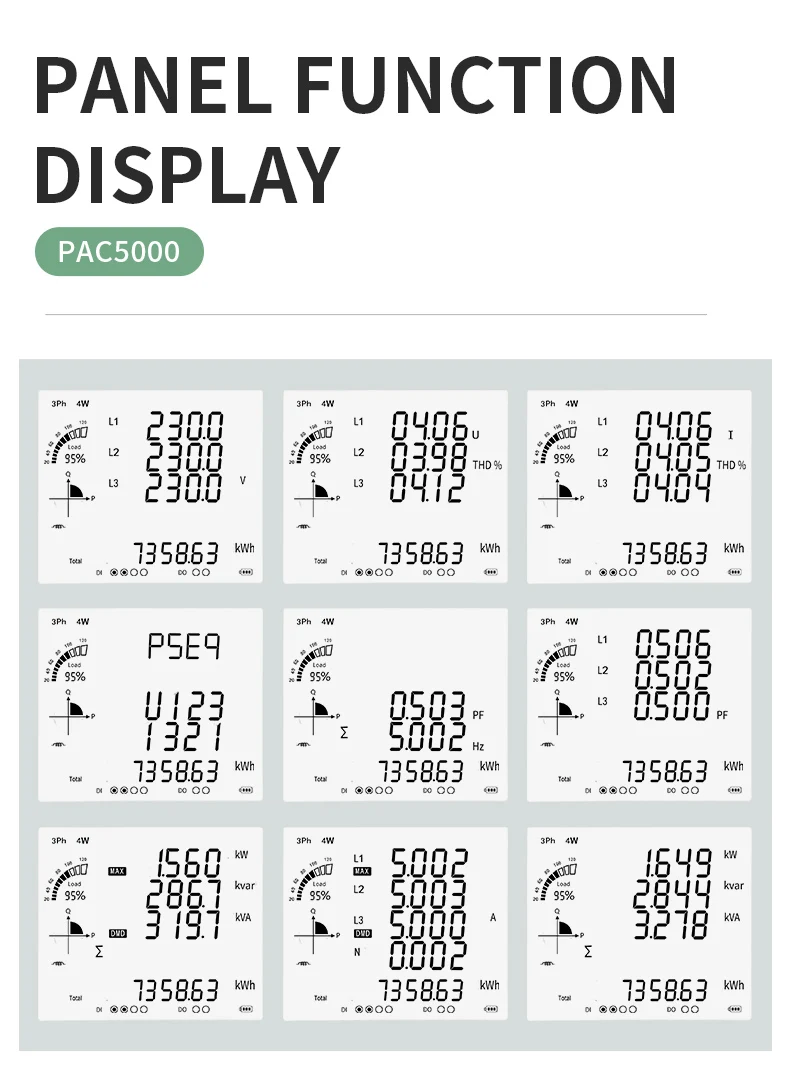

7、Liquid crystal display with backlit, backlight lighting time adjustable.
8、LCD refresh time is 1 second, support manual or automatic scroll display (configurable).

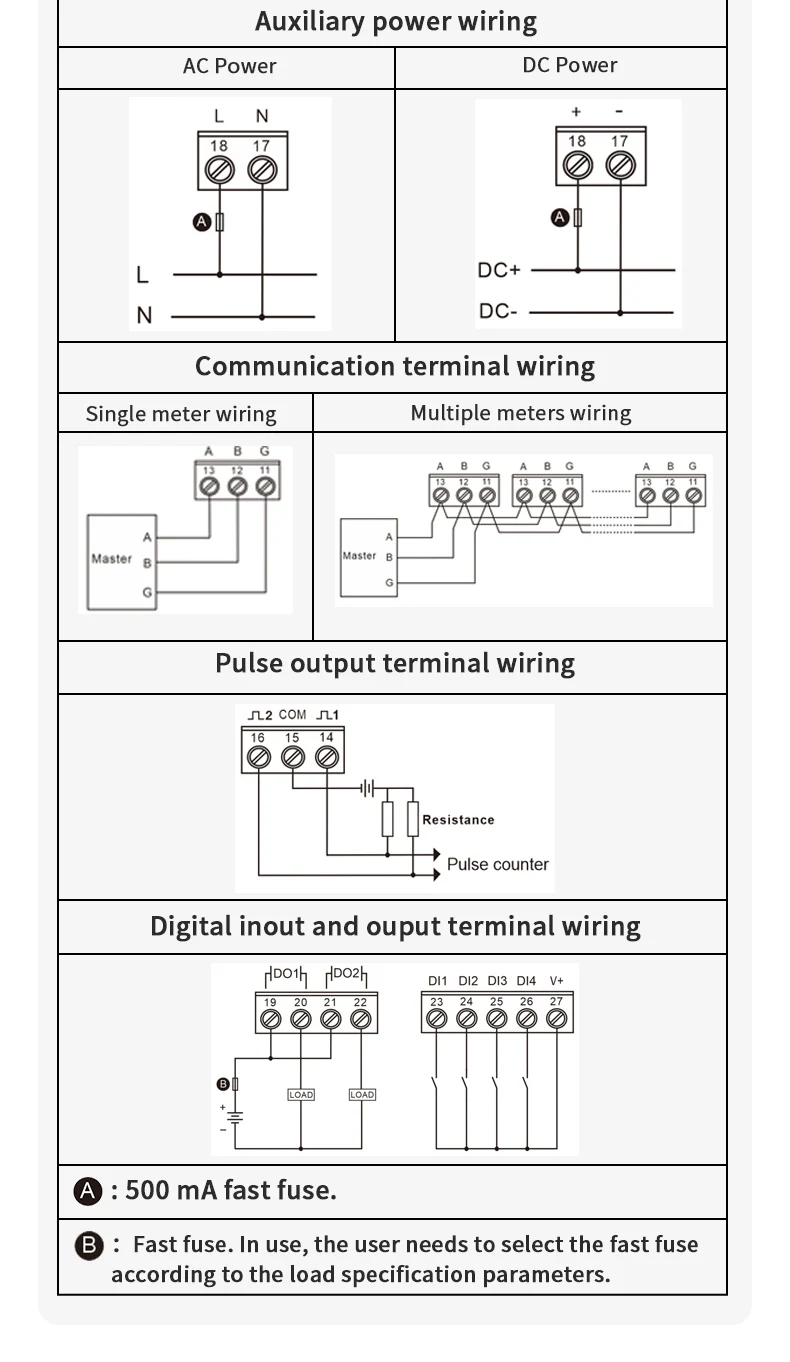

9、Support multi - channel digital input and output interface.

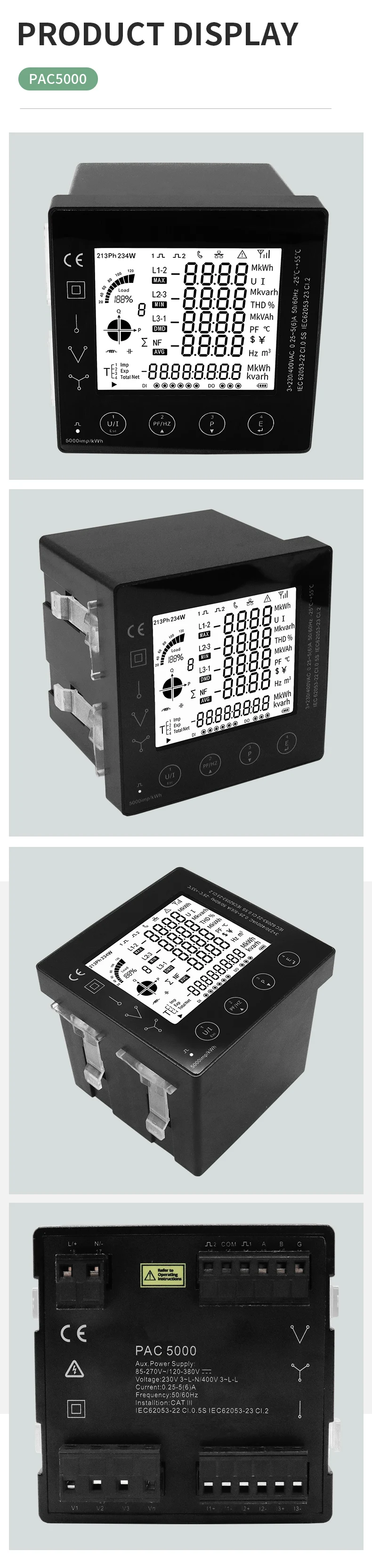

Produktdetails in Bildern

Produkteigenschaften

Markenname

CNYANNUA

Hochbetriebenes Chemikalienunternehmen

Keine

Halbfertigprodukt

Nein

Ursprung

CN (Herkunft)

Heimwerkerbedarf

elektrisch

Batterie im Lieferumfang enthalten

no

Messenergiebereich

999999.99 kWh

Anzeigetyp

LCD-Bildschirm

Modellnummer

PAC5000

Zertifizierung

NONE

Stromversorgung

Wechselstrom

Phase

Drei

Nennspannung

230 V

Abmessungen

96*96mm

Betriebstemperatur

25 to +70℃

Genauigkeitsklasse

1

Maximaler Betriebsstrom

19A und unter

Pulse constant

5000imp/kWh

communication mode

RS485 Modbus RTU

number of phases

Three-phase four-wire, three-phase three-wire
