Hohe Präzision Fräsen Drehmaschine DRO Magnetische Skala Sensor 5V 0,005mm 5um Encoder Magnet Skala TTL für Drehmaschine Holz stein Maschinen

66,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Variante auswählen

Lieferung nach Deutschland
Lieferzeit: 8–14 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

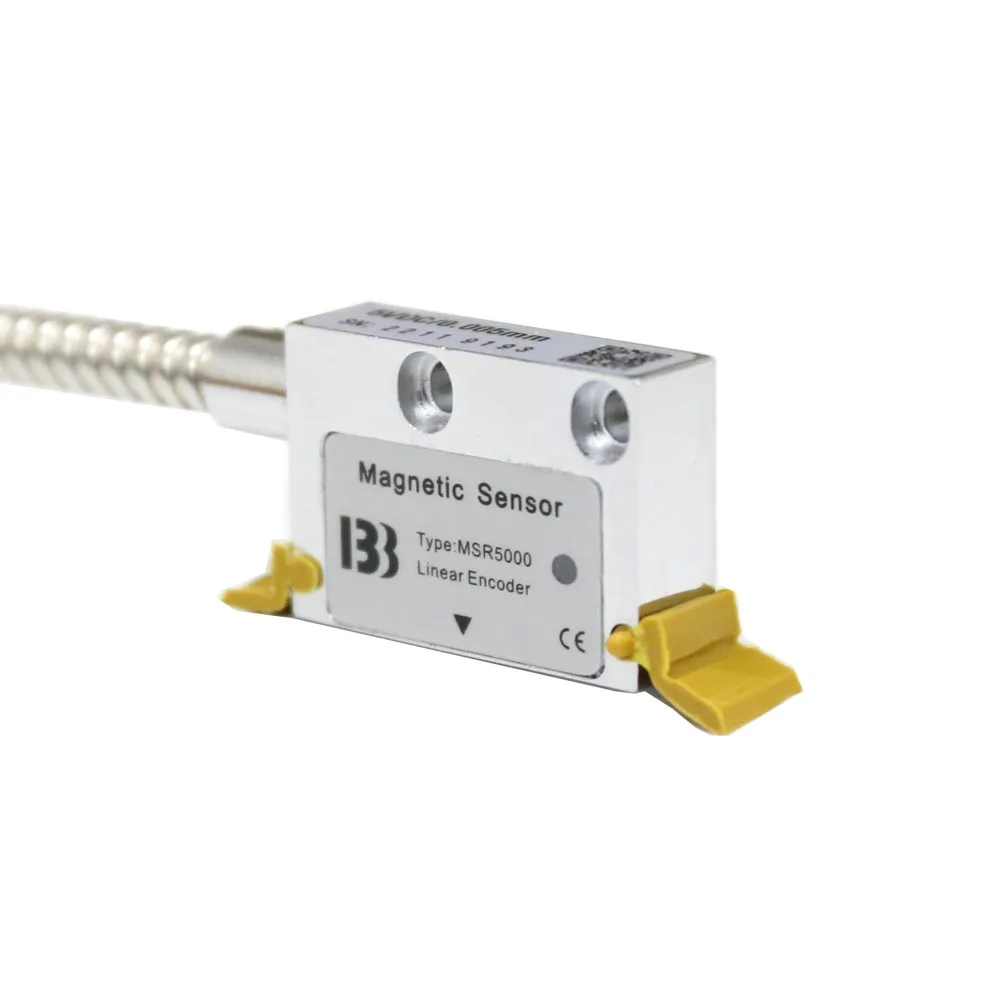

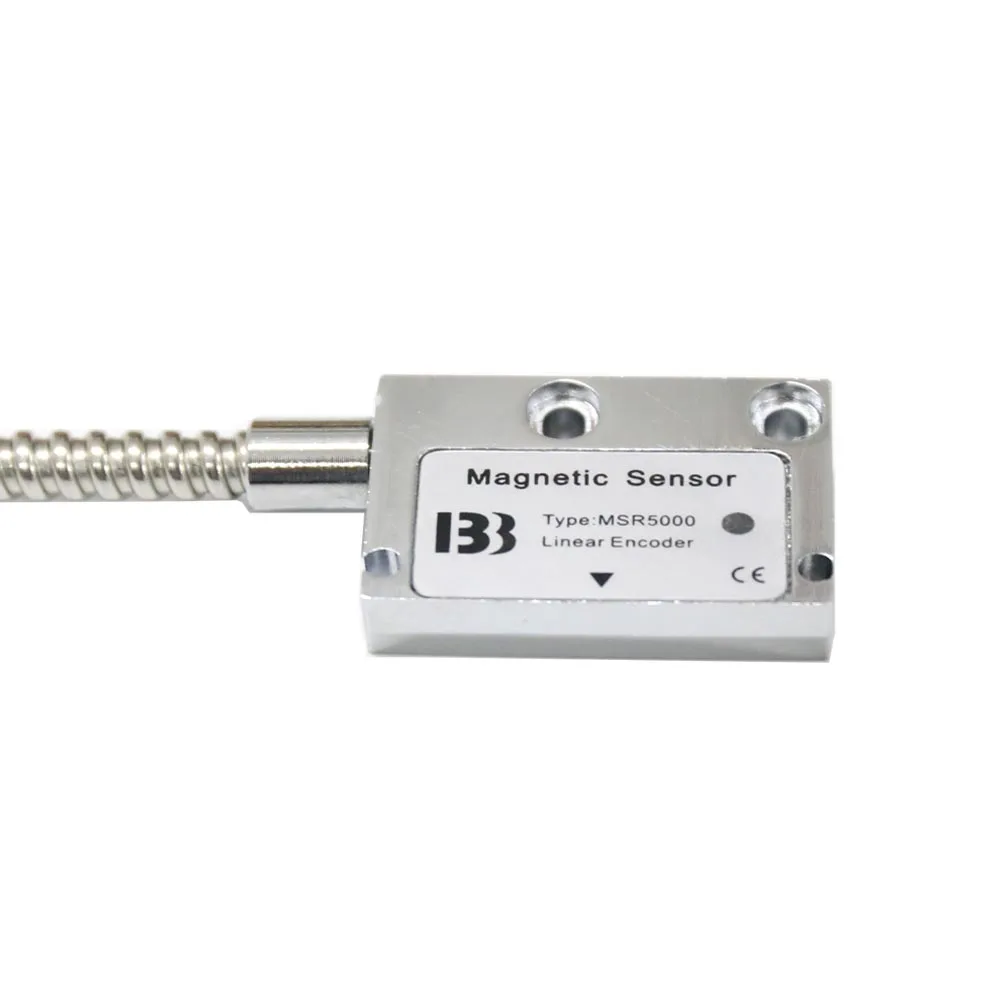

High Precision Milling Lathe DRO Magnetic Scale Sensor 5V 0.005mm 5um Encoder Magnet Scale TTL with 3meter cable for Lathe Wooden Stone Machine
The magnetic sensor with TTL output works for ALL China DRO like Sino, Easson, Ditron,Sinpo,Yihao, Fivetecnc and other digital readouts.

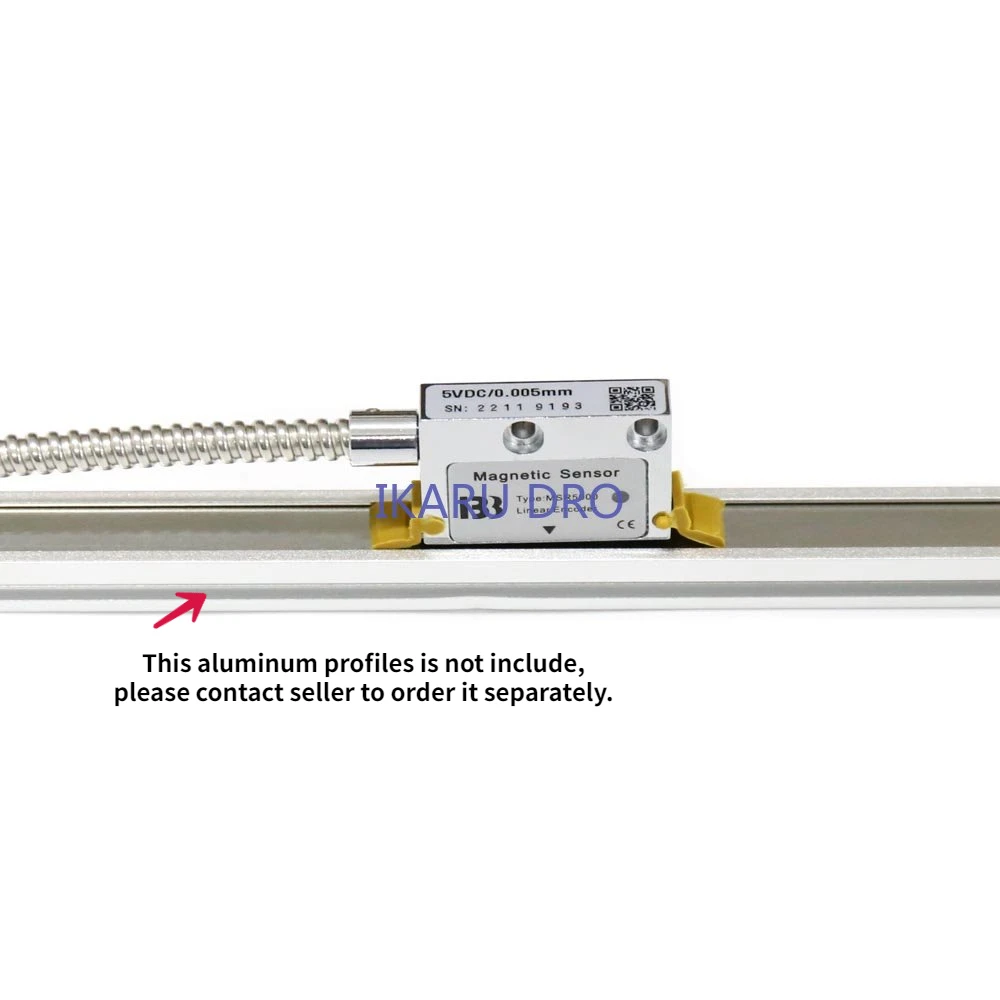

Comes with steel strip belt (not include aluminum profile) perfectly protect magnetic strip and reader, the order is NOT included aluminum profile, if need aluminum profile, please contact seller for quote.
We do not accept return, please read the descrptions careful before order it, or please send message to seller if any questions, we will reply you within 24 hours. Please do not open dispute, please send message to usif something wrong and we will solved it satisfied! Please do not order if you do not accept this ruler, thank you.

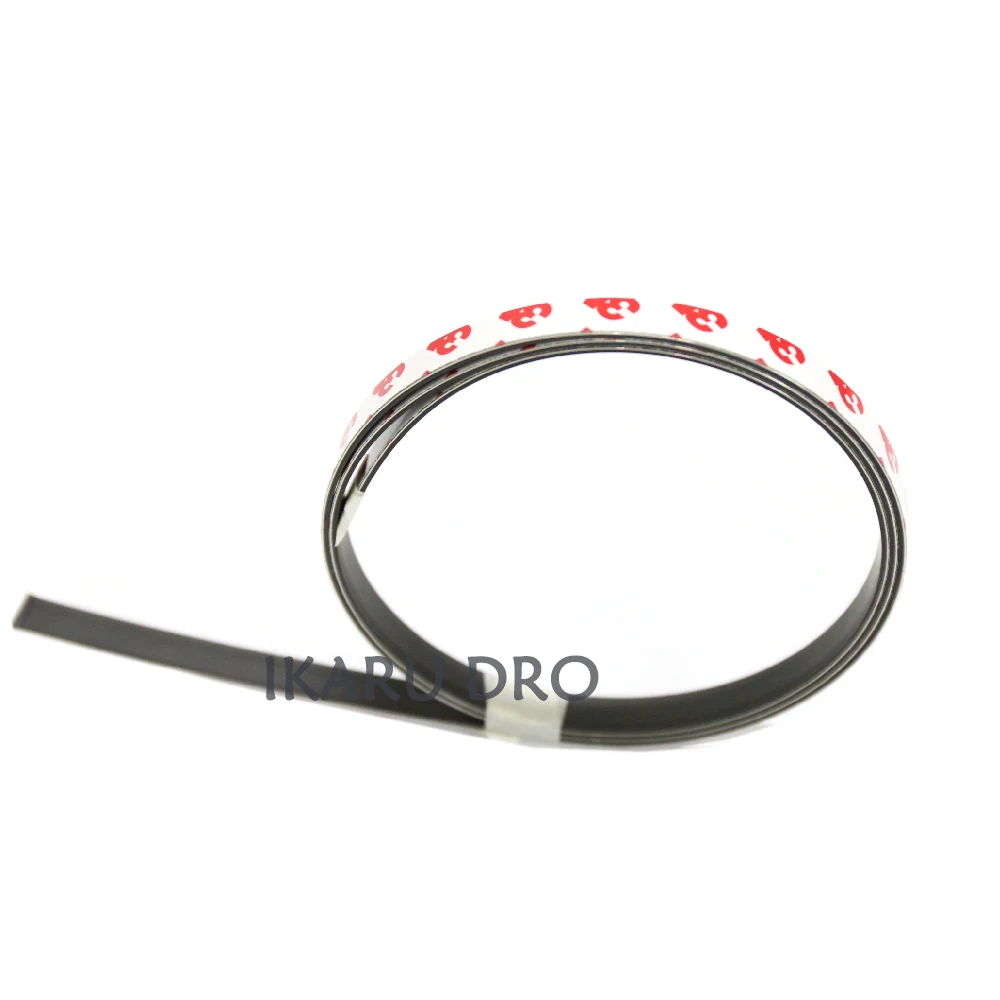

Tips: The magnetic tape can be cut into any length by yourself as you want after you receive it.
Widely used in large lathes, milling machines and various machine tools, with low cost and long service life.
The products are in stock and ship out within 24 working hours, It takes around one week delivery to most countries in the world.
Magnetic scale futures
Parameter

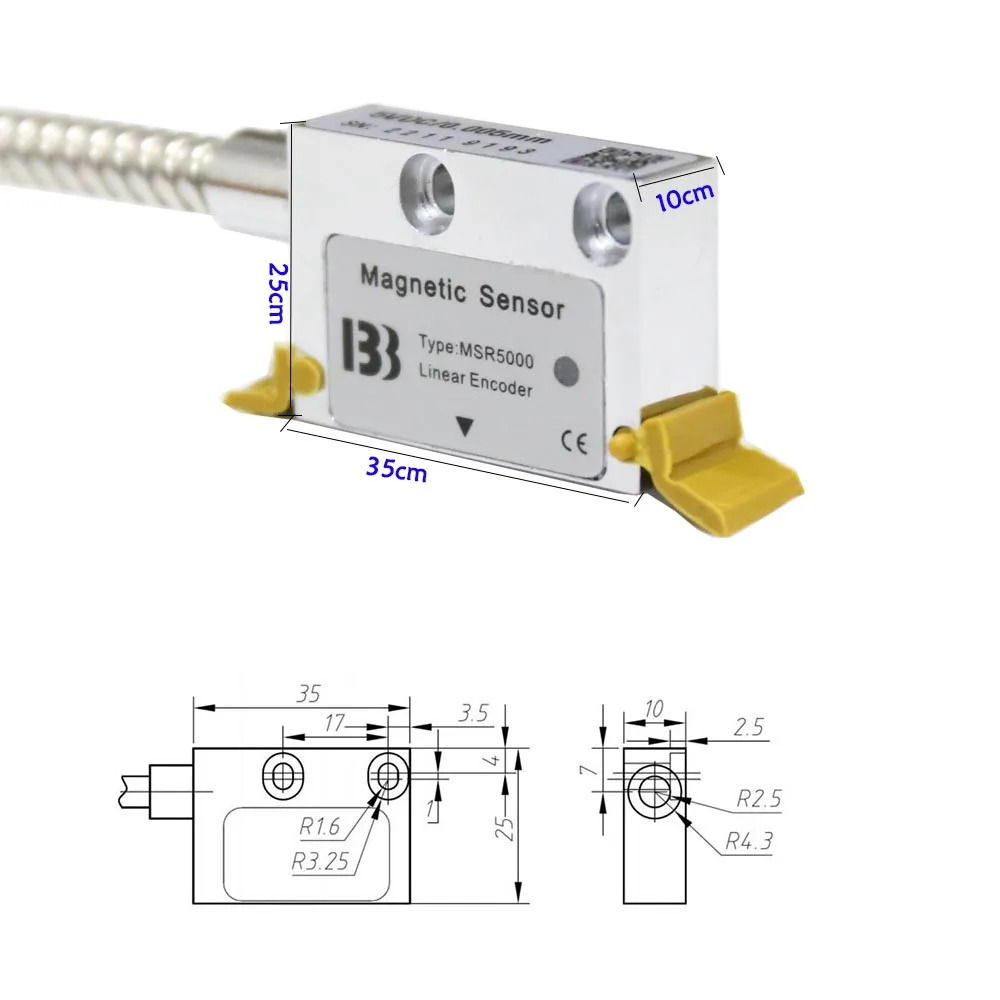

Model: MSR5000
Input: 5VDC (24V option and require with seller)
Reader cable length: 3 meters
Installation distance: max. 4mm (2mm recommended)
Output: TTL
Working speed: Max. 20m/s
Operating temperature: -10~+70℃
Waterproof level: IP67
If works with glass sacle for Same one DRO: YES
Suitable DRO: All China TTL DRO

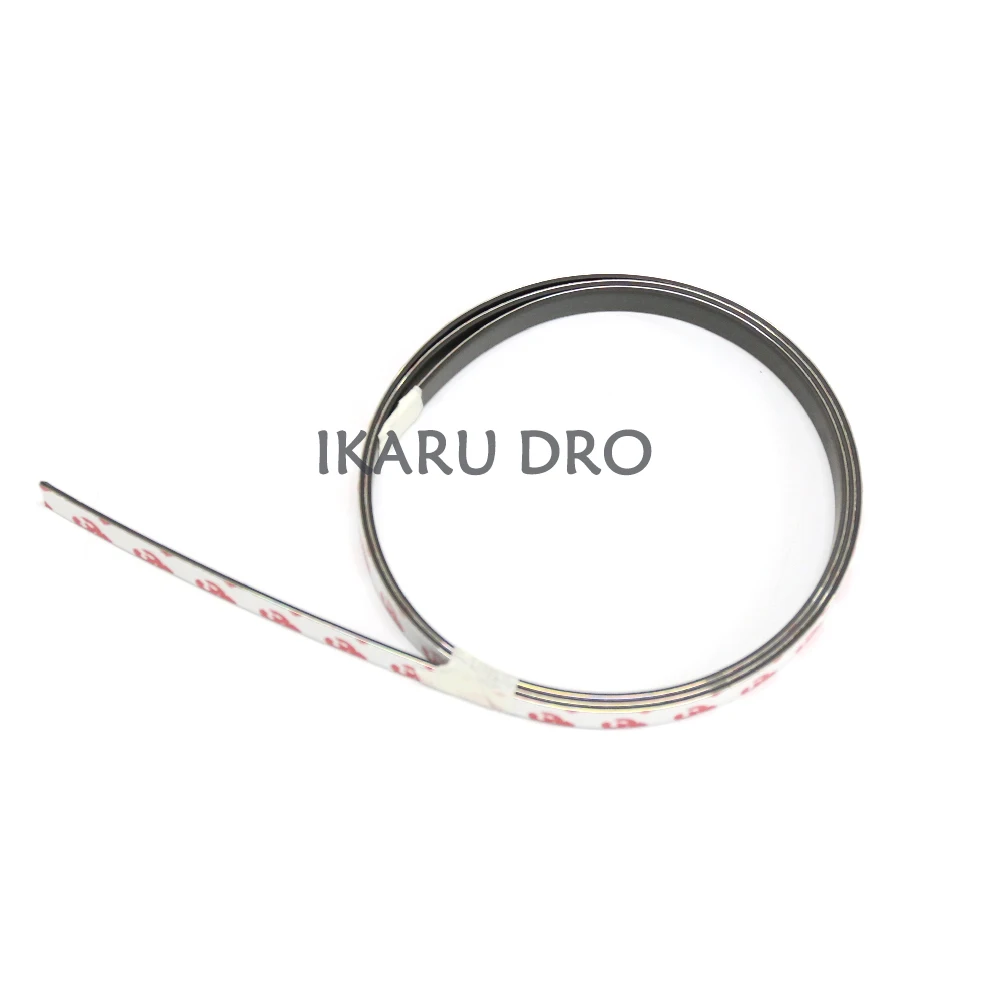

High Accuracy magnetic tape 5+5mm magnetic strip 10*1.5mm
