Pt100 integrierter Temperatursensor, Sendersonde, 4–20 mA, Edelstahl für die Temperaturregelung von Wasser, Ölen

Produktbeschreibung

Welcome friend~

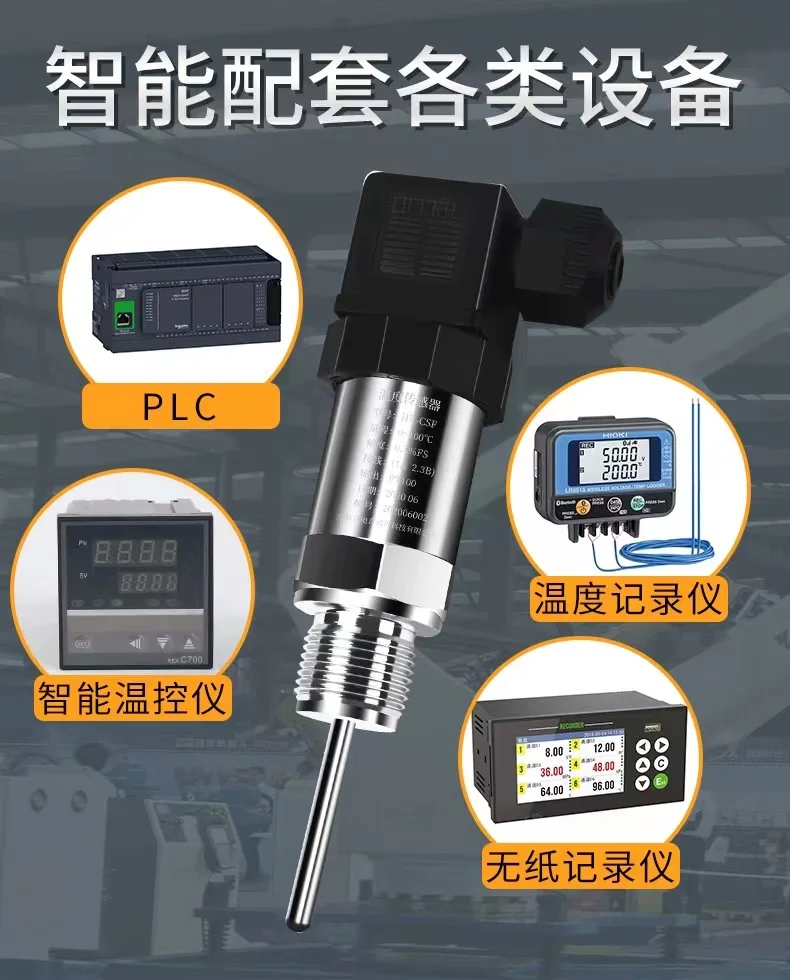

QDL80A temperature sensor
No display type

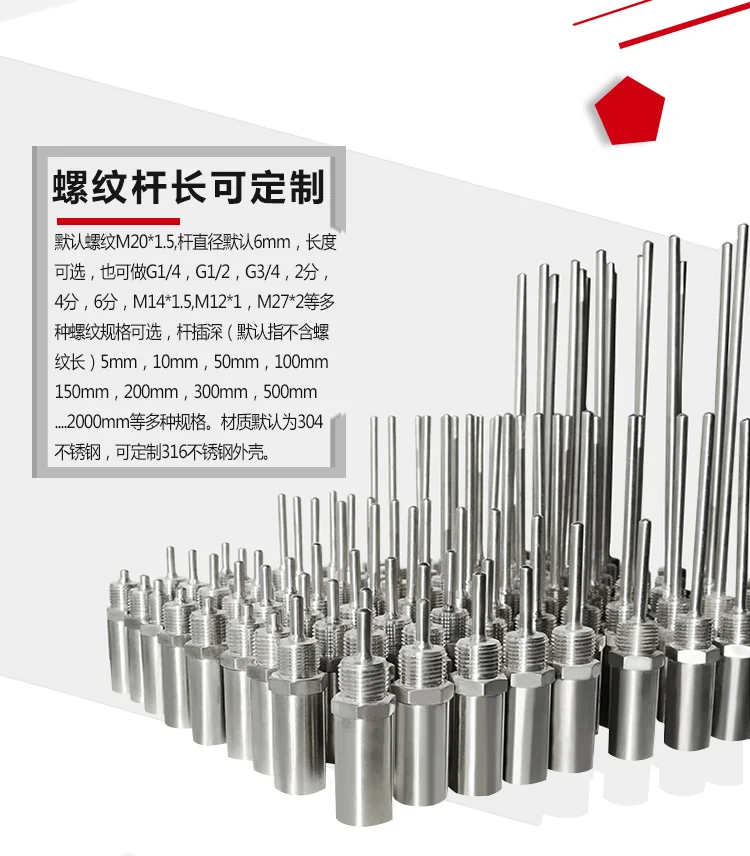

Default thread size M20*1.5
( if you need other thread size,G1/2,G1/4,G1/8,1/4NPT pls contact us,tks)
Default probe diameter
6mm
( if you need 10mm, pls contact us,tks)
Material
SS304
power supply
DC24V
Note

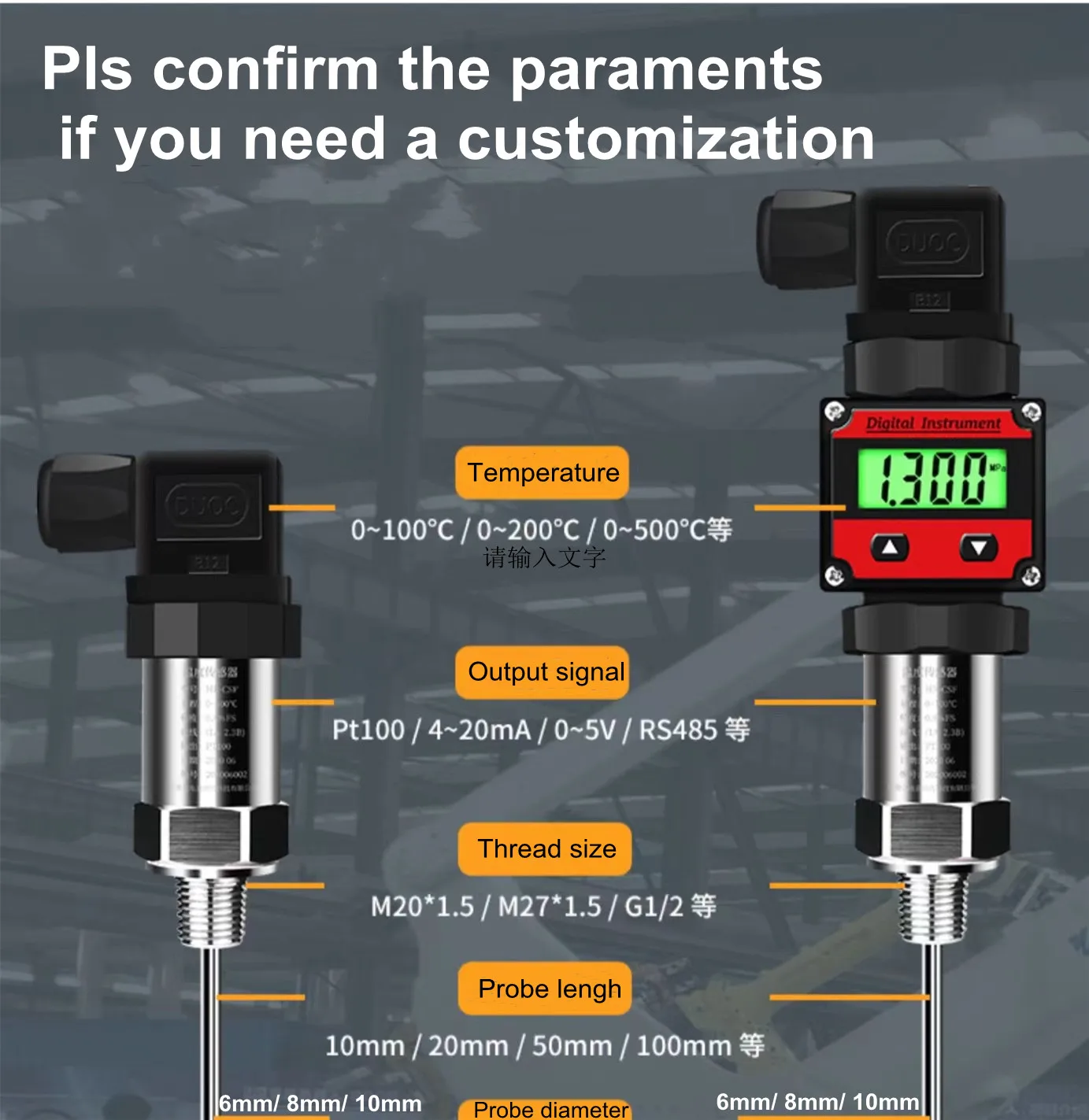

Pls let me know the probe diameter,probe lengh,thread size before ordering.TKS
Description

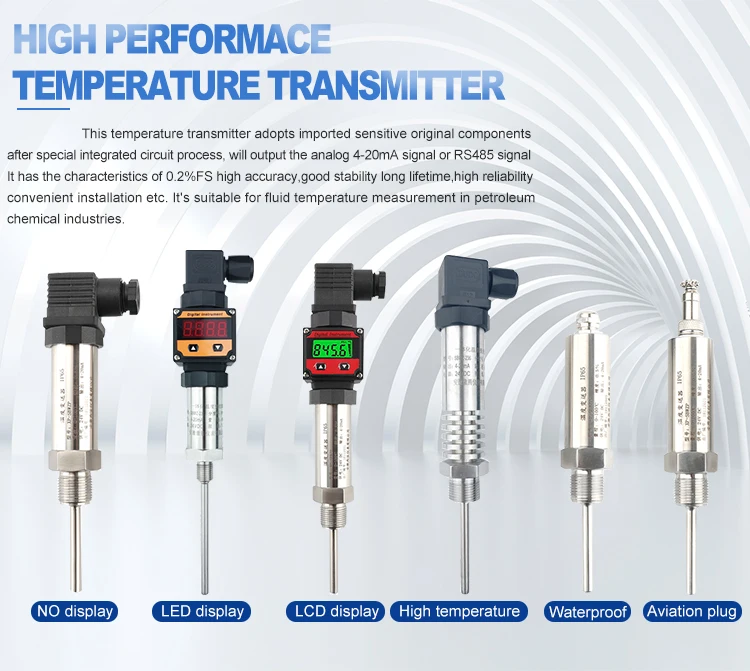

This PT100 temperature transmitter adopts thermocouple or resistance as the temperature measuring element it is normally matched with display,recording and regulating instrument to measure the temperature (from -50 to 250 Centigrade)of liquid,steam,gas and solid during various production process.
The thermocouple (resistance) measure the changes of thermal power (resistance) when working,which will produce unbalance signal through the temperature transducer's bridge,and the signal will be amplified and converted into 4-20mA DC signal to the instrument,then the instrument will display the corresponding temperature value.
It can be widely used in automation temperature control system,such as metallurgy,machinery,petroleum,electricity chemical industry,light industry,textile,building materials and so on.

Produktdetails in Bildern

Produkteigenschaften

Markenname

NONE

Hochbetriebenes Chemikalienunternehmen

Keine

Halbfertigprodukt

Nein

Stromquelle

Keine

Batterie im Lieferumfang enthalten

no

Ursprung

CN (Herkunft)

Benutzen

Industrie

Zertifizierung

CE

Zertifizierung

FCC

Zertifizierung

RoHS-Konformität

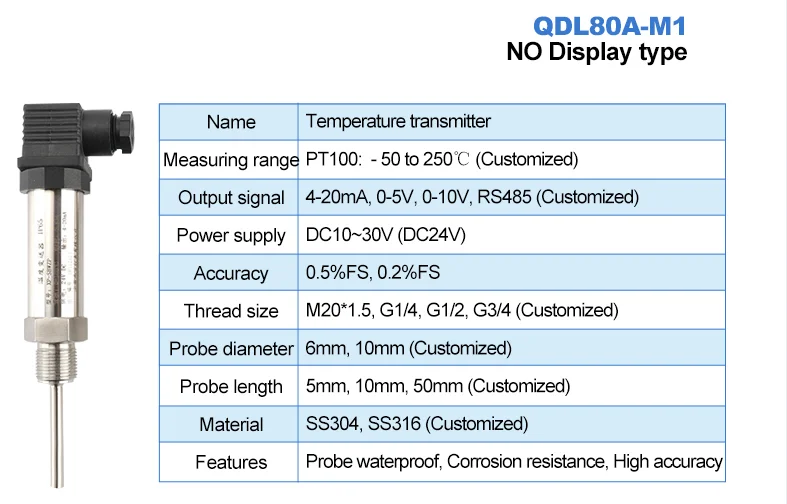

Product name

pt100 Integrated Temperature Sensor

input

PT100

Temperature range

50-250 degrees customized

output

4-20ma/ 0-10v/1-5v/rs485 customized

Power supply

DC10-30V(DC24V)

Materia

ss304,ss316 customized

Probe diameter

6mm,10mm

probe lengh

10mm.20mm,30mm,50mm customized
