0,96 Zoll OLED IIC Serielles Weißes OLED-Display-Modul 128X64 I2C SSD1306 12864 LCD-Bildschirm-Board für Arduino

Produktbeschreibung

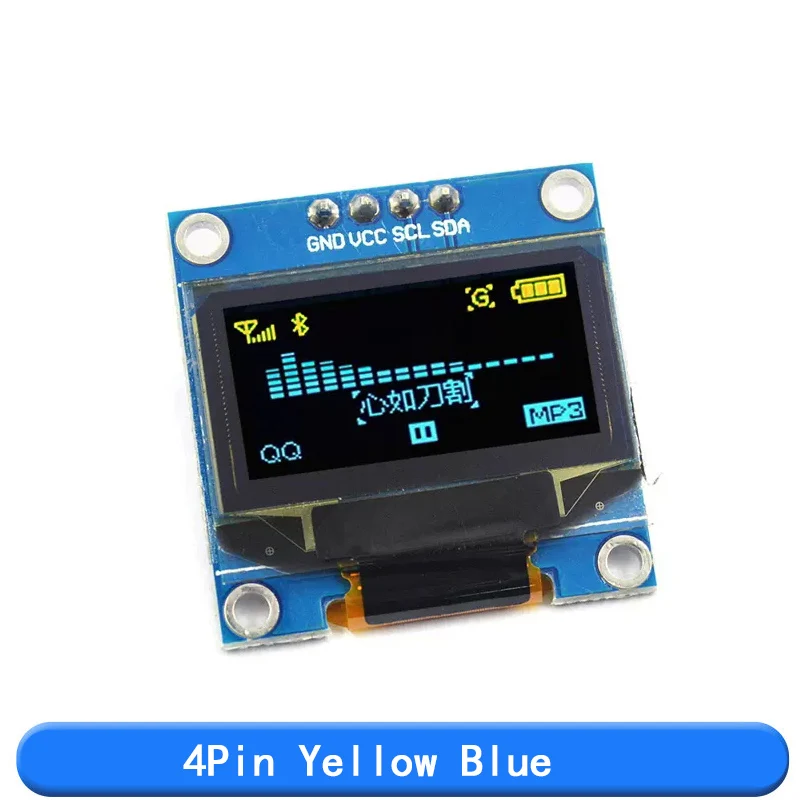

Interface type: IIC interface
Pin definition: GND,VCC,SCL,SDA
1:GND(OLED power supply)
2:VCC (OLED 3.3~5V)
3:SCL(OLED IIC Clock line)
4:SDA(OLED IIC Cable
The instructions on four needles IIC interface module
Four needles iic interface is relatively simple,only two signal lines
1. The GND power supply
2. The VCC power supply is (3 ~ 5.5 V)
3. The SCL OLED D0 feet,for the clock pin in the IIC communication
4. The SDA OLED D1 feet,in the IIC communication pin for the data
7PIN
Drive IC: SSD1306
Resolution: 128*64
PIN NO.: 7Pin
Color: White
Interface: SPI and IIC interface
Provide detail datasheet
Interface Definition

Produktdetails in Bildern

Produkteigenschaften

Halbfertigprodukt

Nein

Markenname

Stlxy

Heimwerkerbedarf

elektrisch

Ursprung

CN (Herkunft)

Modellnummer

0.96 inch oled IIC Serial White OLED Display Module

Hochbetriebenes Chemikalienunternehmen

Keine

Elektronisch

Nein

Choice

yes

semi_Choice

yes
