Kurzwellen-Balun 1-30MHz Konvertierungskits NXO-100 Magnetisch symmetrisch-unsymmetrisch für Amateurfunk-Verstärker Kurzwelle

Produktbeschreibung

HAM Equipment,1-30Mhz Shortwave Radio Balun diy kits NXO-100 Magnetic Balance-unbalanced conversion

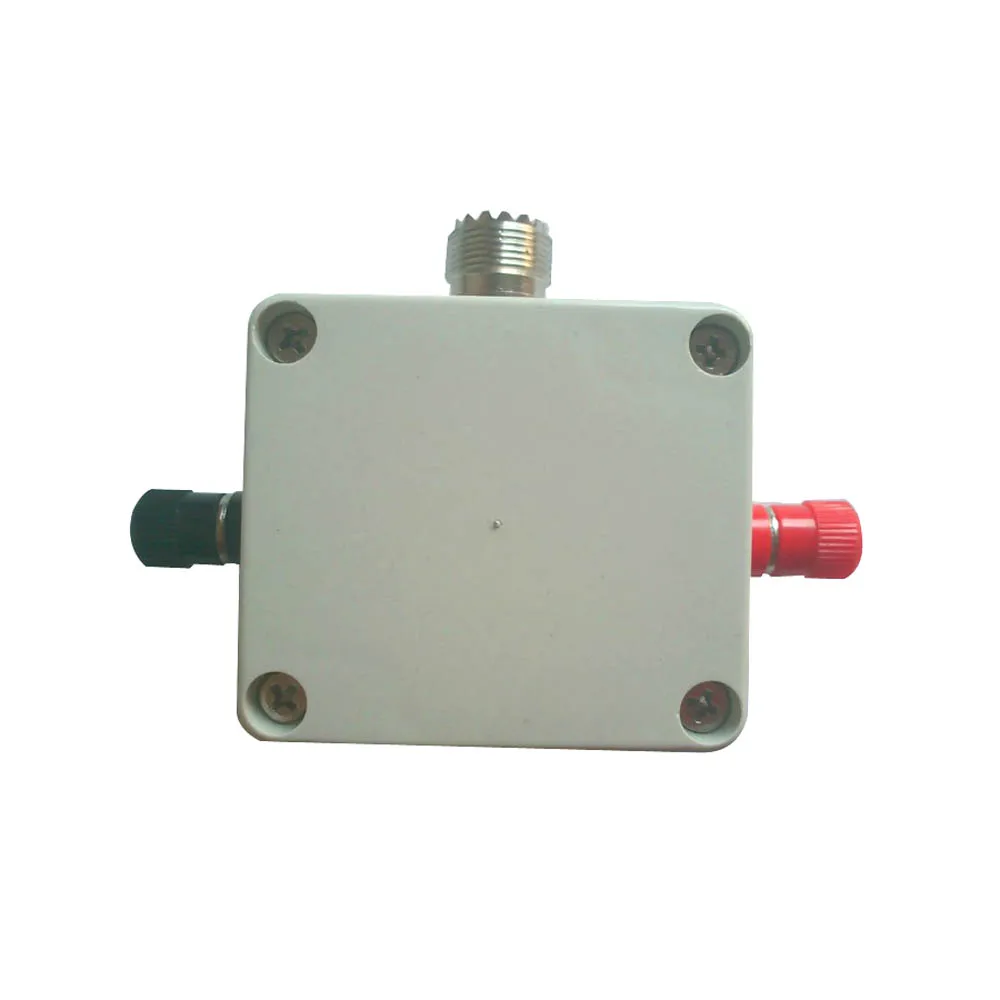

Waterproof shell size: 65mm*60mm*35mm
Thank you choose our balun kit, the kit adopt the the large size NXO-100 magnetic, 1-30MHz shortwave, can withstand high power 100W-200W can easily produce high-performance balun ensure efficient radio transceiver communication, but also allows you to fully enjoy the fun of DIY.
The balun kit list of components
A waterproof sealed box

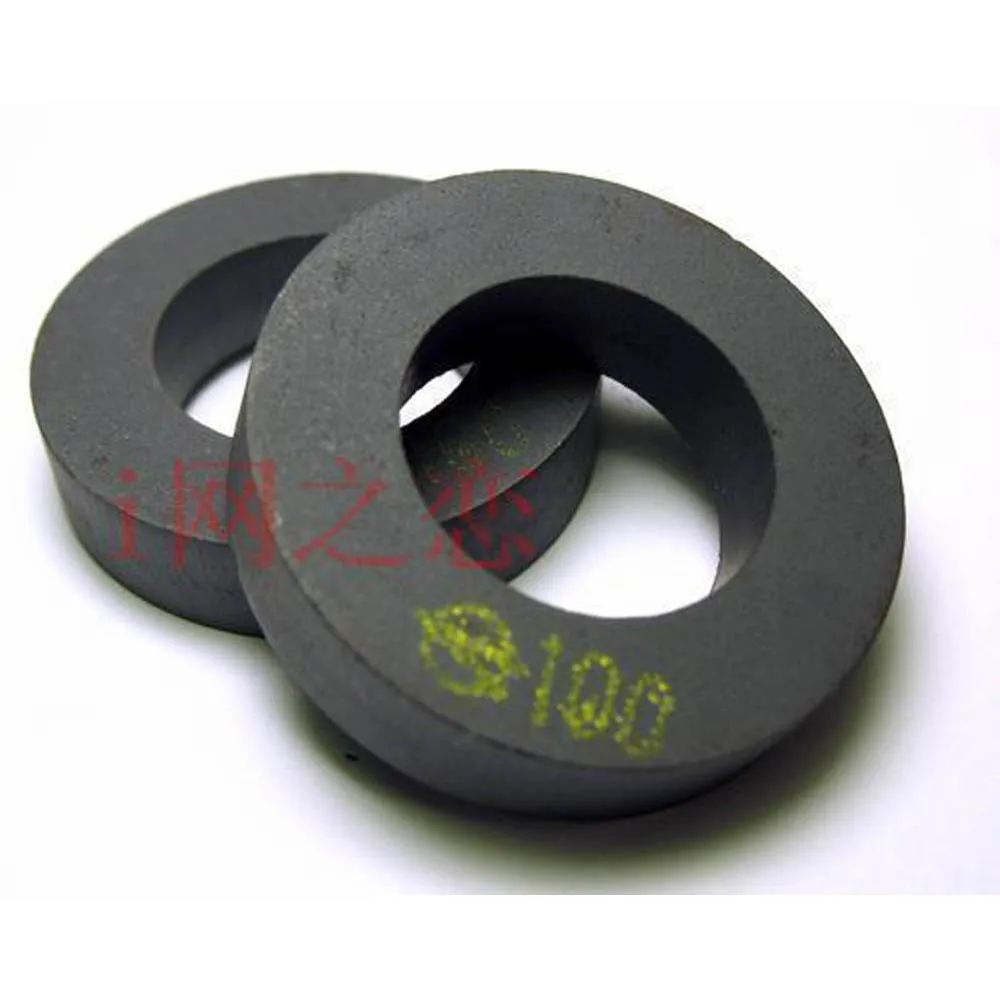

MXO-magnet 100 (31 * 18 * 7)
M Block (flanges style) a
¢ 1 enameled wire 1.5m
Heat Shrink Tubing 0.5m

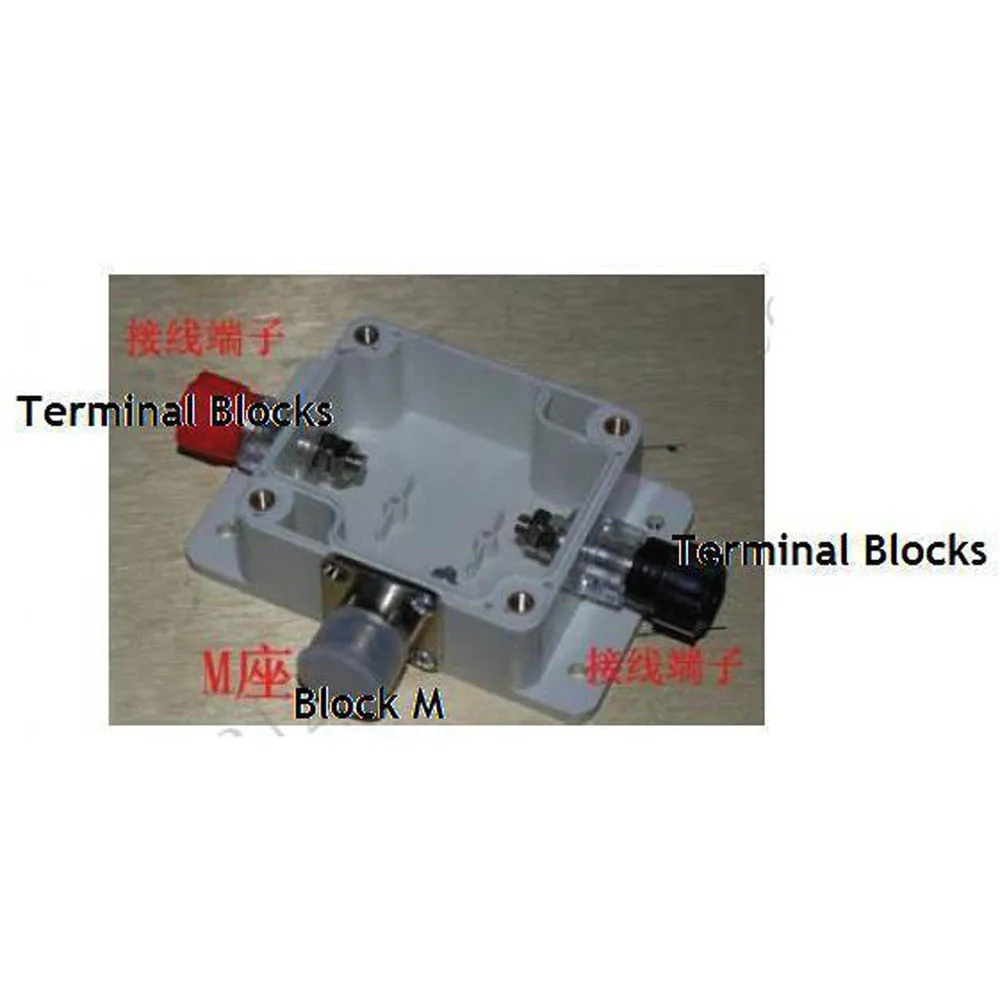

Terminal block 2 (red and black one, for connecting the antenna)
¢ 4 welding piece 2 (for magnetic coils and terminals connected)
¢ 3 lug 1 (for magnetic coil and Block M, the chassis ground wire)
¢ 3 4 washers (for fixed M Block)
4 M3 flat head screws (for fixed M Block)
M3 nut 4 (for fixed M Block)
Production process
Before making iron, solder wire, scissors, knives, drills, etc..
1, select the balun impedance ratio
Depending on the type of antenna, in 1:1,1:4,1:9 three kinds, 1:1 and 1:9 are three enameled wire hinge, 1:4, two enameled.
