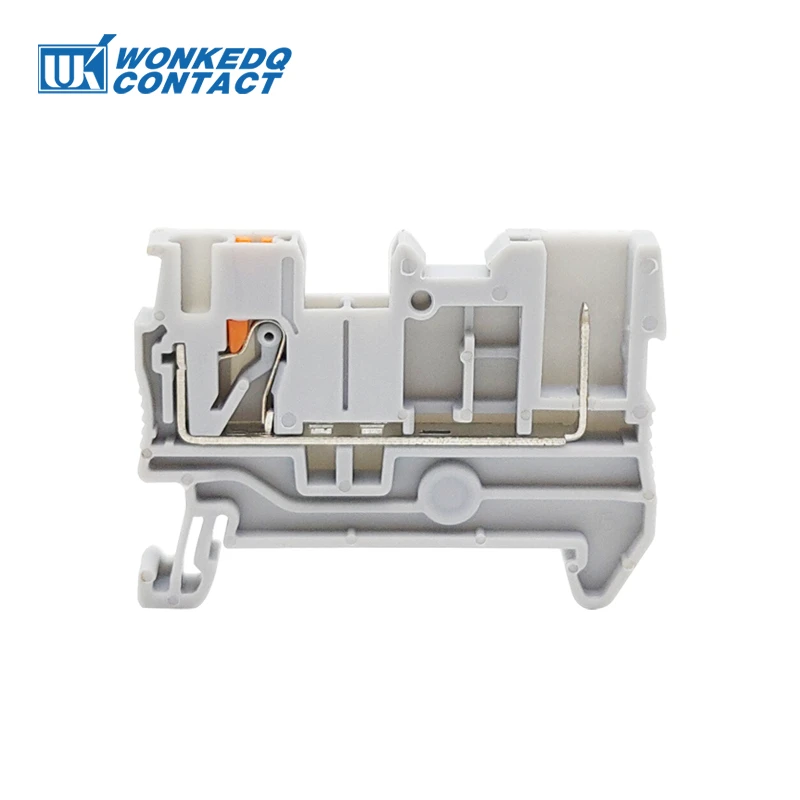

PT 2,5/1P Plug-in-Klemmenblock Push-in/Stecker 2,5 mm2 Kabelsockel PPH2.5-1/2/3/4/5/6/7/8/9/10 Pin Testadapter DIN-Schienen-Stecker

Produktbeschreibung

DESCRIPTION
The plug-in connection enables the time-saving and modular configuration of your application.
1. Made from engineering flame retardants nylon PA66,brass conductor, stainless steel pressure spring.

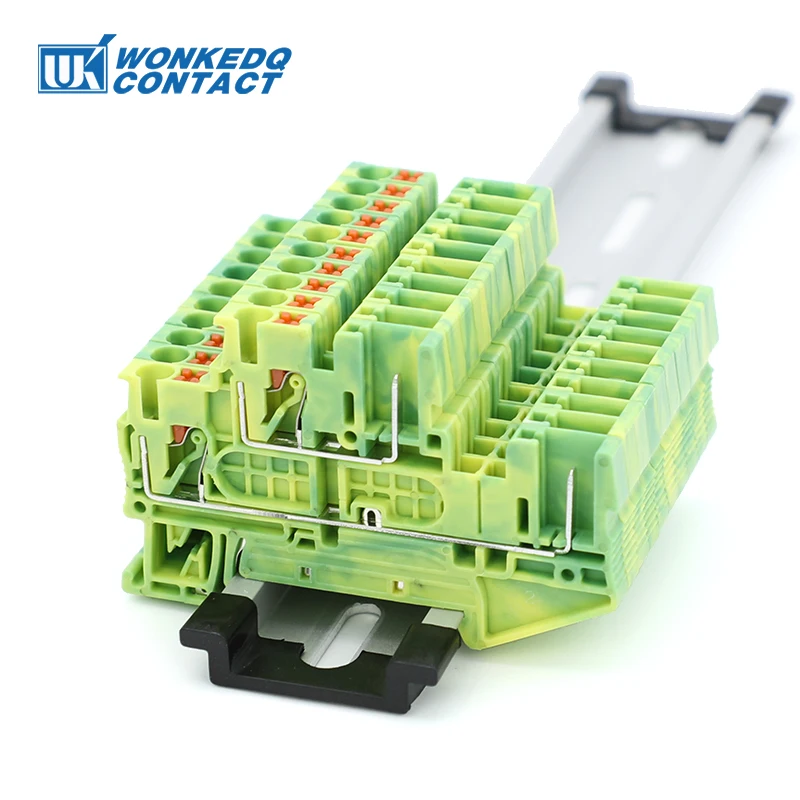

2. This plug-in connectionallows to combine basic terminal blocks which are available in Push-in, spring-cage, fast connection, and screw connection versions with one another in any configuration.
3. The compact design and front connection enable wiring in a confined space.
4. With universal foot which can be installed on Din Rail NS 35.
5. Electric potential distribution can use fixed bridges in the terminal center.
6. All types of accessories: End cover, End Stopper, Marker strip, Plug-in bridge, Marker carrier,etc.
Accessories for PT2.5/1P (Click the pictures to the link)
End Cover
D-ST1.5-2.5
Jumper Bridges
FBS 2/3/4/5/10-5
Marker Strips
ZB5
End Stop
E-UK
Marker Carrier
JB1
Marker Clips

Produktdetails in Bildern

Produkteigenschaften

Markenname

WONKEDQ

Ist drahtlose Funktionalität enthalten?

Nein

Typ

Plug-in

Ist eine Batterie im Lieferumfang enthalten?

Nein

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Zertifizierung

CE

Zertifizierung

RoHS-Konformität

Leitergröße

26-12 AWG

Model Number

PT 2.5-1P

Conductor Size

26-12 AWG, 26-12 AWG

Connection method

Plug-in connection

Rated Voltage/Current

500V/24A

LOGO

WKDQ, LOGO can be customized

Number of Contacts

1 - 10

Type

Spring

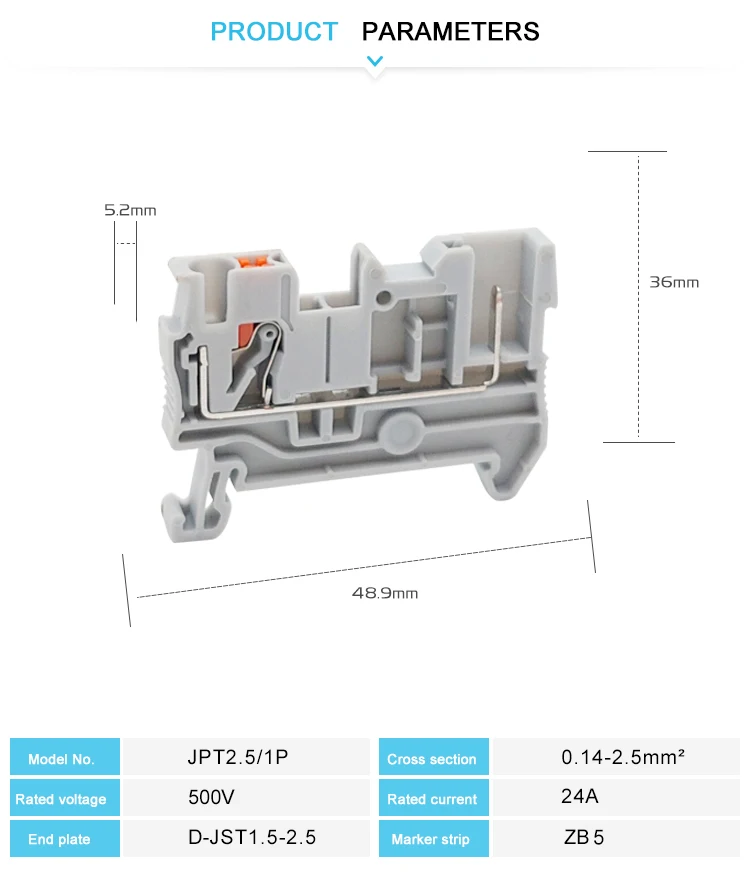

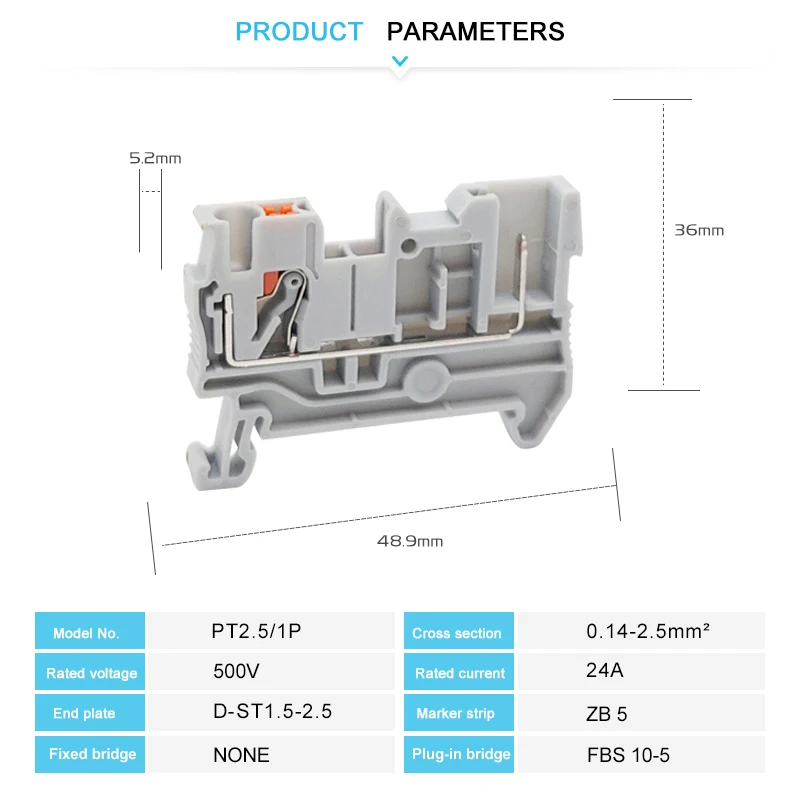

Length/Wide/Height (mm)

48.5/35.5/5.2

Material

Flame resistant Nylon PA66, Tin plated brass conductor

Cross section

0.2-4mm²/0.2-2.5mm²

Mounting Type

DIN Rail NS 35
