LED-Module

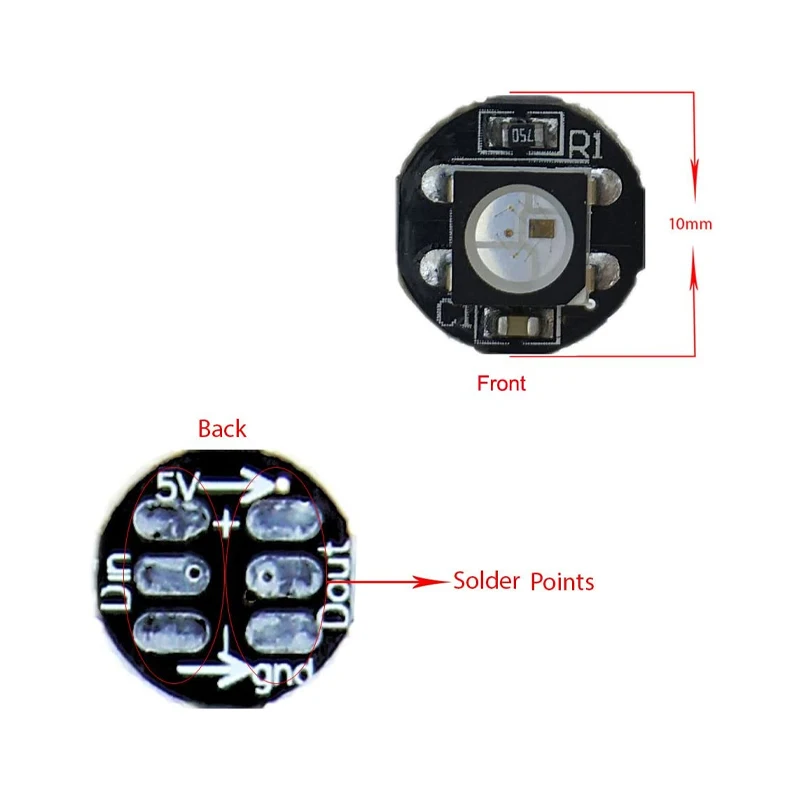

Durchmesser 10 mm Vollfarb-LED-Leuchtenplatine DC 5 V individuell adressierbar WS2812B RGB IC 5050 SMD Pixellampen Perlen 2812B WS2812 2812

5,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Lieferung nach Deutschland
Lieferzeit: 6–11 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

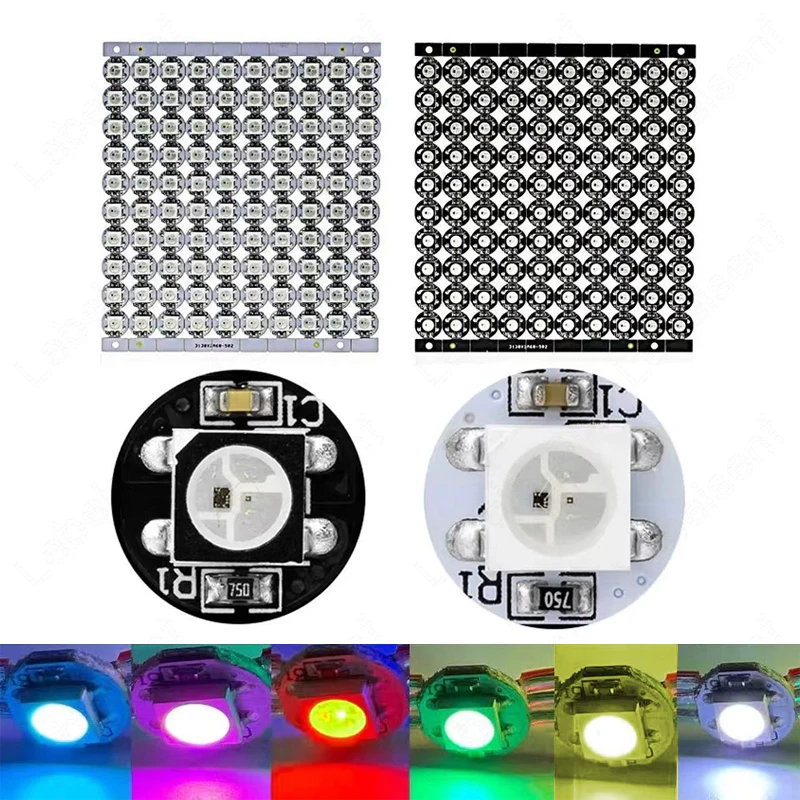

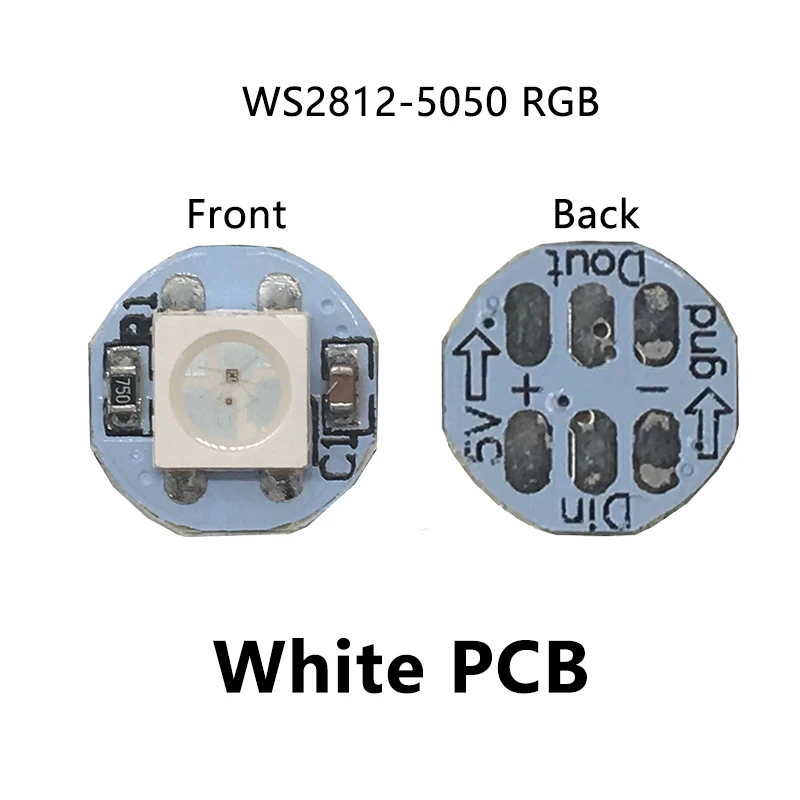

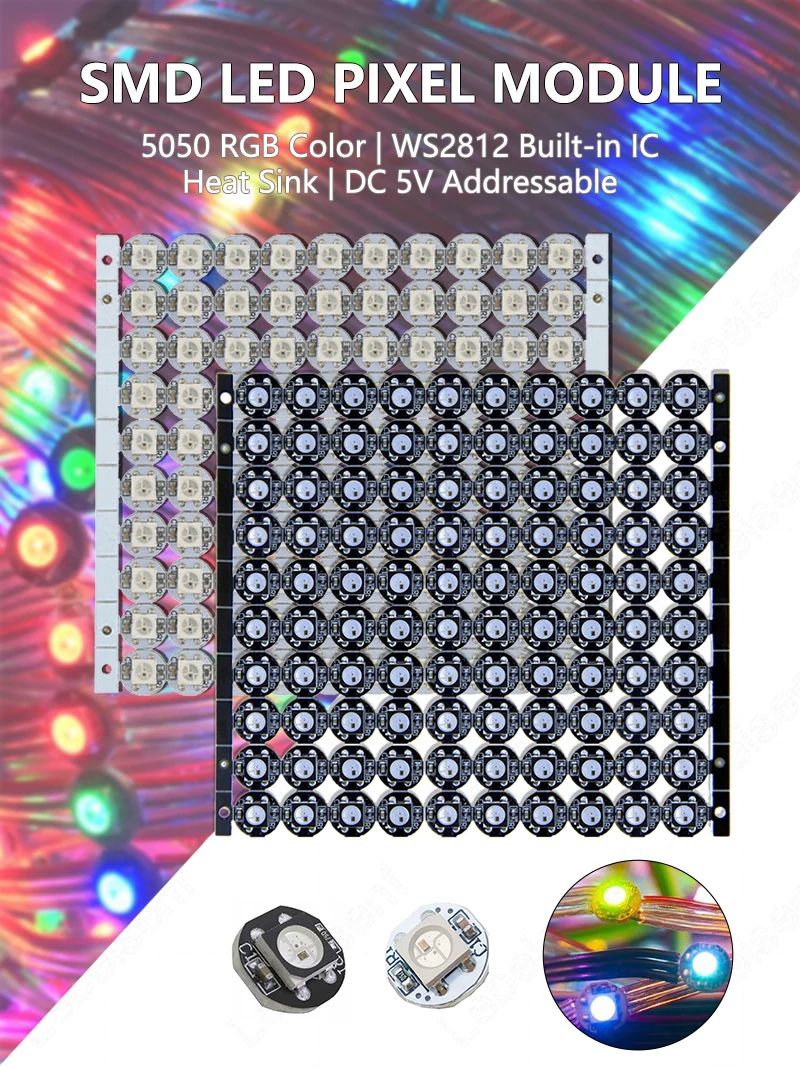

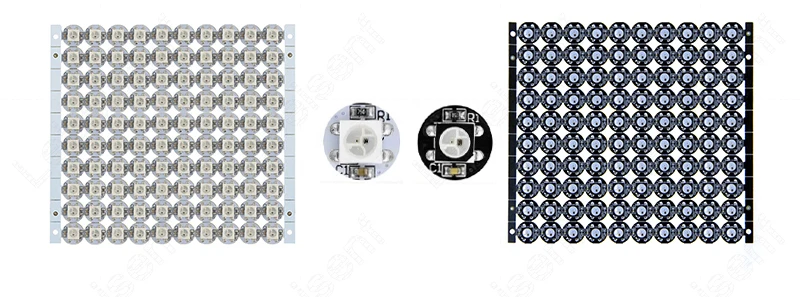

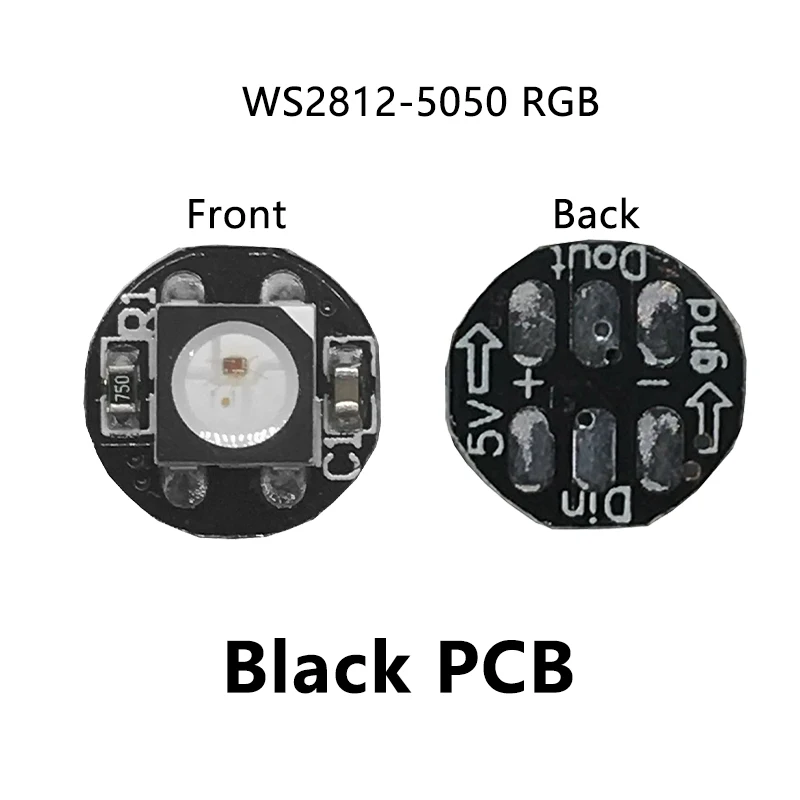

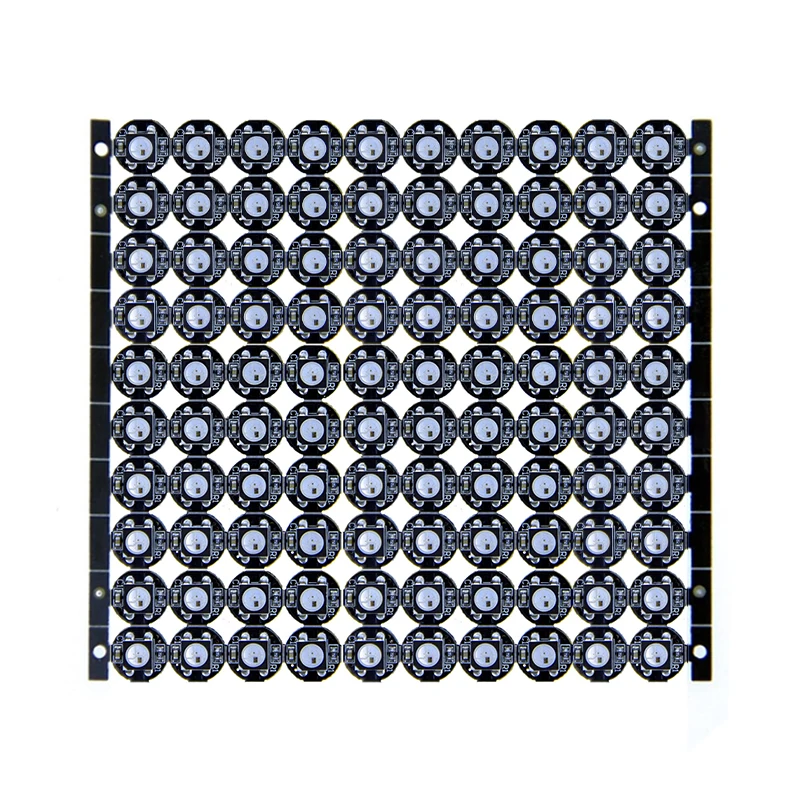

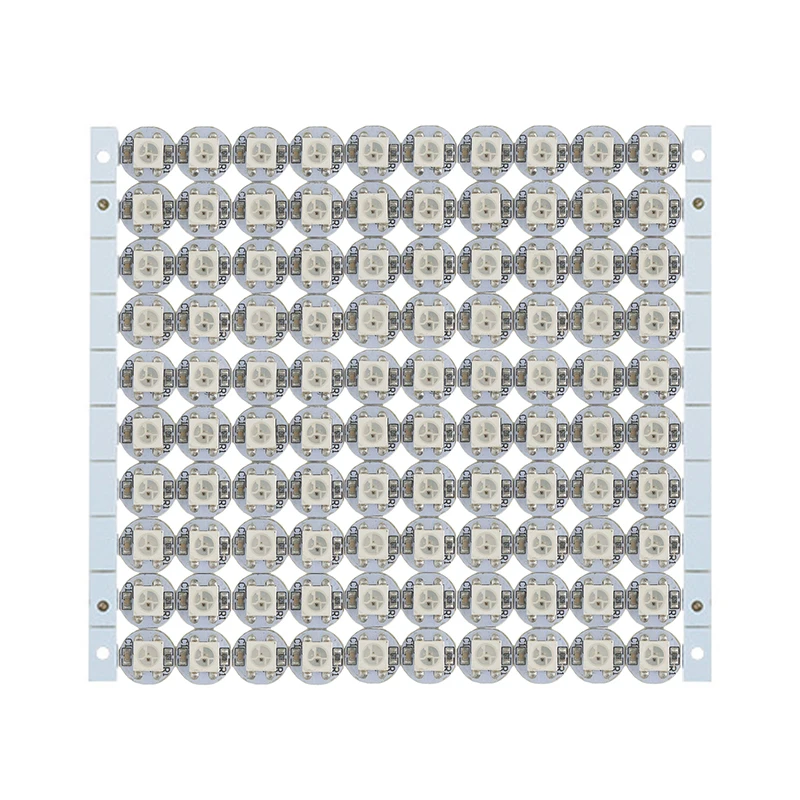

DC5V WS2812B LED Pixel Lamp Module Small Round Board Heat Sink Magic Color String Light SMD 5050 RGB Built-in 2812 Addressable IC Black or White PCB Aluminum Plate
For DIY Point Light Source String Lights
Feature function
Intelligent reverse connect protection, the power supply reverse connection does not damage the IC.

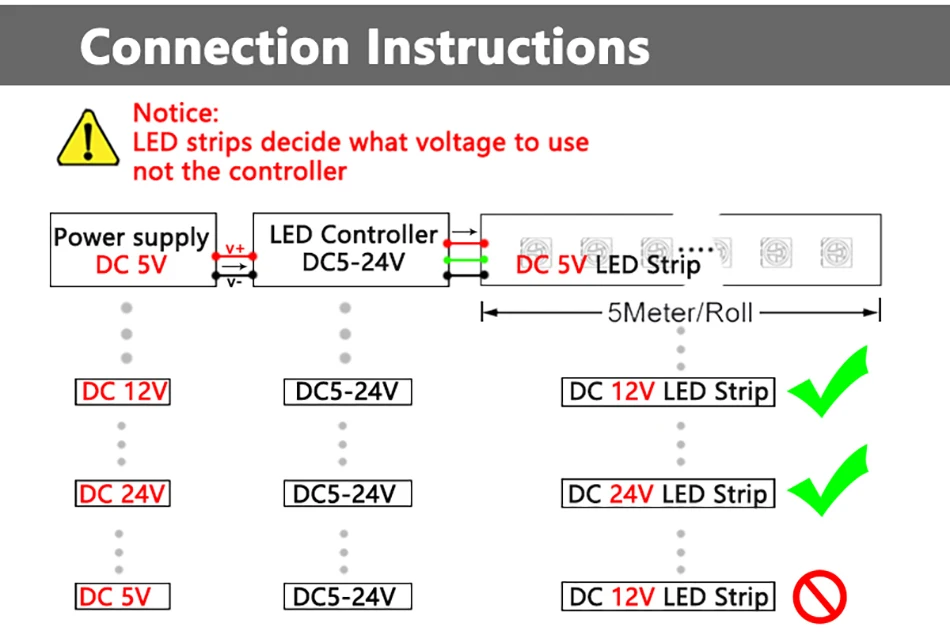

The control circuit and the LED share the only power source.

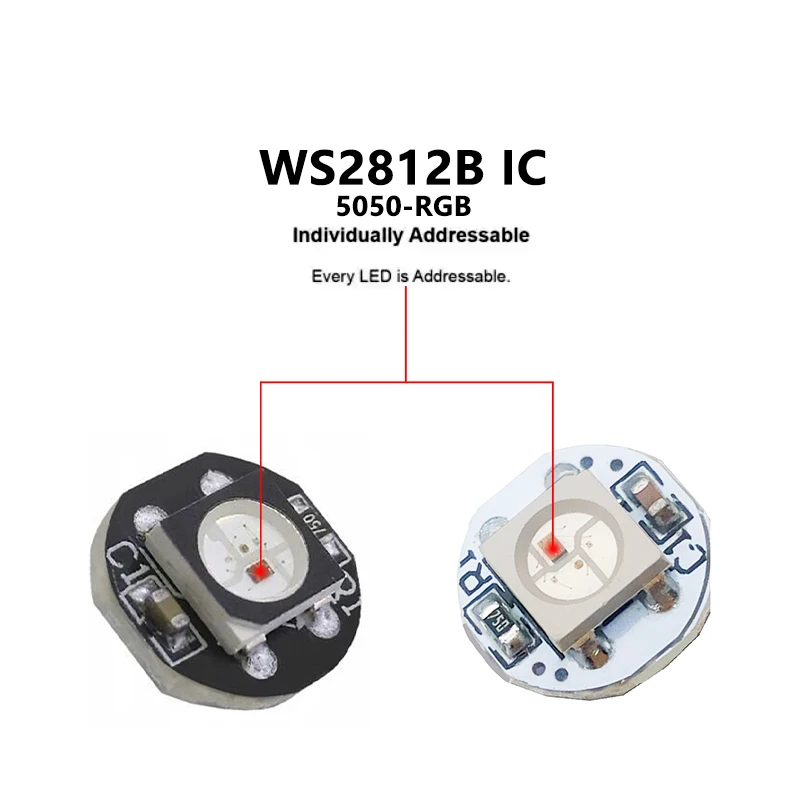

Control circuit and RGB chip are integrated in a package of 5050 components, form a complete control of pixel point.
Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not accumulate.
Built-in electric reset circuit and power lost reset circuit.
Each pixel of the three primary color can achieve 256 brightness display, completed 16777216 color full color display, and scan frequency not less than 400Hz/s.
Cascading port transmission signal by single line.
Any two point the distance more than 5m transmission signal without any increase circuit.
When the refresh rate is 30fps, cascade number are not less than1024 points.
Send data at speeds of 800Kbps.
The color of the light were highly consistent, cost-effective..
Product Specification
IC Model: WS2812B
the gray level: 256
Beam angle: 180 °
Color order:GRB (NOT RGB)
Power: 0.3W ± 0.01%(1LEDs)
