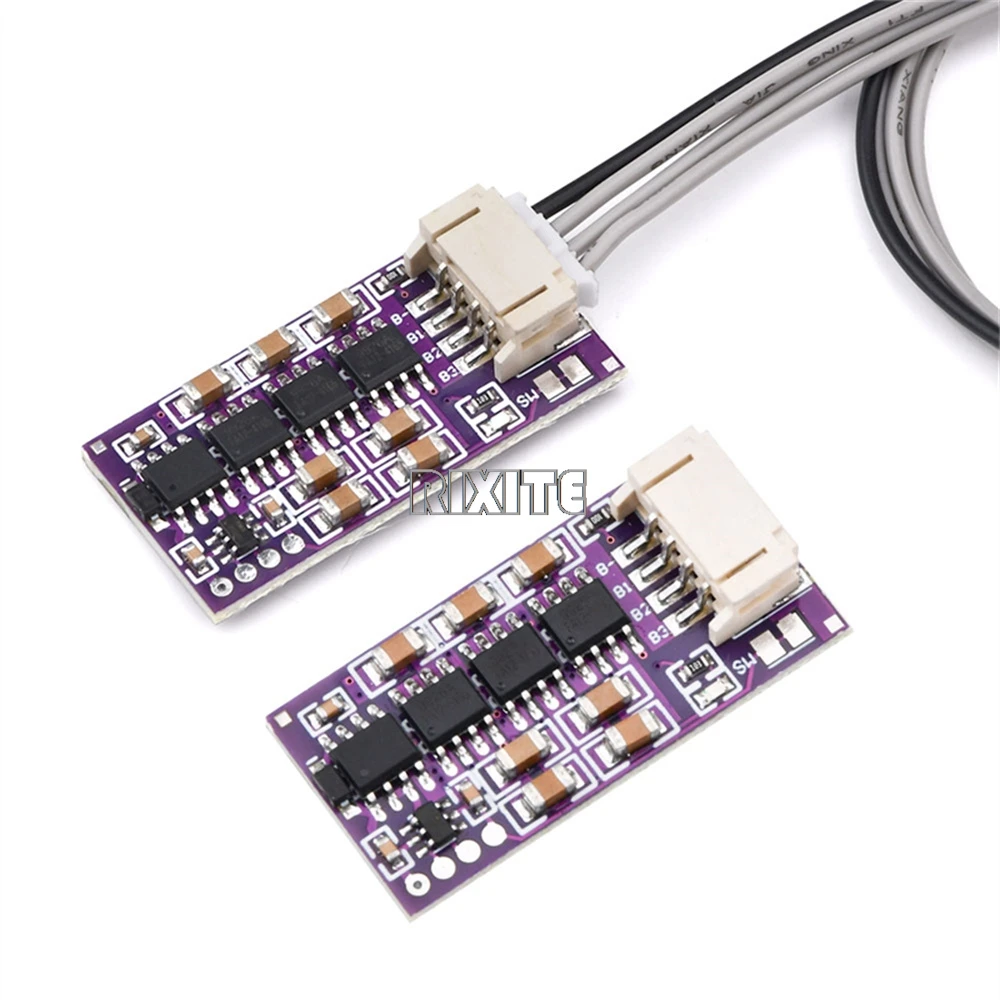

3s 4s 5s bms 2.5a Li-Ion Lifepo4 Lithium batterie Active Equalizer Balancer Board Active Balance Modul Energie übertragung

Produktbeschreibung

Product features.
Up to 1.5A balanced current, efficient balanced and low consumption stable mature and reliable circuit structure to eliminate the risk of similar failures (balanced current varies with the difference in voltage between batteries)
Low resistance high-frequency ceramic capacitors are selected to facilitate the performance and reliability of high quality components (the appearance of the capacitor package and parameters may vary depending on the batch)
Low heat generation, high reliability and high precision, suitable for internal battery pack work or for battery maintenance external equalization, equalization precision up to 3mV
Wiring plug, matching 24AWG pure copper connection plug
Capacitive lithium battery active equalization module is used for voltage equalization between lithium battery packs, and the independent operation between the protection board does not affect each other. Suitable for battery pack PACK, maintenance, and DIY battery pack use.
Product parameters.
Product Specifications:3S 4S 5S
Equilibrium current: maximum 1.5A (with differential pressure, internal resistance, line resistance, etc. vary)
Equalization accuracy:3mV
Suitable for battery: lithium iron phosphate, ternary lithium universal
Matching wire: 22AWG
Frequently Asked Questions
Q1:Difference between similar products
A1: resistive passive equalization (advantages: cheap, small size, stable, disadvantages: low efficiency, heat generation)
Inductive active equalization (advantages: cheap, small size, disadvantages: poor stability, easy to bad, general accuracy)
Transformer type active equalization (advantages: high precision, high stability, disadvantages: the volume is relatively large, the price is relatively high)
Capacitive active equalization (advantages: affordable, high stability, small heat, high precision, high efficiency, disadvantages: the circuit thickness is relatively high)
Q2: Wiring rules
A2: from 0V (total negative) to start wiring in the direction, any state of 0V (total negative) overhang can easily lead to burn board, be sure to confirm the line sequence, the wrong sequence burn board!

Produktdetails in Bildern

Produkteigenschaften

Markenname

RIXITE

Hochbetriebenes Chemikalienunternehmen

Keine

Ladegerät im Lieferumfang enthalten

n

Elektronisch

no

PC enthalten

Ja

Spannungsbereich

Niederspannung ohne USB (unter 75 V DC, unter 50 V AC)

Wiederverwendbarkeit

Wiederverwendbar

Zubehörtyp

Batteriezubehör

Ursprung

CN (Herkunft)

Batterie im Lieferumfang enthalten

no

Modellnummer

Lithium Battery Active Equalizer Balancer Board

Zertifizierung

CE

Choice

yes

semi_Choice

yes
