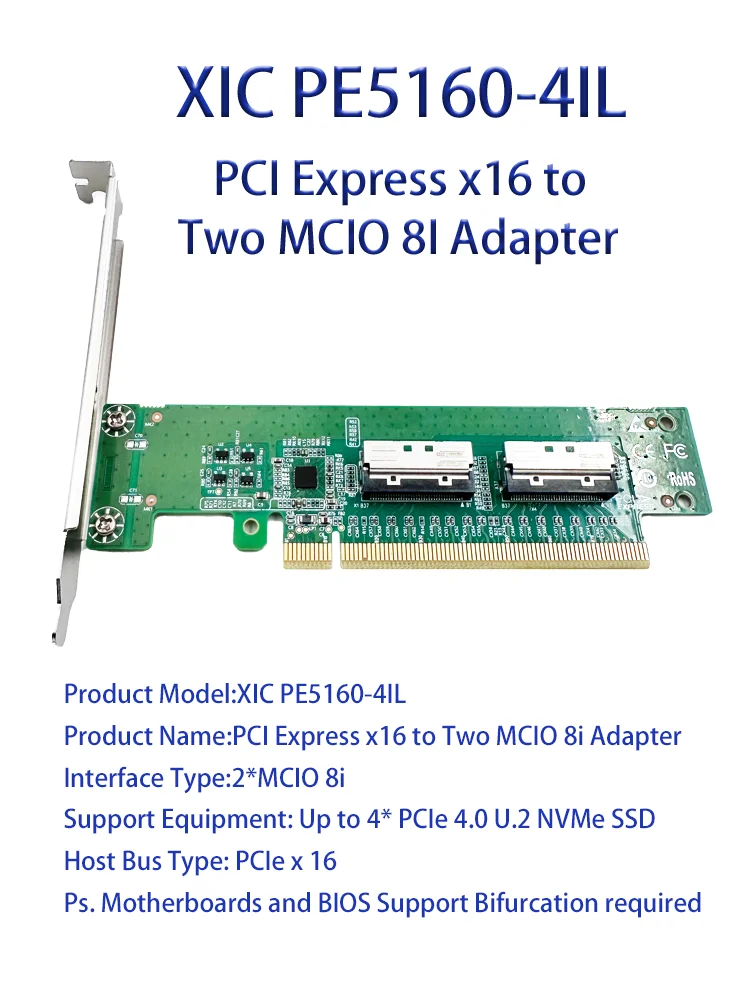

PCI Express X16 zu Zwei MCIO Erweiterungskarte 8I Adapter

Produktbeschreibung

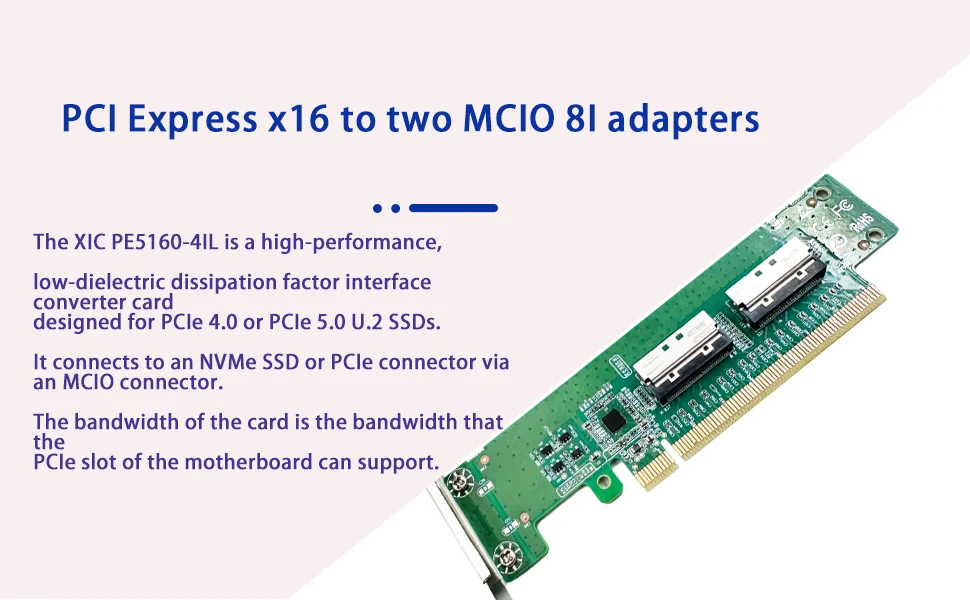

XIC PE5160-4IL is a high performance, low dielectric loss factor interface conversion card designed for PCIe 4.0 or PCIe 5.0 U. 2 SSD. It connects NVMe SSD or PCIe connectors via MCIO connector. The bandwidth of the card is the bandwidth that the PCIe slot of the motherboard can support.
Motherboards with CPU and BIOS need to support forking to ensure that the PCIe x16 link width is 2 x8 linkwidths or 4 x4 linkwidths for NVMe SSD forks, otherwise this card can only support PCIe x16 linkwidths.
peculiarity
Via MCIO to SFF-8639 cable
Connects directly to PCIe 5.0 U.2 NVMe SSDs with support for forked quad x4 data link-width configuration (both CPU and BIOS supported)
Double-x8 data link width configuration with forked support (supported by both CPU and BIOS)
Built-in MCIO 8i connector 2 sets with pins defined by SFF-9402 for high-performance storage connectivity
Pre-installed PCIe standard full-profile stands, as well as low-profile mounts for small form factor computers
PCI Express Basic Specification, r 5.0, PCIe 1.0 & 2.0 & 3.0 & 4.0 compatible
Supports up to 4 NVMe SSDs
Product Description
XIC PE5160-4IL is a high performance, low dielectric loss factor interface conversion card. It connects NVMe SSD or PCIe connectors via MCIO connector. The bandwidth of the card is the bandwidth that the PCIe slot of the motherboard can support.
The Motherboard with CPU and BIOS needs to support bifurcation to ensure PCIe x16 link width to bifurcate two x8 link width or four x4 link width for NVMe SSD, Otherwise this card can only support PCIe x16 link width.
Features
Support up to 4 PCIe devices or NVMe SSDs
Compatible with PCIe Gen5, Gen4, Gen3

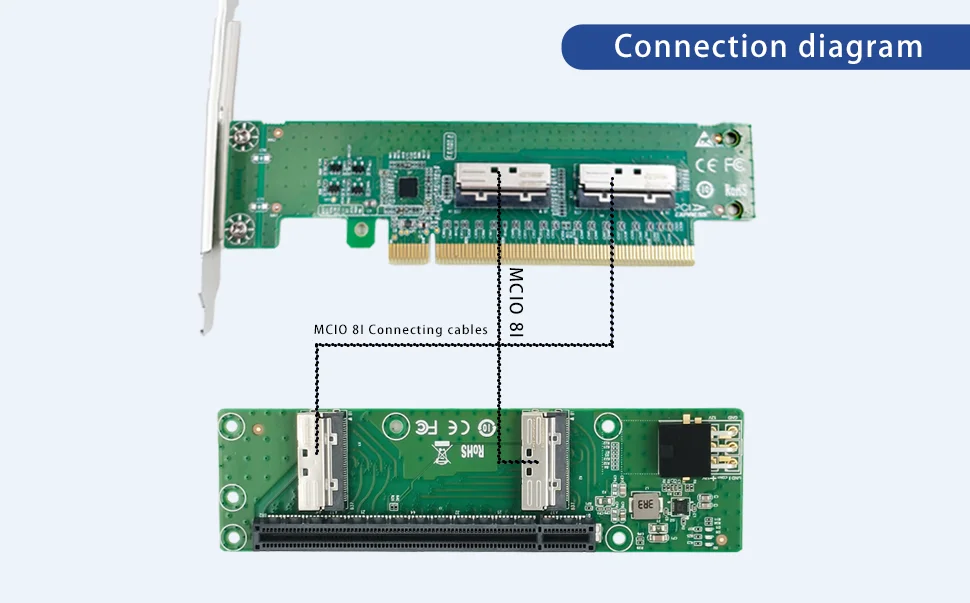

Directly connected to U.2 NVMe SSD by MCIO to SFF-8639 cable
Support bifurcated in quad x4 data link width configuration(CPU and BIOS both support)
Support bifurcated in two x8 data link width configuration (CPU and BIOS both support)

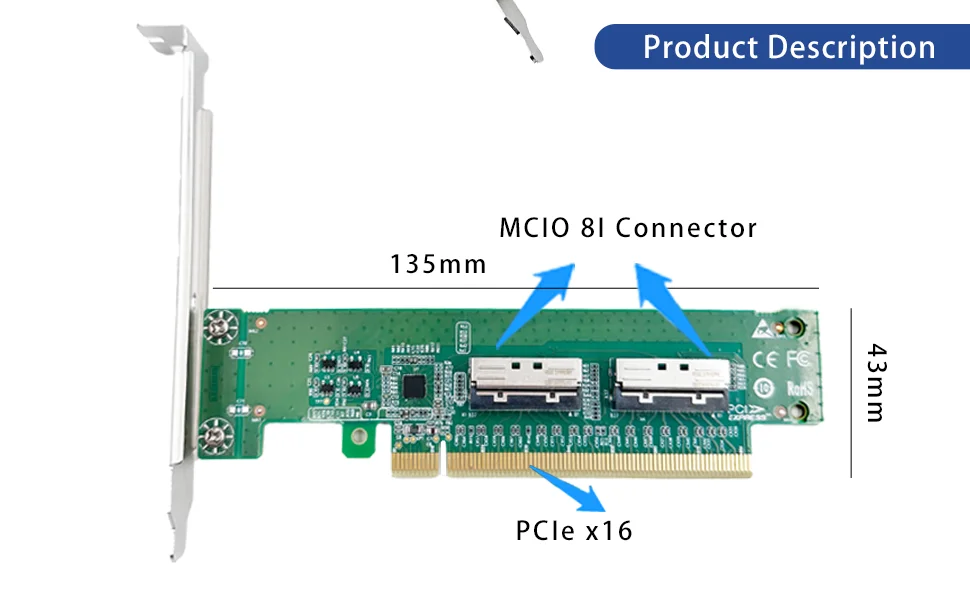

Build in MCIO 8i connector 2 sets, pin-out defined by SFF-9402

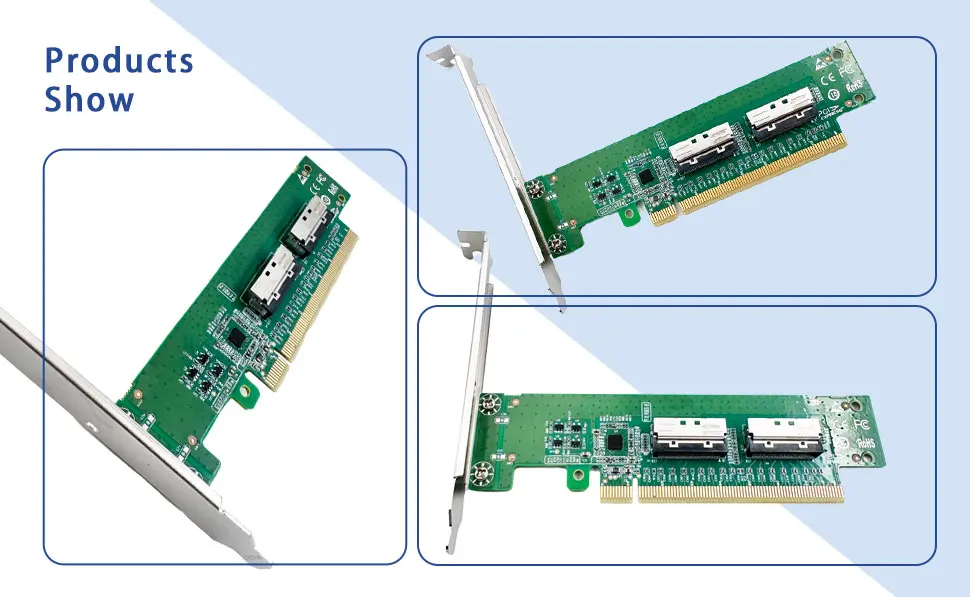

Produktdetails in Bildern

Produkteigenschaften

Markenname

eshinreal

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Funktion

Allein

Installation

Intern

Modellnummer

XIC PE5160-4IL

Schnittstellentyp

PCI-EXPRESS

Paket

Ja

Typ

Fügen Sie auf Karten hinzu
