Geekworm X1001 PCIe zu NVMe M.2 SSD Shield Board für Raspberry Pi 5

Produktbeschreibung

[Note]
The Raspberry Pi 5 & M.2 NVMe SSD & Active Cooler is not included in the packing list!!!
[Overview]
The X1001 V1.1 shield is an NVME M2 SSD PIP (PCIe Peripheral Board) for the Raspberry Pi 5 that uses the new PCIE interface of the Raspberry Pi 5 to utilise the NVME M2 SSDs for fast data transfers and ultra-fast booting.
Maximum current for pcie connector is 1A, and voltage is 5V.
The X1001 hardware has no limit on NVME SSD capacity, which is dependent on the Raspberry Pi OS.
[Features]
Minimalist design, easy to install
Compatible with other HAT shield
Supports installation of official active coolers
Support Hailo-8 AI Accelerator

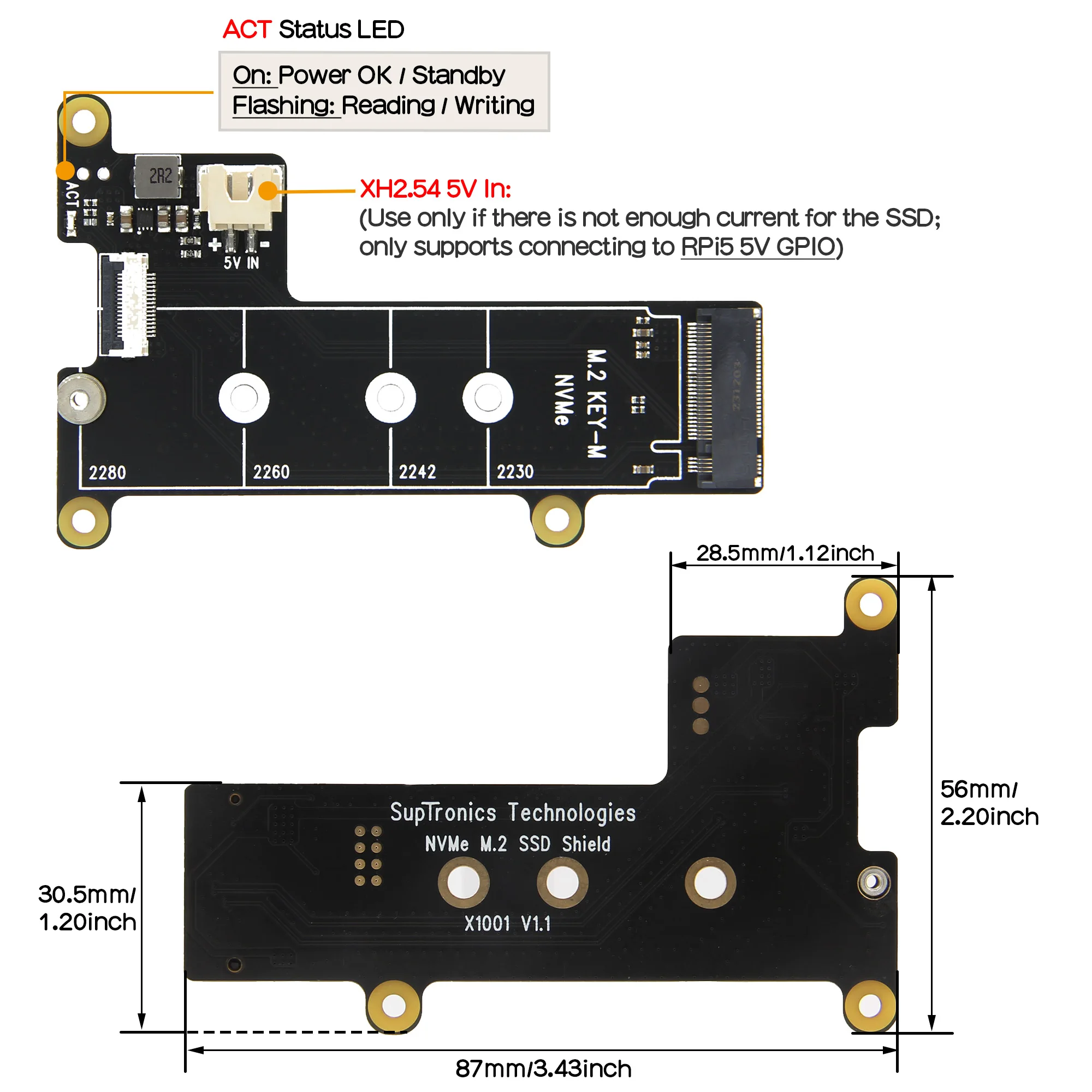

With M.2 SSD ACT LED Indicators

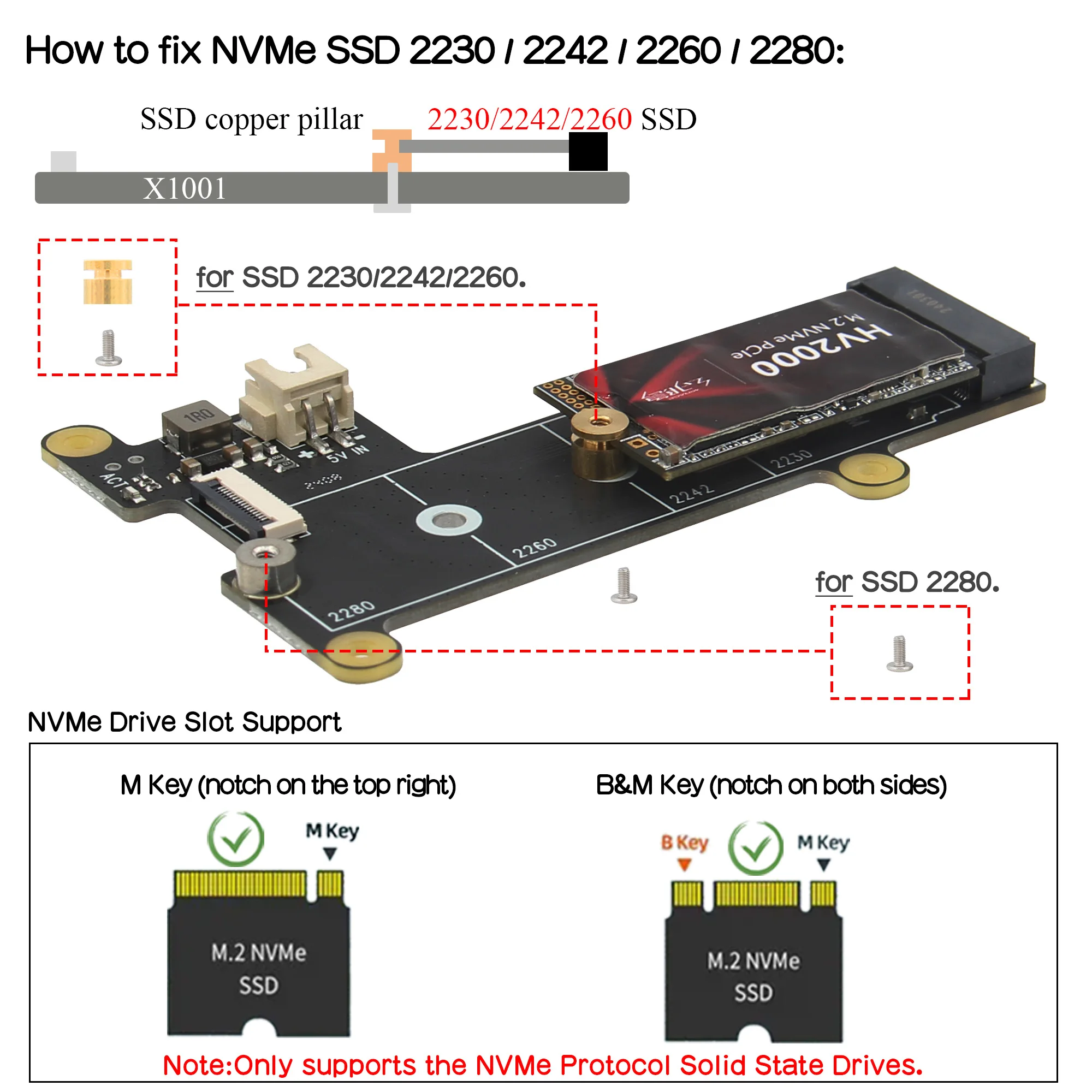

Supports 2230/2242/2260/2280 NVME M2 SSD
Can Power the X1001 shield directly from the FFC PCIe ribbon (providing maximum 5W of continuous power)
Integrated with XH2.54 5V power connector, just use it if you are using a ultra large capacity SSD if the current is not enough.
[User Manual]

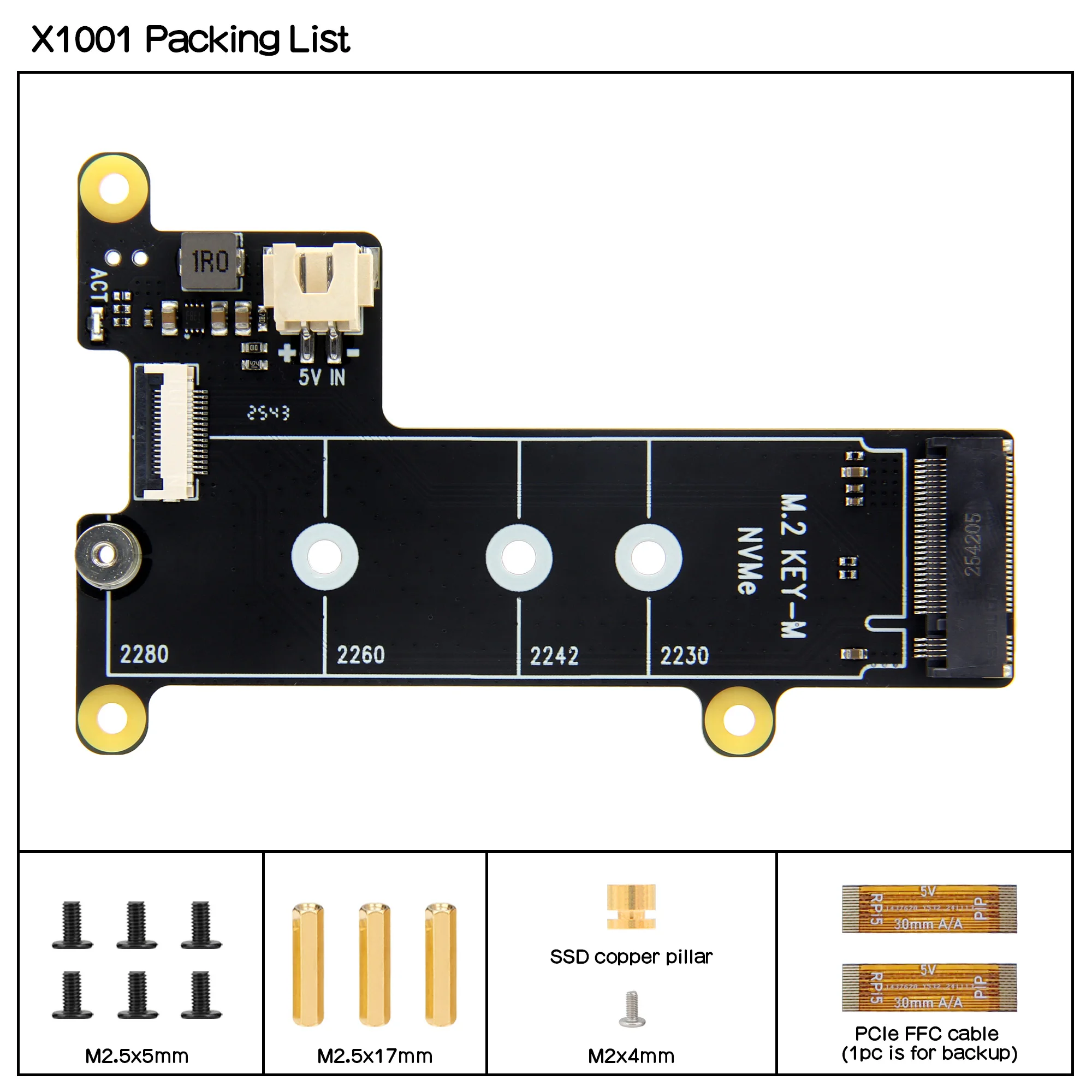

[Packing List]
1x X1001 V1.1 NVMe SSD Shield
1x PCIe FFC Cable(30mm length)
3x M2.5x17mm F/F Spacers

Produktdetails in Bildern

Produkteigenschaften

Markenname

Geekworm

Zubehörtyp

Erweiterungsplatine

Batterie im Lieferumfang enthalten

no

Typische Anwendungsbereiche

Bildung und Lernen

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Kompatibel Mit

Raspberry Pi5

Choice

yes

semi_Choice

yes
