Hydro statischer Füllstand sensor messumformer mit 4-20mA Ausgang DC12-36V Wassertank-Flüssigkeits wandler messgerät

Produktbeschreibung

Product overview

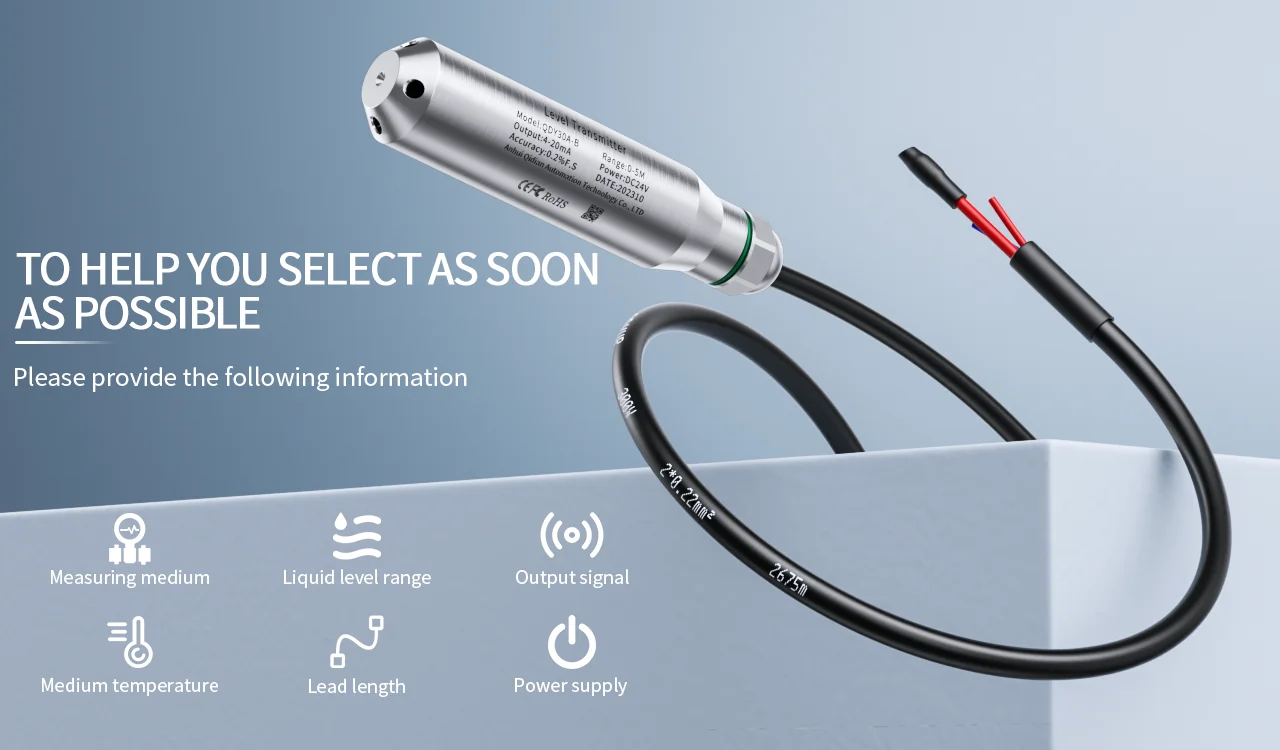

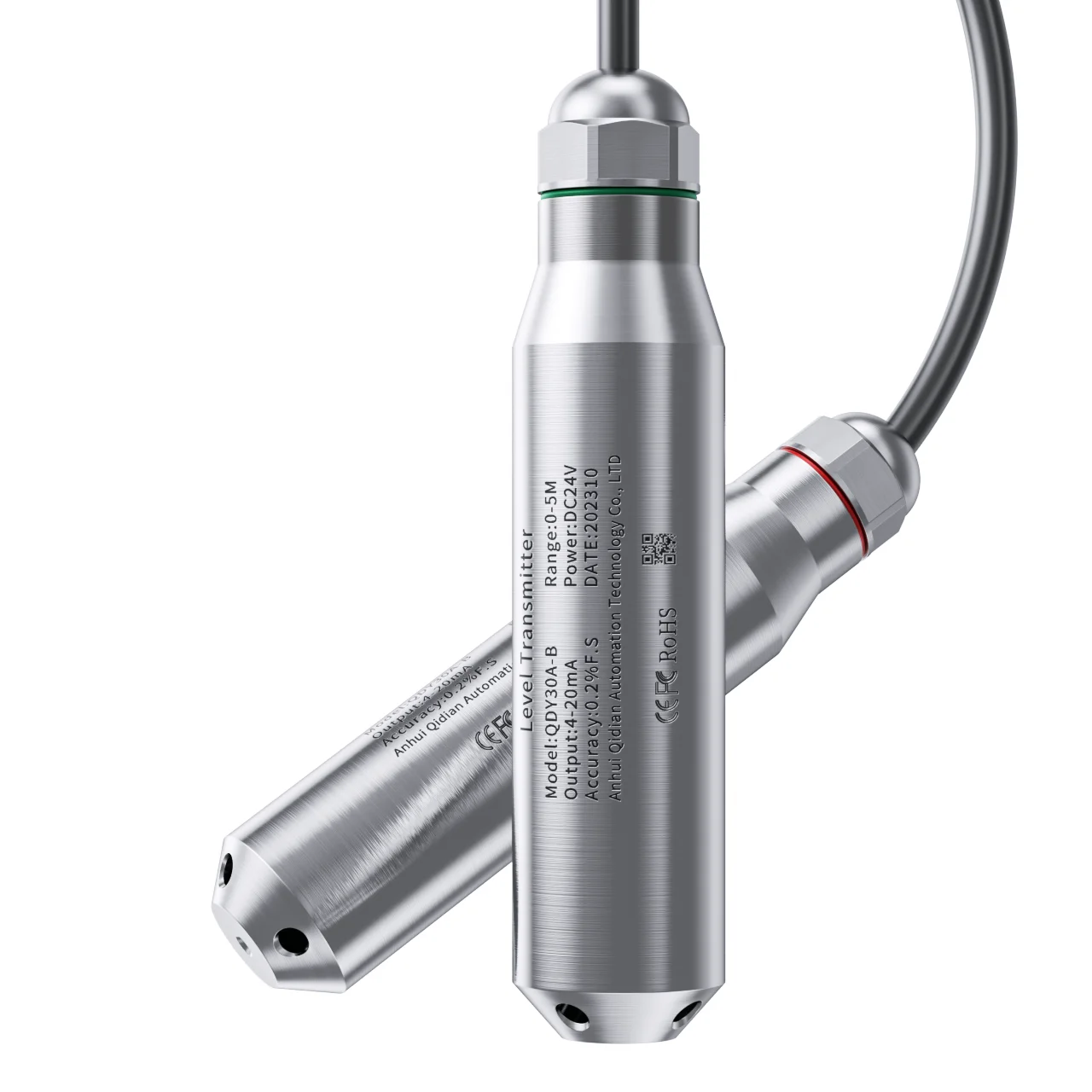

QDY30A water level sensor
Range:0-0.5m-500m range can be customized
Output signal:4-20mA /0-10V /0-5V /RS485
Power supply: Default DC24V (DC12-36V can be used,0.5-4.5V /0-3.3V output,power supply is DC5V)
cable length(Defult ):5m
OEM logo design is acceptable, MOQ 5 pcs!!!
Introduction

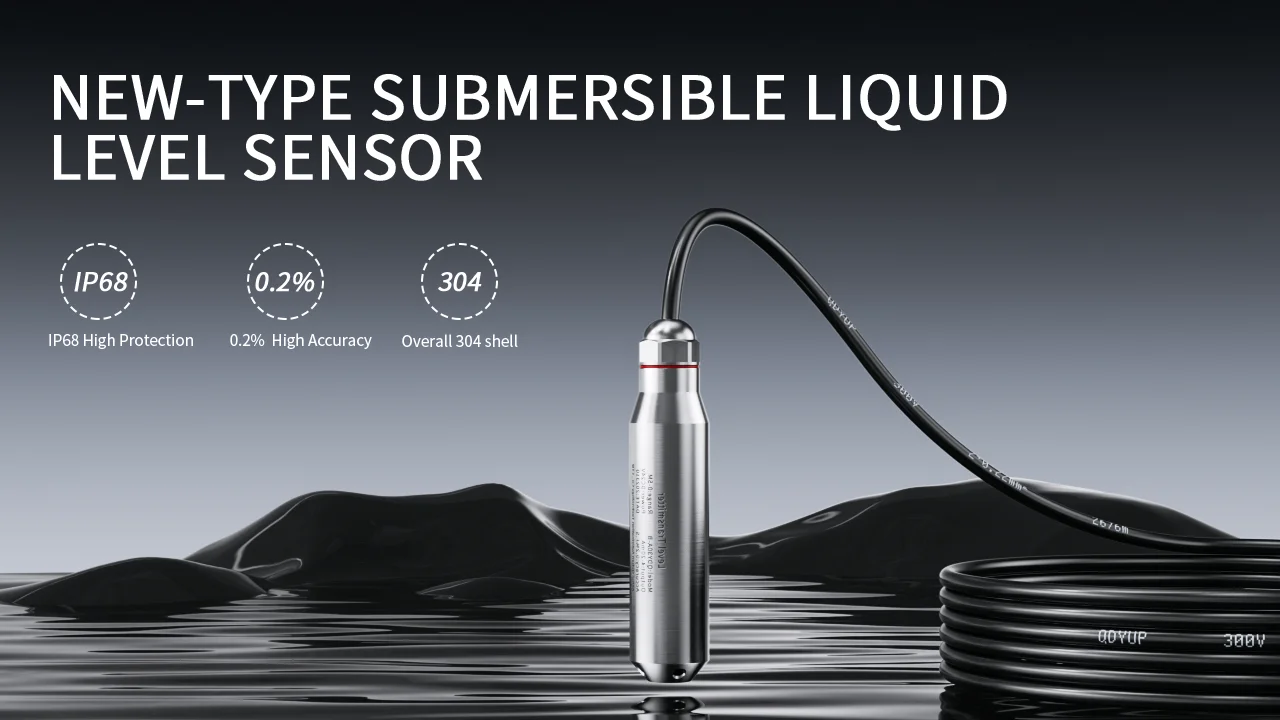

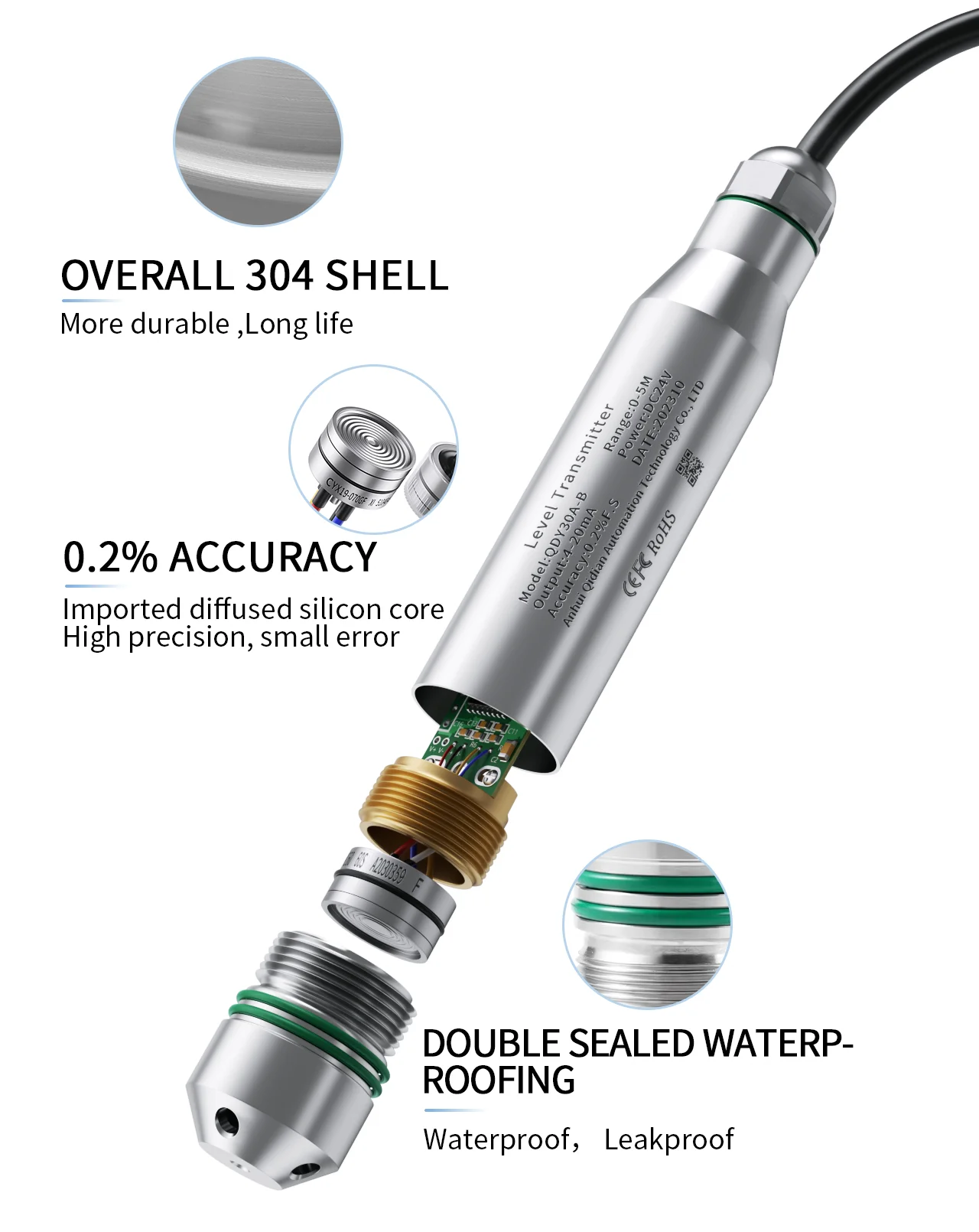

.QDY30A submersible Water Level Sensor, its304 &316 stainless steel and hermetically sealed housing make it suitable for most industrial liquids and oils.
. The welded housing is tested in-house via a helium leak tester to ensure proper protection. Ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank. The conductors of the cable are also isolated from the outside environment to keep the level sensor operational for long-term use.
Technical parameters
Model
QDY30A liquid water level sensor
Measuring Range
0~0.5~500m H2O
Power supply
24VDC
Output Signal
4~20mA
Accuracy

Produktdetails in Bildern

Produkteigenschaften

Markenname

XUYANGQIDIAN

Batterie im Lieferumfang enthalten

no

Hochbetriebenes Chemikalienunternehmen

Keine

Halbfertigprodukt

Nein

Ursprung

CN (Herkunft)

Modellnummer

QDY30A

Zertifizierung

CE

Zertifizierung

FCC

Model

Submersible level transmitter

Measuring Range

Arbitrary range within 1-500M

OutPut

4-20ma/0-10ma/0-20ma 0-10v/0-5v/1-5v

Power Supply

DC24V

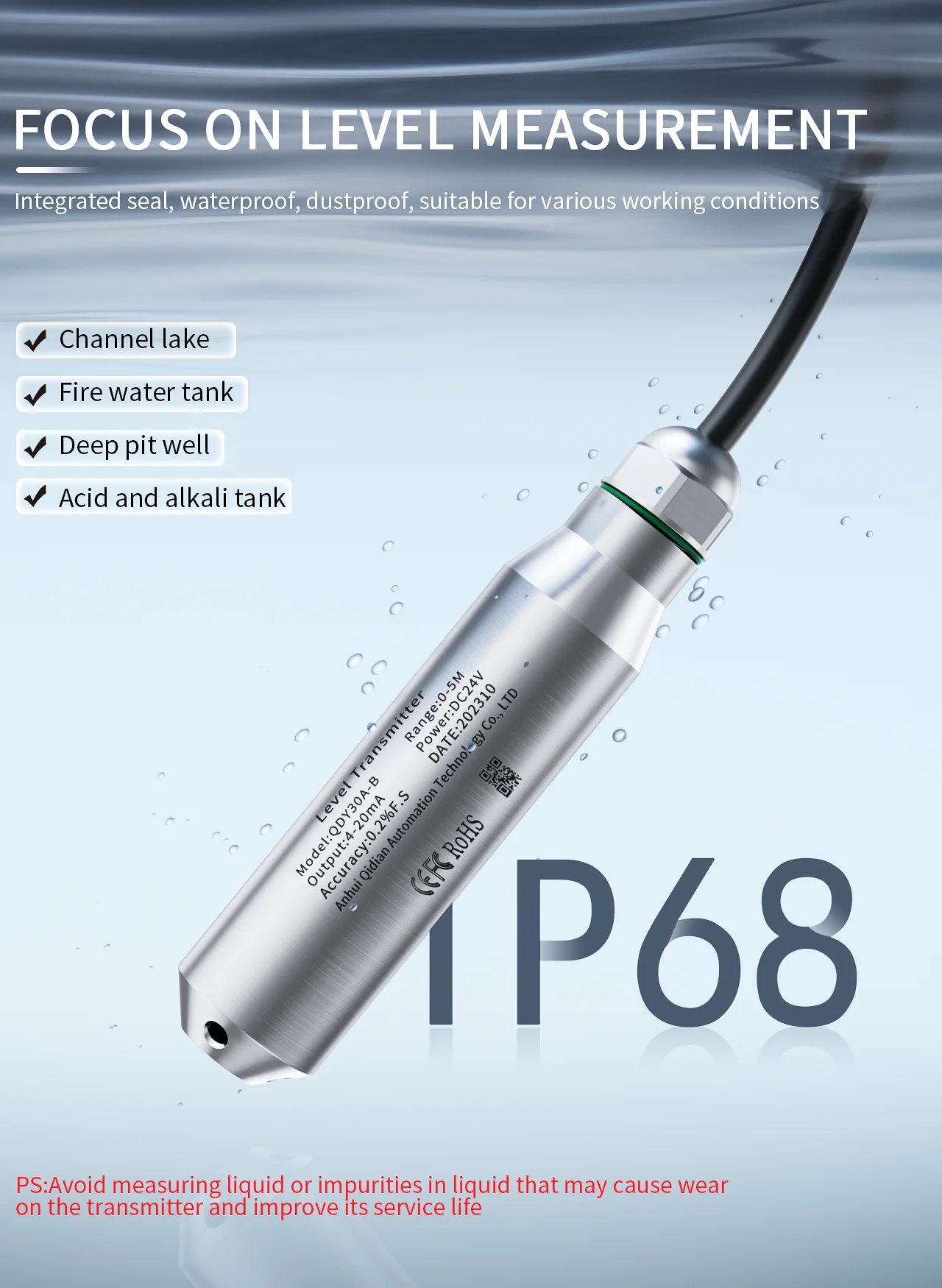

Shell Protection

IP68

Accuracy

0.2%/0.5%

Lienarity

0.1%

Overload Pressure

300% F.S/10S

Long-term Stability

±0.2%fF.S/y

Working Temperature

20℃ - +60℃

Measuring Medium

Non-corrosion Liquid

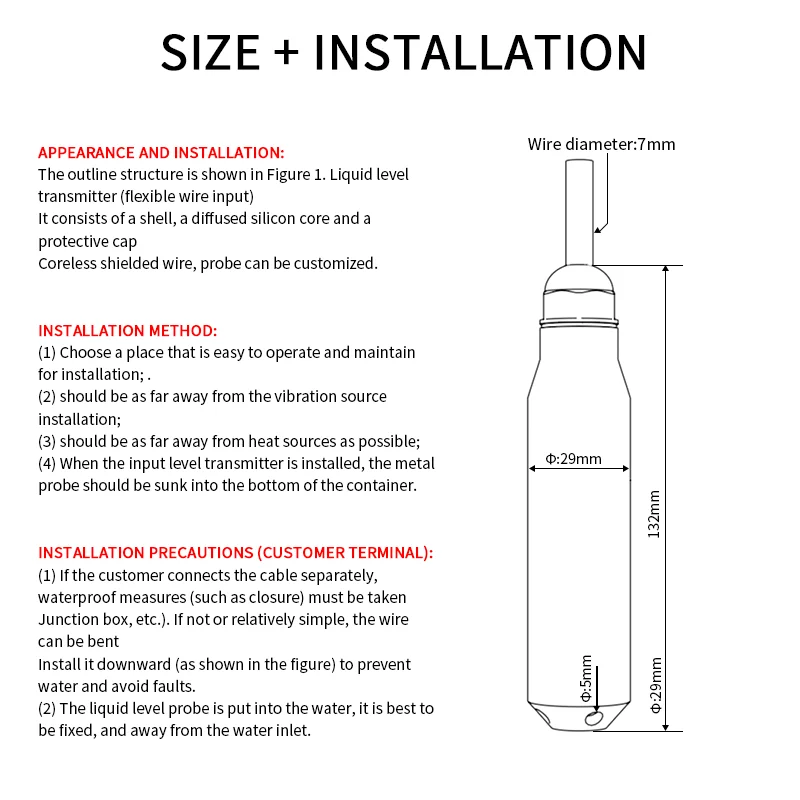

Measuring Method

Sank into probe the bottom of the liquid
