34 Vergaser für Suzuki RM 125 250 370 500 465 500 34 mm Universalvergaser

Produktbeschreibung

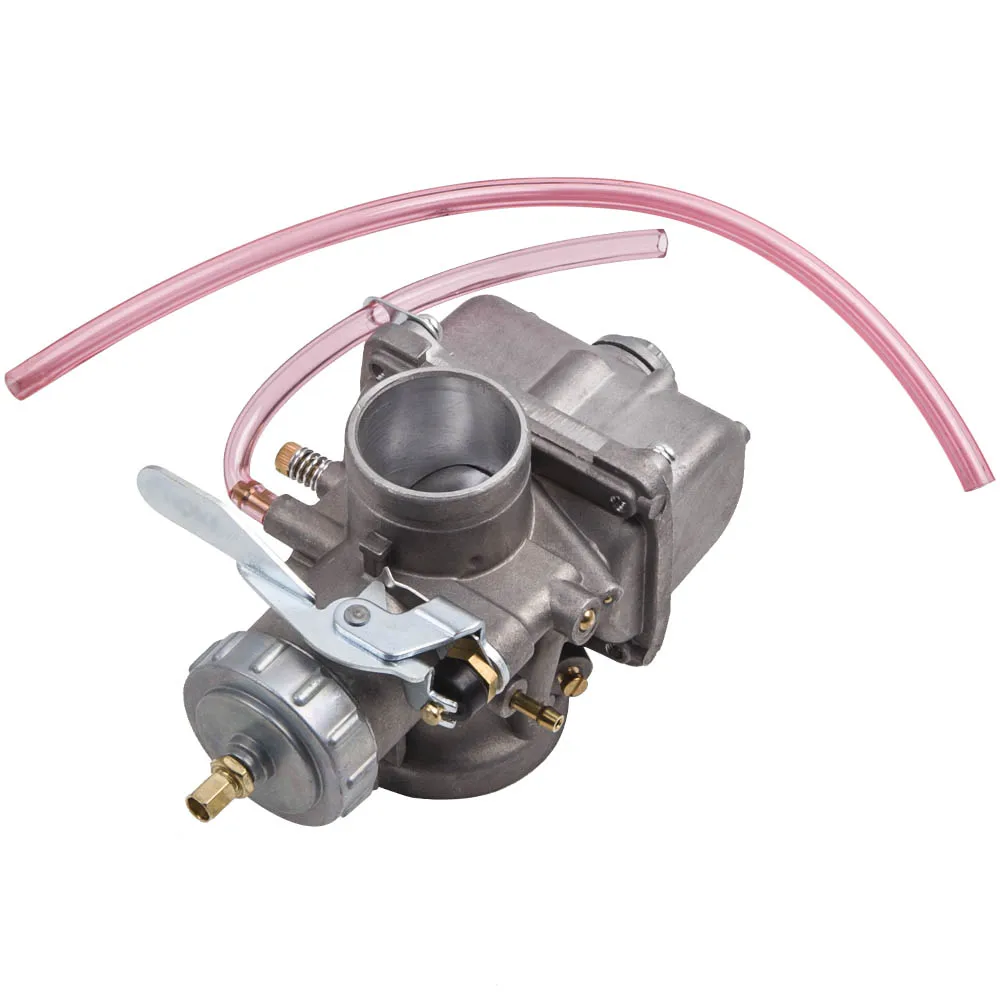

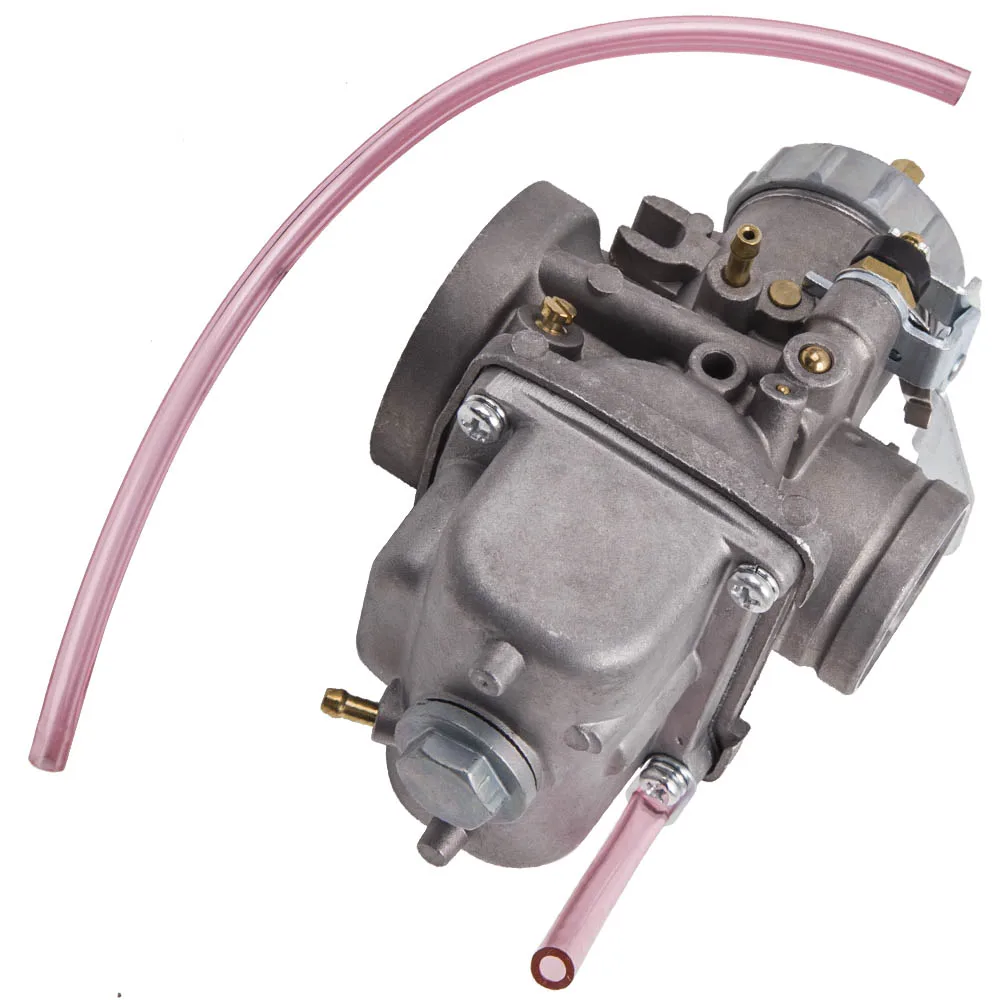

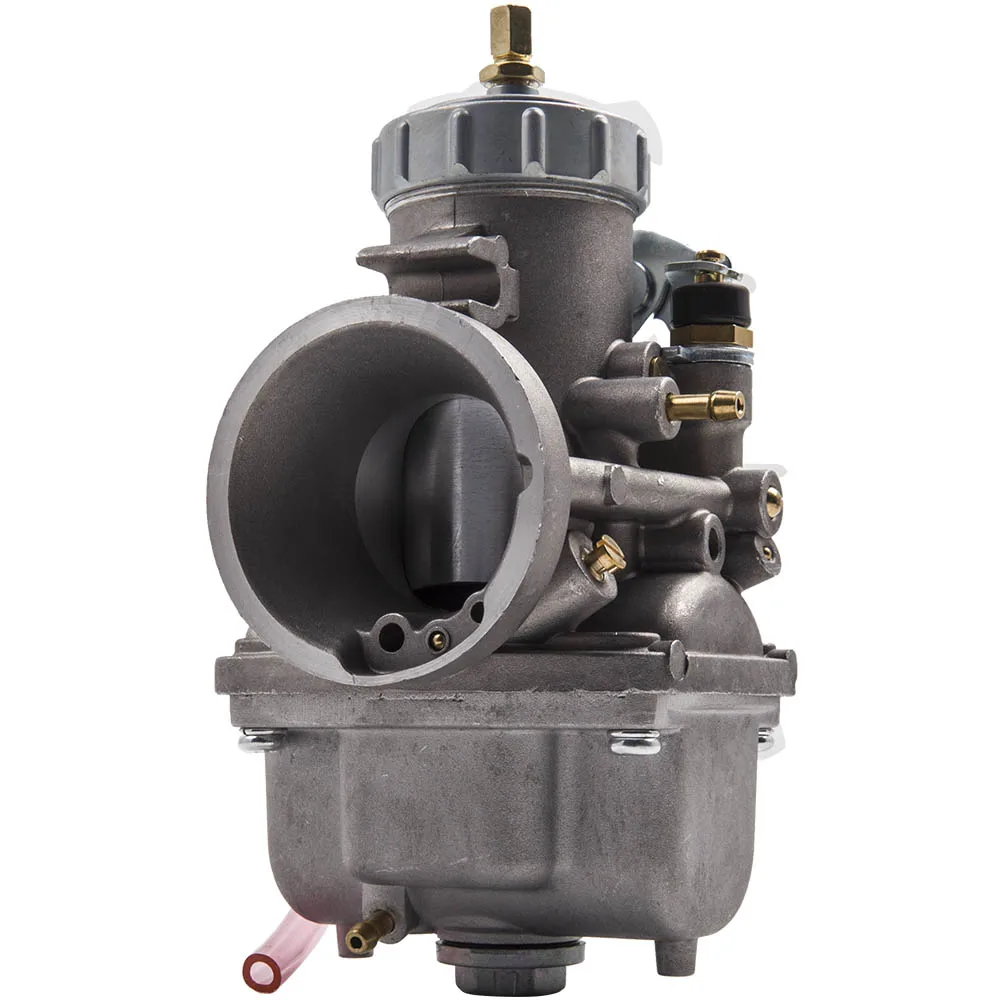

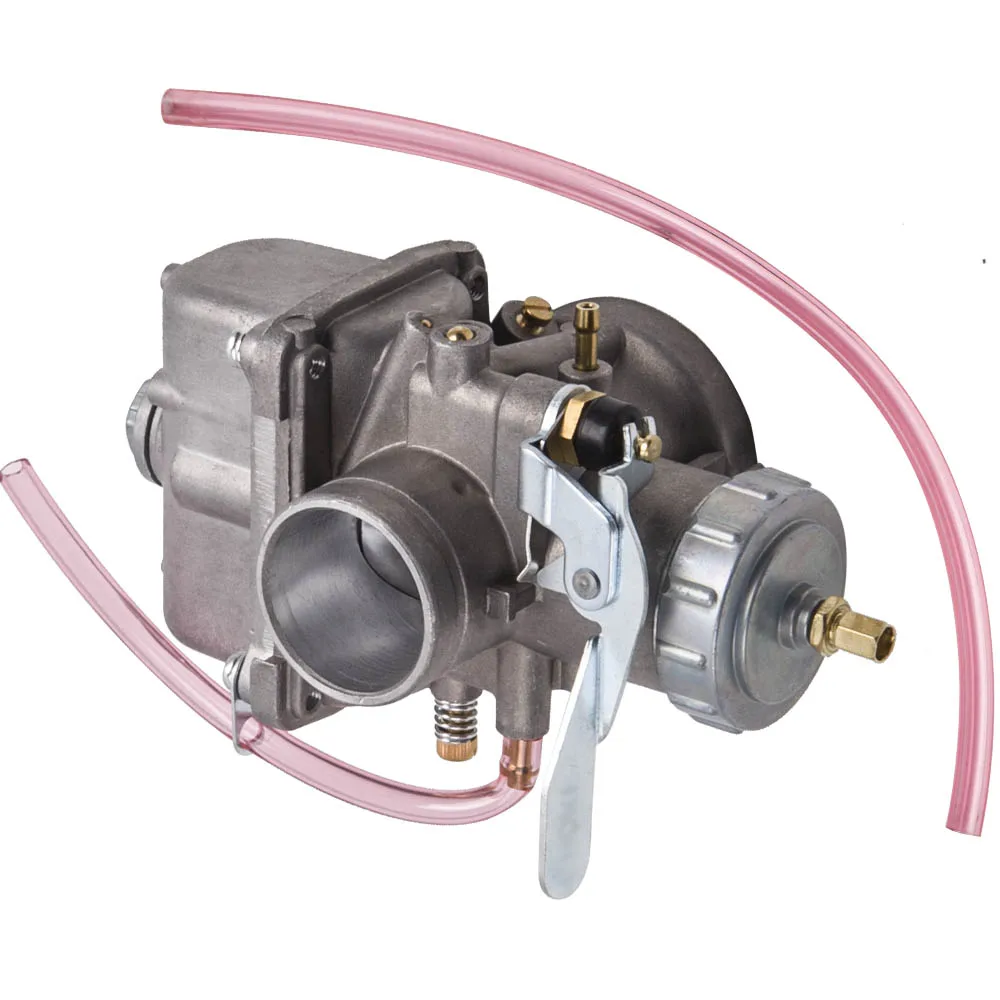

Carburetor Carb for YAMAHA YZ125 YZ 125 Dirt bike 1974-84 Round Slide 34mm
Shipments from Cross-border warehouse may result in customes duty, Kindly please note this and buyer is responsible for it.
Introduction
A carburetor is a device to mix air and fuel for internal combustion engines in the proper ratio for combustion. The fuel and air mixture is too rich if it has an excess of fuel, while too lean if there is not enough. Therefore, our high quality carburetor is the perfect solution for the appropriate ratio of air and fuel mixture and finally provides a good engine performance.
Application
For VM 34mm Round Slide Carburetor
OE/Part number
VM34-168, 42-6015, VM34SC
Specification
Intake manifold Inner Diameter:34mm
Intake manifold Outer Diameter:40mm
Air filter side Inner Diameter:50mm
Air filter side Outer Diameter:57mm
Main jets:260
Pilot Jets:35
Needle Jets:Q-2
Jets Needle:6DH04
Throttle Valve:2.5
Air Jets:2.0
Needle Valve:3.3

Produktdetails in Bildern

Produkteigenschaften

Brand Name

MXR

Origin

CN (Herkunft)

Hign-concerned Chemical

Keine

Item Type

Luftfilter und -systeme

Material

VM34-168 42-6015 VM34SC VM34 VM34-275

Model Name

VM34-168, 42-6015, VM34SC.
