Geekworm X1203 USV 5,1 V 5 A Schild- und Energieverwaltungsplatine für Raspberry Pi 5

Produktbeschreibung

[Safety Instructions & Warnings]
The charging current is set to 2.3-3.2A and charge cut-off voltage is 4.23V. Before connecting your battery to the UPS board, Please carefully confirm the maximum charging current and voltage, exceeding the upper limit of the charging specification that the battery can withstand will not only cause adverse reactions, but may also cause irreversible damage.
It is essential to read and understand these safety instructions and warnings before charging your batteries.
Lithium Polymer and Li-ion batteries are volatile. Failure to read and follow the instructions below may result in fire, personal injury, and damage to property if charged or used improperly.
Never make a wrong polarity connection when charging or discharging battery packs. Always double-check the polarity of the battery's connector to ensure that "+" is connected to "+" and "-" is connected to "-".
Do not mix and use old batteries with new batteries, or batteries with different brand names.
Lithium batteries have a limited cycle life. Please replace old batteries with new ones when they reach their service life or when they are two years old, whichever comes first.
When charging the Battery Pack, please place the battery in a fireproof container. Do not leave the UPS shield on wood material or carpet unattended.
Keep the UPS shield away from children to ensure their safety.
[NOTE]
NOT include Raspberry Pi 5 and Batteries!!!

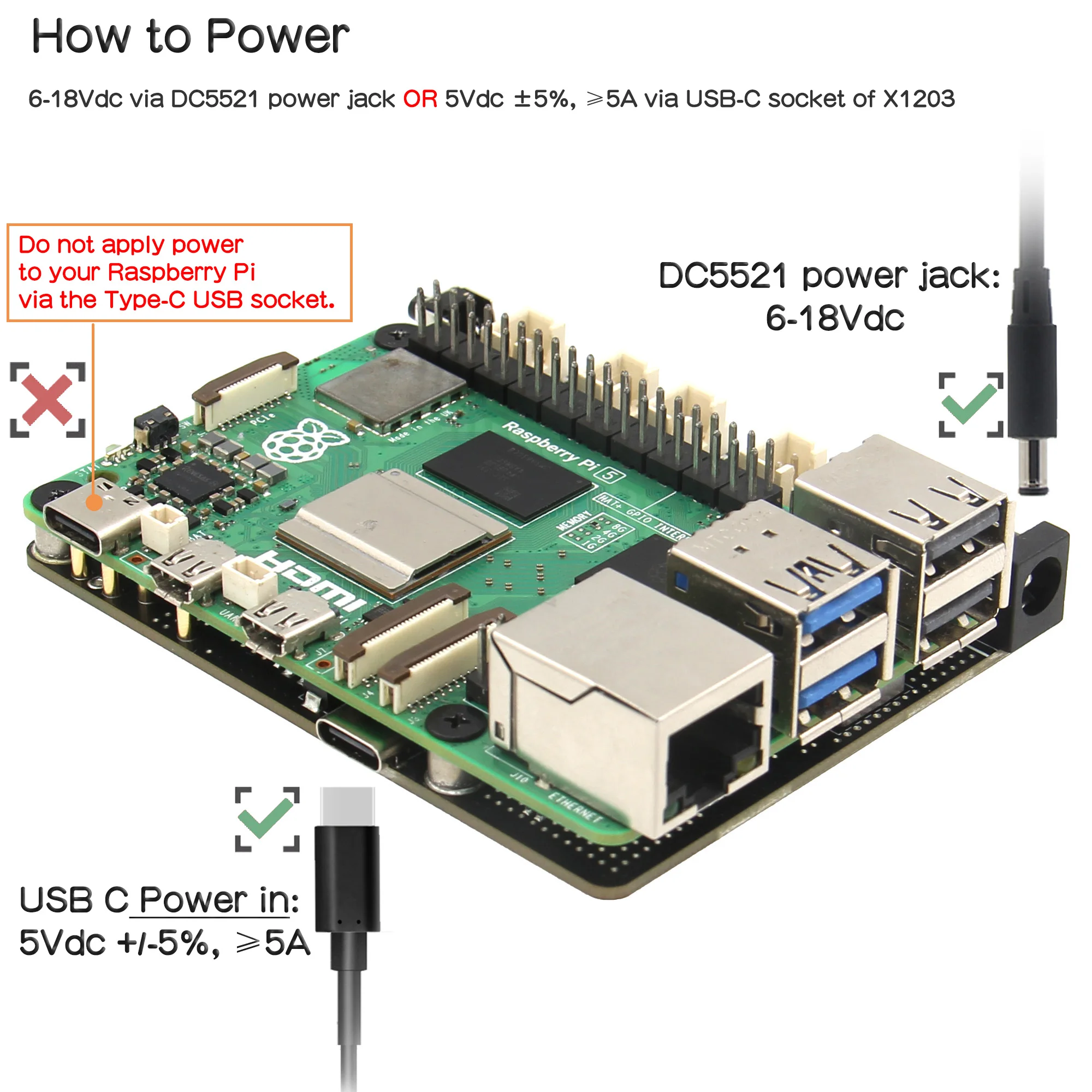

Do not apply power to your Raspberry Pi 5 via the Type-C USB socket.
Do not use 18650 battery with built-in protection circuit.

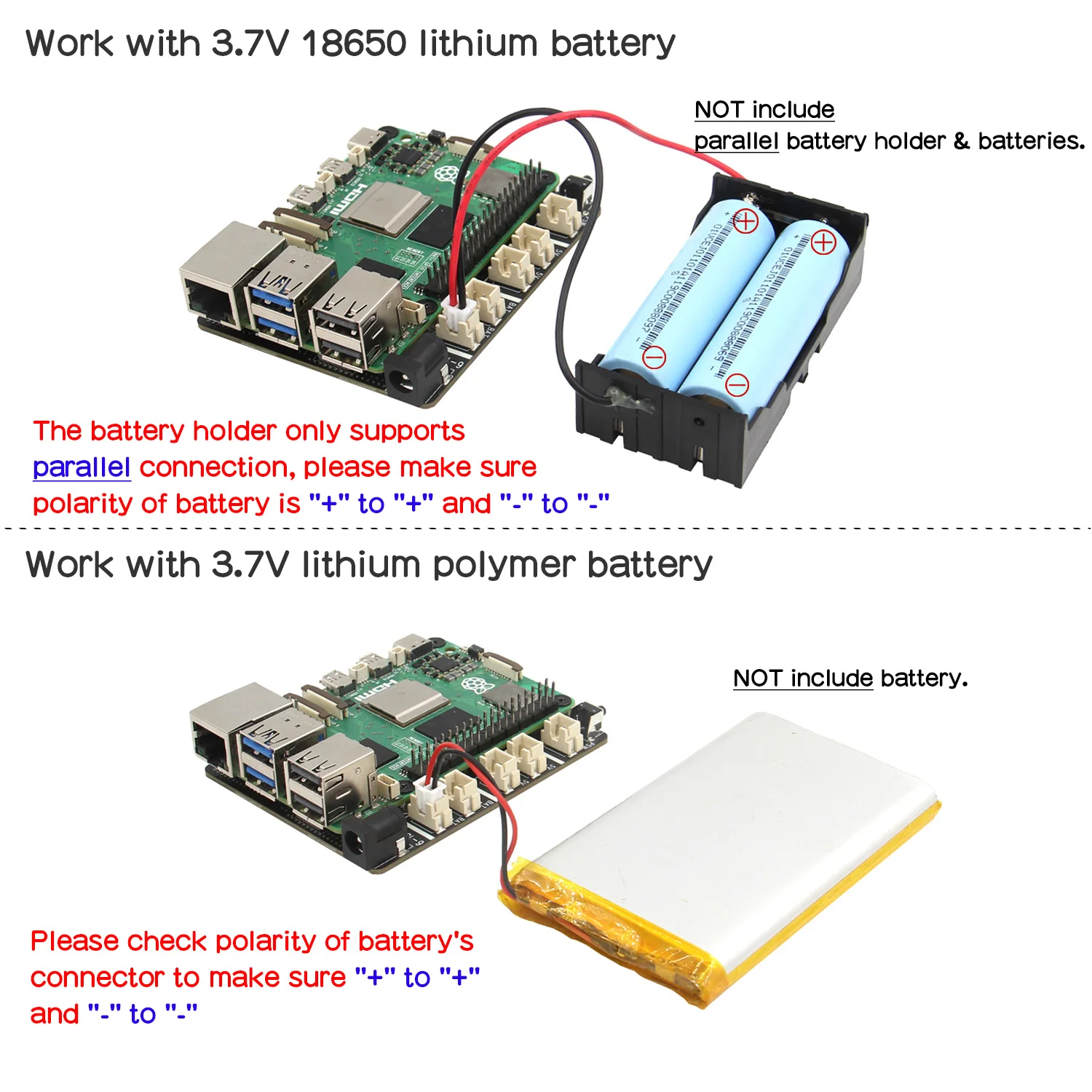

Battery: 3.7V Lithium Battery --IMPORTANT!!-- Only parallel connection is supported, please check polarity of battery's connector to make sure "+" to "+" and "-" to "-".
[Manual]
[Overview]
Reliable Power Backup: The X1203 provides a stable 5.1V 5000mA power backup, ensuring uninterrupted operation of your Raspberry Pi. Whether you are running resource-intensive applications or powering multiple peripherals, the X1203 delivers reliable and consistent power supply.
Enhanced Power Management: One of the standout features of the X1203 is its enhanced power management system. It intelligently monitors the power status of the Raspberry Pi and automatically cuts off power when the Pi is shut down. This helps optimize battery life by entering an ultra-low standby power consumption mode. It ensures efficient operation and maximizes the lifespan of the UPS battery.
Seamless Power Switching: Equipped with AC power loss and power adapter failure detection, the X1203 seamlessly switches to backup power in the event of a power outage or power adapter failure. This feature guarantees that your Raspberry Pi remains operational and protected from unexpected power disruptions.
Convenient Features: The X1203 offers convenient features such as auto power-on, enabling your Raspberry Pi to automatically boot up when power is restored. It also supports full power-off from software, allowing you to safely shut down your Raspberry Pi without manual intervention.

Produktdetails in Bildern

Produkteigenschaften

Markenname

Geekworm

Zubehörtyp

Erweiterungsplatine

Batterie im Lieferumfang enthalten

no

Typische Anwendungsbereiche

Bildung und Lernen

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Kompatibel Mit

raspberry pi 5

Choice

yes

semi_Choice

yes
