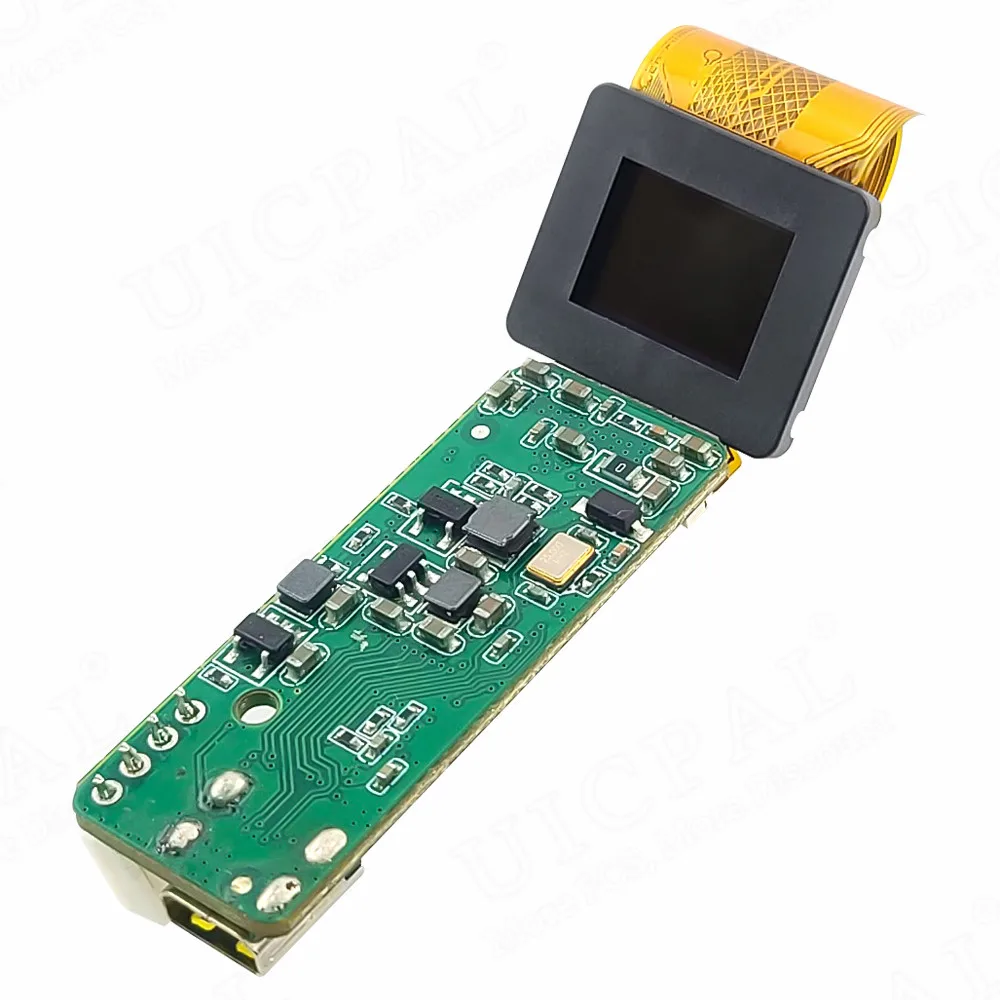

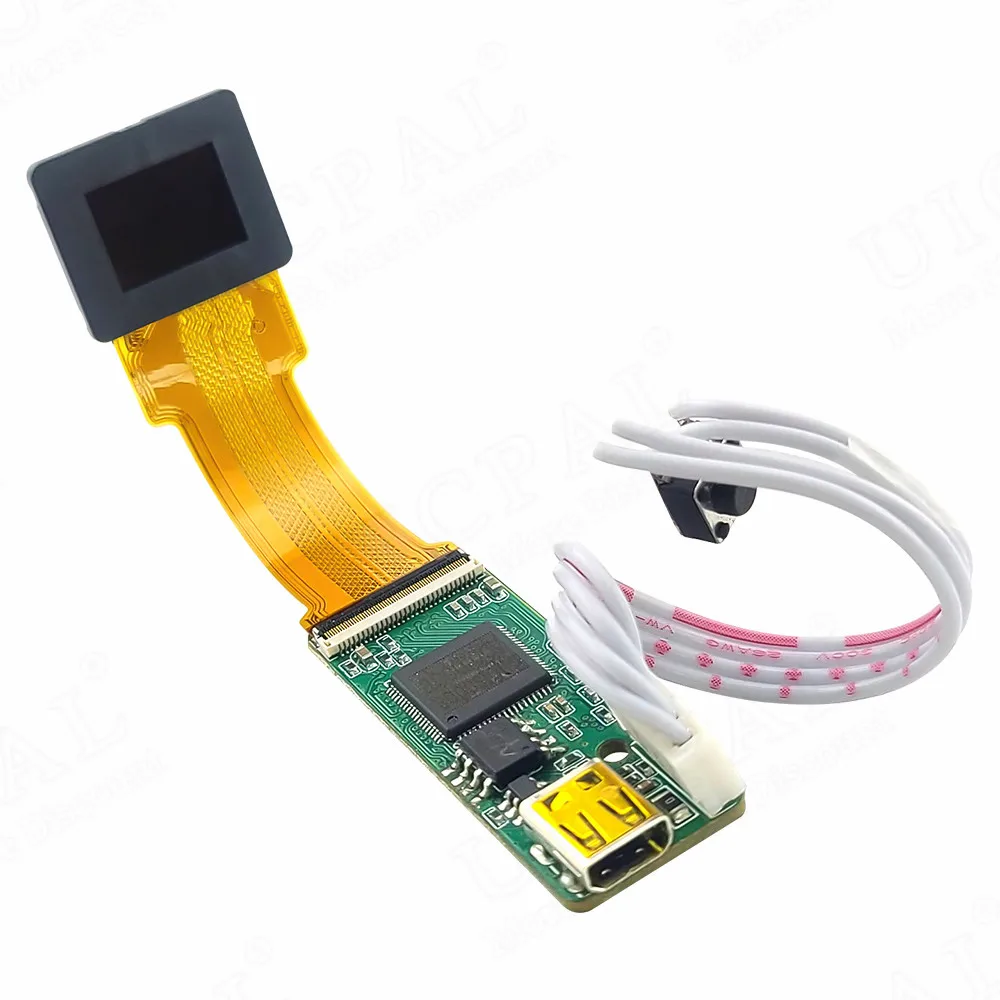

0,5 Zoll oled Display Modul Sucher für Smart Brille Helme 3d ar 1280*960 Micro HDMI AV Eingang Miniatur Evf View Finder

Produktbeschreibung

0verview / Application
0L51FR is a 1.3 cm (0.5inch) diagonal，1280(RGB) X 960 dots active
matrix color OLED(Organic Light Emitting Display) pane module based on single crystal silicon transistors. The module integrates panel driver and logic driver, and achieves
smaller size,light in weight and high resolution. (Potential applications: Head mounted displays， View finders, Small monitors etc.
Features / Function
1, Small size high resolution type 0.5 inch display module
2, Effective Dots: 1280 x RGB X960=3.69 M dots
3, Actua Dots including Orbit function: Total dots 1300 x RGB X 980
3.82 M dots
4, Ultra high contrast
5, Wide color gamut
6, Fast response speed
7, Thin and light in weight
8, Power consumption Saving (PS) mode
9, Scan direction selection, up or down and right or left
Module Structure
Active matrix color OLED display with on-chip driver based on single
crystal silicon transistors.

Produktdetails in Bildern

Produkteigenschaften

Markenname

UICPAL

Ursprung

CN (Herkunft)

Anzeigemodus

NONE

Hochbetriebenes Chemikalienunternehmen

Keine

Auflösung

1280*800

ist kundenspezifisch

Ja
