FNIRSI HRM-10 Batteriespannungs-Intemalwiderstandstester Hochpräziser Trithium-Lithium-Eisenphosphat-18650-Batterietester

Produktbeschreibung

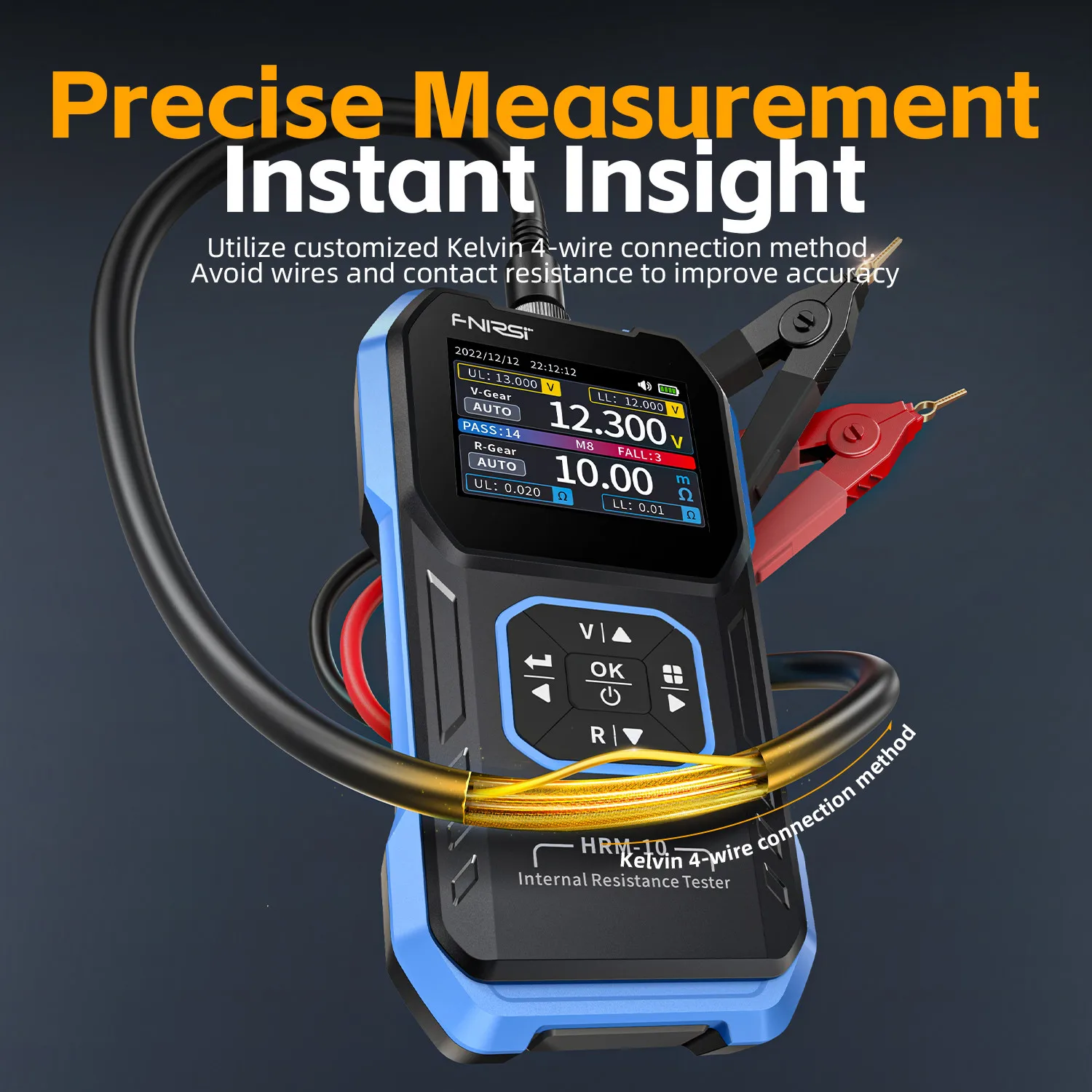

FNIRSI "HRM-10" is our company's first handheld high-precision attery internal resistance meter. It is a true four-wire measurement internal resistance
meter, designed with precision, convenient to carry. The device can automatically test internal resistance and voltage values simultaneously, with measurement results displayed on the screen. Users can also manually adjust the voltage and resistance range. The product features a sorting mode, automatically filtering the good and bad batteries based on user-set thresholds. It also supports historical records and exporting data tables of historical measurements.
Voltage measuring range：0 — ±100V（DC）
Voltage gear：Automatic, 1V, 10V, 100V
Resistance measuring range：0 — 200Ω
Resistance gear：Automatic, 20mΩ, 200mΩ, 2Ω, 20Ω, 200Ω
Accuracy：±0.5%
Instrument test signal frequency：AC 1Khz
Rechargeable：Type-C interface (5V/1A)
Built-in battery：1000mAh lithium battery
User calibration：Support
Sorting mode：Support
History recoed：Support
Recorded data export：Support
Working environment：-10℃ ~ +45℃, relative humidity

Produktdetails in Bildern

Produkteigenschaften

Markenname

FNIRSI

Hochbetriebenes Chemikalienunternehmen

Keine

Heimwerkerbedarf

elektrisch

Batterie im Lieferumfang enthalten

Ja

Stromquelle

Gleichstrom

Ursprung

CN (Herkunft)

Typ

Fahrzeugbatterietester

Zertifizierung

CE

Modellnummer

HRM-10

Voltage measuring range

0 ~ ±100V (DC)

Resistance measuring range

0 ~ 200Ω

Voltage gear

Auto, 1V, 10V, 100V

Resistance gear

Auto, 20mΩ, 200mΩ, 2Ω, 20Ω, 200Ω

Accuracy

±0.5%

Signal frequency

AC 1Khz

Battery

1000mAh lithium battery

User calibration

Support

Sorting mode

Support

History recoed

Support

Recorded data export

Support

Working environment

10℃ ~ +45℃

Storage environment

20℃ ~ +80℃

Relative humidity

<80%

Size

158.7x80.5x28.4mm

Weight

225g
