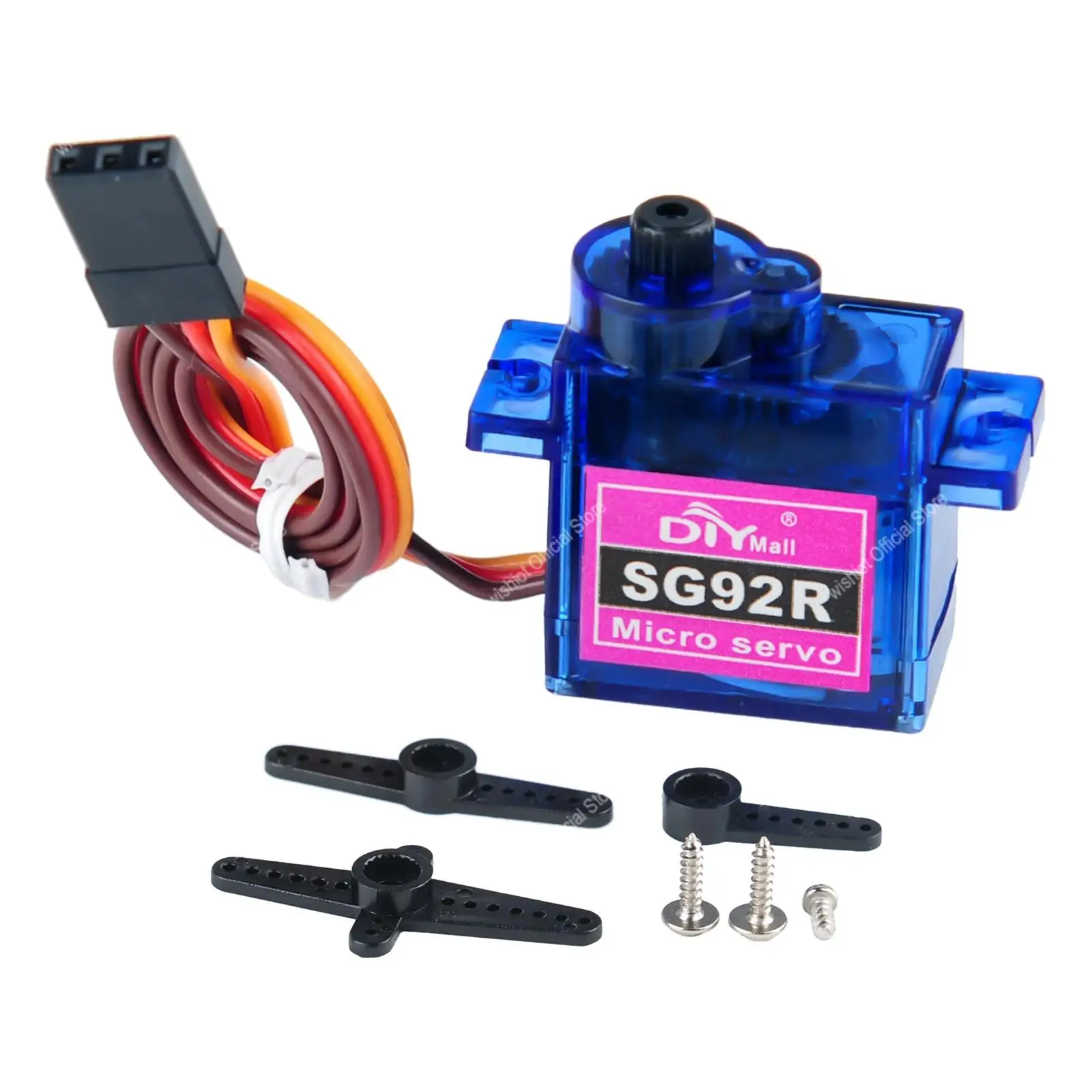

SG92R Micro-Servomotor, 4,8–6 V, 360/270/180 Grad, kontinuierliche Drehung, steuerbarer Winkel für Roboter, RC-Drohnenflugzeugmodell, 9 g

Produktbeschreibung

SG92R 9g Micro Servo Motor 360 Degree Continuous Rotation 270/180/90 Degree Controllable Angle for RC Remote Control Aircraft Model
Please note that 180/270 Degree need pulse width 500-2500.
Description of SG92R：
Product Name: SG92R
Product size: 22.4*12.5*23.8mm
Product weight: 10 grams of earth 5%
Product line length: 25cm soil 1cm
Working voltage: 4.8V-6V
Blocking torque: 1.3KG.CM-1.8KG.CM
No-load speed: 0.09 sec/60
No-load current: 90MA
Output shaft: 20t
Highlight：
High-quality copper wire
High quality nylon gears
High-speed strong magnetic motor
Kindly Reminder：
Please use the standard pulse width modulation control signal, the period is 20ms, high level time 0.5~2.5ms
270 degrees and 180 degrees is the same, can stop at any angle, is adjustable angle
360 degrees is a continuous rotation, can not control the angle and speed

Produktdetails in Bildern

Produkteigenschaften

Markenname

wishiot

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Peripheriegeräte/Peripheriegeräte mit Fernbedienung

Servos

Empfohlenes Alter

14+ Jahre

Empfohlenes Alter

12+J

Benutzen

Fahrzeuge und ferngesteuertes Spielzeug

Für Fahrzeugtyp

Flugzeuge

Upgrade-Teile/Zubehör

Ausrüstung

Modellnummer

FZ1468

Menge

1

Work for

for Fixed-wing model airplane remote control aircraft

Product

Digital/Analog Servo

Choice

yes

semi_Choice

yes
