Isdn USB Typ-C Zu EDP Treiberplatine EDP Signal 2K 4k 30PIN 40PIN Tragbare LCD Projektor Bildschirm Display EDP Signal Notebook Telefon

Produktbeschreibung

Type-c to EDP driver board phone LCD projection Screen 2K 4k 60HZ 240hz for 30p 40p Mobile laptop LCD display
Only supported the EDP output signal screen.
LVDS output screen is not supported
When purchasing. Please search the parameters of the query screen
if you need buy cable you can buy the link
Notes
Type-C cable need Type-C 3.1 cable. Type-C cable must support video transmission 、Recommend USE Thunderbolt 4 or 3
Not Supported Type-C 2.0 3.0 cable
Mobile phones need to support video projection function, and computers need to support Type-C video transmission interface
Not supported (converter head)
A function description

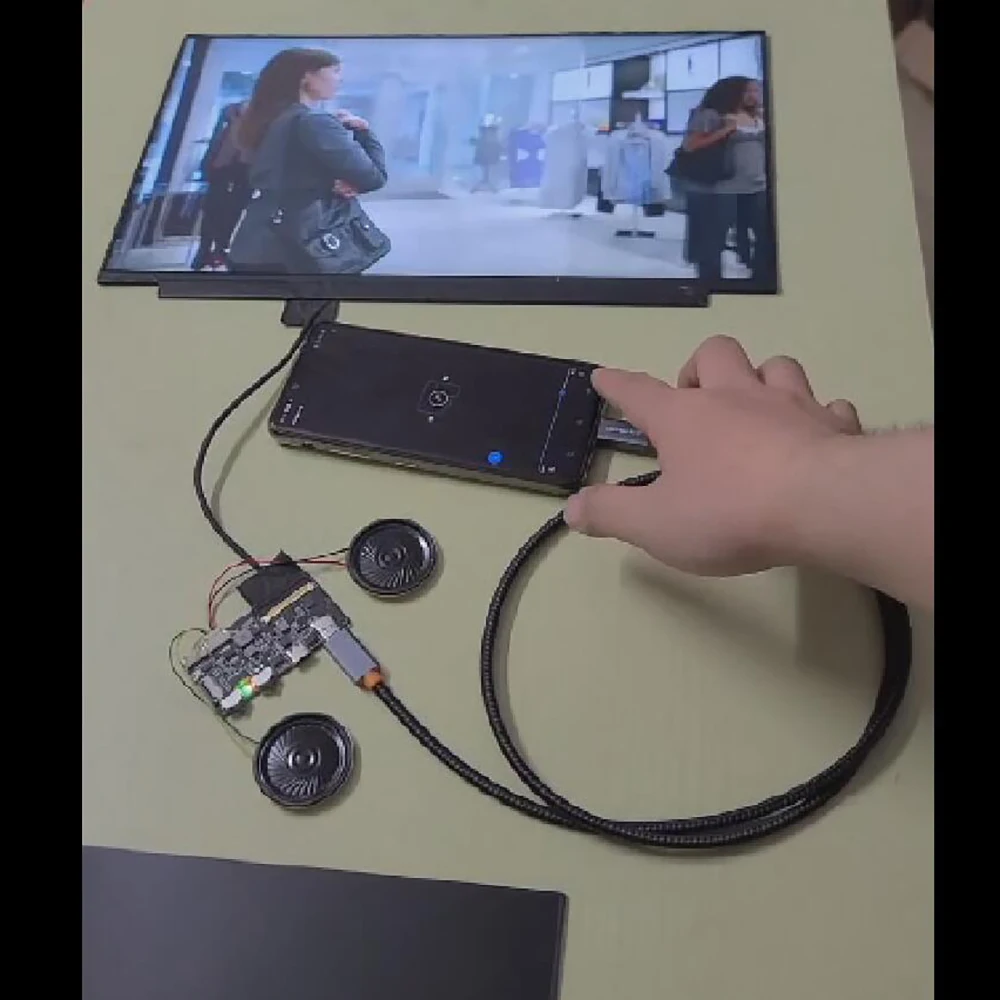

1. Insert Type-c 24PIN (Thunderbolt 4 for short) into the initial state of the product. Press SW1 to light up the screen. 50% backlight brightness at first startup. The last brightness is automatically saved after power failure.SW2 is the function of volume adjustment and mute. Audio decoding using type-c Isdn interface USB protocol. Audio power supports 2W stereo speakers. Key expansion interface ADAPTS to most (public 16P) keyboards.
2. Do not plug and unplug the EDP cable while live. The screen may be damaged. If you want to remove the cable. The power must be turned off first in order. Remove all ports before removing the EDP cable.
3. Reserve the USB touch screen port. The USB to I2C touch module is required
EDP30 / EDP40 versions
EDP40： 40Pin (0.5MM spacing in the same direction) is a coaxial signal output Supports 4LAN signal 4K 120Hz, 2.5K 240Hz, backward compatibility
EDP30： 30PIN; FPC flexible cable (30pin reverse 0.5MM spacing) bus interface, supporting 2LAN signal 1920 * 1080 downward compatibility.
Two performance parameters
TYPE-C24PIN Thunderbolt 4 is the signal input, and the 40G special transmission line of Thunderbolt 4 is required for one-line projection.
 The default backlight voltage is 12V, and the default drive logic voltage is 3.3V.

Produktdetails in Bildern

Produkteigenschaften

Markenname

NONE

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Halbfertigprodukt

Ja

Heimwerkerbedarf

elektrisch

Elektronisch

Nein

Typ

Type-c to EDP driver board

Ausgangsspannung

5V

Datenaufzeichnung

Nein

Art

Mobile laptop

Zertifizierung

NONE

Modellnummer

Type-c to EDP LCD projection Screen

Größe

EDP driver board

Type-c to EDP driver board

LCD projection Screen

Choice

yes

semi_Choice

yes
