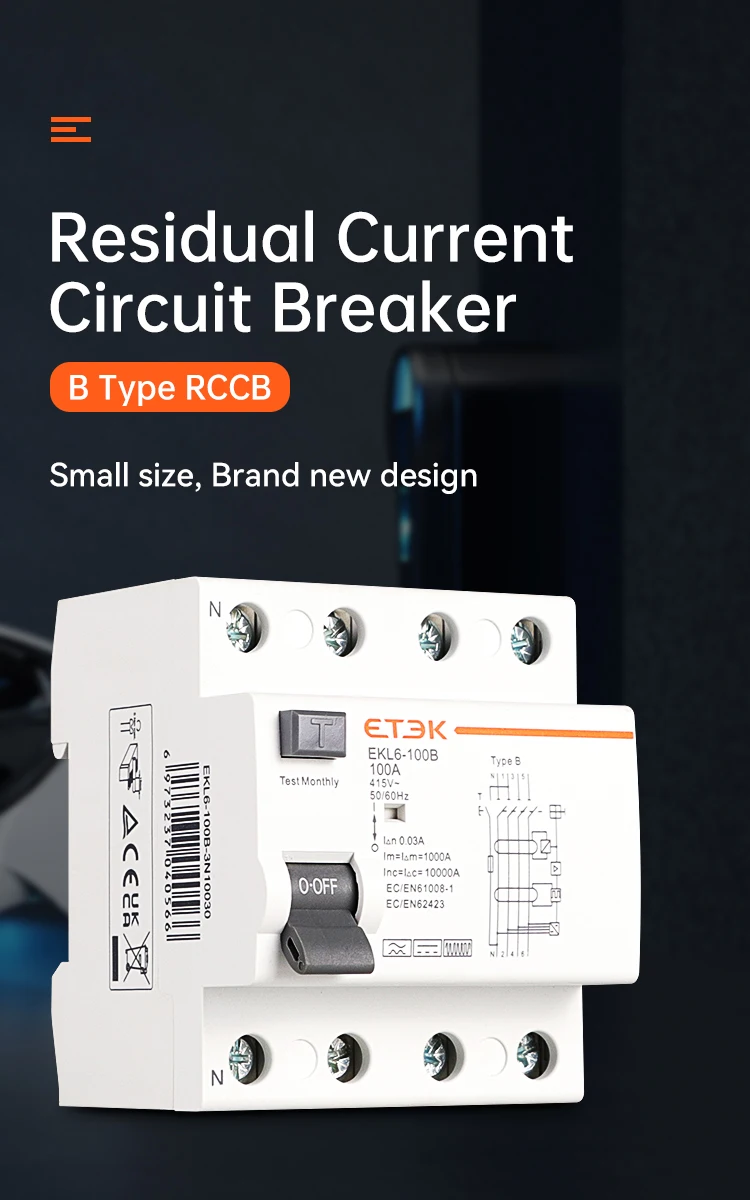

ETEK RCD RCCB Typ B Fehlerstrom-Schutzschalter für Erdung, EVSE 2P 4P 40A 63A 100A 30mA 300mA EKL6-100B DIN-Schiene 220V

89,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Lieferung nach Deutschland
Lieferzeit: 5–11 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

Type B RCCBs, in addition to normal AC, can detect high frequency AC and pure DC earth leakage currents. Reducing the risk of fire and/or electrocution throug4h automatic disconnection of the electrical supply relies on the selection of the correct type of RCCB.
Application Example

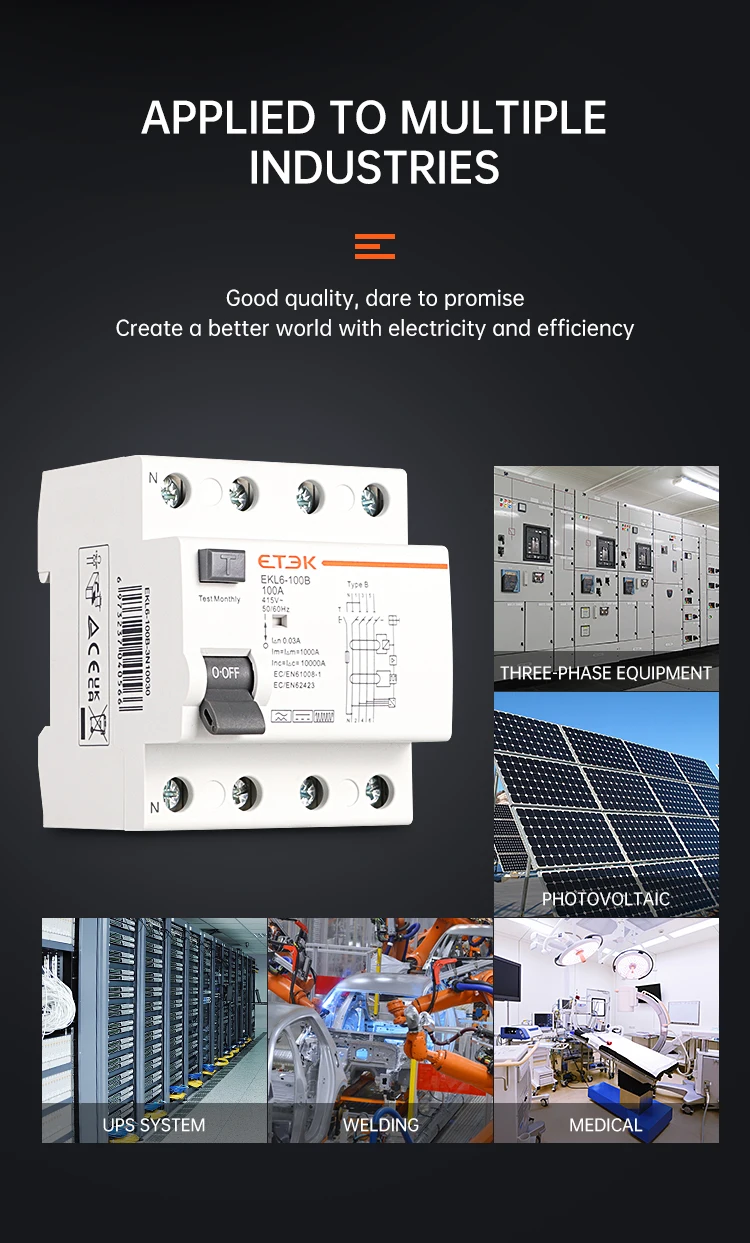

EV & PV installations, Frequency converters, UPS installations, High-frequency power converters, Building site power supply cabinets

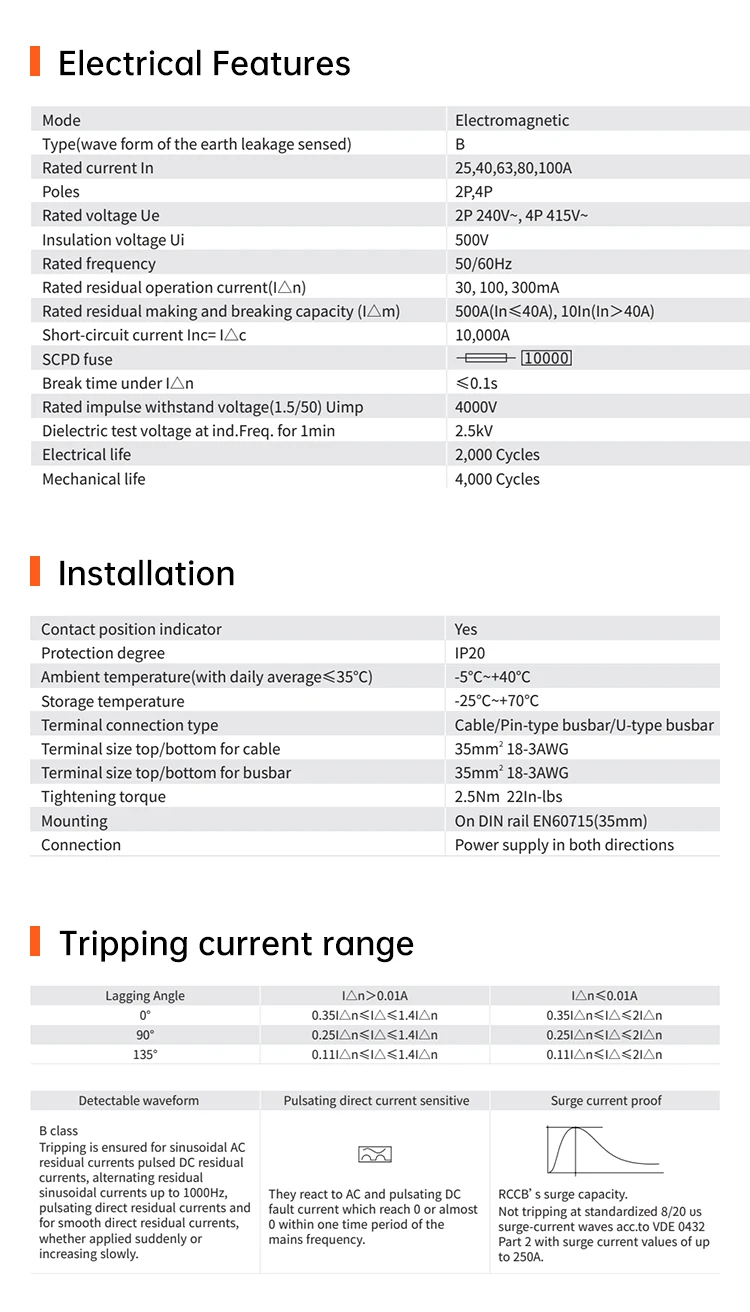

Mode ： Electromagnetic
Type(wave form of the earth leakage sensed)： B
Rated current In ：25,40,63,80,100A
Poles：2P,4P
Rated voltage Ue ：2P 240V~,4P 415V~
Insulation voltage Ui ：500V
Rated frequency ：50/60Hz
Rated residual operation current(I△n) ：30,100,300mA
Rated residual making and breaking capacity (I△m)：500A(In≤40A),10In(In＞40A)
Short-circuit current Inc= I△c：10,000A
Break time under I△n ：≤0.1s
Rated impulse withstand voltage(1.5/50) Uimp ： 4000V
Dielectric test voltage at ind.Freq. for 1min ：2.5kV

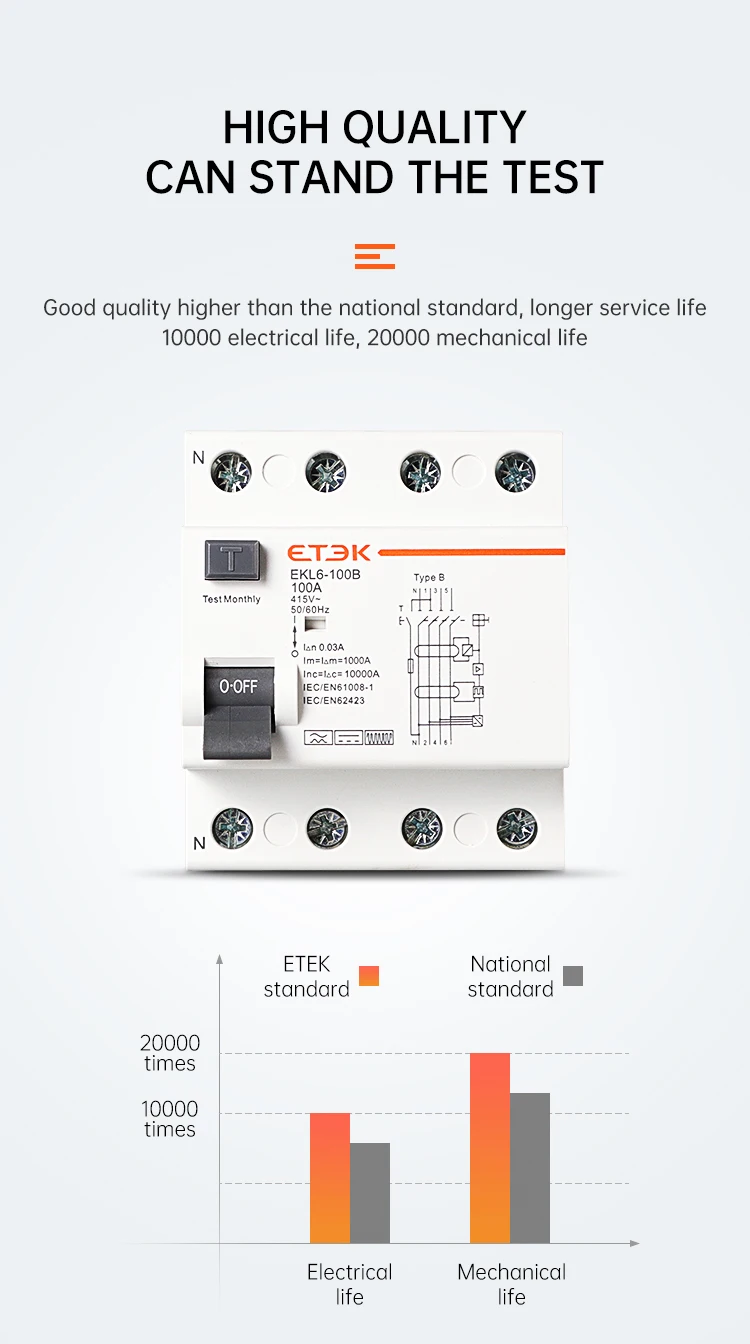

Electrical life ： 2,000Cycles
Mechanical life ： 4,000Cycles
Function
Control electric circuits.
