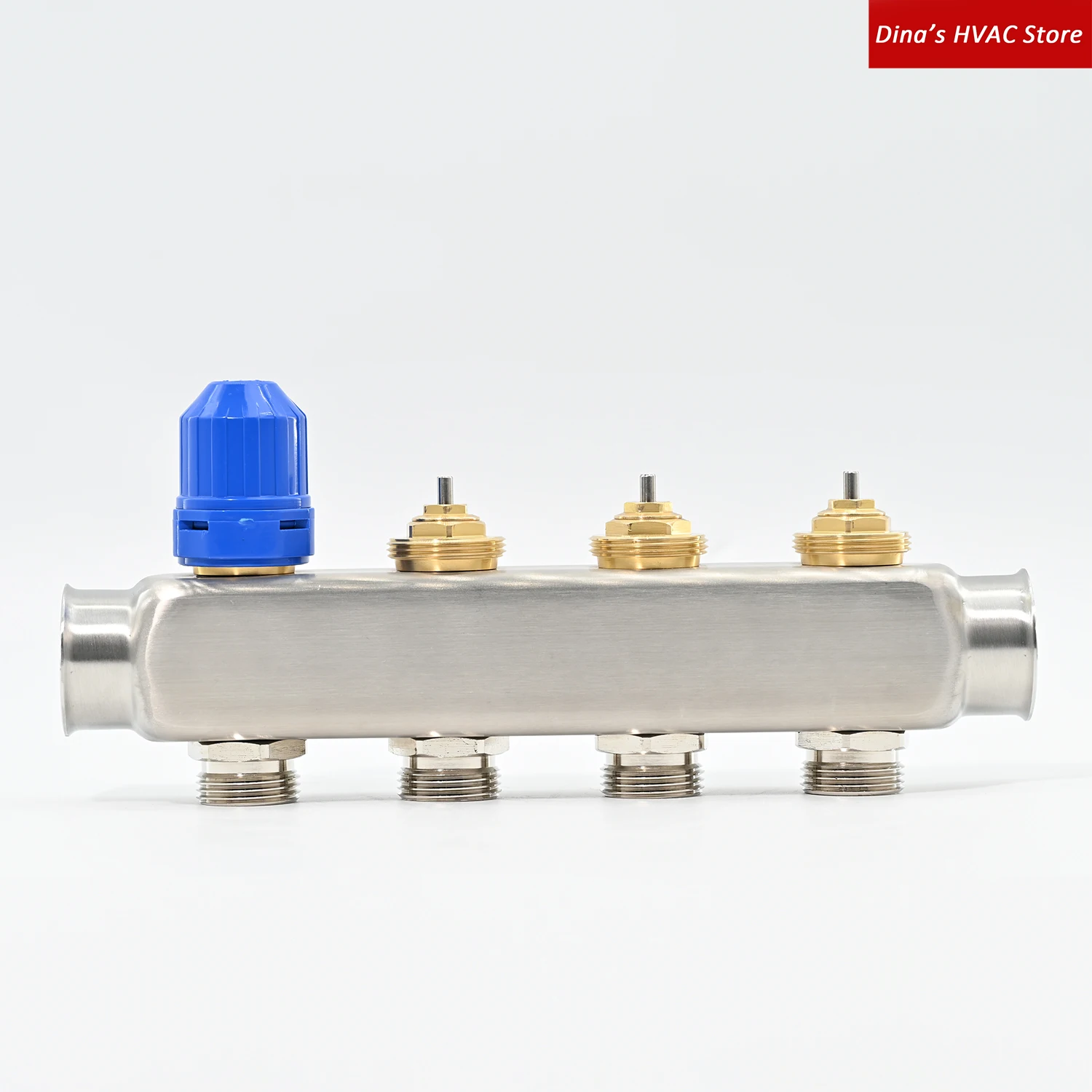

Edelstahl Aisi304 Bodenwärmeverteiler-Set mit Durchflussmesser, Kugelhahn, Ablassventil, Euroconus-Armaturen G1"*50MM

Produktbeschreibung

The manifold kit include：

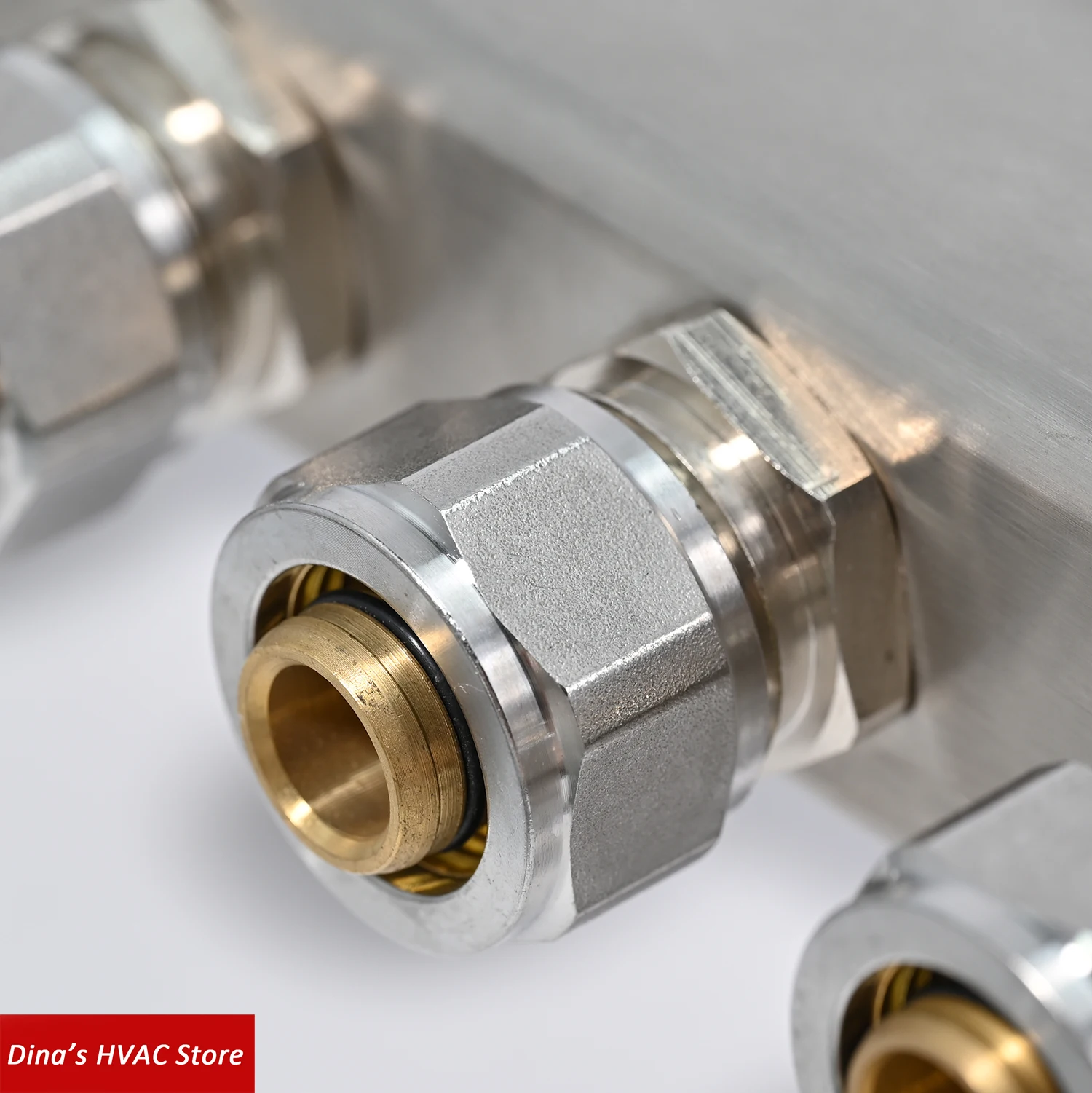

Delivery manifold complete with flow meters and Euroconus fittings( 16mm or 20mm for choose)
Return manifold complete with shut-off valves and Euroconus fittings( 16mm or 20mm for choose)
Brackets（one pair）
One 1" red handle ball valve with temperature gauge (0~80℃）
One 1” blue handle ball valve with temperature gauge （0~80℃））
One 1” end connection with automatic air vent and red handle drain/filling valve
One 1” end connection with automatic air vent and blue handle drain/filling valve
Please note：
Euroconus fittings are supplied，so don't need to obtain seperately. But please tell us which size do you need when make the orders.We have 16mm and 20mm.Otherwise we will send the Euroconus fittings randomly.
Description
� G1 primary connection
� Outlet interaxis: 50mm
� Thermostatic screws suitable for use with thermostatic heads and actuators.
� Flowmeter scale: 0-5 L/min
� Fluids: water or glycol solutions (max 30%)
� Suitable for PEX or multilayer piping
� Threads: ISO 228.
� Size: 1"x3/4" x 2~16way

Produktdetails in Bildern

Produkteigenschaften

Markenname

NONE

Ist drahtlose Funktionalität enthalten?

Nein

Ist eine Batterie im Lieferumfang enthalten?

Nein

Hochbetriebenes Chemikalienunternehmen

Keine

Material

s304

Ursprung

CN (Herkunft)

Modellnummer

PT6110F

Zertifizierung

CE

Size

DN25

Manual Knob

ABS

Manifold Bar

Stainless Steel AISI304

Brackets

Steel
