Godiag GT100+ GT100 Pro OBDII Breakout Box ECU-Tischanschluss fügt elektronische Stranganzeige und das CANBUS-Protokoll hinzu

Produktbeschreibung

GODIAG GT100+ AUTO TOOLS OBD II Break Out Box ECU Connector
GODIAG GT100+ is a latest testing platform for OBDII protocol communication detection and ECU maintenance / diagnosis / programming / coding And after all the keys are lost, the instrument and the anti-theft system are forced to activate by short-circuiting.
GT100+ has a voltage and current display. It is convenient for maintenance engineers to judge the current working status of ECU.

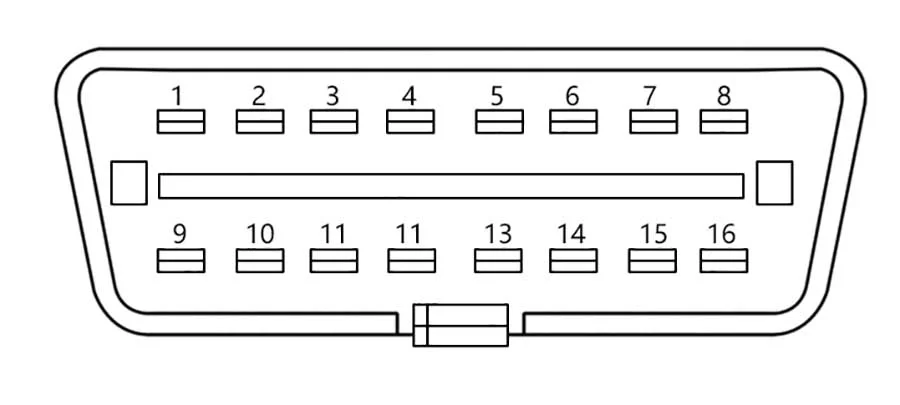

It can convert the car OBD2 interface into 16 pin for signal detection and electrical level conversion. Able to connect the single modules or multiple modules of the vehicle. It can be connected with any diagnostic tool to tell whether the car communication is good or not. It can also supply power to the car when you change the battery to avoid the vehicle control module data being lost, automatically locked, the key remote control fails and the fault light turns on.
GODIAG GT100+ Details
1. GT100+ adds Electronic Current Display.
On bench connect the ECU module by using the banana connector or db25 dedicated ECU adapter, Godiag GT100+ will display the electronic current.
The advantage to display electronic current value
The user can intuitively see the current status of the ECU. There is no current display or the actual displayed current is inconsistent with the engineer’s expected current, then you can immediately check whether the wiring is wrong, if the wiring is correct, he can judge that the ECU may be broken, so there is no need to perform diagnostic communication and can directly repair the ECU.
If it shows too much current, then you can also determine if the cable is incorrectly connected or the ECU is broken.
2. GT100+ Adds CANBUS Protocol Communication
GT100+ Pin 1, 9, 3, 11 12, 13, 8 [corresponding to the yellow banana connector on the machine], these non-standard obd2 protocol interface may display CAN BUS or K-Line communication protocol. GT100 can only display K-Line Pwm Vpw+ KWP 2000 protocol. GT100+ will display CANBUS K-Line Pwm Vpw+ KWP 2000 protocol communication.
3. Reset instrument/immobilizer when all keys lost
When you want to program key for VW, for Porsche, for Mitsubishi and nother cars with all keys lost, or to program for Toyota ECU, you need to activate the dashboard (reset instrument) or wake up the immobilizer module first. Then you can operate directly by using GT100 GT100+.
a. To replace the engine ECU for Toyota or to use some key programmer to program for Toyota when all keys lost, it requires to short-circuit PIN13-PIN4
b. To program for Mitsubishi key with all keys lost or to set OBDII when all remote keys lost, please short-circuit PIN1-PIN4.
c. For Porsche and for VAG 4th generation / 5th generation keys (for example new A6L Touareg A4 Q5 A7), please use GT100+ to short-circuit banana connector PIN 16—-PIN 1 to lit up the dashboard, after that use the key programming tool to connect with the female adapter of GT100+ for data collection. Some vehicle dashboards won’t be lit up, but data can also be collected, for example: A6L Q7.
Package includes
GODIAG GT100+ function and operation guide
By connecting the vehicle and diagnostic tool via OBDII, Godiag GT100+'s LED will indicate whether the OBDII diagnostic interface has a good communication with the car.

Produktdetails in Bildern

Produkteigenschaften

Markenname

GODIAG

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Drahtlose Unterstützung

Nein

Sind Batterien im Lieferumfang enthalten?

no

Externe Testzertifizierung

NONE

Material

plastic

Artikellänge

30

Benutzen

Keine Telekommunikation

Artikelbreite

12

Modellname

godiag

Artikelhöhe

5

Artikelgewicht

1

Spannung

12

Elektronisch

NEIN

Leistung (W)

8

Choice

yes

semi_Choice

yes
