ITCARDIAG CSE Reader OBD 2-Code-Scanner Ersetzt Hi-Scan Pro CarmanScan 1, Lesen Sie den Fehlercode, Klarer DTC-Stromdatenantriebstest

Produktbeschreibung

ITCARDIAG CSE READER -This is an emulator of the multi-brand automotive scanner Hi-Scan Pro (aka CarmanScan 1) that allows you to run the software of this device on a PC and diagnose the car.

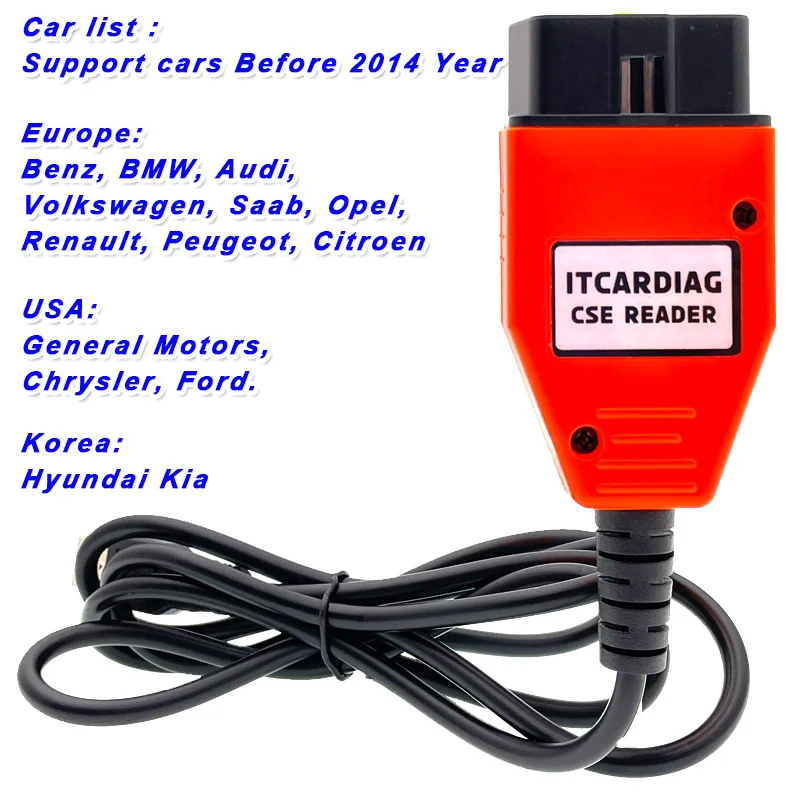

Car list: support cars before 2014 year
Asia:Toyota, Lexus, Honda, Nissan, Mitsubishi, Proton, Mazda, Subaru, Suzuki, Isuzu, Infiniti, Holden, Daewoo, Ssangyong
Europe:Benz, BMW, Audi, Volkswagen, Saab, Opel, Renault, Peugeot, Citroen
USA:General Motors, Chrysler, Ford.
Korea:Hyundai Kia
Language:english
System:win xp,7,8,10
Note
2.some cars need Special OBD cable connection，For example：for some audi cars,you need cables like below
Translation of main menu items ITCARDIAG CSE READER
Main menu of the program
01. Diagnostic trouble codes - Memory errors
02. Clear DTC - Reset vehicle errors
03. Current data - Main diagnostic section
04. Flight record - Recording current data into memory
05. Actuator test - Tests of various devices and sensors
06. Dual-display (Sensor+TDC) - Displays errors and sensor data together
07. Dual-display (SENSOR+ACT) - Carrying out tests and simultaneously displaying errors and sensor data
08. SIMU-SCAN

Produktdetails in Bildern

Produkteigenschaften

Markenname

ITCARDIAG

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Drahtlose Unterstützung

Nein

Sind Batterien im Lieferumfang enthalten?

no

Externe Testzertifizierung

ce

Benutzen

Keine Telekommunikation

Zertifizierung

CE

Artikeltyp

Automatischer Schlüsselprogrammierer

Modellname

ITCARDIAG CSE Reader

Spannung

12v

Leistung (W)

5w-10w

support

Windows XP, 7, 8, 10

Language

English only

fit for

Multi-brand scanners

FUNCTION 1

Diagnostic trouble codes

FUNCTION 2

Clear DTC

FUNCTION 3

Current data

FUNCTION 4

Flight record

FUNCTION 5

Actuator test

FUNCTION 6

Dual-display

FUNCTION 7

Dual-display

FUNCTION 8

SIMU-SCAN

Other Functions

Battery voltage,MAP sensor (kpa),MAP sensor (V),Coolant temp sensor,Int. air temp. snsr,Throttle posi. sensor,Throttle p.snsr(V),Adapted throttle (%),Idle status,Wide open throttle,Fuel-cut off status,Start status,Fuel pump relay,MFI Control relay,Vehicle speed,Engine speed,Target idle speed,ISC Actuator duty,CKP Signal,A/C pressure Switch comp. relay,Medium pressure SW,Fan-low speed,Fan-high speed,...many other functions
