Bodenheizungssystem und Teile

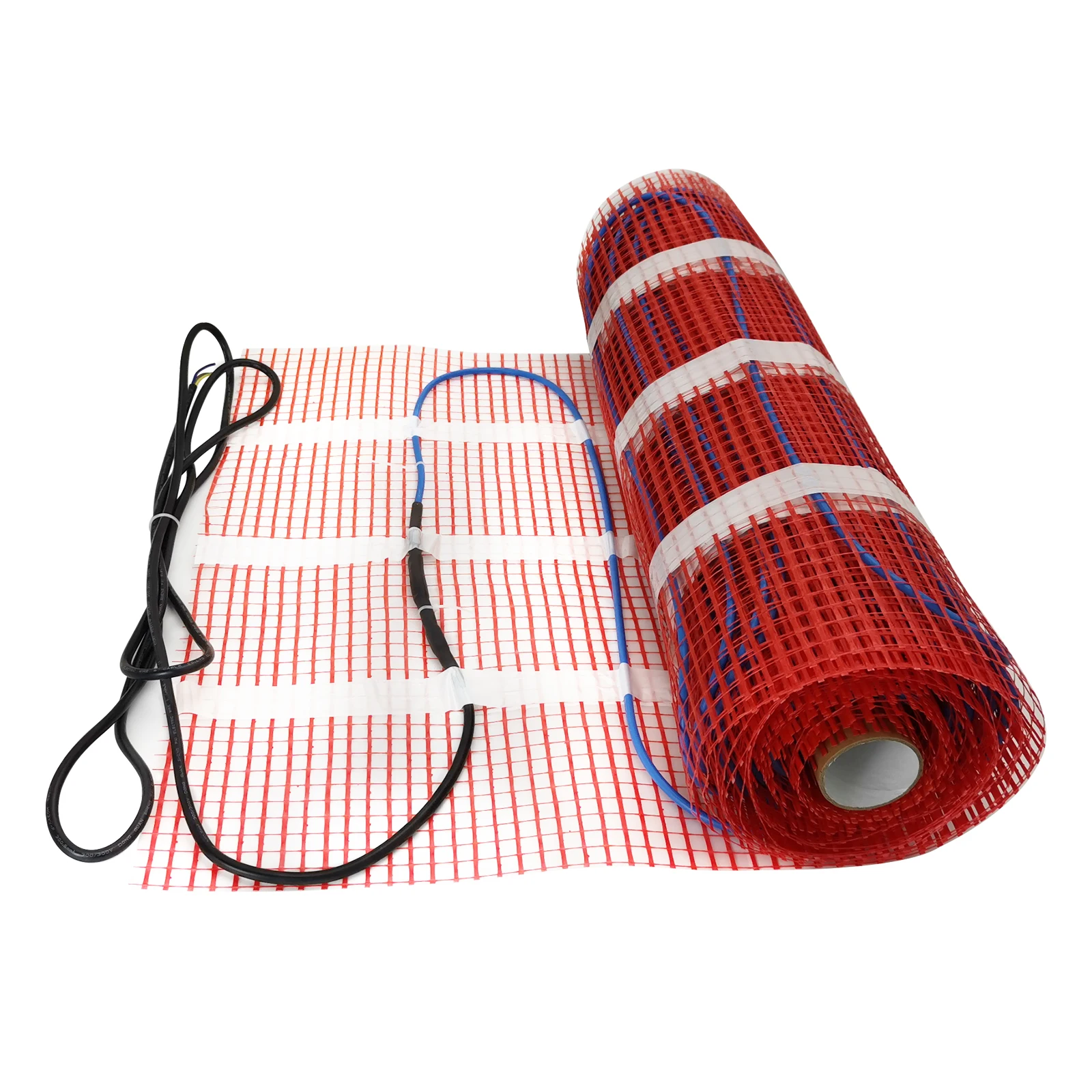

MINCO HEAT 50 cm * 2 m 1 m2 Fußbodenheizung Warme Matten-Sets 150 W/m2 Elektroheizung unter Fliesen

49,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Variante auswählen

Lieferung nach Deutschland
Lieferzeit: 8–15 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

Main Parameters

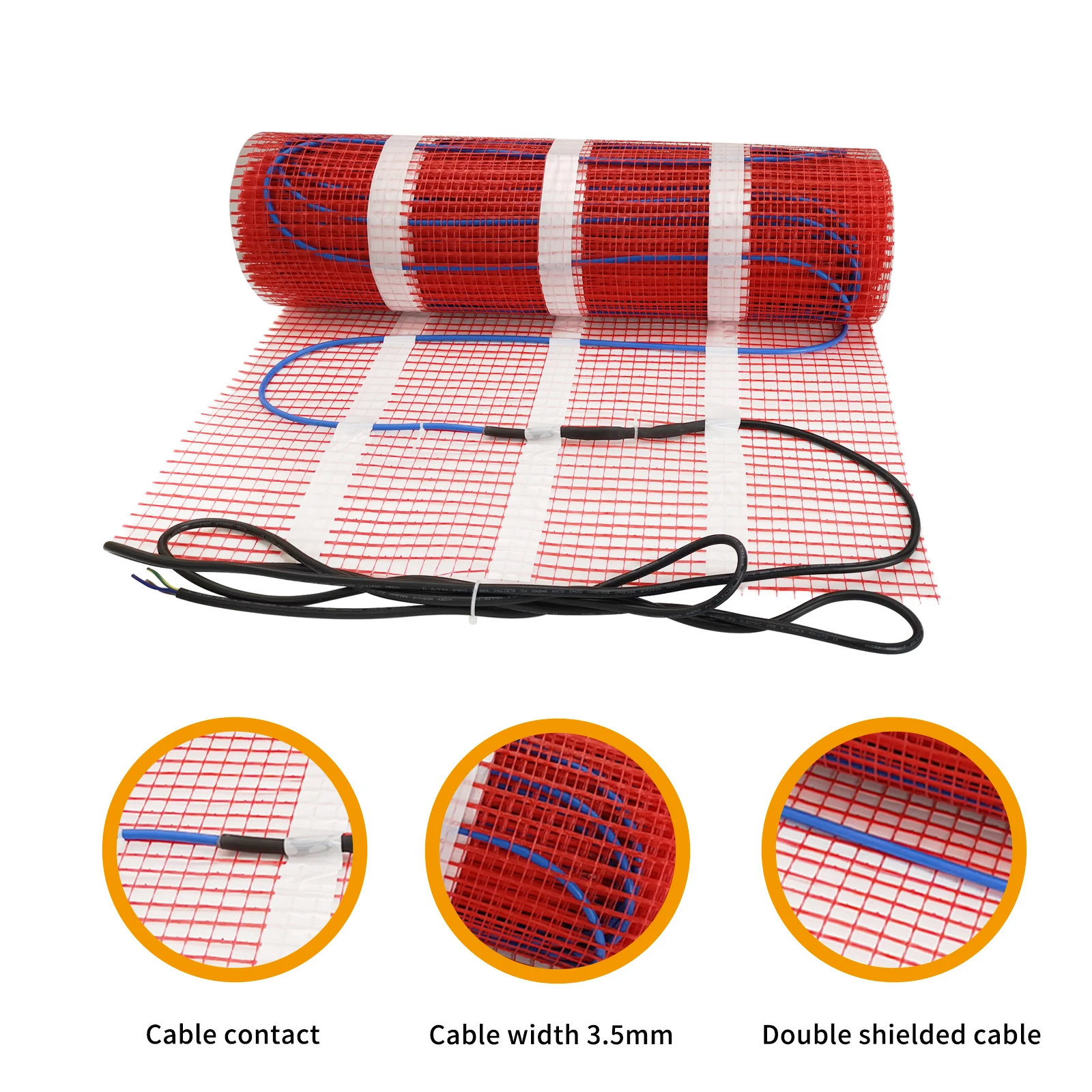

1. Cable Construction: Twin conductor
2. Operating voltage: 200~240V
3. Power output: 150W/m2
4. Cable spacing: 100mm
5. Cable diameter: 3.6mm±1
6. Min. bending radius: 25mm
7. Conductor insulation: Fluoropolymer/XLPE/Rubber
8. Outer insulation: PVC
9. Max. heating temperature
100w/m2 can reach about 40~60C
150w/m2 can reach about 50~70C
200w/m2 can reach about 60~80C
10. Min. installation temperature: 5°C
11. Length of cold lead: 2.25m
What is under floor heating mat kits?
Underfloor Heating mat kits is a highly practical and economic way of adding warm comfort to your home. These heating systems produce a maintained even heat distribution wherever it is installed within the home, this is coupled with low installation and running costs, underfloor heating is an economical way of creating that perfect ambient temperature.
Underfloor heating systems can be used both as a central heating uint and as a supplemental system. It is always our ecommendation to partner your heating system with insulation; this lowers heat up times signficantly and further increases efficiency.
Description
150W/sqm output - This range is used for simple floor warming within living areas where primary heating is not essential and there are other sources of heating available such as radiators. This can also be used as a primary heat source in some circumstances when used in conjunction with flooring insulation. This heating mat comes with self-adhesive on the back, so it's easy to install.
