Diagnosewerkzeug

GODIAG ECU IMMO Prog AD GT105 II Break Out Box ECU-Anschluss + Vollprotokoll-OBD2-Universal-Jumper

69,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Lieferung nach Deutschland
Lieferzeit: 8–15 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

GODIAG ECU IMMO Prog AD GT105 II Break Out Box ECU Connector + Full Protocol OBD2 Universal Jumper

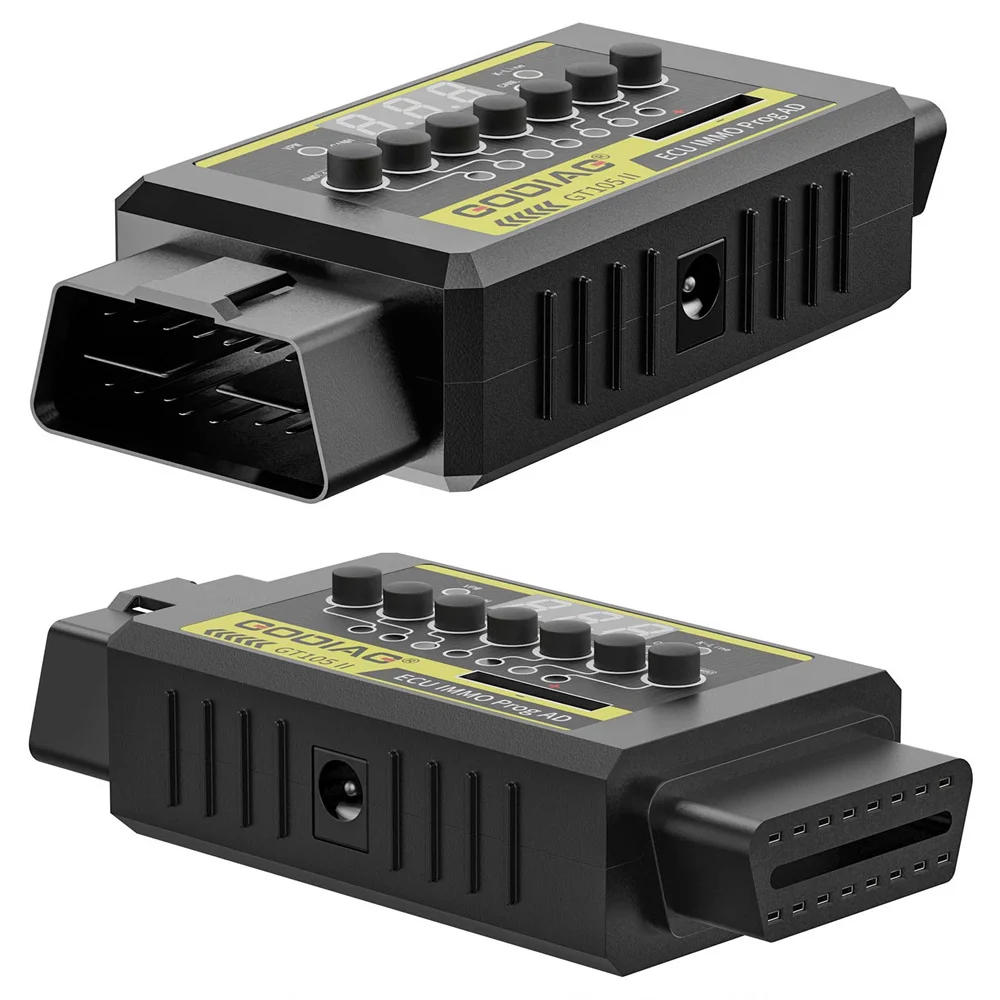

GODIAG ECU IMMO Prog AD GT105 II is a special connection adapter developed for automobile maintenance technicians, IMMO matching technicians, ECU programming engineers, etc. It is used for short-circuiting OBD2 in the car for IMMO activation matching, ECU diagnosis and programming connection, and drawing power from the vehicle’s battery for outdoor on-site vehicle maintenance. GT105 II is equipped with PWM+(PIN2), CANH(PIN6), CANL(PIN14), K-line(PIN7) signal communication indicators. When there is data communication, the corresponding protocol indicator will flash, therefore the communication status can be judged and you can also determine whether the diagnostic programming device is able to communicate. GT105 II is suitable for outdoor work, taking power from the car battery and converting it into a DC12V power supply for 12V charging, programming power, or independent power supply for diagnostic equipment.

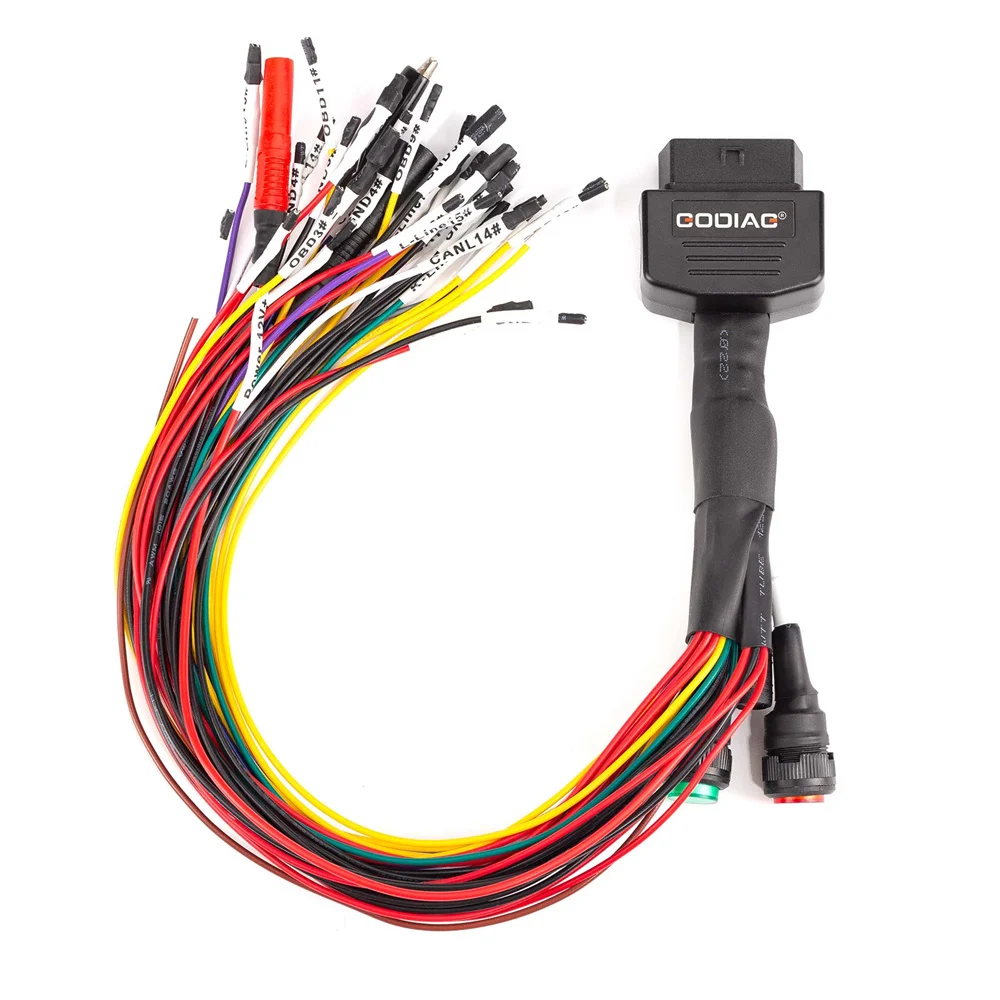

Full protocol OBD2 universal jumper is used to connect ECU for ECU programming via OBD2 way such as M-M-P-S, F-GTECH, K-E-SSV2, B-Y-SHUT, D-ISPROG, etc.
Product Highlights：
A full-protocol ECU connection line for ECU programming power adjustment

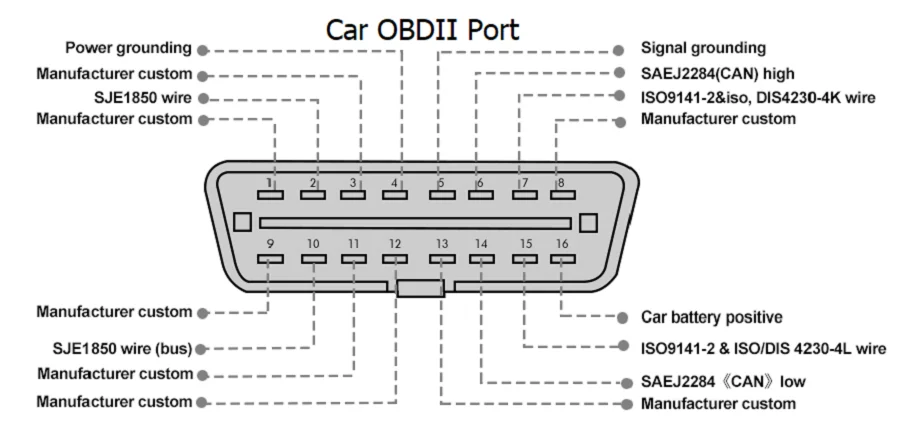

OBD2 independent PIN 4 body GND, PIN5 signal GND for special programming of some modules.
PIN4 and PIN5 can be switched between short-circuit and non-short-circuit.
Standard OBD2 independent PIN4, PIN5.
Pure copper female seat supports repeated insertion and removal, and has a long service life.
Battery clip treated with environmentally-friendly salt spray, with a thickness of 0.5mm.
The DC car battery cable adopts 0.75mm² 2-core sheathed cable, which supports DC5.5*2.5/ DC5.5*2.1 interface.
The DC connector has a resettable 7A fuse.
DC power interface, dedicated laboratory power connector.
OBD2 universal jumper of good quality.
Product Functions

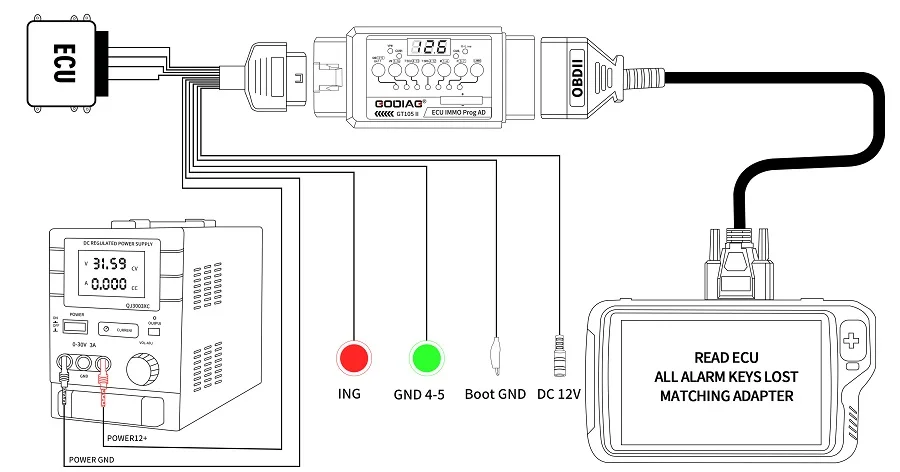

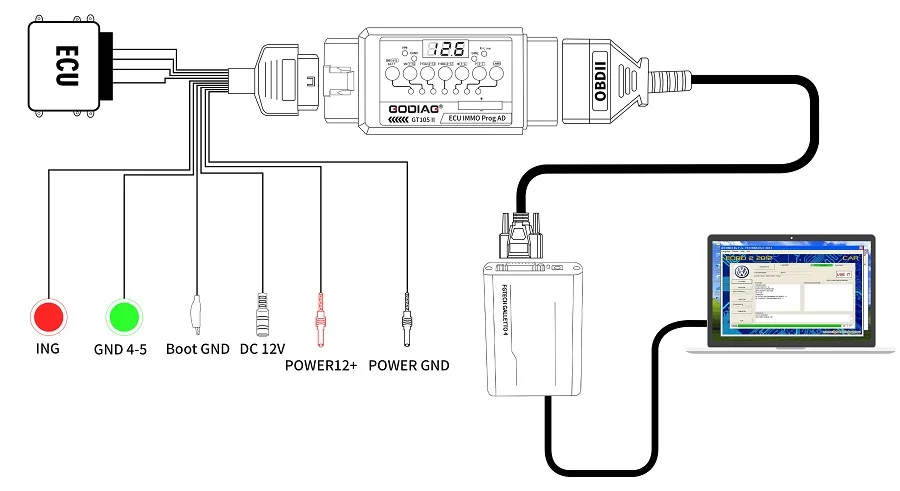

1.The OBD2 universal jumper is connected to the ECU, and the ECU module is diagnosed by the programming diagnostic equipment. (With MPPS, FGTech, Kess V2, etc, for ECU data reading and writing, ECU cloning, ECU tuning)
2.GT105 II provides uninterrupted power supply during the car battery replacement process to protect the car ECU data from being lost due to the power failure. The audio system is not locked, the IMMO data is not lost, the remote control does not need to be reset, the window regulator does not need to be reset, and the throttle valve does not need to be re-matched. The fault light will not be illuminated. No fault codes will appear. GT105 II provides internal insurance for users.
3.GT105 II can obtain 12V power from the car battery. (For programming equipment such as Xhorse Key Tool Plus Pad, VVDI Prog, CGDI Prog, IM608, read BMW, BENZ, IMMO ECU outdoors, or provide 12V power supply for reading other car’s ECU data. Provide power for 12V powered key cutting machines to realize outdoor faulty vehicles on-site repair. ）
4.After 2016, all F-ord smart keys are lost, GT105 II cooperates with VVDI equipment (OBDSTAR AUTEL) and other IMMO matching equipment to program the keys.
5.GT105 II-All car keys lost matching---wake up the meter or wake up the IMMO ECU. (Support VAG 4th and 5th generation IMMO, Toyota ECU synchronization, auxiliary Mitsubishi all-key-lost matching or all-key-lost remote control key setting, old Porsche Cayenne car for IMMO key learning.)
