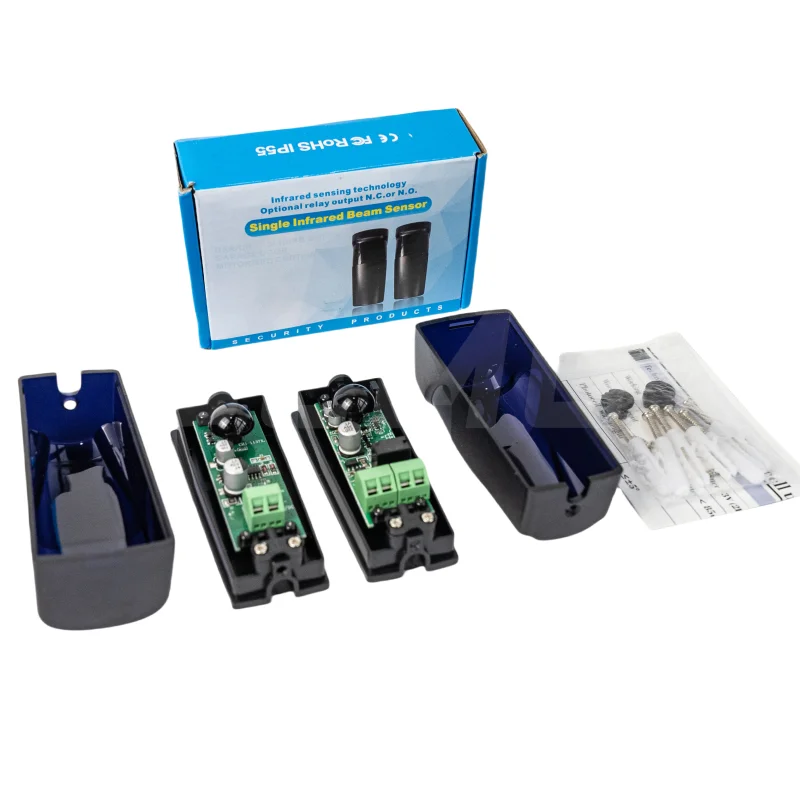

Garagentor-Sicherheits-Infrarotstrahlsensor, IP55 Wetterfeste Fotozelle für Rolltore und Schiebetore

Produktbeschreibung

15m Range Outdoor IP55 Automatic Door Wireless Infrared Safety Beam Photoelectric SensorUltraviolet reflector Waterproof 12-24V

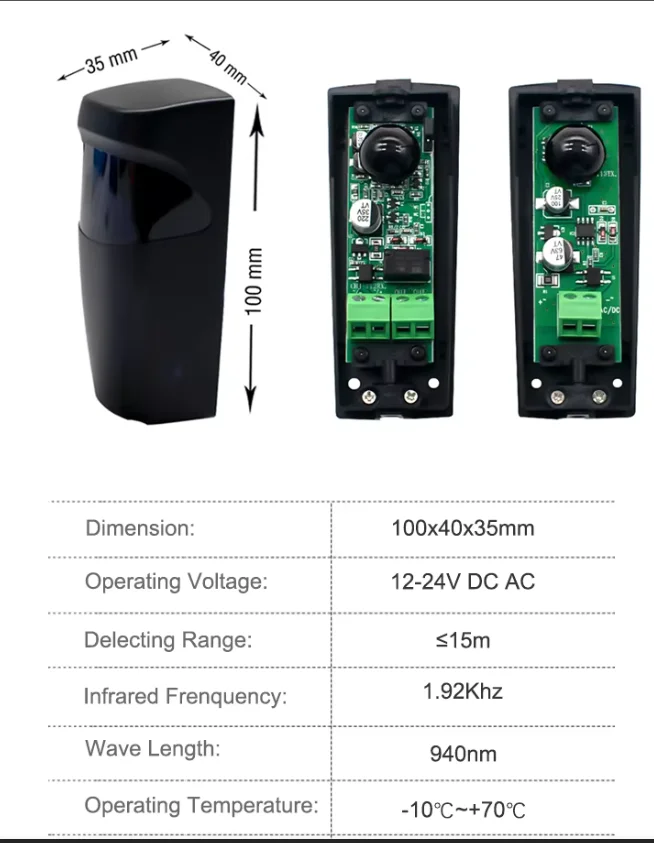

Specification
1. Technology: Infrared 2. Range: 8~12m
3. Infrared Frequancy: 1.92khz
4. Power supply: 12 to 24 VDC /AC.
5. Wave length:940nm
6. Current: TX ＜100uA, RX ＜ 15mA
7. Operating temperature: -20 degrees to 80 degrees

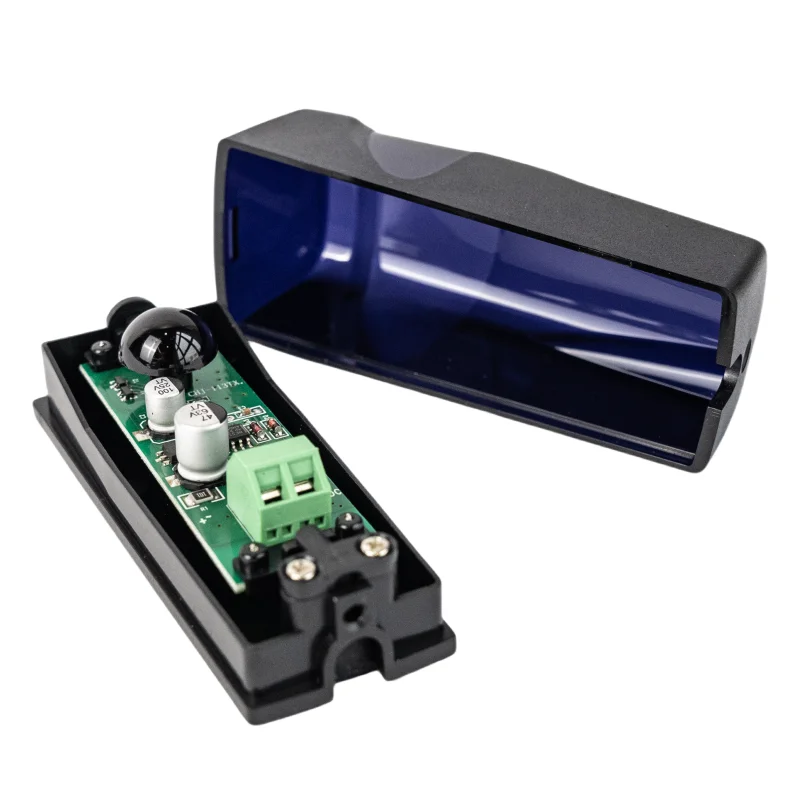

Photo Shows
Safety Instruction
1.For security, please read the user manual carefully before initial operation
2.This photocell is without any fuse,so Please make sure the power is off before installation
3.Only used this system that do not cause any danger life or property during the running failure or its security risks eliminated
4.Please guarantee the products used in effective working range
Picture Display
Installation instruction

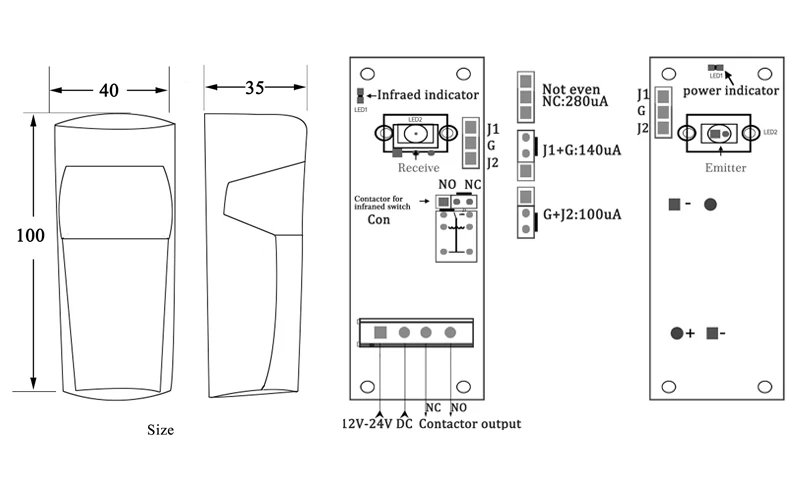

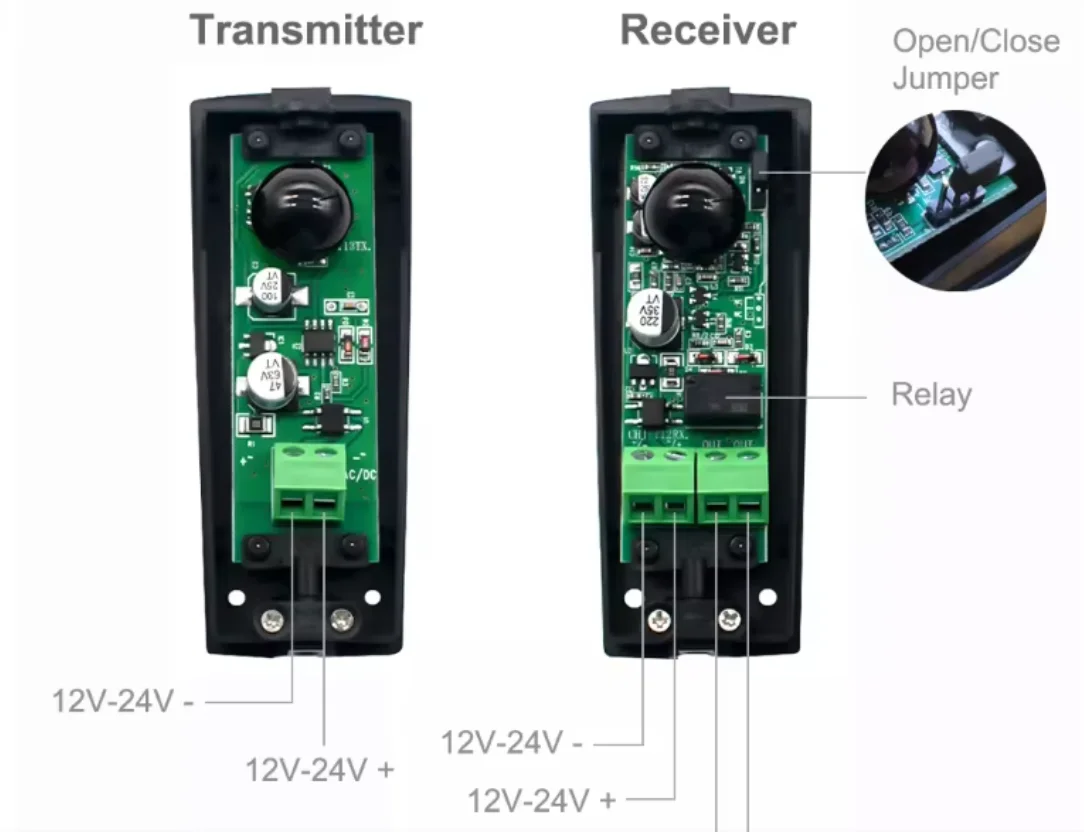

4.1 Receive module J4 in above picture is the option switch for NO and NC of photocell switch.
4.1.1When the short circuit cap on NO,it is normally open.
4.1.2 When the short circuit cap on NC,it is normally closed.

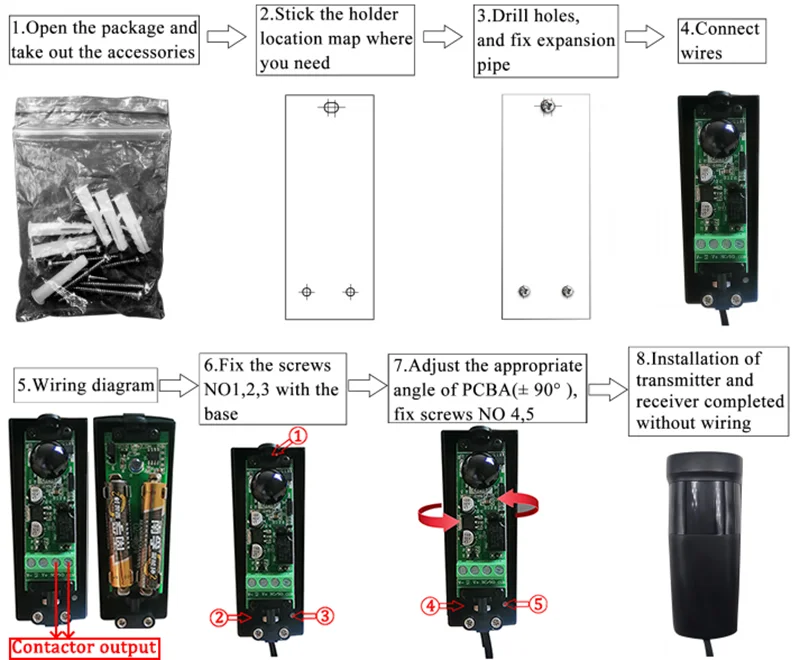

4.2 Installation

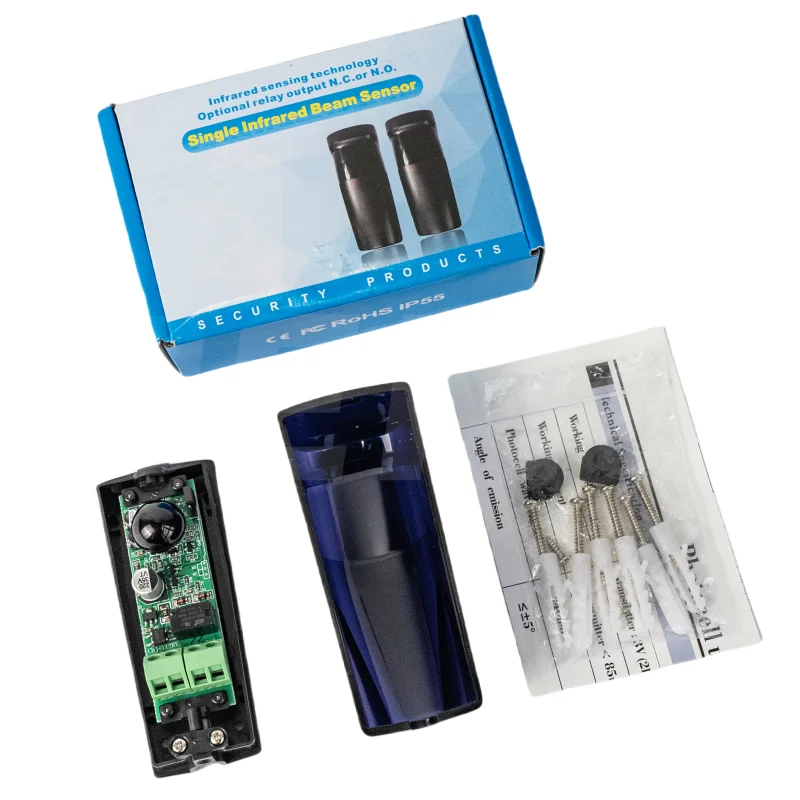

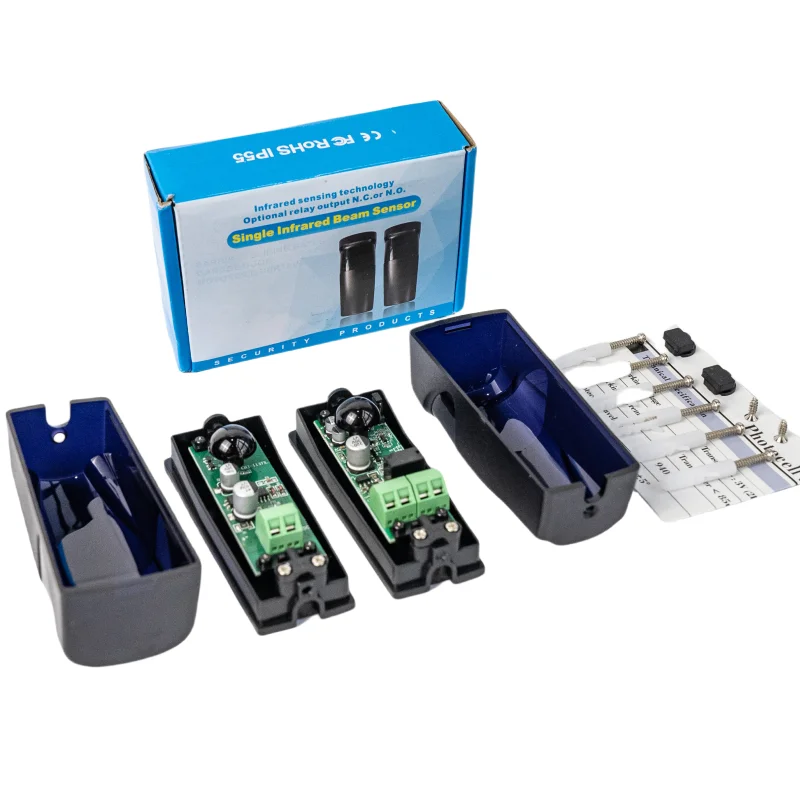

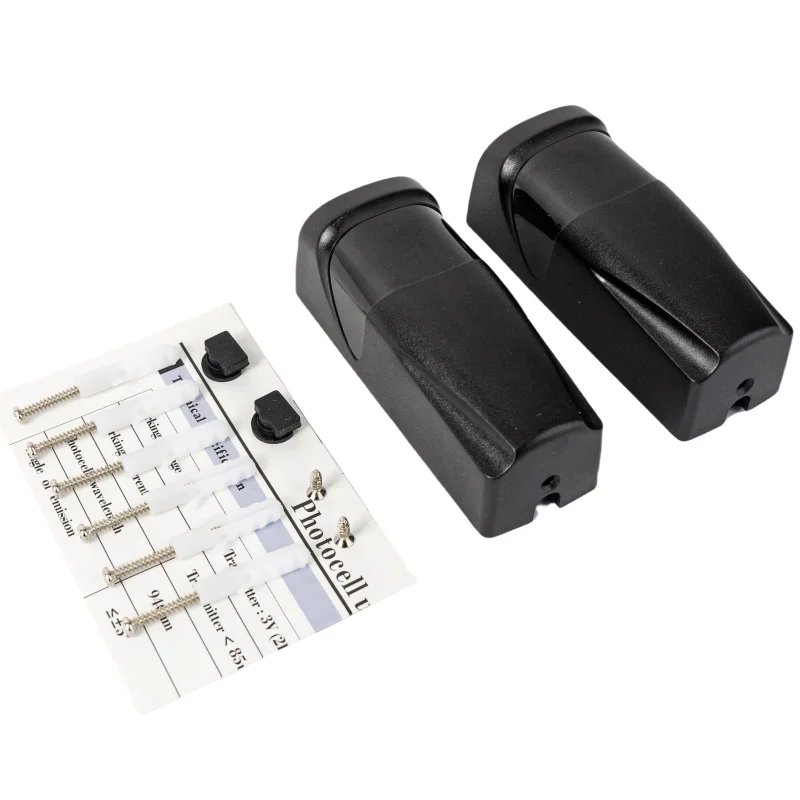

Produktdetails in Bildern

Produkteigenschaften

Markenname

HAMBERS

Formfaktor

Abdeckung

Benutzen

Universell

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Drahtlose Kommunikation

HF

Unterstützen Sie APP

Nein

Zertifizierung

CE

Zertifizierung

RoHS-Konformität

Frequenz

433 MHz

Kanal

1

Paket

Ja

Modellnummer

Battery photocell beam

Color

Black

working voltage

9-24v AC/DC

Receiver range

With strong light: 8m-12m Without strong light: 15m-17m

Infrared emission frequency

1.92Khz

Wavelength

940nm

sensitivity

��-112dBm

Input Current

RX 15mA-TX 30 mA

size

100 X 40 X 35mm

static working current

TX ≤300uA RX ≤15mA

Use environment

20°C ~ 80°C

Maximum load

1A max 30V

Technology

Active infrared radiation

Receiver parameter range

��20m When the weather is bad, such as heavy rain or fog, the distance will be reduced by 30%

standby time

>180 days (with Nanfu battery)
