GS Pro Intelligenter Druckregler für Wasserpumpe, 0–10 bar, 2,2 kW, G1-Gewinde, einfache Bedienung, Pumpenschalter für Gebäudepip

Produktbeschreibung

Description
1. HD dual digital tube split screen display, start stop pressure value and real-time pressure value inside the tube at a glance.
2. Full LED state display headlights, any state can be seen.
3. Intelligent mode: Flow switch+pressure sensor dual control start and stop. Application range 0-10 kgs. Vertical height range 0-100 meters, no specific start pressure value, shut down value automatically generated after the faucet (pump head peak), start value is 70% of stop pressure.
4. Pressure mode: Single sensor control, can set the start value and stop value. When the input start value is higher than the stop value, the system automatically corrects the pressure difference between the start value and stop value to 0.5bar. (Optional downtime without delay).
5. Water tower mode: Flow switch +pressure sensor double control shutdown. After turning off the faucet, the shutdown value (pump head peak) will be generated automatically, and the starting time range can be set as 99 hours and 59 minutes.
6. Water shortage protection: When there is no water in the inlet water source and the pressure in the tube is less than 0.3 bar, it will enter the protection state of water shortage and shutdown after 8 seconds (5 minutes water shortage protection is optional).
7. Anti-jam machine function: lf the pump do not use for 24 hours, will run 5 seconds around in case of the motor impeller rust stuck.

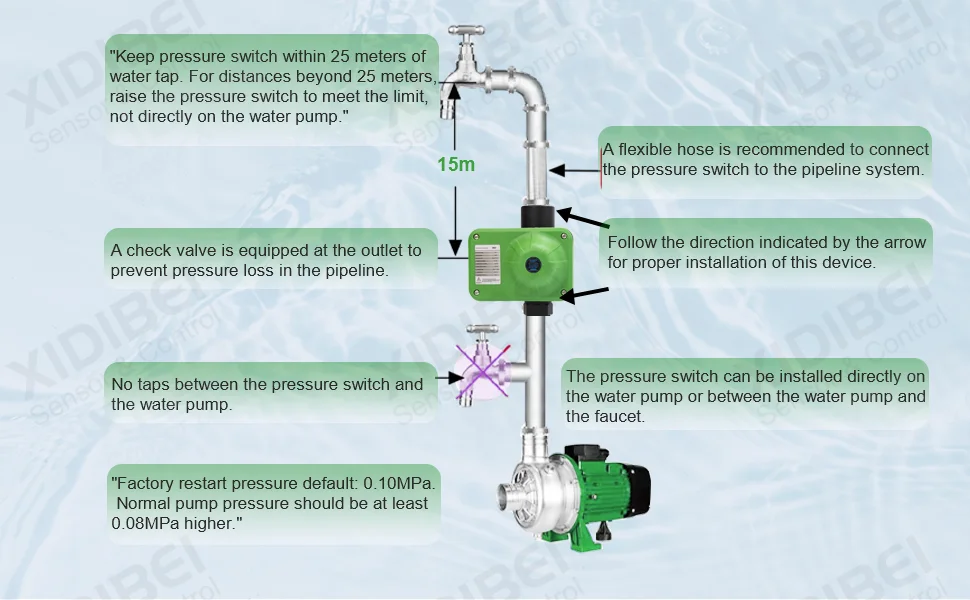

8. Installation angle: unlimited, can be installed at any angle.
9. There is a water tower/pool on the roof, please use the timing/water tower cycle replenation mode. No need to use cable float switch, cable water level switch, ugly and unsafe, floating ball valve can be installed at the outlet.

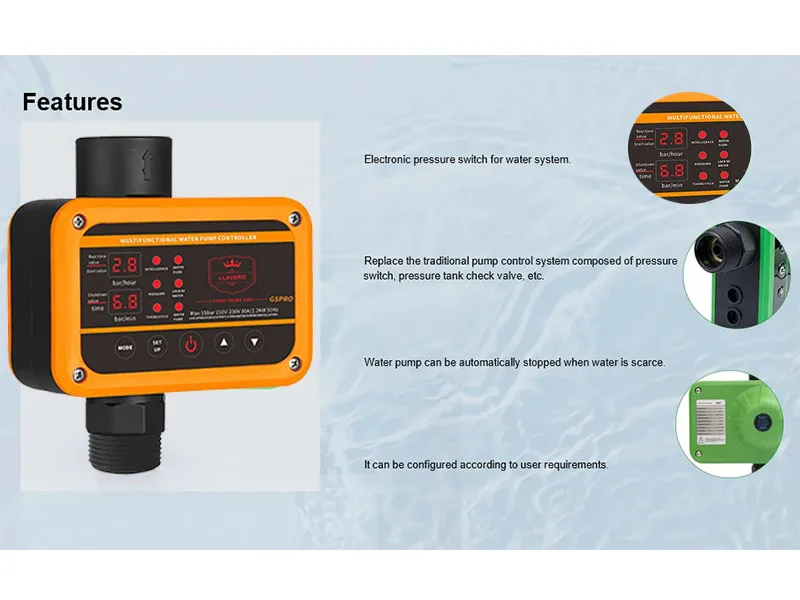

Features
1. Electronic pressure switch for water system.
2. Turn the pump on accordingly when the pressure is low(tap turned on) or turn the pump off accordingly when the flow stops(tap turned off) at peak pump pressure standard.
3. Replace the traditional pump control system composed of pressure switch, pressure tank check valve,etc.
4. Water pump can be automatically stopped when water is scarce.
5. It can be configured according to user requirements.
6. Application: self-priming pump,jet pump,garden pump, clean water pump,etc.
Technical parameters
Maximum power: 2.2 KW
Starting pressure: 0-9.4 bar

Produktdetails in Bildern

Produkteigenschaften

Markenname

NONE

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Halbfertigprodukt

Nein

Batterie im Lieferumfang enthalten

no

Zertifizierung

CE

Modellnummer

XDB412-GS+

Permissible maximum pressure

15 bar

Frequency

50/60HZ

Weight

about 0.9kg

Maximum power

2.2 KW

Maximum rated current

30A

Thread interface

G1.0"

Starting pressure

0-9.4 bar

Packing number

20

Protection level

IP65

voltage

220V

Maximum medium temperature

0~100°C

Cable length

about 1 meter

Choice

yes

semi_Choice

yes
