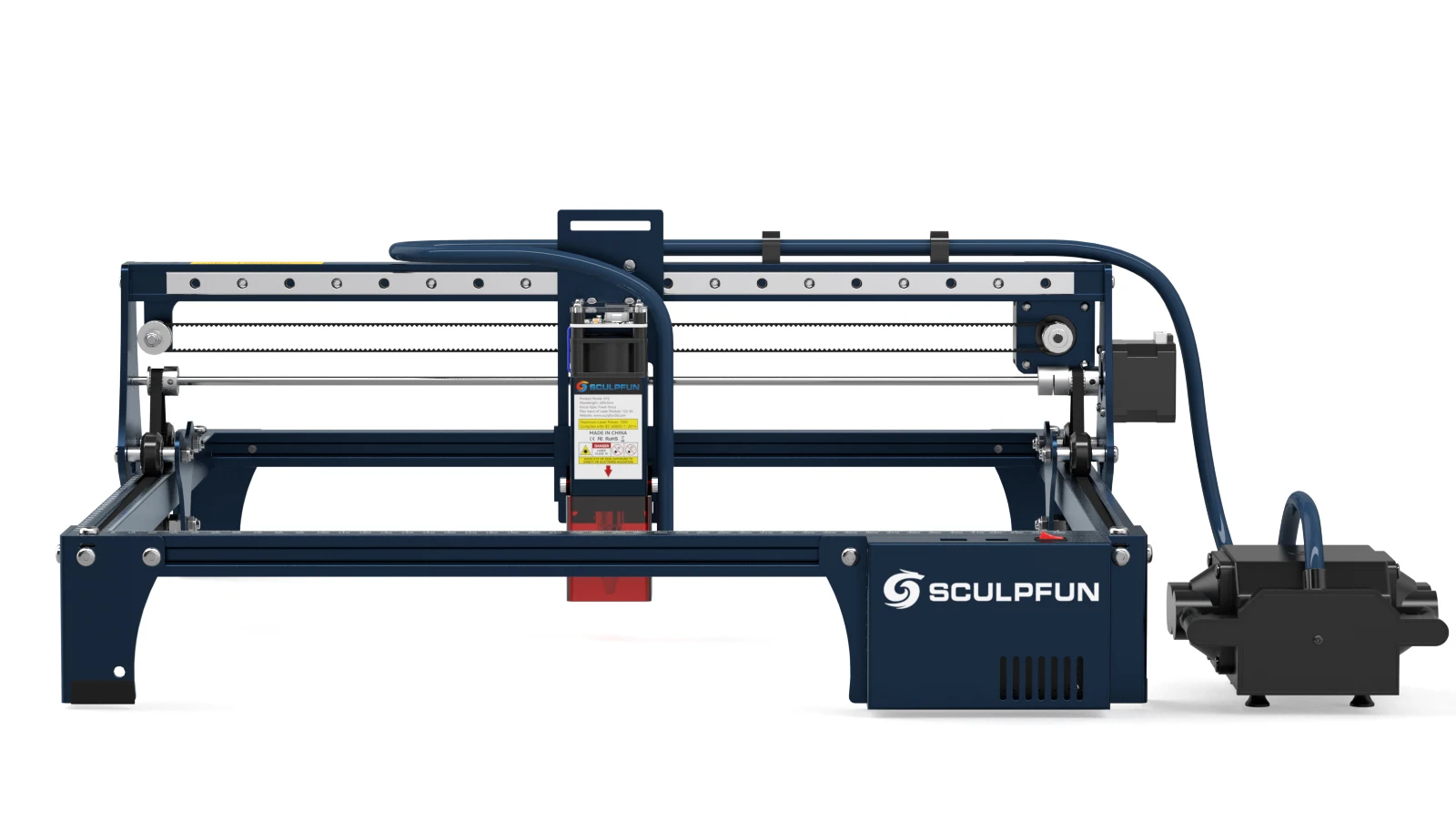

SCULPFUN S30 Pro 10W Lasergravierer Automatische luftunterstützte Graviermaschine XY-Achse Erweiterbarer Arbeitsbereich 410x400mm für Holz

Produktbeschreibung

Features
1. Automatically controlled air assist system: The traditional adapter air assist will always be turned on and cannot be controlled during engraving, and the engraved pattern will be smoked into a fuzzy fog. The S30 series is equipped with an air-assisted 32-bit motherboard and a control-type air pump, which can intelligently control the air-assisted switch during engraving through the M8 button of the lightburn software, which makes the engraving and cutting very clean, and is very suitable for the manufacture of exquisite gifts.
2. Built-in high-pressure air-assisted nozzle: S30 series is equipped with advanced high-pressure air-assisted metal nozzle, which can generate high-pressure airflow under the air pump, greatly improving the cutting efficiency, and the cutting speed is more than 5 times faster than that without air assistance. The powerful airflow blows away the residue, making the cut surface very clean.
3. The S30 series adopts ultra-fine laser shaping technology, the laser focus is as thin as a hairline, and it is very powerful for engraving or cutting. The S30 Pro 10W laser is for those who cut a lot, everything is faster with it.

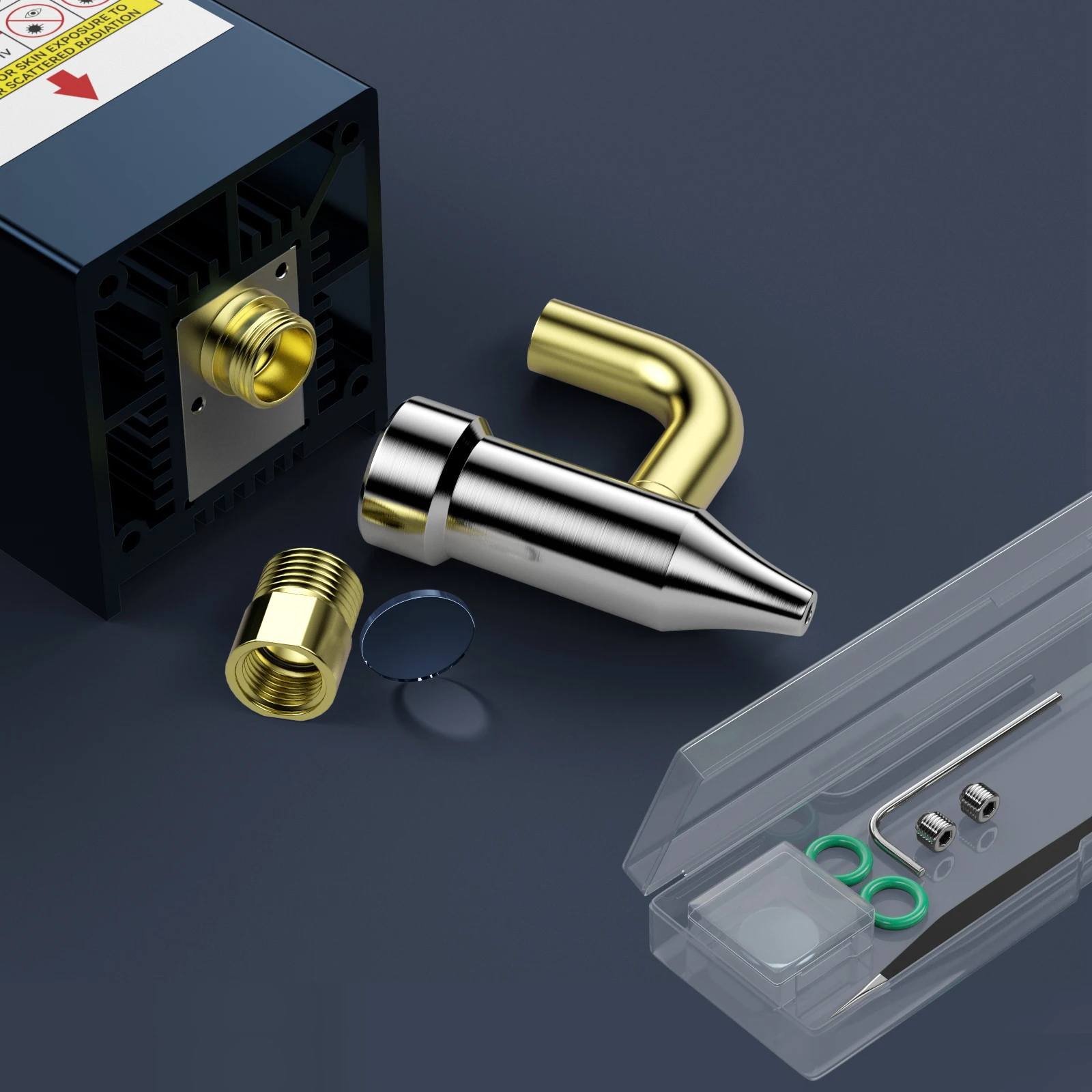

4. Replaceable protective lens: S30 series laser adopts innovative replaceable lens, which greatly improves the service life of the laser, which is more than 10 times longer than other general lasers. When the lens is damaged or after long-term use, the lens can be replaced to restore the cutting power. A free lens is included with the purchase, which is very cheap and can be easily purchased from SCULPFUN.
5. Expandable engraving area on both XY axes: S30 series adopts an innovative XY axis expandable design, the original engraving area is about 410x400mm, but you can purchase a Y-axis expansion kit to expand the engraving area to 935x400mm; Purchasing the XY axis expansion kit can upgrade the 935x905mm engraving area, which can help you better handle large area engraving or cutting work.
6. Upgraded 32-bit air-assist motherboard: The latest 32-bit motherboard supports automatic air-assist control function.

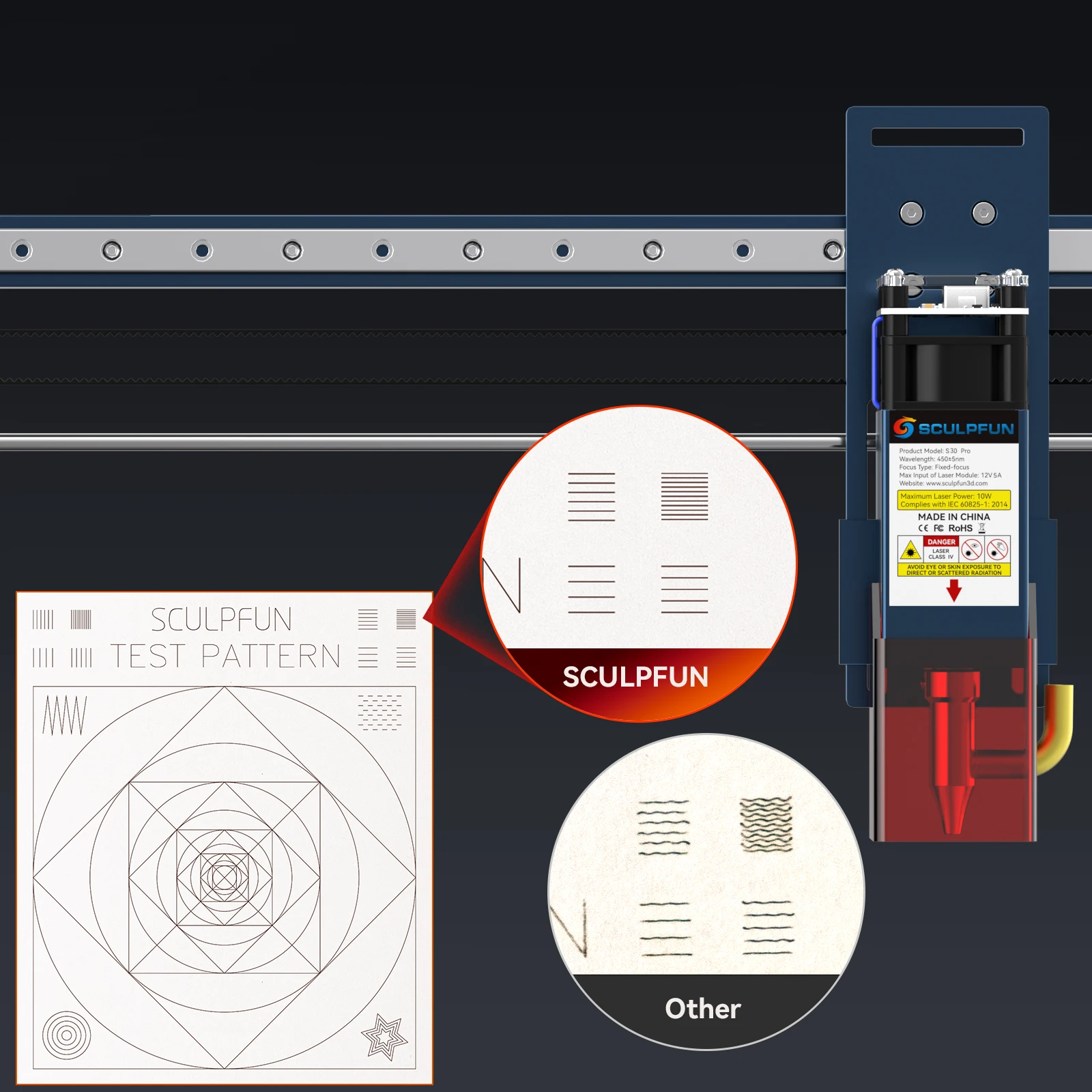

7. Industrial-grade cutting accuracy: S30 series adopts extremely sturdy 0.005mm high-precision linear slide X-axis, making it reach industrial-grade engraving accuracy. When comparing small engraving details, the S30 series does not have the wavy pattern that appears in ordinary engraving machines.
8. Detachable laser eye shield: The S30 series is equipped with a detachable eye shield, which will not dazzle even without glasses. Also if you don't need it, you can easily disassemble it.
9. Sturdy and durable frame: S30 series is made of high-strength aluminum alloy, its frame can bear up to 50KG weight without damage, and is very durable. The frame can be used for a long time and maintain high precision, only need to upgrade the latest laser when the machine needs to be upgraded.
10. Safety design: The presented A4 size steel pad can well protect the table from laser damage. Isolate fire hazards. There is a very safe and eye-catching power switch on the machine, you can directly and quickly turn off the power in an emergency.
11. Right-angle measuring ruler: There are precise scale lines on the X-axis and Y-axis to form a right-angle measuring ruler, which is convenient for you to measure the size of the engraved object quickly. The 410x400mm large-area engraving range can meet your various engraving needs.
Specifications
Product model: SCULPFUN S30 Pro
Laser Information
Diode laser output power: 10W (note that this is light energy not electrical energy)
Laser focus: 0.06x0.08mm
Laser wavelength: 455±5nm
Focusing method: Fixed focus column + sliding device
Laser protection cover: Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles.

Produktdetails in Bildern

Produkteigenschaften

Brand Name

NONE

Origin

CN (Herkunft)

High-concerned chemical

Keine
