ZE07 ZE07-CO Kohlenmonoxid-CO-Sensormodul Hochpräziser Gassensor zur Erkennung des seriellen Kohlenmonoxid-Port-Ausgangs 0-500 ppm

Produktbeschreibung

Product description

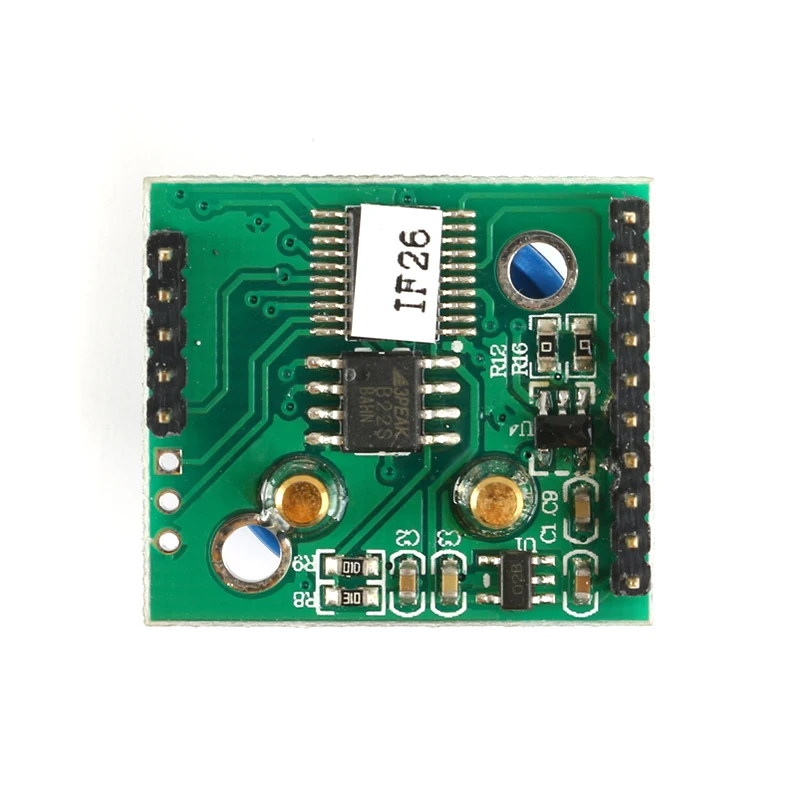

ZE07-CO electrochemical carbon monoxide module is a general-purpose, small
modification module. The electrochemical principle is used to detect the CO present in the air, which has good selectivity and stability. Built-in temperature sensor for temperature compensation; digital output and analog voltage output for easy use. ZE07-CO is a universal gas module designed and manufactured by combining proven electrochemical detection technology with sophisticated circuit design.
Features
1. High sensitivity, high resolution, low power consumption and long service life
2. Provide UART, analog voltage signal, PWM waveform and other output methods
3. High stability, excellent anti-interference ability, temperature compensation, excellent linear output
Application
Portable instruments, air quality monitoring equipment, fresh air ventilation systems, smart home equipment and other places.
Parameter
Detection gas: carbon monoxide
Interference gas: gas such as alcohol
Output data: DAC (0.4~2V voltage signal corresponding; concentration: 0~ full scale); UART output (3V level)
Working voltage: 5V ~ 12V (no voltage reverse connection protection)
Warm-up time: ≤ 3 minutes
Response time: ≤60 seconds
Recovery time: ≤60 seconds
Range: 0 ~ 500ppm
Resolution: 0.1ppm
Working temperature: -10 ° C ~ 55 ° C

Produktdetails in Bildern

Produkteigenschaften

Markenname

Your Cee

Batterie im Lieferumfang enthalten

no

Hochbetriebenes Chemikalienunternehmen

Keine

Halbfertigprodukt

Ja

Heimwerkerbedarf

elektrisch

Ursprung

CN (Herkunft)

PC enthalten

Nein

Anwendungsszenarien

Zivilklasse

Modellnummer

ZE07-CO Sensor

Mit Lcd-bildschirm Oder Nicht

NEIN

Ist ein intelligentes Gerät

no

Messbereich

Digital Sensor

Gasart

CO
