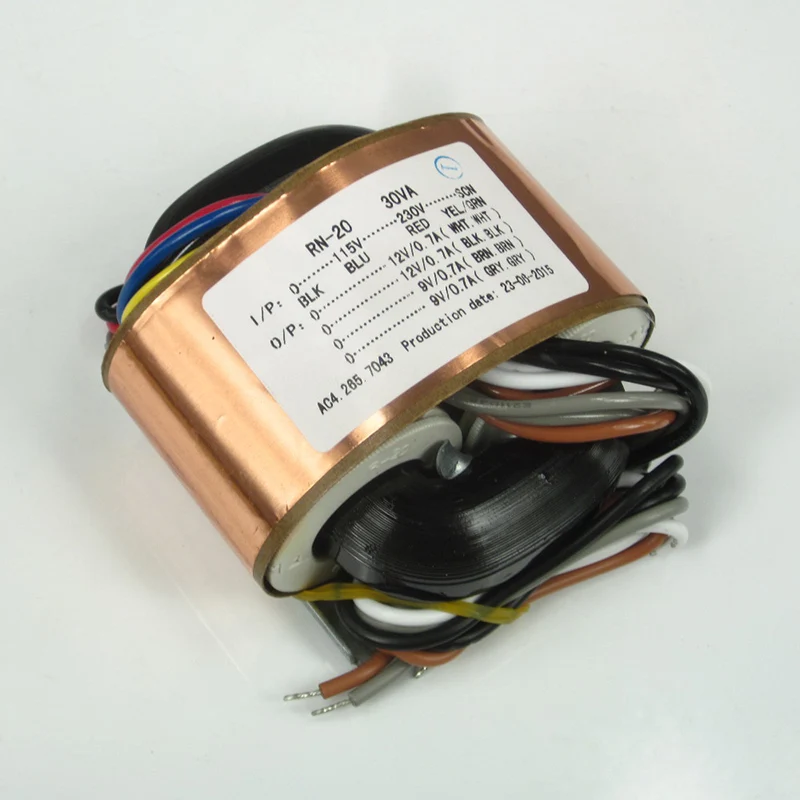

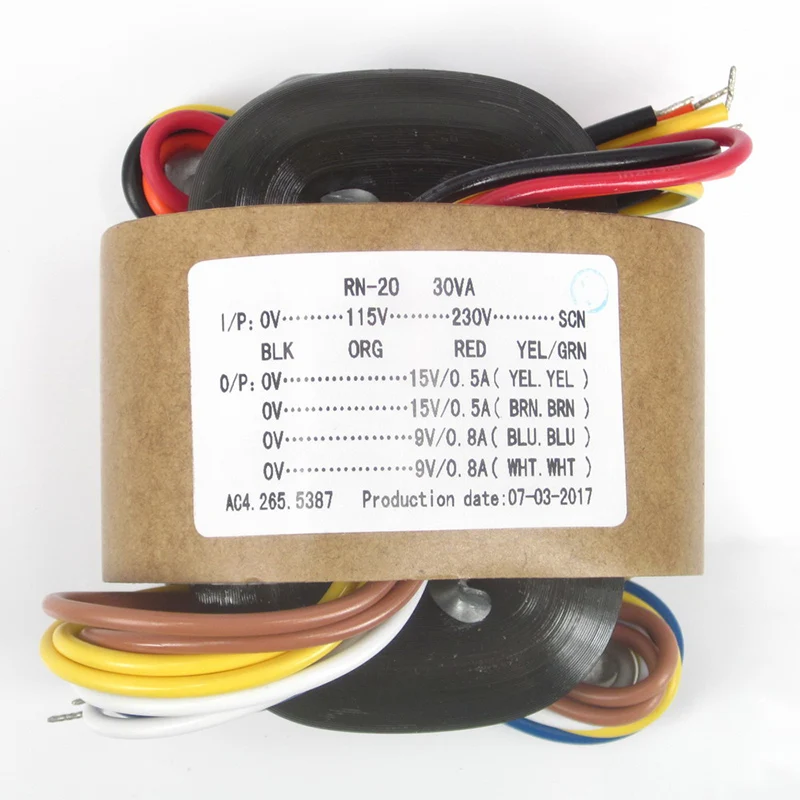

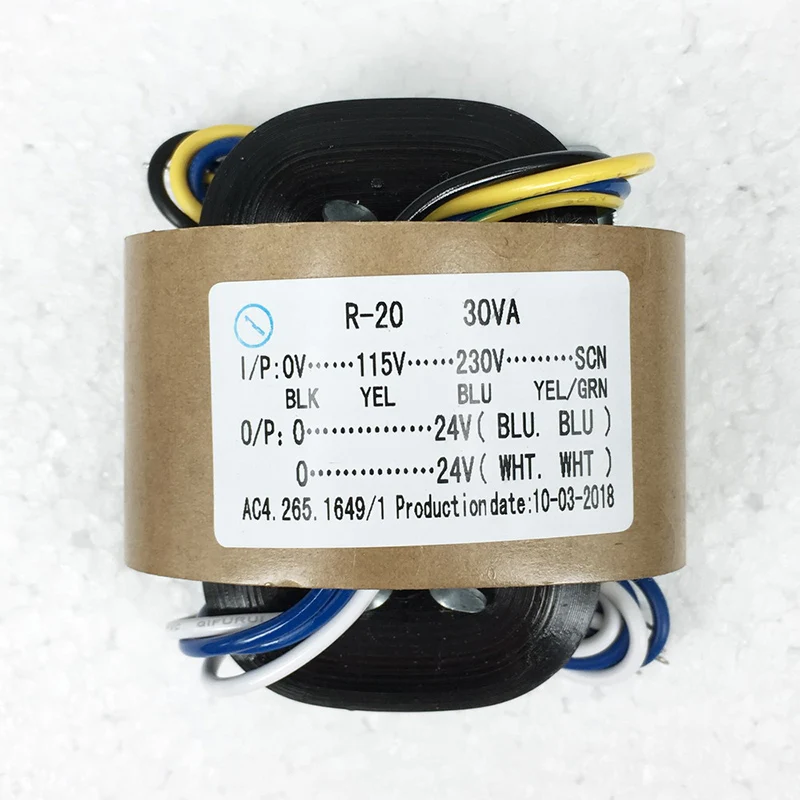

115 V – 230 V, 30 W, 35 W, 50 W, R-Core-Transformator, Dual-Ausgang für Röhrenverstärker, Vorverstärker, AMP-Decoder, DAC, CD-Player

Produktbeschreibung

Dual 220V Dual 6.3V
Size about: 83 × 73 × 43 (mm)
Weighs about 0.67 kg
Suitable for pre-tube use

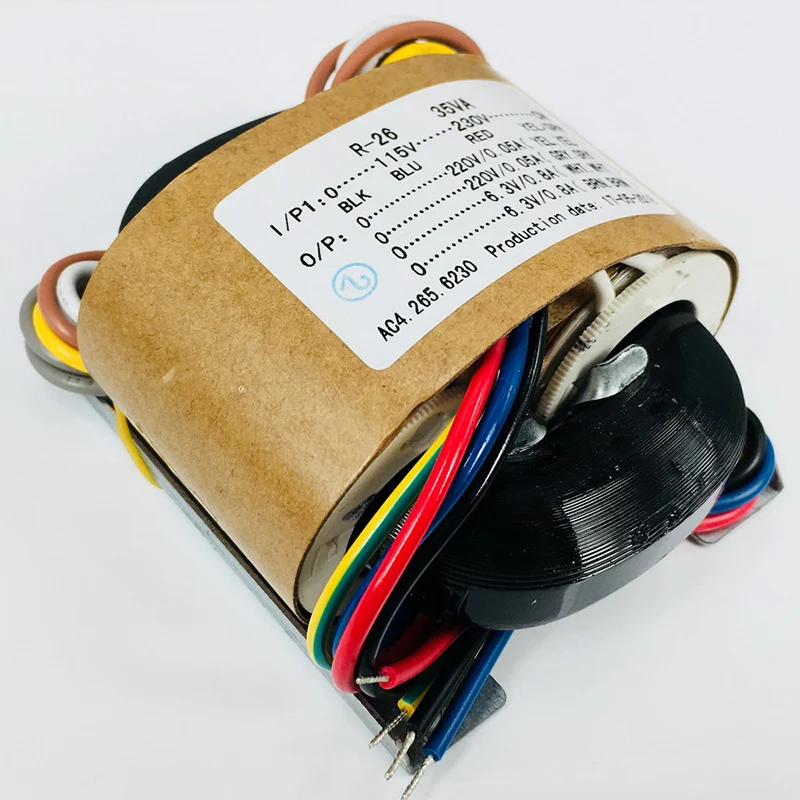

115-230V transformer R type (R-26 foot 35W) 220V × 2 + 6.3V × 2
R cattle power transformer
Primary: 0-115v-230V (3 lines)
Secondary: 0-220VX2 (0.05A 4 lines) +6.3VX2 (0.8A 4 lines)

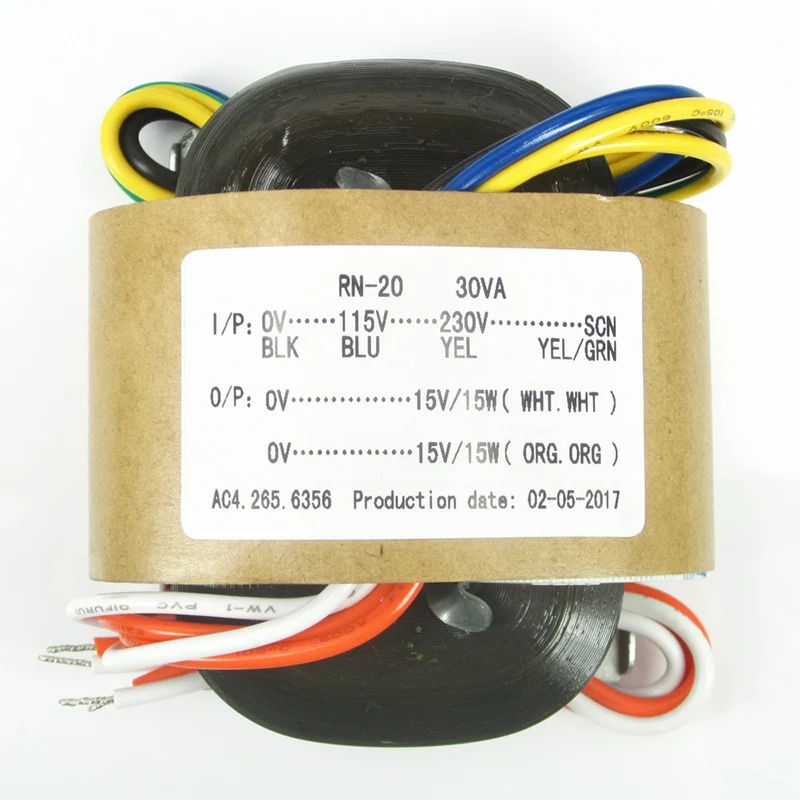

Dual 15V
Size: 79 × 68 × 40 (mm) weight about 0.5 kg
Independent output lines with shielded line output
Primary: 0V-115V-230V-shielded cable (total 4 wires)
Description: 220V wiring, black line 0V, yellow line 230V, blue line 115V package off, green and yellow two-color line is the ground line
Secondary: double 15V (1A) ie 0~15V (WHT white), 0~15V (ORG orange)
The two groups are 4 lines. If you want to use 3 lines, the double lines will be taken in the middle and the two different colors will be combined and 0V.

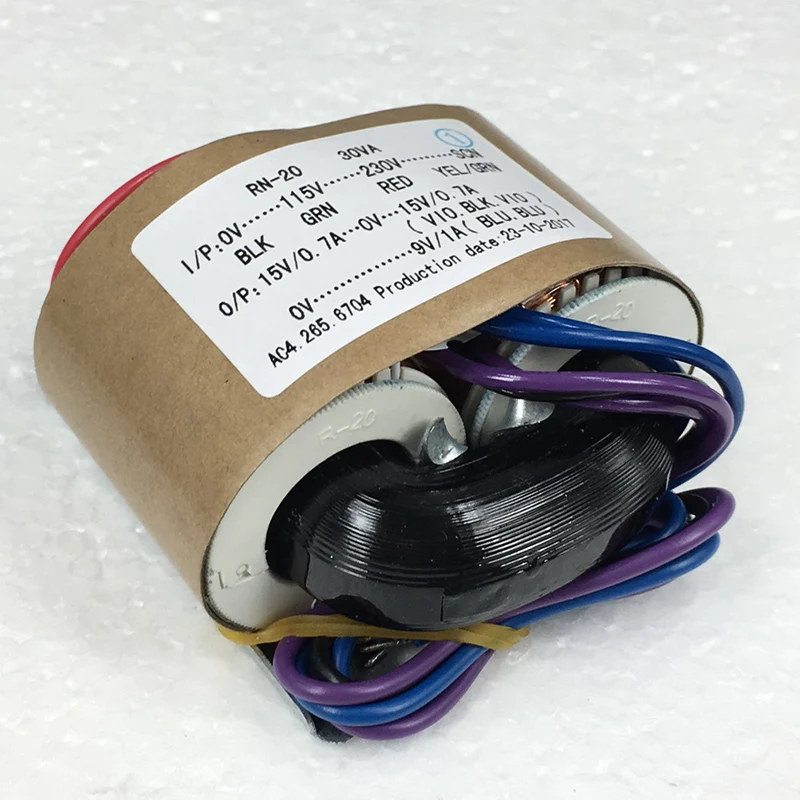

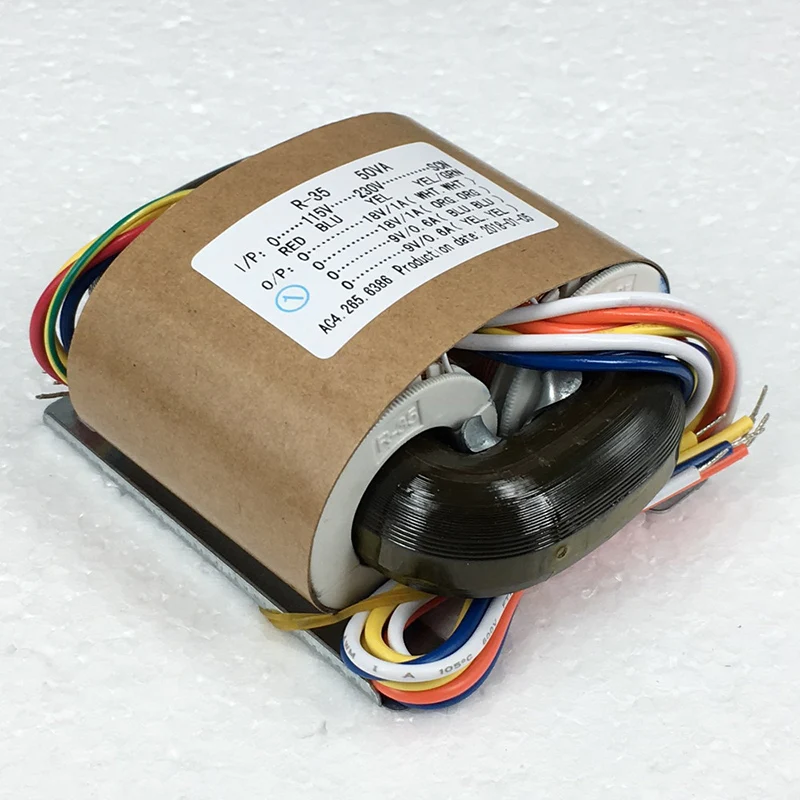

Dual 18V Dual 9V
Applicable: DAC, amp, preamp, small amplifier, CD player, etc.
Dimensions: length 96mm width 80mm height 45mm
Weight about: 1 kg
4 mounting screw holes for the base. The shaft hole pitch is about 60×70mm.
