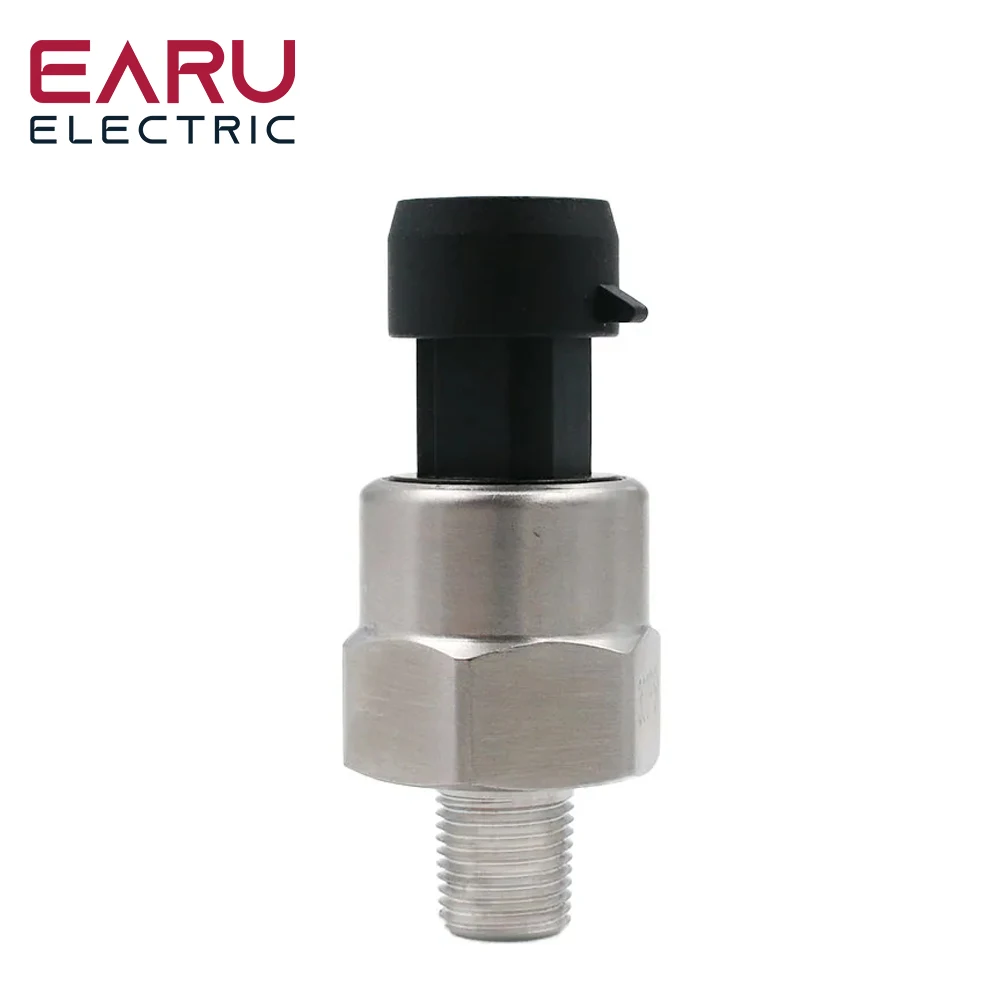

DC 5V 1/8NPT Druckwandler Sensor Edelstahl Öl Luft Wasser 30/100/150/200/300/500 PSI

Produktbeschreibung

Features
It's an advance pressure transducer than traditional mechanical pressure transducer.
±2%FS small output error, including nonlinear, hysteresis error and repeatability, full temperature range.
Light weight and small size, convenient to install and operate.
It has complete surge voltage protection function.
Works for oil, fuel, diesel, gas, water, air pressure, can be used in oil tank, gas tank, diesel tank etc.
Specifications
Material: Stainless steel
Voltage: DC 5V
Pressure: 30 psi, 100 psi, 150 psi, 200 psi, 300 psi, 500 psi (Optional)
Please leave a massege,tell me what type you want,or we will send by random.
Thread Type: 1/8" NPT
30 psi
Input: 0-30 psi
Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 15psi outputs 2.5V, 30 psi outputs 4.5V.
Accuracy: within 2% of reading (full scale).
Thread: 1/8"-27 NPT.

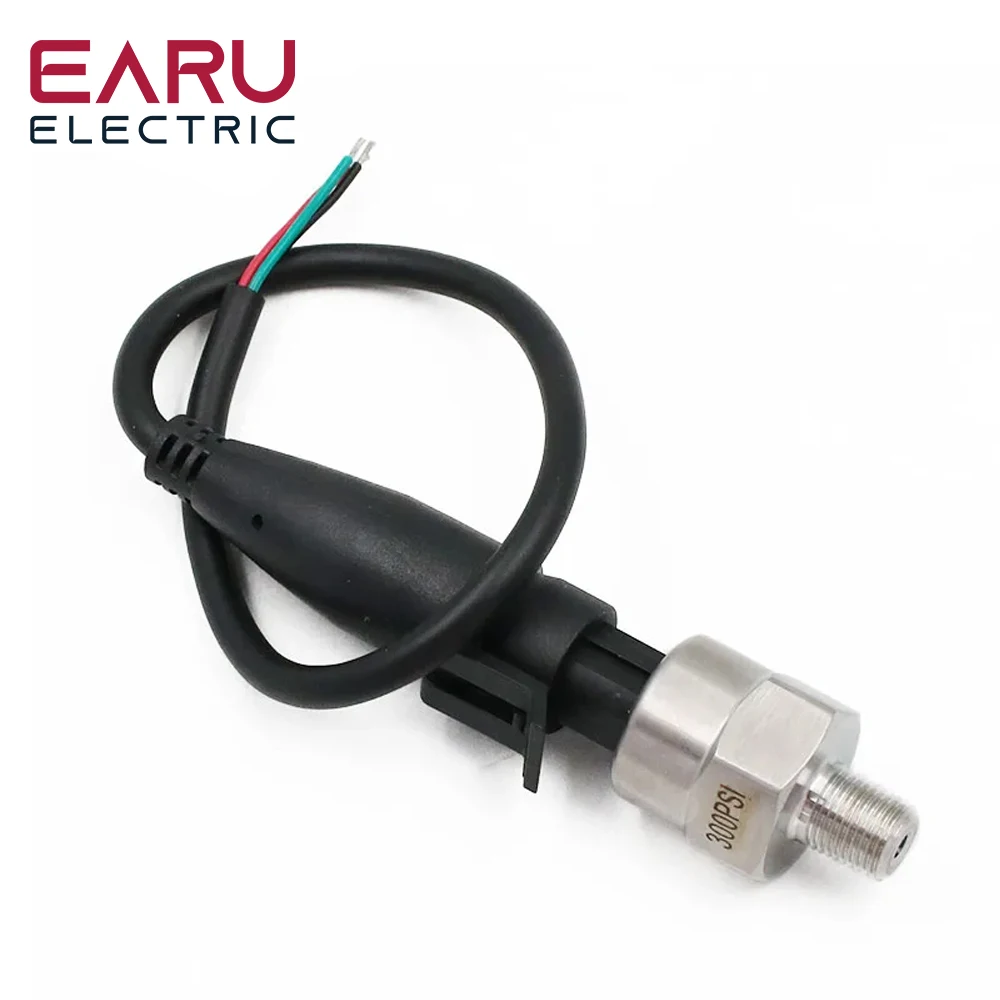

Wiring Connector: Water sealed quick disconnect. Mating connector is included.
Wiring: Red for +5V; Black for ground; Blue for signal output.
100 psi

Produktdetails in Bildern

Produkteigenschaften

Markenname

EARU

Batterie im Lieferumfang enthalten

no

Hochbetriebenes Chemikalienunternehmen

Keine

Halbfertigprodukt

Nein

Ursprung

CN (Herkunft)

Modellnummer

Pressure Transducer

Einheitstyp

Stück

Paketgewicht

0,041 kg (0,09 lb.)

Verpackungsgröße

10cm x 10cm x 10cm (3,94 Zoll x 3,94 Zoll x 3,94 Zoll)
